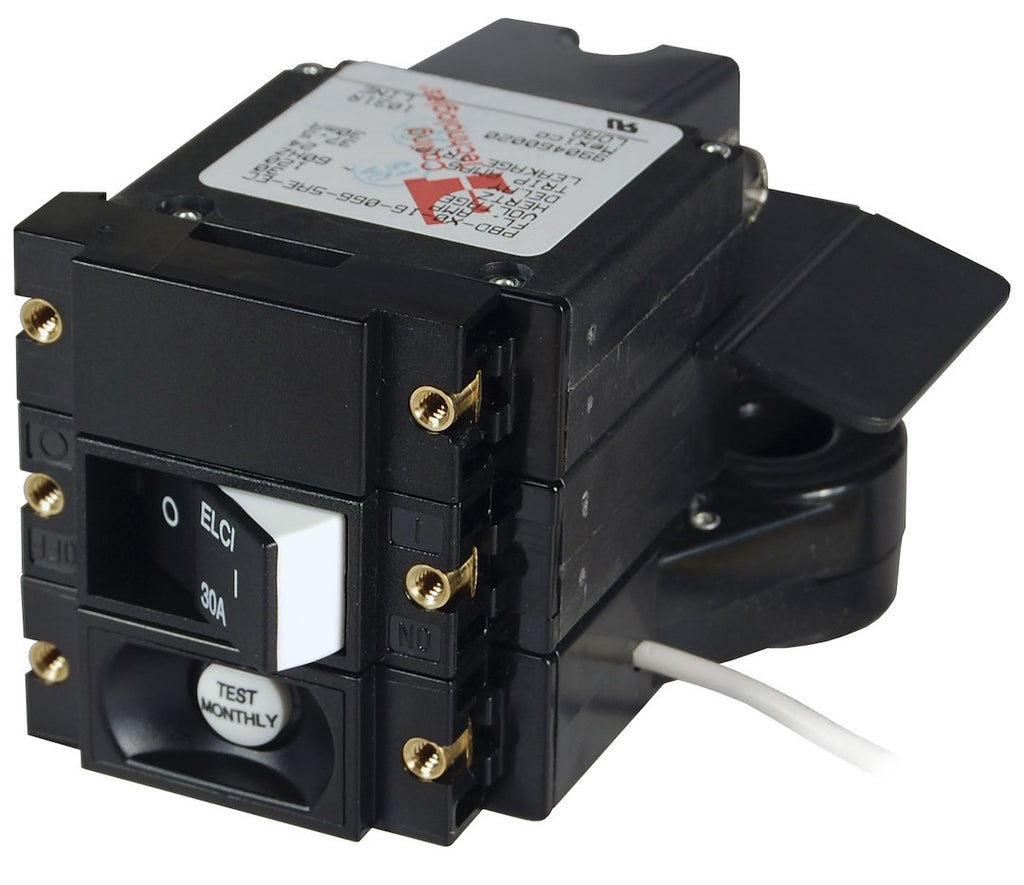

Blue Sea Circuit Breaker (MPN: 3102100-BSS)

Reliable protection for electrical systems with ELCI functionality.

The Blue Sea Circuit Breaker is designed to provide essential over current and leakage protection for electrical systems, particularly in marine applications. This device combines the functions of a circuit breaker and an Equipment Leakage Circuit Interrupter (ELCI), ensuring safety by tripping on short circuits, overloads, or ground leakage. With a 30 Amp rating and compatibility with 120/240 Volt AC systems, it meets stringent UL 1500 standards for external ignition protection, making it suitable for installation in power distribution panels.

Featuring a double pole magnetic hydraulic type design, this circuit breaker is equipped with a flat rocker actuator for manual reset. The screw terminal connection ensures a secure and reliable installation, while the compact size allows for easy integration into existing systems. The Blue Sea Circuit Breaker is an essential component for maintaining safe electrical operations in boats and other marine environments, providing peace of mind for users.

With an estimated installation time of just 0.25 hours, this circuit breaker is efficient and straightforward to install. It is a single unit, making it a practical choice for those looking to enhance their electrical safety measures without extensive modifications.

Features

• Provides Over Current And Leakage Protection Per ABYC E-11 For Whole Boat Shore Power Protection
• Trips On Short Circuit, Overload, Or Leakage To Ground
• Meets UL 1500 External Ignition Protection Requirements

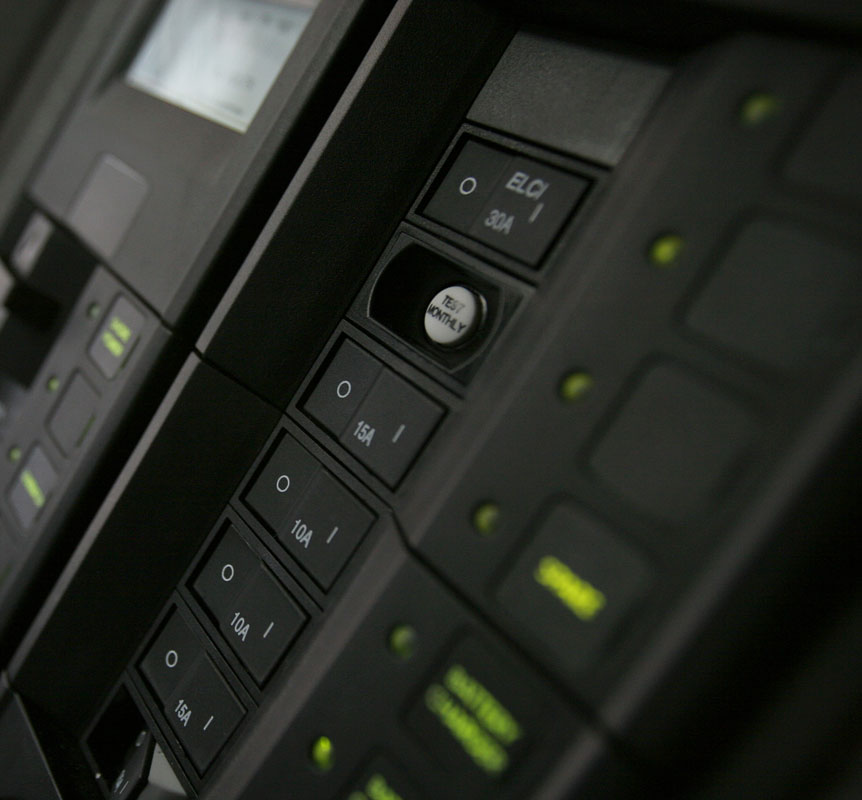

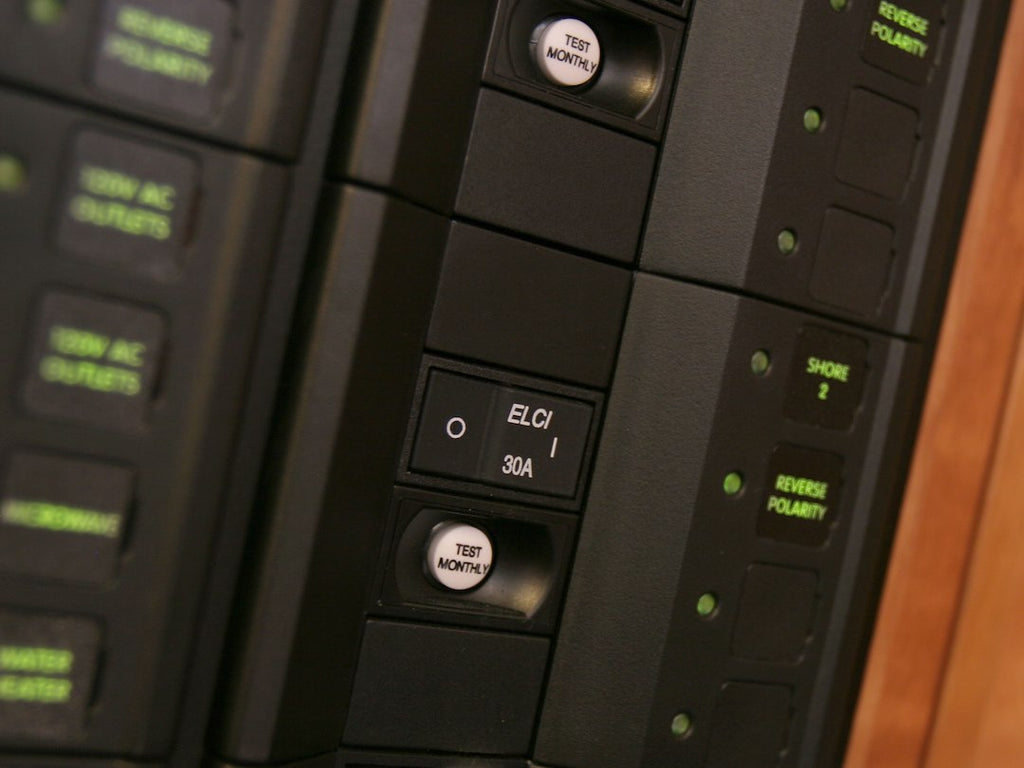

• For Installation In A Power Distribution Panel

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 3102100-BSS
• Ampere Rating: 30 Amp
• Voltage Rating: 120 Volt
• Reset Type: Manual
• Terminal Connection: Screw
• Type: Magnetic Hydraulic
• Number of Poles: 2
• Quantity: Single
• Estimated Install Time (Hours): 0.25
