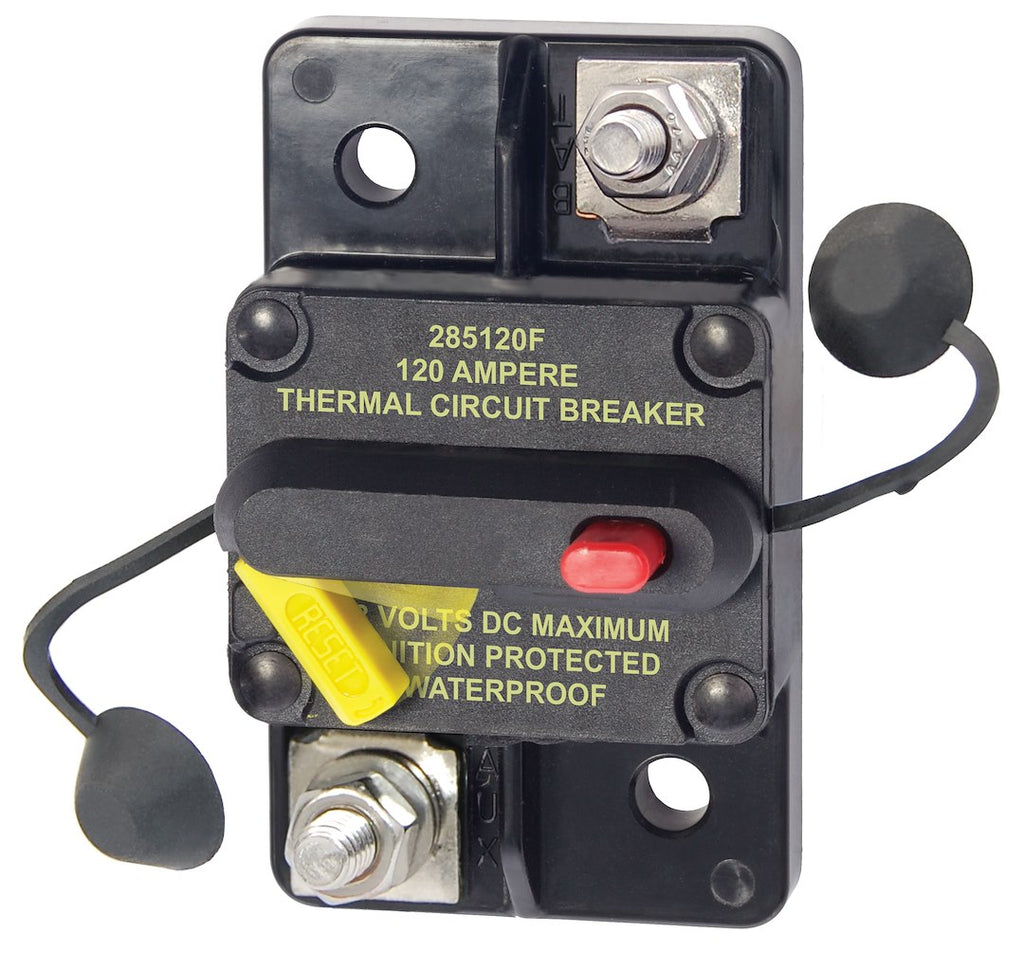

Blue Sea Circuit Breaker 285 Series (MPN: 7188-BSS)

Reliable protection for marine and vehicle electrical systems.

The Blue Sea Circuit Breaker 285 Series is designed to provide robust protection for electrical circuits in marine and vehicle applications. With a 120 Amp rating and a voltage capacity of 48 Volts DC, this circuit breaker serves as a drop-in replacement for the 185-Series, ensuring compatibility and ease of installation. Its thermal bi-metal blade design allows for effective circuit protection, while the manual reset feature ensures that the breaker can be easily reset after a trip.

This circuit breaker is engineered for durability, operating efficiently in temperatures ranging from -40 degrees Celsius to +85 degrees Celsius. The surface mount design and M6 stud terminal connection facilitate straightforward installation, making it suitable for various applications. Additionally, the visible yellow reset lever indicates an open condition, enhancing user awareness and safety.

Compliant with CE, IP67, and SAE J1171 standards, the Blue Sea Circuit Breaker 285 Series is built to withstand the rigors of marine environments. Its trip-free design ensures that the breaker cannot be held closed after a trip, providing an added layer of safety. This single unit is an essential component for maintaining the integrity of electrical systems in demanding conditions.

Features

• Bezel Mounting Allows Circuit Breaker Mounting In A 2-1/8 Round Hole
• Visible Yellow Reset Lever Shows Open Condition
• Trip Free Design Cannot Be Held Closed AIter Trip
• Easy To Install

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 7188-BSS
• Ampere Rating: 120 Amp
• Voltage Rating: 48 Volt
• Reset Type: Manual
• Terminal Connection: Stud
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25
