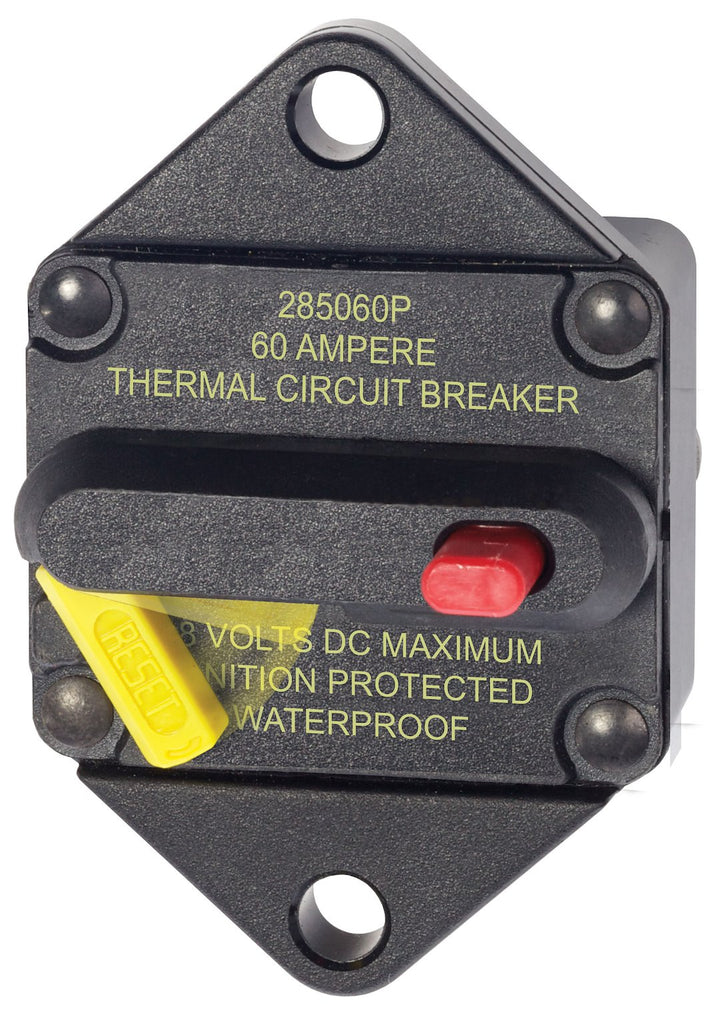

Blue Sea Circuit Breaker 285 Series (MPN: 7084-BSS)

Reliable circuit protection for marine and vehicle electrical systems.

The Blue Sea Circuit Breaker 285 Series is designed to provide reliable circuit protection for electrical systems in marine and vehicle applications. With a 60 Amp rating and a 48 Volt DC capacity, this thermal circuit breaker is suitable for medium duty loads ranging from 25 to 150 Amps. Its manual reset and switchable features ensure ease of use, while the visible reset lever indicates the open condition of the circuit.

This circuit breaker is engineered to meet stringent safety standards, including CE, IP67, and SAE J1171 marine compliance, making it safe for installation on gasoline-powered boats. The weather-resistant design ensures durability in harsh environments, and the trip-free mechanism prevents the breaker from being held closed after a trip, enhancing safety.

The Blue Sea Circuit Breaker 285 Series is a drop-in replacement for 185-Series circuit breakers, allowing for straightforward integration into existing electrical systems. Its thermal bi-metal blade operates effectively within a temperature range of 40 degrees Celsius to +85 degrees Celsius, ensuring reliable performance under various conditions.

Features

• Drop In Replacement For 185-Series Circuit Breakers
• Visible Reset Lever Shows Open Condition
• Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
• Meets SAE J1171 External Ignition Protection Requirements
• Weather Resistant
• Combines Switching And Circuit Breaker Function Into One Unit
• Trip Free - Cannot Be Held Closed After Trip

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 7084-BSS
• Ampere Rating: 60 Amp
• Voltage Rating: 48 Volt
• Reset Type: Manual And Switchable
• Terminal Connection: Stud
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25
