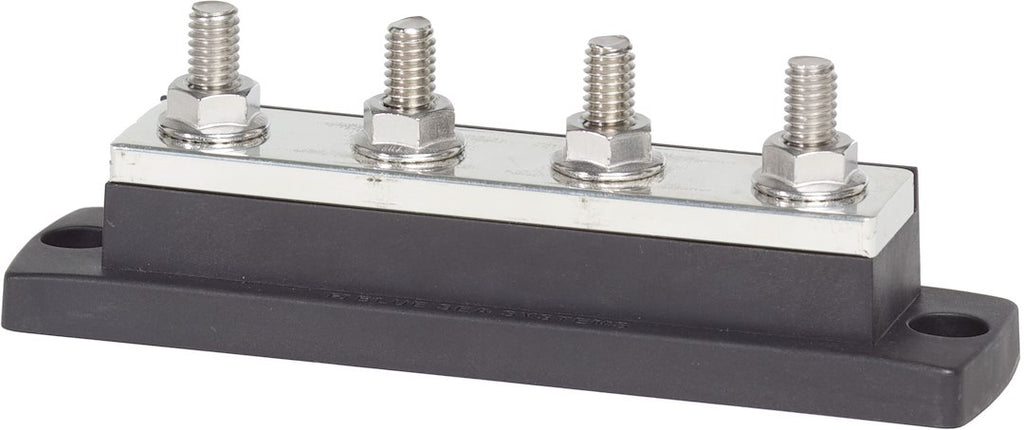

Blue Sea Busbar MaxiBus 4 Stud Terminal (MPN: 2127-BSS)

Efficiently consolidate circuits with high-performance busbar technology.

The Blue Sea Busbar MaxiBus 4 Stud Terminal is designed to streamline electrical connections in marine applications. This busbar allows for the consolidation of multiple wires, facilitating the distribution of power across various circuits. With a voltage rating of 300 Volts AC and 48 Volts DC, it supports a maximum current of 250 Amps, making it suitable for demanding electrical systems.

Constructed with a plastic base and tin-plated copper bus, this busbar features insert molded stainless steel studs that eliminate the need for securing nuts. This design enhances electrical contact and allows for high torqueing, ensuring reliable performance. The raised bus design provides easy access to multiple wires on a single stud, simplifying installation and maintenance.

The UL 94-V0 rated base material is engineered to resist high heat, contributing to the overall durability and safety of the electrical system. Additionally, recessed mounting holes prevent accidental shorts to aluminum and steel surfaces, further enhancing the reliability of the installation.

Features

• Insert Molded Stainless Steel Studs Eliminate Need For Securing Nut And Allow High Torqueing For Excellent Electrical Contact
• Raised Bus Provides Easy Access To Multiple Wires On A Single Stud
• UL 94-V0 Rated Base Material Resists High Heat
• Recessed Mounting Holes Eliminate Accidental Shorts To Aluminum And Steel Mounting Surfaces

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 2127-BSS
• Type: Flat Strip
• Number Of Terminals: 4
• Voltage Rating: 300 Volt/ 48 Volt
• Ampere: 250 Amp
• Length (IN): 5-7/8 Inch
• Width (IN): 1-1/2 Inch
• Material: Plastic Base With Tin-Plated Copper Bus
• With Insulated Cover: No

Technical Documents

• 2127.pdf
