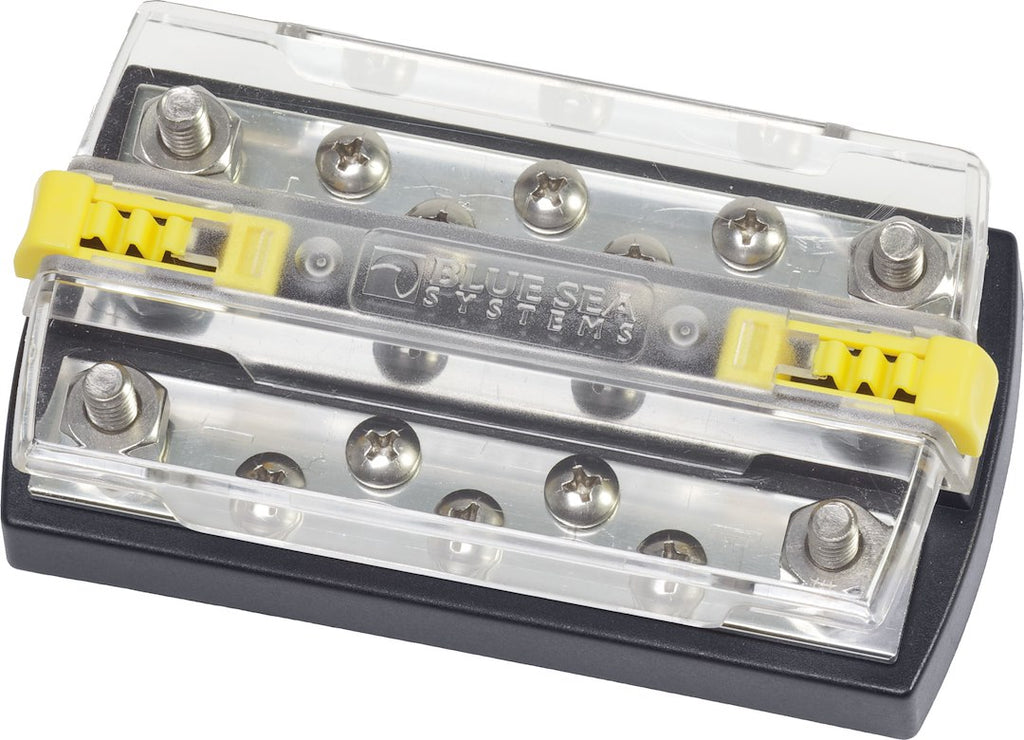

Blue Sea Busbar DualBus Terminal Block (MPN: 2723-BSS)

High-performance busbar with reinforced polycarbonate and copper construction.

The Blue Sea Busbar DualBus Terminal Block is engineered for robust electrical connections in marine applications. This terminal block features a reinforced polycarbonate base combined with tin-plated copper bus, ensuring maximum durability and long life. Designed to accommodate both negative and positive buses on a single block, it simplifies wiring and enhances system efficiency.

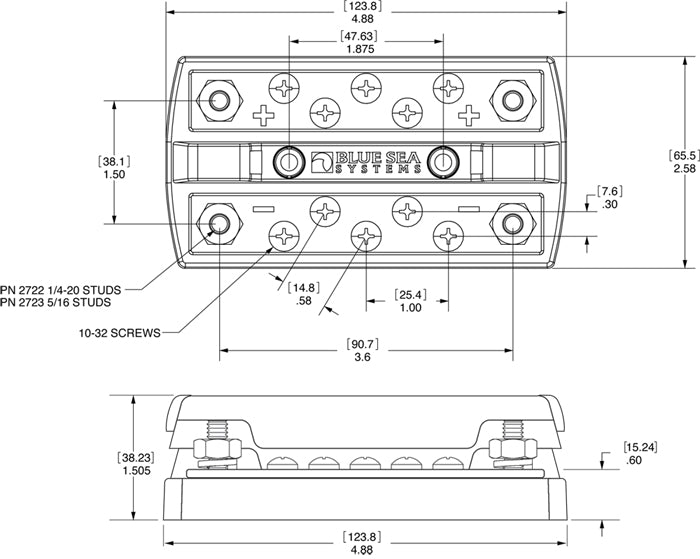

With a voltage rating of 300 volts AC and 48 volts DC, this busbar supports a current capacity of 130 amps AC and 150 amps DC. The clear polycarbonate cover snaps securely into place, meeting Coast Guard and ABYC insulation requirements for safety and compliance. Its compact dimensions of 4-7/8 inches in length and 2.58 inches in width make it suitable for various installation environments, providing flexibility in design and application.

Blue Sea Systems is recognized for its commitment to quality and rapid order fulfillment, ranking among the top marine manufacturers. This busbar is part of a comprehensive range of over 1,000 electrical products designed to work seamlessly together, ensuring reliable performance in demanding conditions.

Features

• Reinforced Polycarbonate Base With Tin-Plated Copper Bus
• Combines Negative And Positive Buses On One Block
• Clear Polycarbonate Cover Snaps On To Meet Coast Guard And ABYC Insulation Requirements
• Provides Maximum Durability And Long Life

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 2723-BSS
• Type: Flat Strip
• Number Of Terminals: 10 Stud/ 4 Screw
• Voltage Rating: 300 Volt/ 48 Volt
• Ampere: 130 Amp/ 150 Amp
• Length (IN): 4-7/8 Inch
• Width (IN): 2.58 Inch
• Material: Reinforced Polycarbonate Base With Tin-Plated Copper Bus
• With Insulated Cover: Yes
