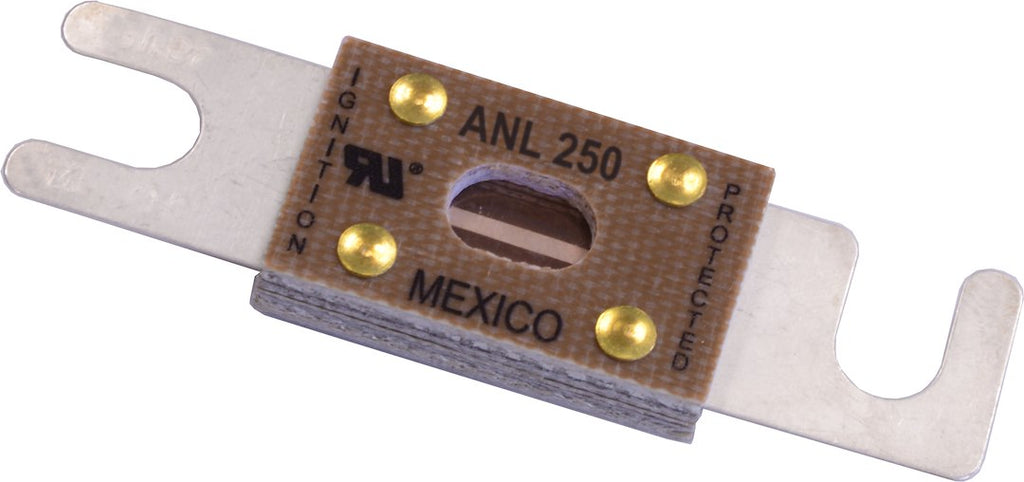

Blue Sea Bolt-On Fuse (MPN: 5131-BSS)

Reliable 250 Amp ANL Fuse for Marine and Vehicle Applications

The Blue Sea Bolt-On Fuse is engineered for high-performance electrical systems in marine and specialized vehicles. With a robust 250 Amp rating and a voltage capacity of 32 Volts DC, this fuse is designed to meet the rigorous demands of large battery banks while ensuring safety and reliability. The fuse features silver-plated connector blades that provide excellent corrosion resistance, enhancing durability in harsh environments.

This fuse includes a visible indication of blown condition, allowing for quick identification and replacement. It boasts a 6,000 Ampere Interrupt Capacity (AIC), satisfying ABYC requirements for main DC circuit protection. The ignition-protected design conforms to SAE J1171 standards, making it safe for installation aboard gasoline-powered boats.

Additionally, the clear insulating cover meets ABYC and USCG requirements, ensuring compliance with safety regulations. The large heat dissipating tin-plated copper mounting blocks further enhance the fuse's performance, making it a reliable choice for critical electrical applications.

Features

• Silver-Plated Connector Blades For Corrosion Resistance
• Visible Indication Of Blown Condition
• 6,000 Ampere Interrupt Capacity (AIC) Satisfies ABYC Requirements For Main DC Circuit Protection On Large Battery Banks
• For Use With Blue Sea Systems' ANL Fuse Blocks
• Ignition Protected (Conforming To SAE J1171)- Safe For Installation Aboard Gasoline Powered Boats (35 To 500 Amp Only)
• Clear Insulating Cover, Satisfies ABYC/USCG Requirements
• Large Heat Dissipating Tin-Plated Copper Mounting Blocks

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 5131-BSS
• Type: Bolt-On
• Industry Classification: ANL
• Ampere Rating (A): 250 Amp
• Quantity: Single
• Slow Blow: No

Technical Documents

• ANL_Fuse.pdf
