Automatically disconnects devices to preserve battery life and prevent dead batteries.

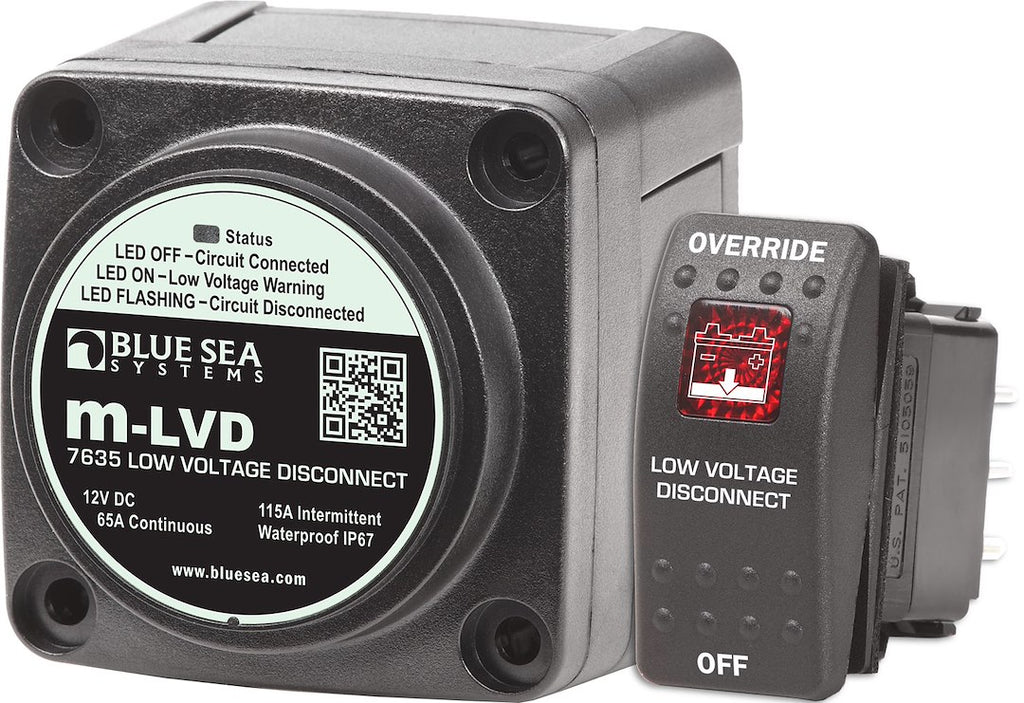

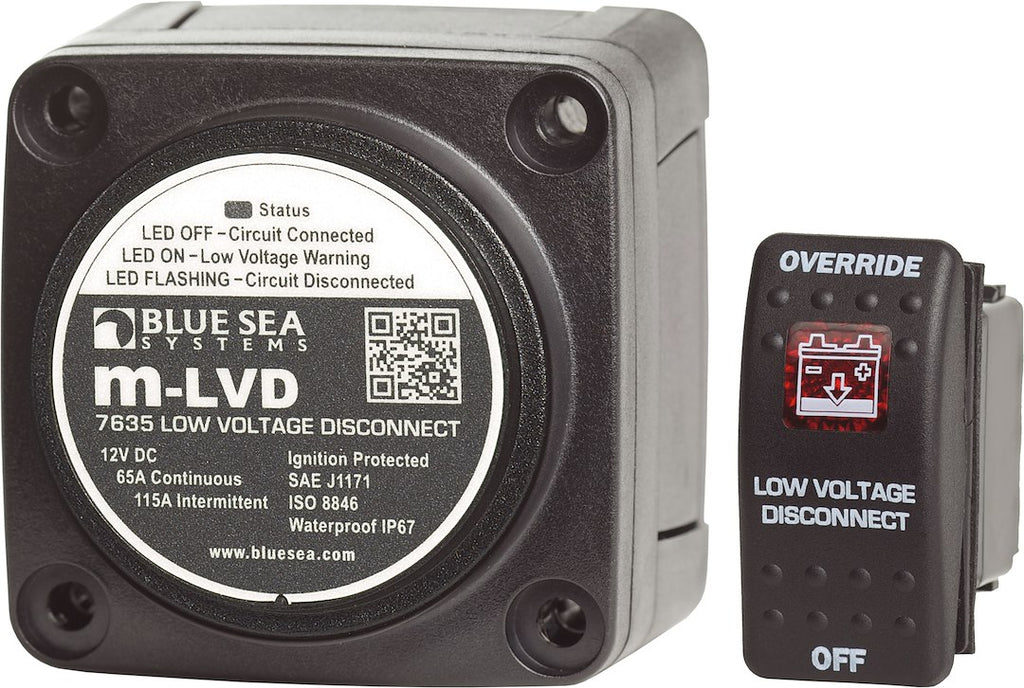

The Blue Sea Battery Voltage Sensing Relay is designed to monitor battery voltage levels and automatically disconnect non-essential devices when voltage drops to a critical level. This functionality helps to conserve power for starting and extends the overall life of the battery, reducing the risk of being stranded due to a dead battery. The relay operates at 12 volts DC and supports a continuous current of 65 amps, with an intermittent rating of 115 amps, making it suitable for various applications in boats and vehicles.
This relay features a status light that provides a visual warning of low voltage conditions, ensuring users are alerted before disconnection occurs. The included remote control switch enhances usability, allowing for easy operation from a distance. Its versatile case design supports multiple mounting options, including surface, front panel, or rear panel installation, while the rear insulating cover protects the contacts from damage.
With an IP67 waterproof rating, the Blue Sea Battery Voltage Sensing Relay is built to withstand temporary immersion, making it a reliable choice for marine and automotive environments. Its compact dimensions of 2.85 inches in length and width, and 2.57 inches in height, allow for easy integration into tight spaces.
Features
- Status Light In Both M-LVD And Remote Control Switch Provides Visual Warning Of Low Voltage State Prior To Disconnect
- Remote Control Switch Functions

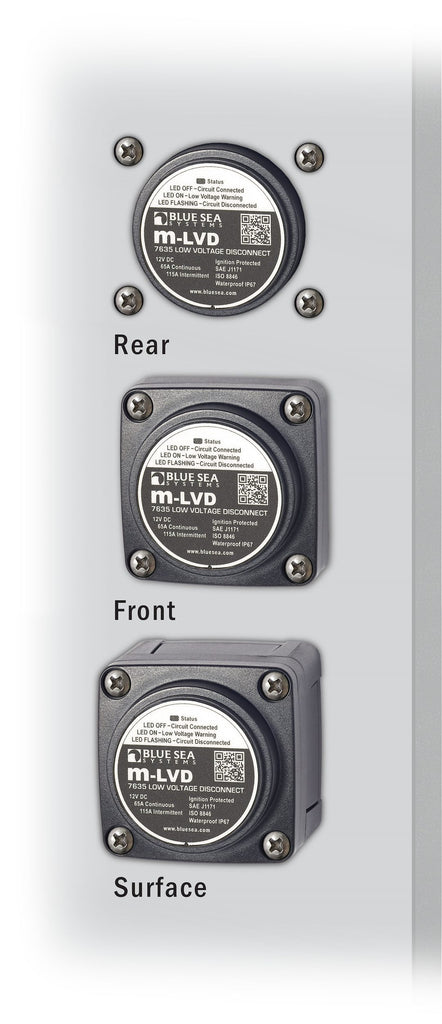

- Case Design Allows Surface, Front Panel, Or Rear Panel Mounting
- Rear Insulating Cover Protects Rear Contacts
- Waterproof – Rated IP67 For Temporary Immersion
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 7635-BSS
- Function: Senses Low Battery Voltage And Disconnects Devices To Save Power For Starting/ Preserve Battery Life
- Operating Voltage: 12 Volt
- Ampere Rating: 65 Amp Continuous/ 115 Amp Intermittent
- Length (IN): 2.85 Inch
- Width (IN): 2.85 Inch
- Height (IN): 2.57 Inch
- Mounting Type: Surface/ Panel Mount
