Efficiently manages dual battery systems for optimal performance and protection.

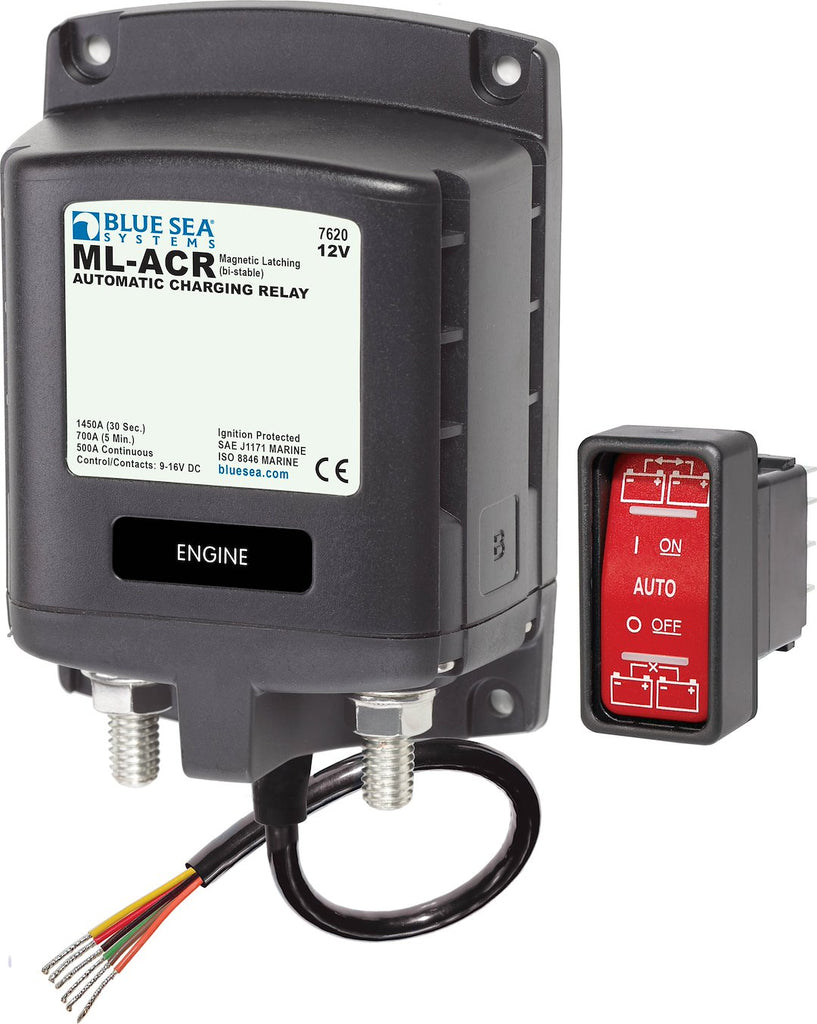

The Blue Sea Battery Voltage Sensing Relay is designed to automatically manage the charging and discharging of two large battery banks. This relay features a magnetic latching mechanism that allows for low current draw in both the ON and OFF states, ensuring energy efficiency. With a continuous rating of 500 amperes, it supports high-output alternators, making it suitable for demanding applications.
This relay provides dual sensing capabilities, allowing it to monitor the charge on both battery banks simultaneously. It can be configured for start isolation, protecting sensitive electronics during engine cranking, and engine isolation, which maximizes alternator output while safeguarding engine electronics. The LED output indicator offers clear visibility of the relay's status, including when batteries are combined or isolated.
Constructed with tin-plated copper studs for enhanced conductivity and corrosion resistance, the relay also features silver alloy contacts for reliable switching of live loads. This robust design ensures longevity and performance in various marine and automotive applications.
Features
- Automatically Manages The Charging Of Two Large Battery Banks
- Allows Paralleling Of Battery Banks For Emergency Starting
- 500 Ampere Continuous Rating To Support High-Output Alternators
- Magnetic Latch (ML) - ACR Draws Very Low Current In The "ON" Or "OFF" States, And Draws Moderate Current For Very Short Time When Changing State
- Dual Sensing- Senses Charge On Both Battery Banks
- Start Isolation (SI)- Can Be Configured For Temporary Isolation Of House Loads From Engine Circuit During Engine Cranking To Protect Sensitive Electronics
- Engine Isolation (EI)- Can Be Configured For Isolation Of Two Engines While Both Are Running To Protect Engine Electronics And Maximize Alternator Output Senses Charging On Two Battery Banks
- LED Output To Remotely Indicate When Batteries Are Combined, Isolated, In Voltage Lockout, Or In Start Or Engine Isolation
- Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance/Silver Alloy Contacts Provide High Reliability For Switching Live Load
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 7620-BSS
- Function: Combines Batteries During Charging And Isolates Batteries When Discharging And When Starting Engines
- Operating Voltage: 12 Volt
- Ampere Rating: 120 Amp Continuous/ 210 Amp Intermittent

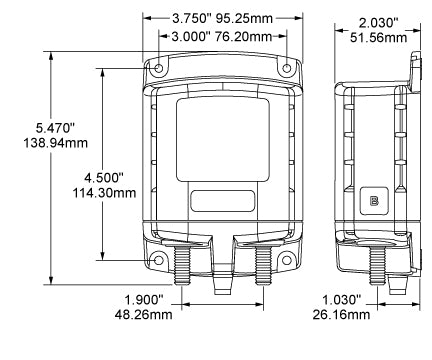

- Length (IN): 5.47 Inch
- Width (IN): 3-3/4 Inch
- Height (IN): 2.03 Inch
- Mounting Type: Surface/ Panel Mount
