Efficiently manages dual battery charging for extended auxiliary use.

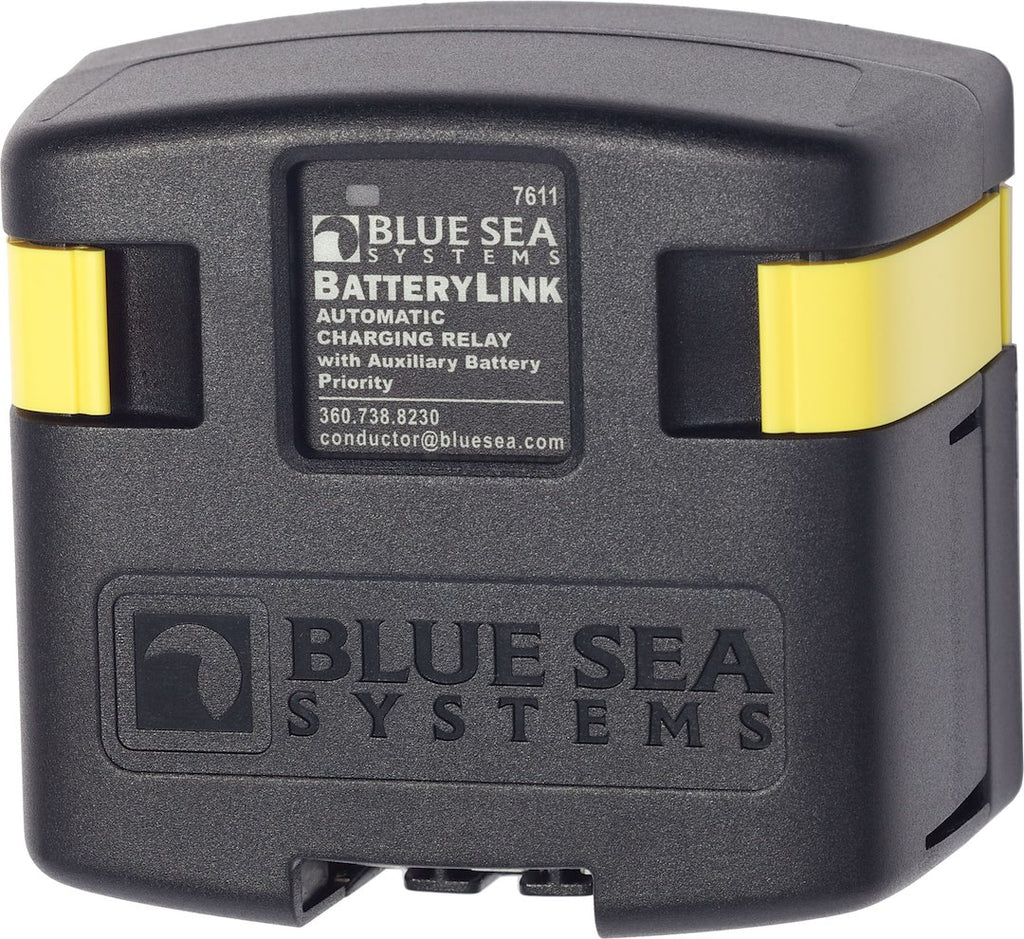

The Blue Sea Battery Voltage Sensing Relay is designed to automatically share a single source of charge between two battery banks, ensuring efficient power management. Operating at 12/24 volts DC, this relay supports a continuous rating of 120 amps and can handle intermittent loads up to 210 amps. It features a clip-on cover that insulates terminal connections, enhancing safety and reliability in various applications.
This relay includes side and bottom knockouts for easy cable connections, accommodating 1/0 AWG cable size. The integrated LED indicator provides a clear visual status of the Automatic Charging Relay (ACR), while the male quick connect terminals facilitate ground and optional features. The design allows for a maximum battery bank size of Group 27, making it suitable for a range of marine and automotive applications.
With its robust construction and thoughtful features, the Blue Sea Battery Voltage Sensing Relay is an essential component for users looking to optimize their battery management systems. Its ability to sense charging on two battery banks ensures that auxiliary loads can be utilized for extended periods, enhancing the overall functionality of the electrical system.
Features
- 120 Ampere Continuous Rating
- Senses Charging On Two Battery Banks
- Side And Bottom Knockouts For Cable Connections

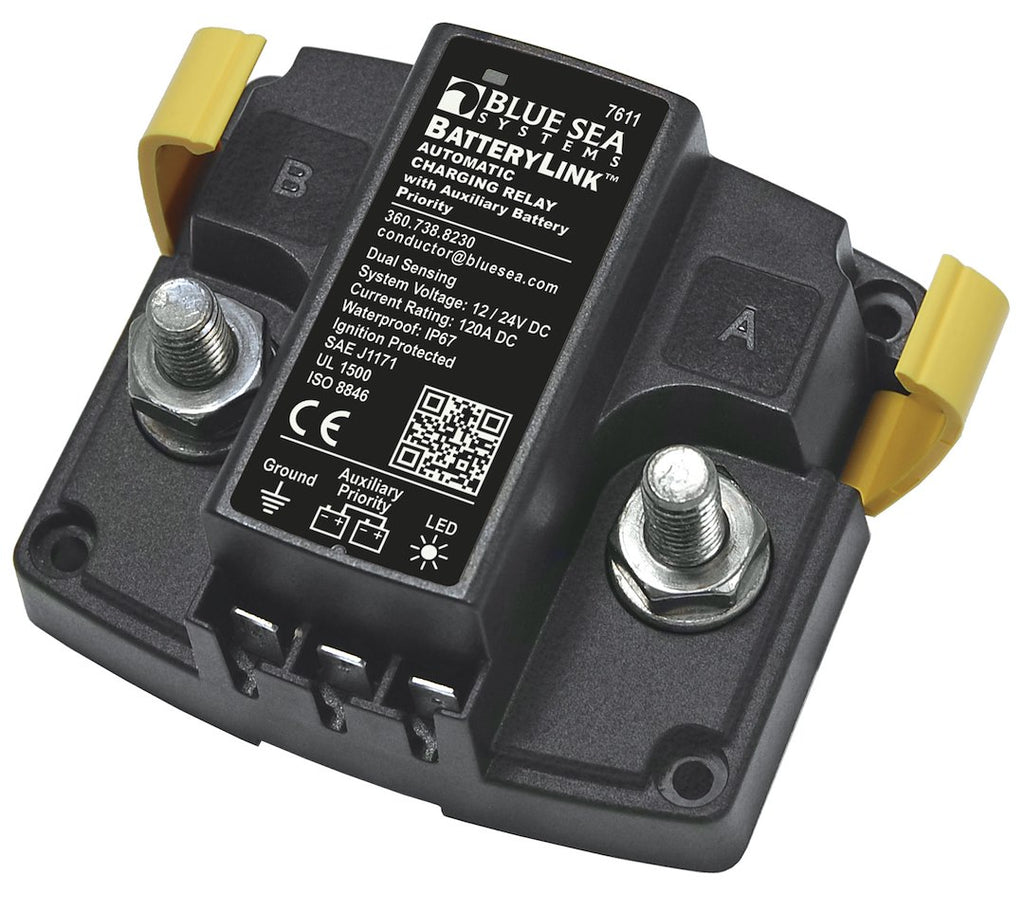

- Clip-On Cover Insulates Terminal Connections
- 7/8 Inch Stud Length To Accept Multiple Cable Terminals

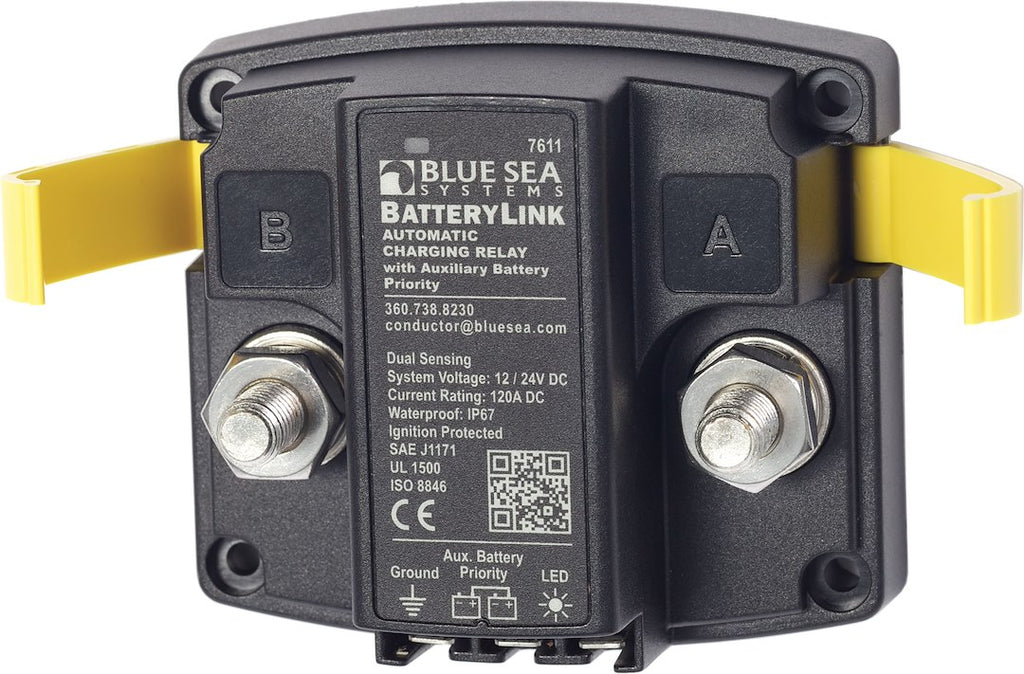

- Integrated LED Indicates ACR Status
- Male Quick Connect Terminals For Ground And Optional Features
- Largest Battery Bank Cannot Exceed Group 27
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 7611-BSS
- Function: Automatically Shares Single Source Of Charge With Auxiliary Battery
- Operating Voltage: 12/ 24 Volt
- Ampere Rating: 175 Milliampere

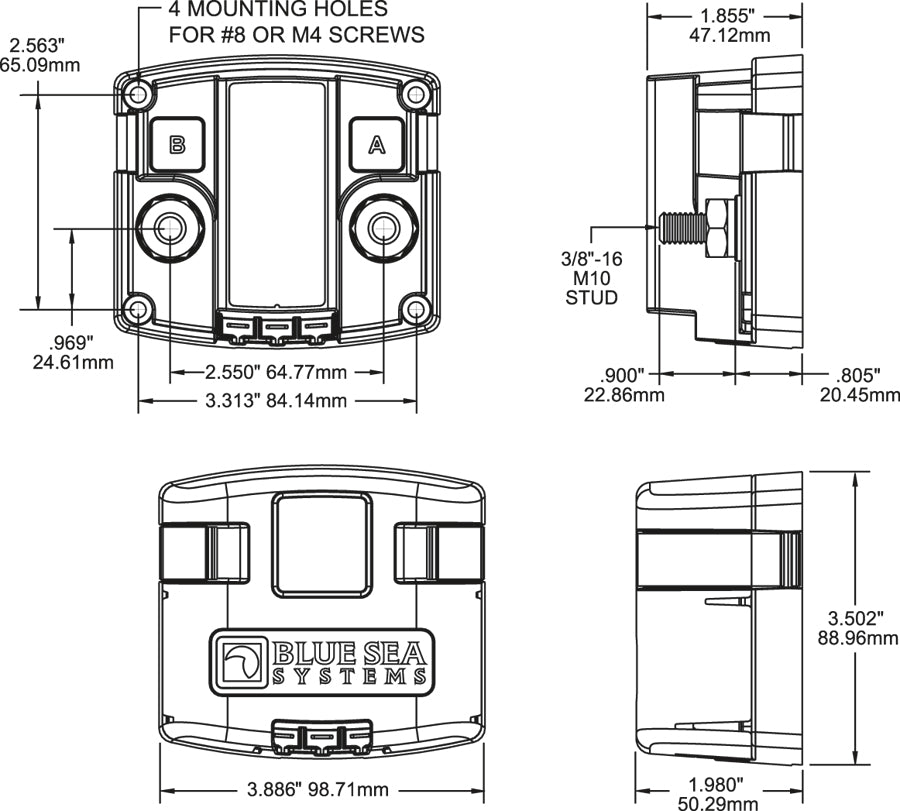

- Length (IN): 3-1/2 Inch
- Width (IN): 3.88 Inch
- Height (IN): 1.98 Inch
- Mounting Type: Panel
