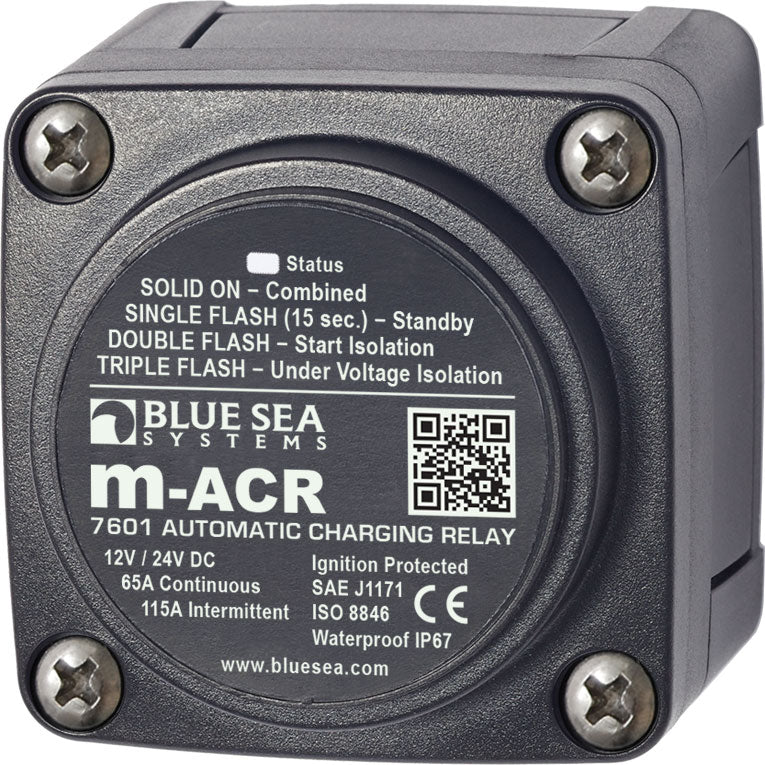

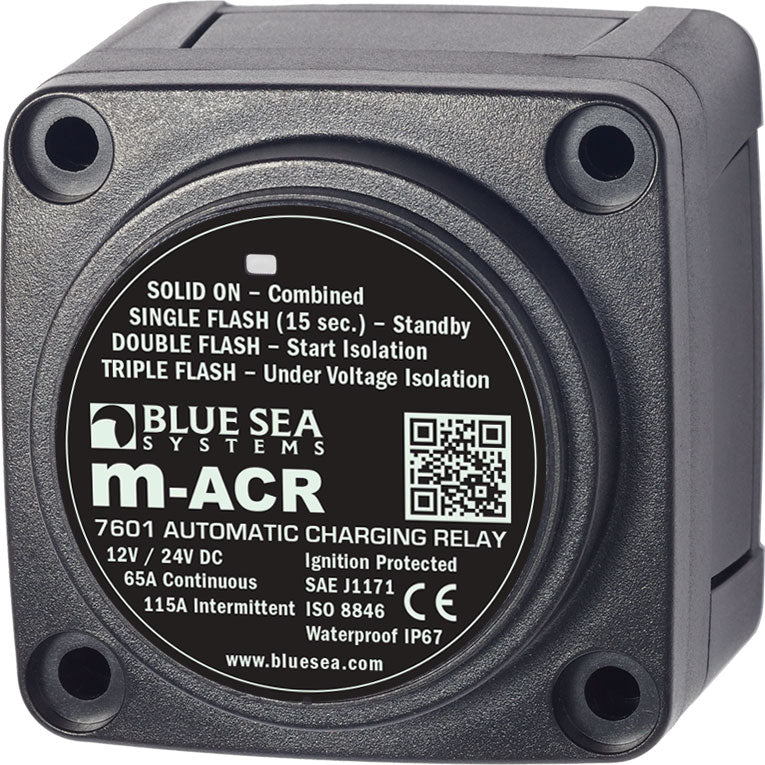

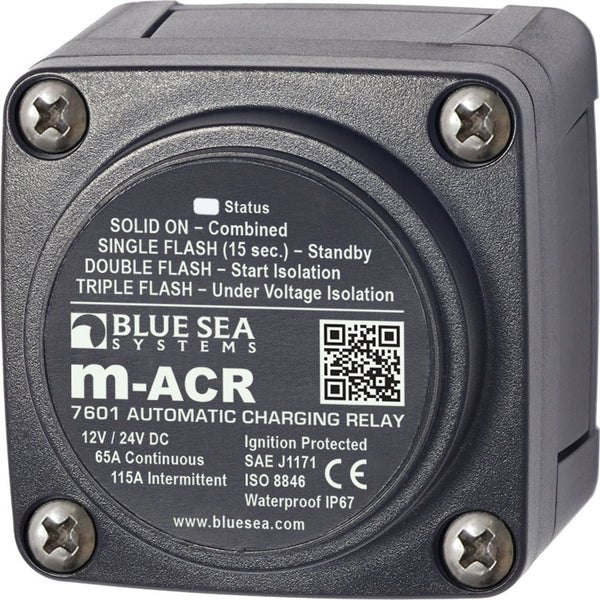

Blue Sea Battery Voltage Sensing Relay (MPN: 7601-BSS)

Efficiently manages charging current for dual battery systems.

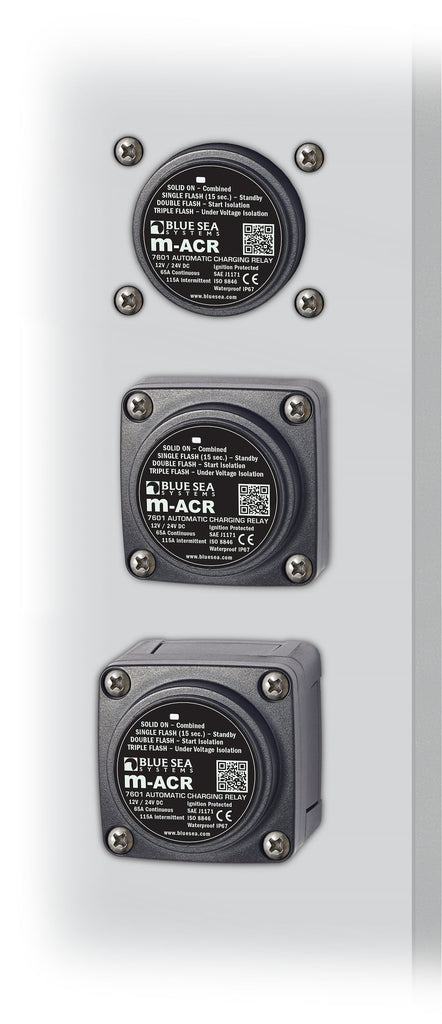

The Blue Sea Battery Voltage Sensing Relay is engineered to effectively manage the charging current from alternators up to 65 Amps, commonly found in outboard and inboard engines. This relay features a Start Isolation function that safeguards sensitive electronics by temporarily disconnecting house loads from the engine circuit during cranking, thus preventing voltage sags and spikes that could damage equipment. Its compact design supports versatile mounting options including surface, rear, or panel mount, making it adaptable to various installation needs.

This relay is equipped with a waterproof rating of IP67, ensuring reliable performance even in challenging marine environments. The LED indicator provides clear status updates on the ACR operation, enhancing user awareness. Additionally, the relay includes a pull-off and snap-on insulating cover for added safety and ease of use. With a 1/4 inch by .032 inch male quick connect terminal for ground and a stud length of 7/16 inch, it accommodates multiple cable terminals, making it a practical choice for managing dual battery systems.

Features

• Senses Charging On Two Battery Banks
• Pull Off And Snap On Insulating Cover
• LED Indicates ACR Status
• 1 /4 Inch X .032 Inch Male Quick Connect Terminal For Ground
• 7/16 Inch Stud Length To Accept Multiple Cable Terminals
• Waterproof – Rated IP67 For Temporary Immersion

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 7601-BSS
• Function: Manages The Charging Current From Alternators Up To 65 Amps Found On Most Outboard/ Inboard Engines
• Operating Voltage: 12/ 24 Volt
• Ampere Rating: 65 Amp Continuous/ 115 Amp Intermittent
• Length (IN): 2.85 Inch
• Width (IN): 2.85 Inch
• Height (IN): 2.57 Inch
• Mounting Type: Surface/ Panel Mount

Technical Documents

• 980014350.pdf
• 7601.pdf
• 980014350.pdf
