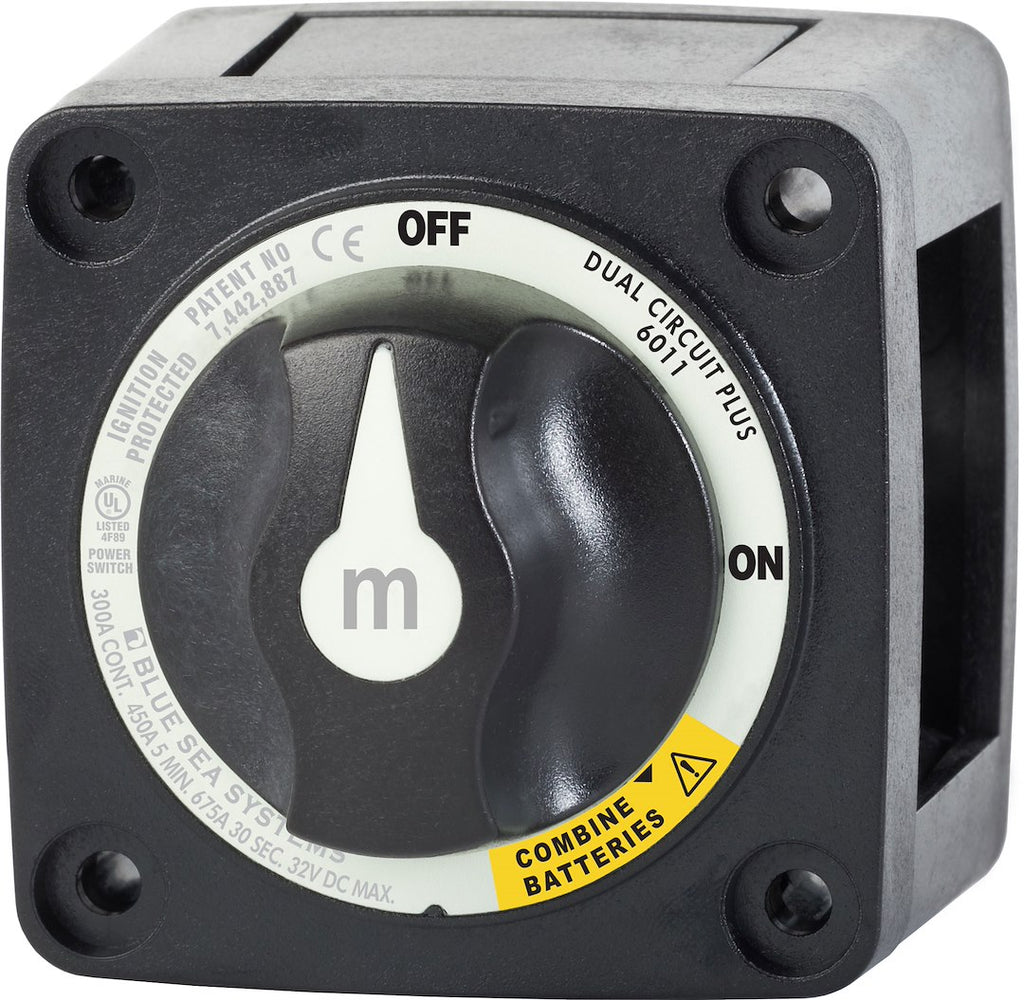

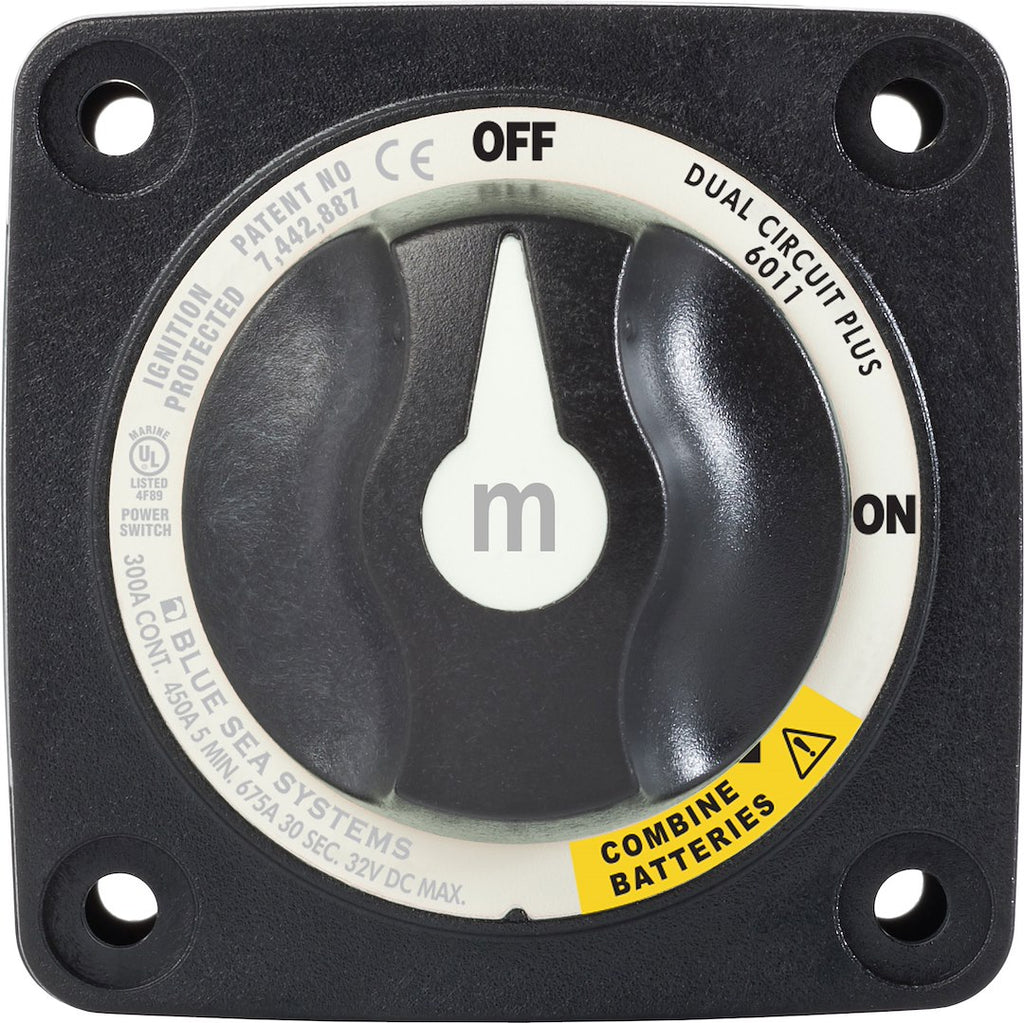

Blue Sea Battery Selector Switch M Series (MPN: 6011200-BSS)

Efficiently manage two isolated battery banks with advanced features.

The Blue Sea Battery Selector Switch M Series is designed for use in marine applications, allowing users to simultaneously switch between two isolated battery banks or combine them for all loads. This 3-position switch supports up to 32 volts DC and features a robust 450 amp intermittent rating and a 300 amp continuous rating, ensuring reliable performance under demanding conditions. The switch is engineered without an alternator field disconnect, making it suitable for various small boats and vehicles where battery access is convenient for the operator.

Constructed with tin-plated copper studs, the switch maximizes conductivity and corrosion resistance, enhancing its longevity and reliability. The one-piece terminal stud design prevents loosening over time, while the stainless flange nut ensures secure connections. An isolating cover protects the rear contacts, and breakout tabs allow for flexible wire access in any direction, simplifying installation and maintenance. This switch is a critical component for effective battery management in marine environments.

Features

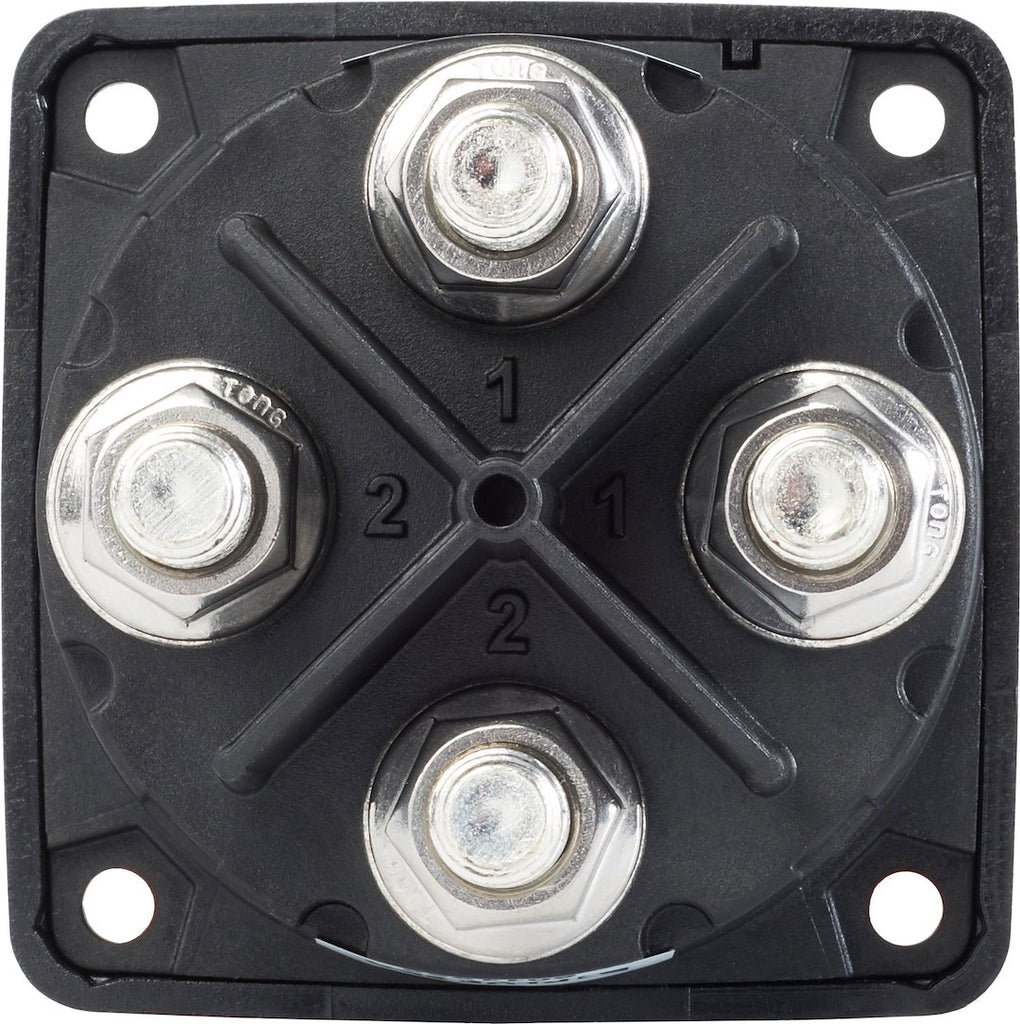

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Isolating Cover Protects Rear Contacts
• Breakout Tabs Allow Wire Access In Any Direction

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 6011200-BSS
• Used To: Simultaneously Switch Two Isolated Battery Banks/ To Combines Battery Banks To All Load
• Number Of Position: 3
• Battery Input: 2 Batteries
• Voltage Rating: 32 Volt
• Ampere Rating: 450 Amp Intermittent Rating And 300 Amp Continuous Rating
• Color: Black
• With Alternator Field Disconnect: No
• With Ignition Protection: No

Technical Documents

• 6011_web_version.pdf
• 6011_web_version.pdf
• M_Switch_Knob.pdf
• M_Switch_Knob.pdf
