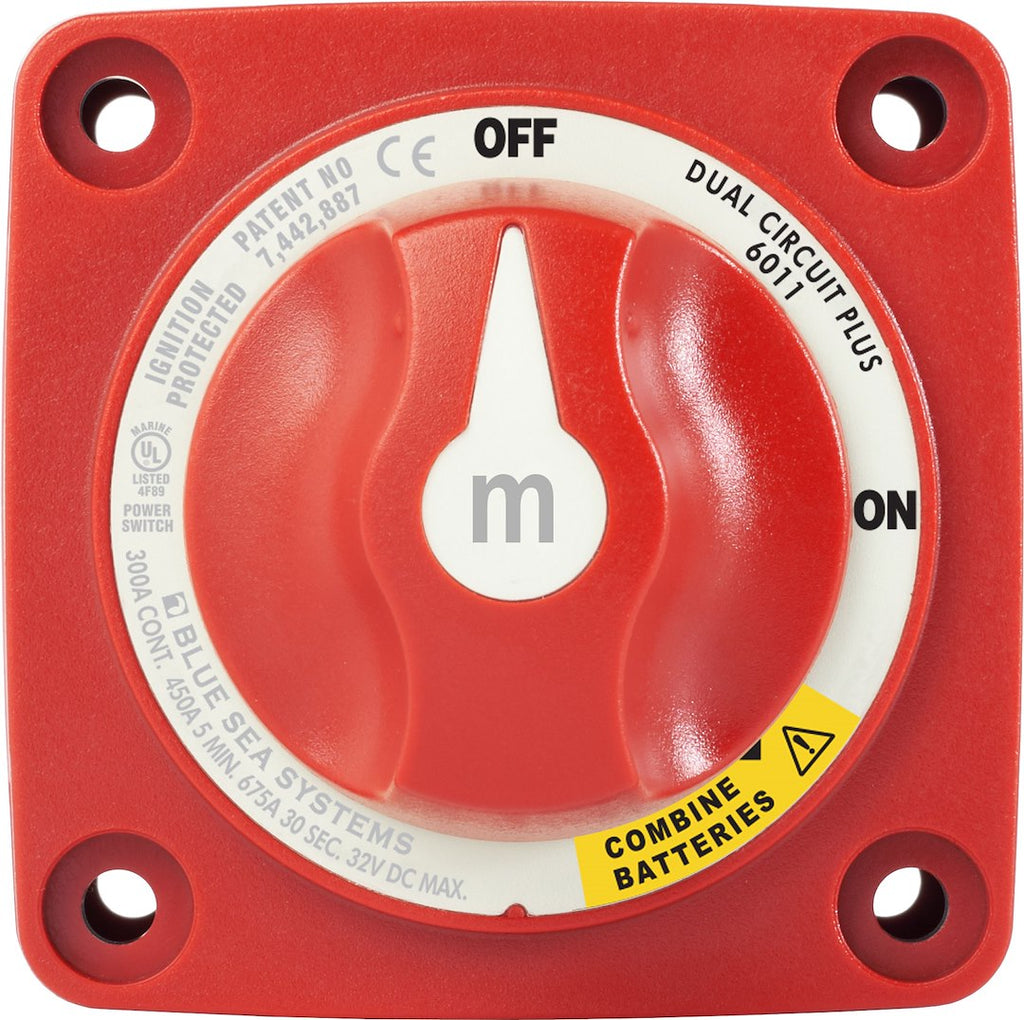

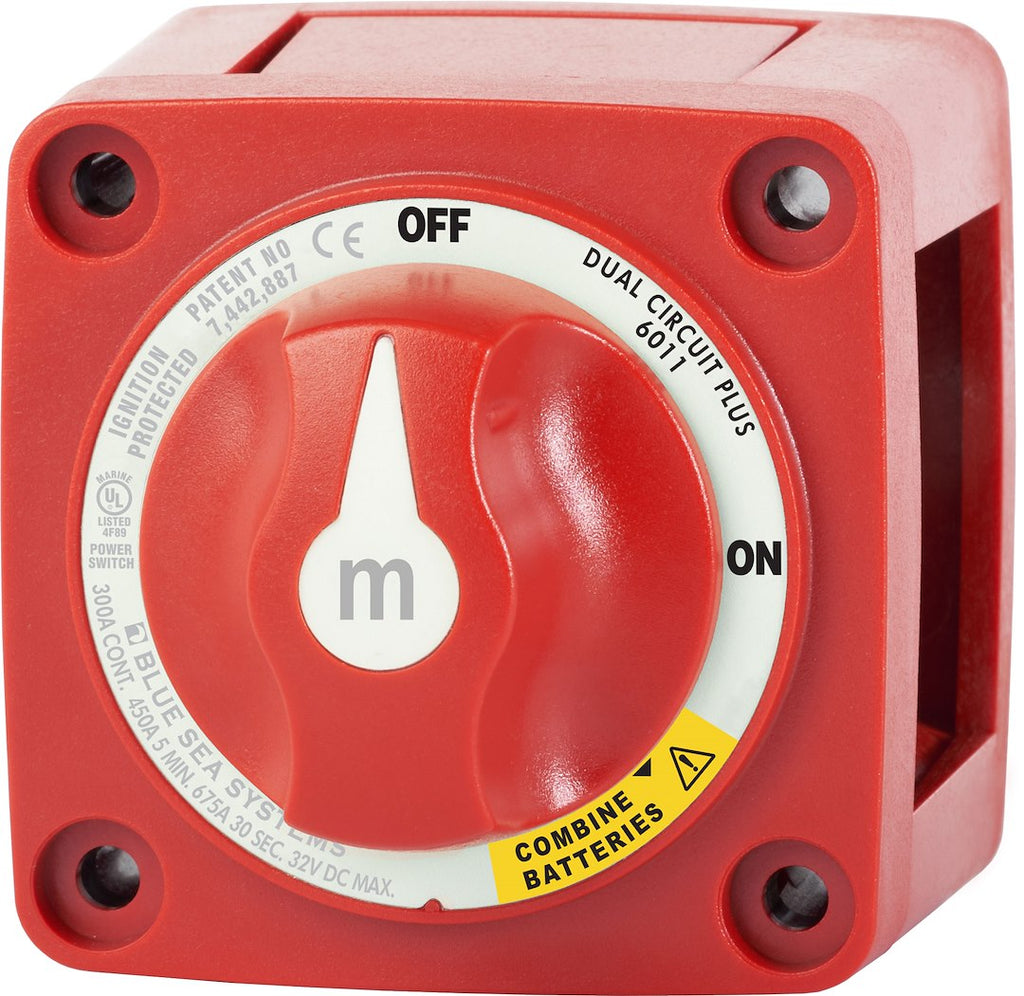

Blue Sea Battery Selector Switch M Series (MPN: 6011-BSS)

Efficiently manage dual battery banks with advanced switching technology.

The Blue Sea Battery Selector Switch M Series is designed for use in marine applications, allowing users to simultaneously switch between two isolated battery banks or combine them for all loads. This 3-position switch supports up to 32 volts DC and features a robust 450 amp intermittent rating and a 300 amp continuous rating, ensuring reliable performance under demanding conditions. The switch is constructed with tin-plated copper studs for maximum conductivity and corrosion resistance, enhancing its durability in harsh environments.

The one-piece terminal stud design prevents loosening over time, while the stainless flange nut guarantees safe and secure connections. An isolating cover protects the rear contacts, adding an extra layer of safety. Additionally, breakout tabs provide flexible wire access in any direction, simplifying installation and maintenance. This switch is an essential component for small boats or vehicles where battery management is critical, ensuring safety and reliability in electrical systems.

Features

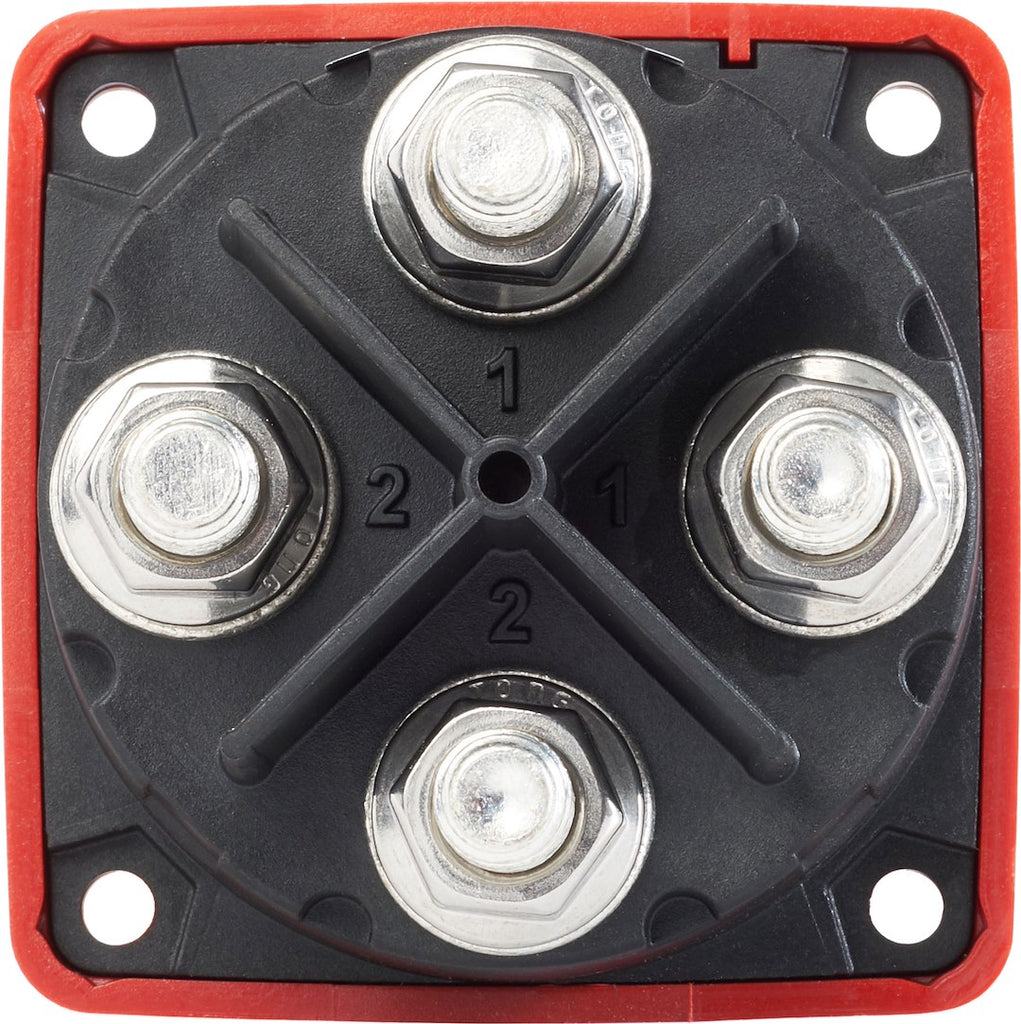

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Isolating Cover Protects Rear Contacts
• Breakout Tabs Allow Wire Access In Any Direction

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 6011-BSS
• Used To: Simultaneously Switch Two Isolated Battery Banks/ To Combines Battery Banks To All Load
• Number Of Position: 3
• Battery Input: 2 Batteries
• Voltage Rating: 32 Volt
• Ampere Rating: 450 Amp Intermittent Rating And 300 Amp Continuous Rating
• Color: Red
• With Alternator Field Disconnect: No
• With Ignition Protection: No
