Efficiently manage two isolated battery banks with advanced safety features.

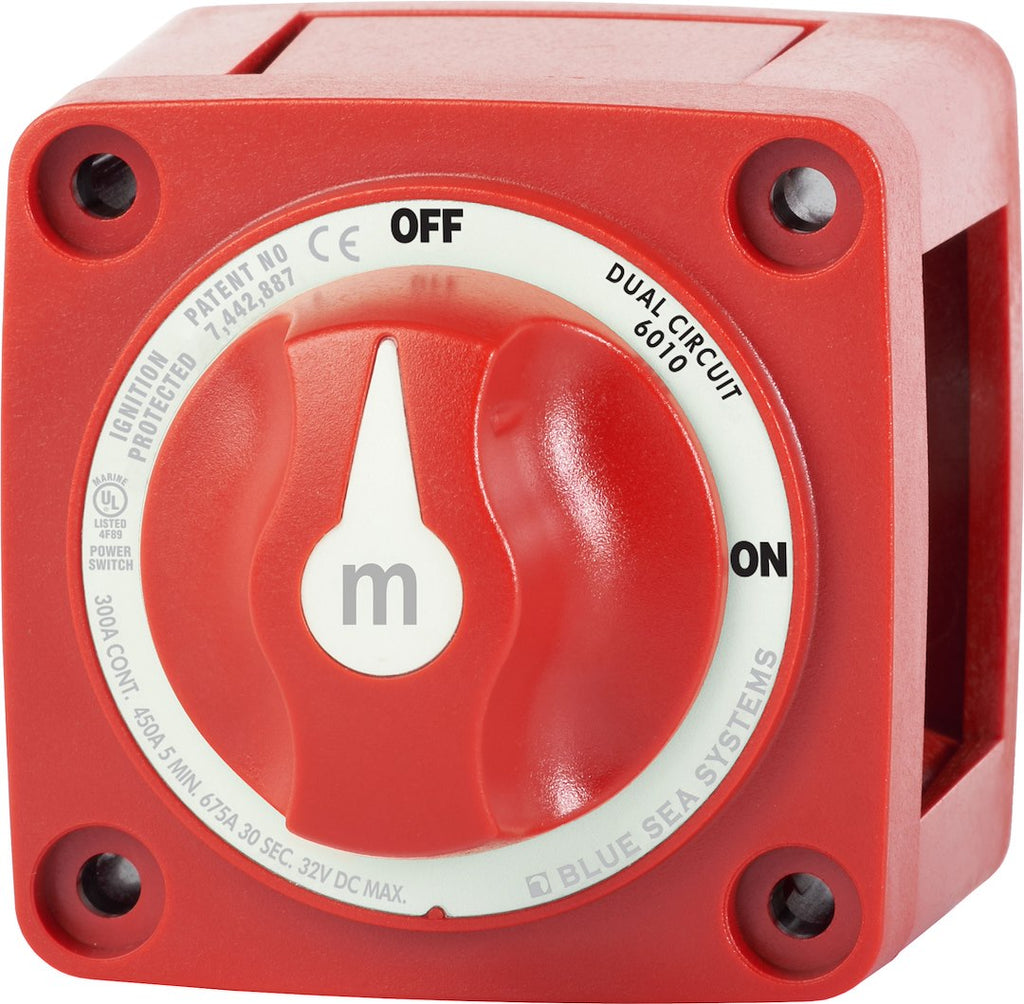

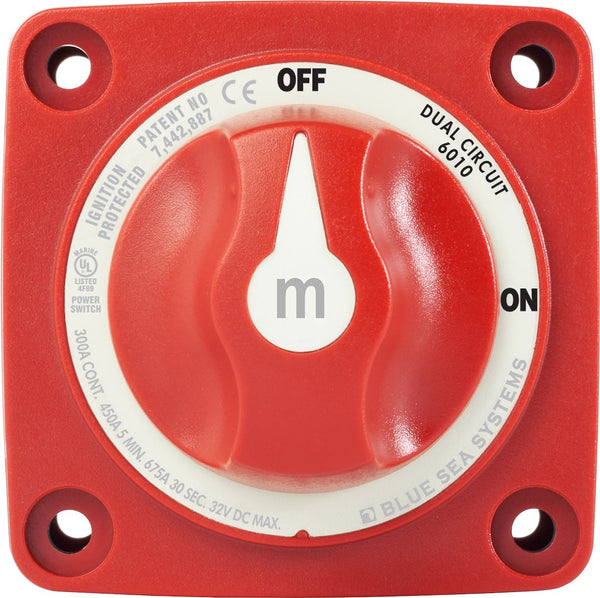

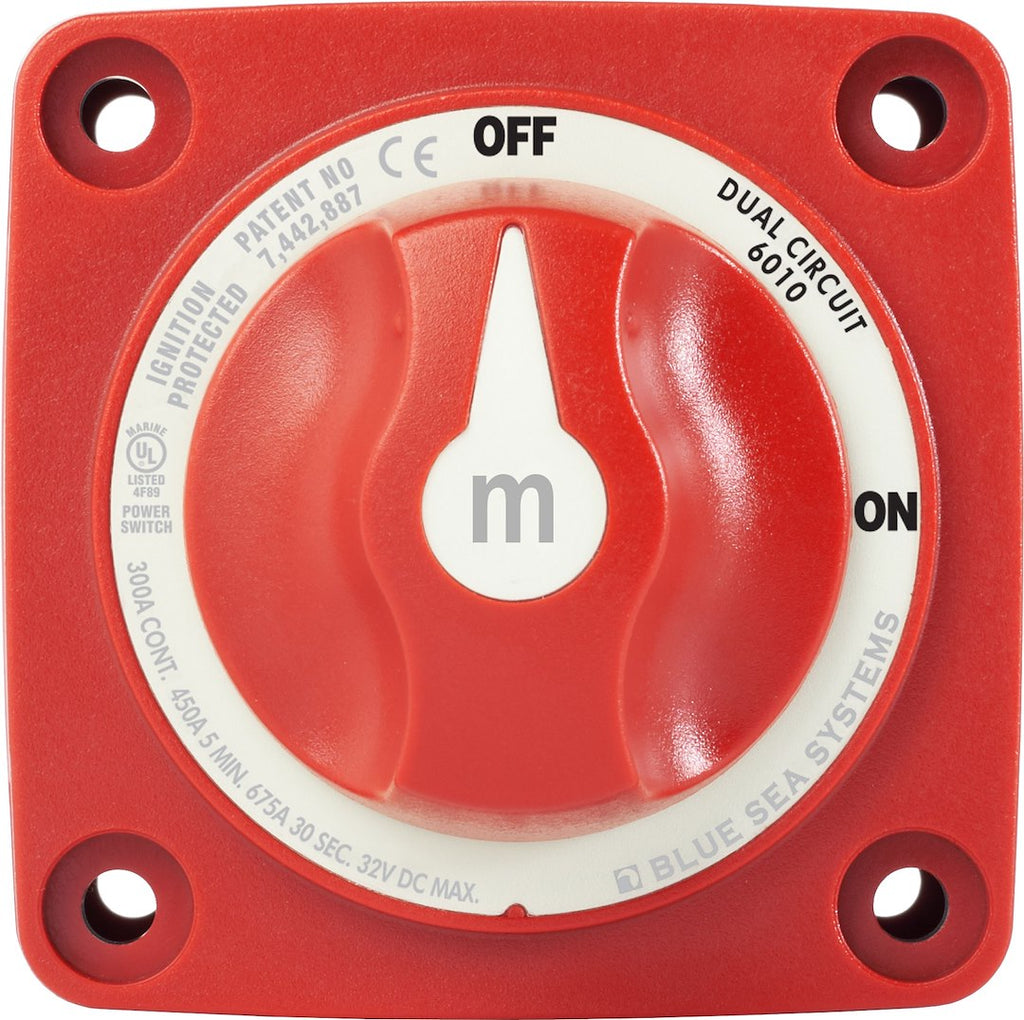

The Blue Sea Battery Selector Switch M Series is designed to simultaneously switch between two isolated battery banks, making it a practical solution for small boats and vehicles. This 2-position switch operates at a voltage rating of 32 volts DC, with an impressive intermittent rating of 450 amps and a continuous rating of 300 amps, ensuring reliable performance under various conditions. The switch is engineered without an alternator field disconnect and features dual circuit capabilities, enhancing its utility in diverse applications.
Constructed with tin-plated copper studs, the switch maximizes conductivity and corrosion resistance, which is essential for marine environments. Its one-piece terminal stud design prevents loosening over time, while the stainless flange nut guarantees secure connections. Additionally, the isolating cover protects rear contacts, and breakout tabs allow for flexible wire access in any direction, facilitating easier installation and maintenance. This combination of features underscores the switch's commitment to safety, simplicity, and reliability in electrical management.
Features
- Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
- One-Piece Terminal Stud Design Never Loosens Over Time
- One Piece Stainless Flange Nut Ensure Safe And Secure Connections

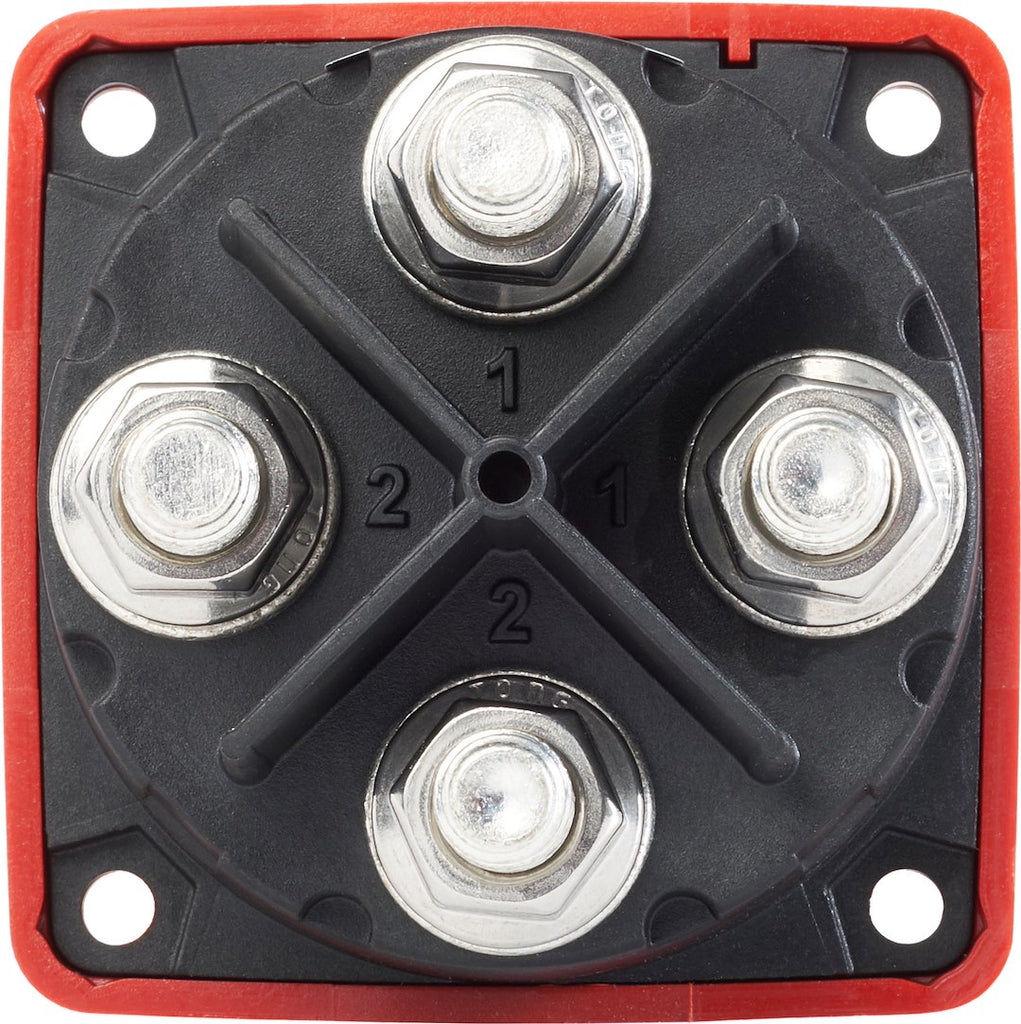

- Isolating Cover Protects Rear Contacts
- Breakout Tabs Allow Wire Access In Any Direction
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 6010-BSS
- Used To: Simultaneously Switch Two Isolated Battery Banks
- Number Of Position: 2
- Battery Input: 2 Batteries
- Voltage Rating: 32 Volt
- Ampere Rating: 450 Amp Intermittent Rating And 300 Amp Continuous Rating
- Color: Red
- With Alternator Field Disconnect: No
- With Ignition Protection: No
Technical Documents
