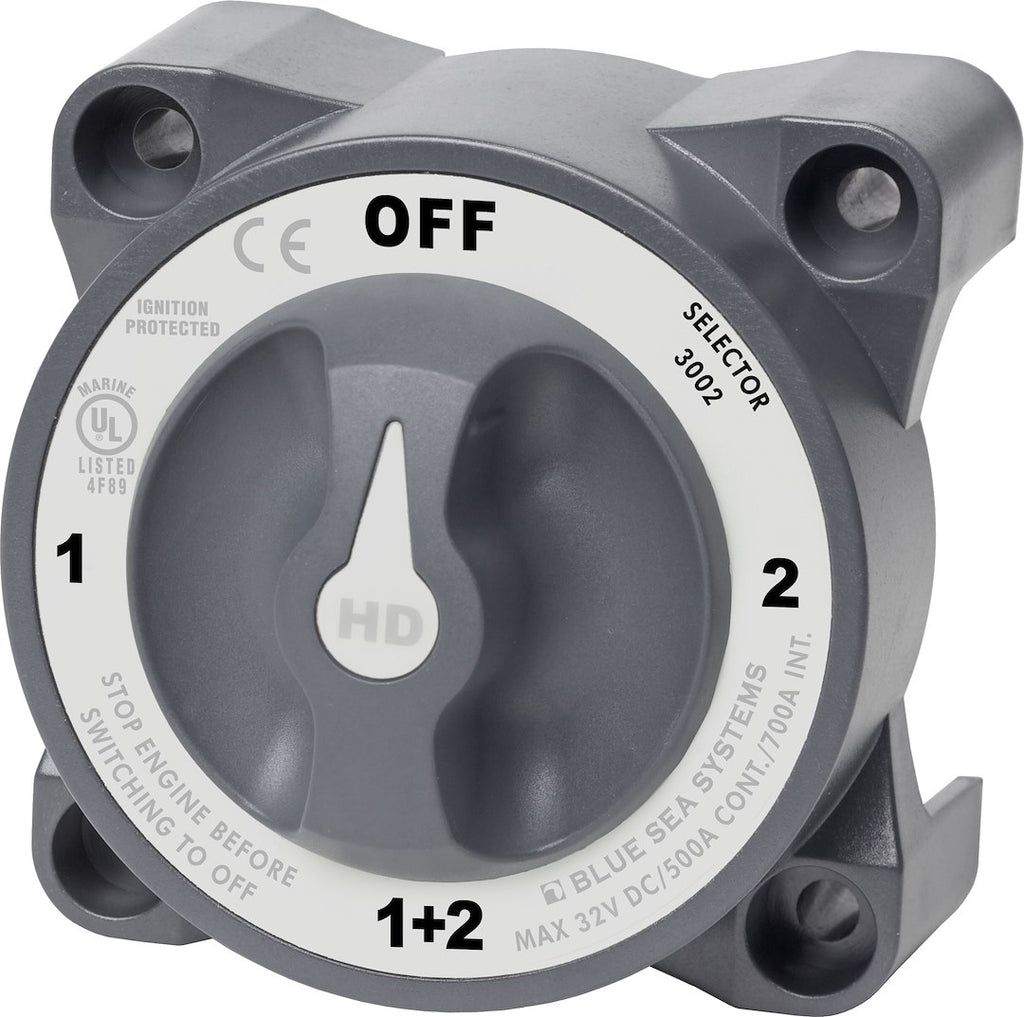

Blue Sea Battery Selector Switch HD Series (MPN: 3002-BSS)

Efficiently manage battery banks with advanced switching technology.

The Blue Sea Battery Selector Switch HD Series is designed for effective management of isolated battery banks, allowing users to switch between multiple battery sources seamlessly. This 4-position switch accommodates two batteries and operates at a voltage rating of 32 volts, providing a robust solution for various applications. With a 700 amp intermittent rating and a 500 amp continuous rating, it ensures reliable performance under demanding conditions.

Featuring a make-before-break contact design, this switch allows for uninterrupted power during transitions between battery banks. It is ignition protected, making it suitable for installation on gasoline-powered boats, enhancing safety during operation. The case design supports both surface and rear panel mounting, offering flexibility in installation.

Included with the switch are stainless steel mounting screws and a set of 15 square format circuit labels for easy identification. The switch accepts two 4/0 AWG battery cables, ensuring compatibility with high-capacity battery systems. This product is an essential component for those looking to optimize their battery management systems.

Features

• Make-Before-Break Contact Design Allows Switching Between Battery Banks Without Power Interruption
• Ignition Protected—safe For Installation Aboard Gasoline Powered Boats

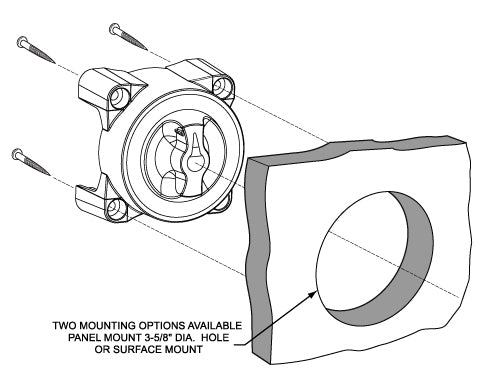

• Case Design Allows Surface Or Rear Panel Mounting

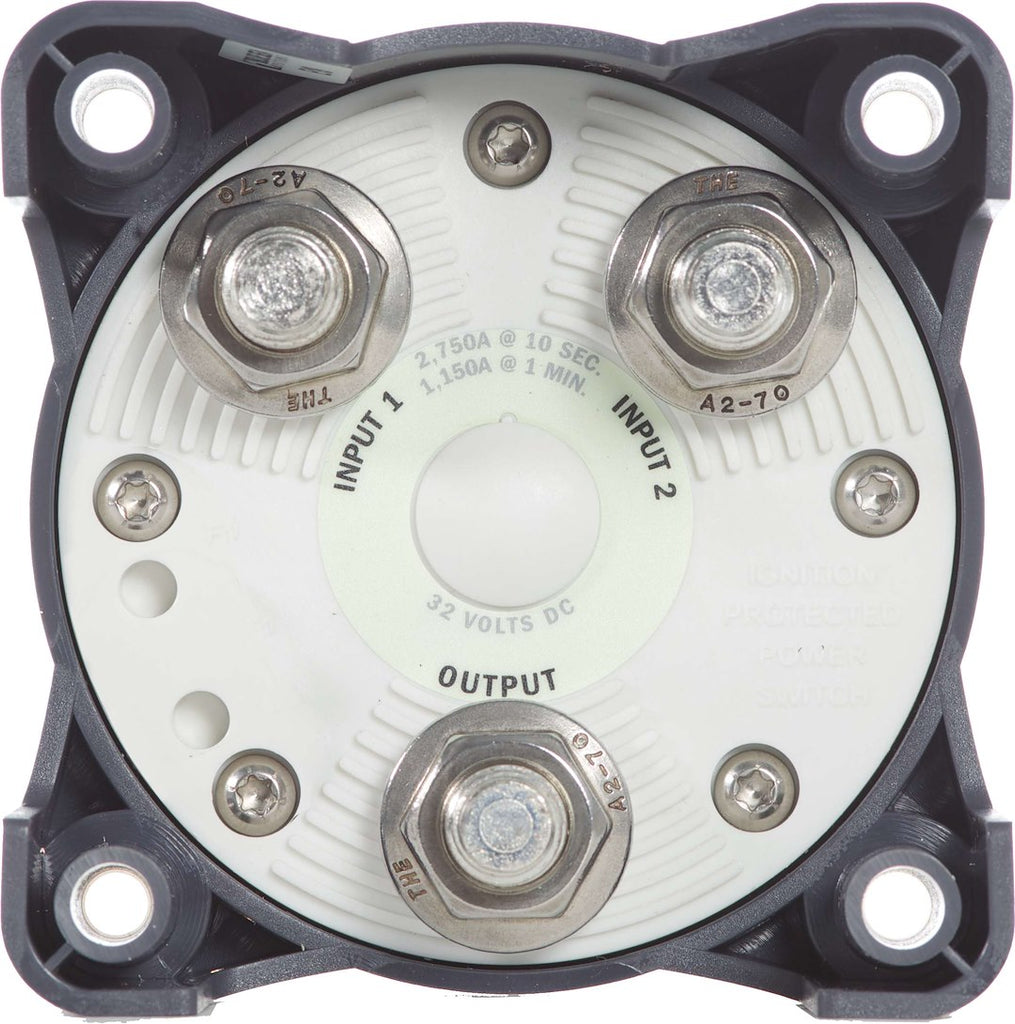

• Accepts Two 4/0 AWG (95mm²) Battery Cables
• Switches Isolated Battery Banks To All Loads Or Combines Battery Banks To All Loads
• Stainless Steel #6 X 5/8 Inch Mounting Screws Included

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 3002-BSS
• Used To: Switch Isolated Battery Banks To All Loads/ To Combine Battery Banks To All Loads
• Number Of Position: 4
• Battery Input: 2 Batteries
• Voltage Rating: 32 Volt
• Ampere Rating: 700 Amp Intermittent Rating And 500 Amp Continuous Rating
• Color: Black
• With Alternator Field Disconnect: No
• With Ignition Protection: No

Technical Documents

• 3002_web_version.pdf
