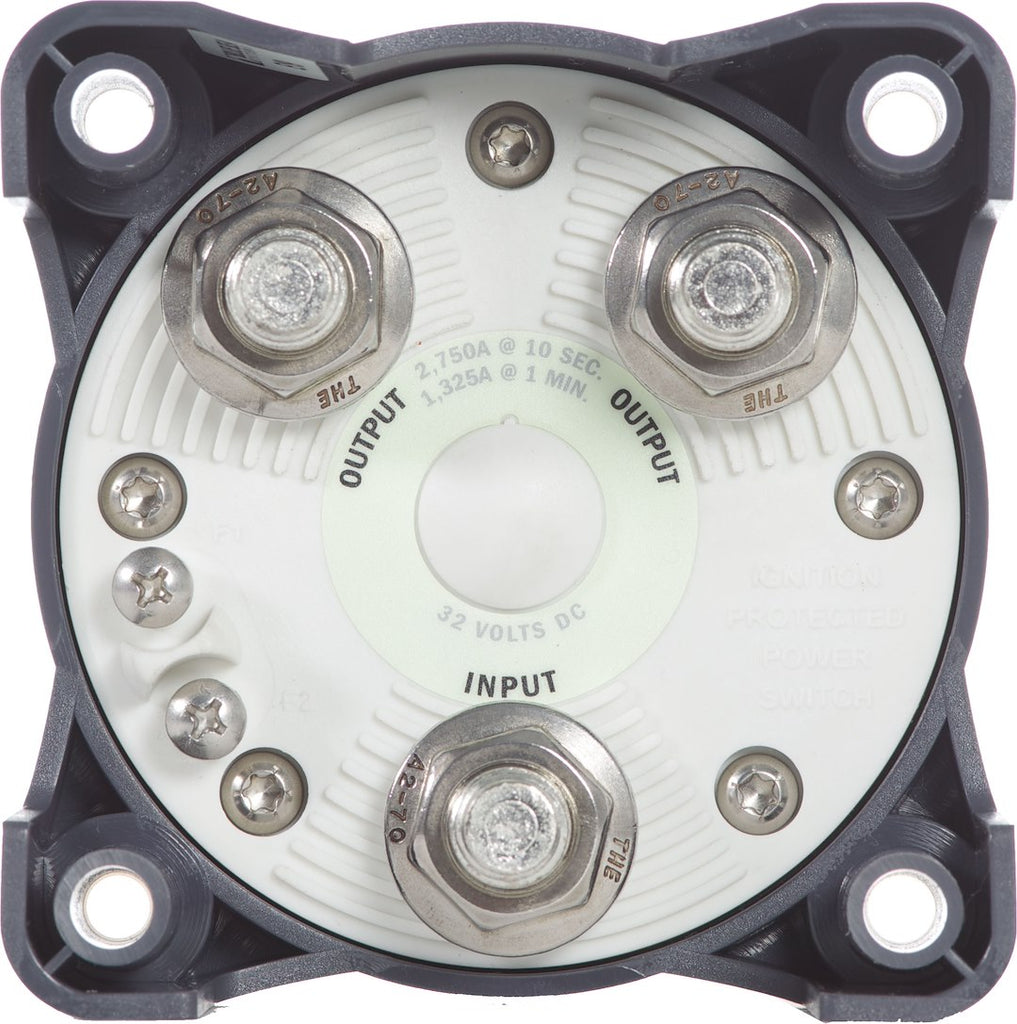

Reliable battery isolation for marine applications with advanced features.
The Blue Sea Battery Disconnect Switch HD Series is designed to effectively isolate battery banks, ensuring safety and efficiency during boat operation. This switch is particularly useful for preventing battery drain when the vessel is not in use and during emergency situations. With a continuous ampere rating of 325 amps and a surge rating of 900 amps, it is capable of handling significant power loads, making it suitable for various marine applications.
Featuring a make-before-break contact design, this switch allows for seamless switching between battery banks without interrupting power. It accepts two 4/0 AWG battery cables and is equipped with tin-plated copper studs that enhance conductivity and resist corrosion. The tactile indicator provides a clear indication of the knob position, ensuring ease of use even in challenging conditions.
The switch is rated IP66 for waterproofing, protecting it from water projected in powerful jets, which is essential for marine environments. Its versatile case design allows for surface, rear, or front panel mounting, providing flexibility in installation. Additionally, it is ignition protected, making it safe for use on gasoline-powered boats.
Features
- Make-Before-Break Contact Design Allows Switching Between Battery Banks Without Power Interruption
- Accepts Two 4/0 AWG Battery Cables
- Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
- Tactile Indicator Conveys Knob Position By Feel
- Waterproof – Rated IP66 From Water Projected In Powerful Jets
- Case Design Allows Surface, Rear, Or Front Panel Mounting Options
- Ignition Protected—safe For Installation Aboard Gasoline Powered Boats
Specifications
- Manufacturer: Blue Sea
- Manufacturer Part Number: 3001-BSS
- Type: Rotary With Removable Knob
- Activation Type: Manual
- Continuous Ampere Rating (A): 325 Amp
- Surge Ampere Rating (A): 900 Amp
- Base Diameter (IN): 3-5/8 Inch
- Installation Type: Bolt-On
