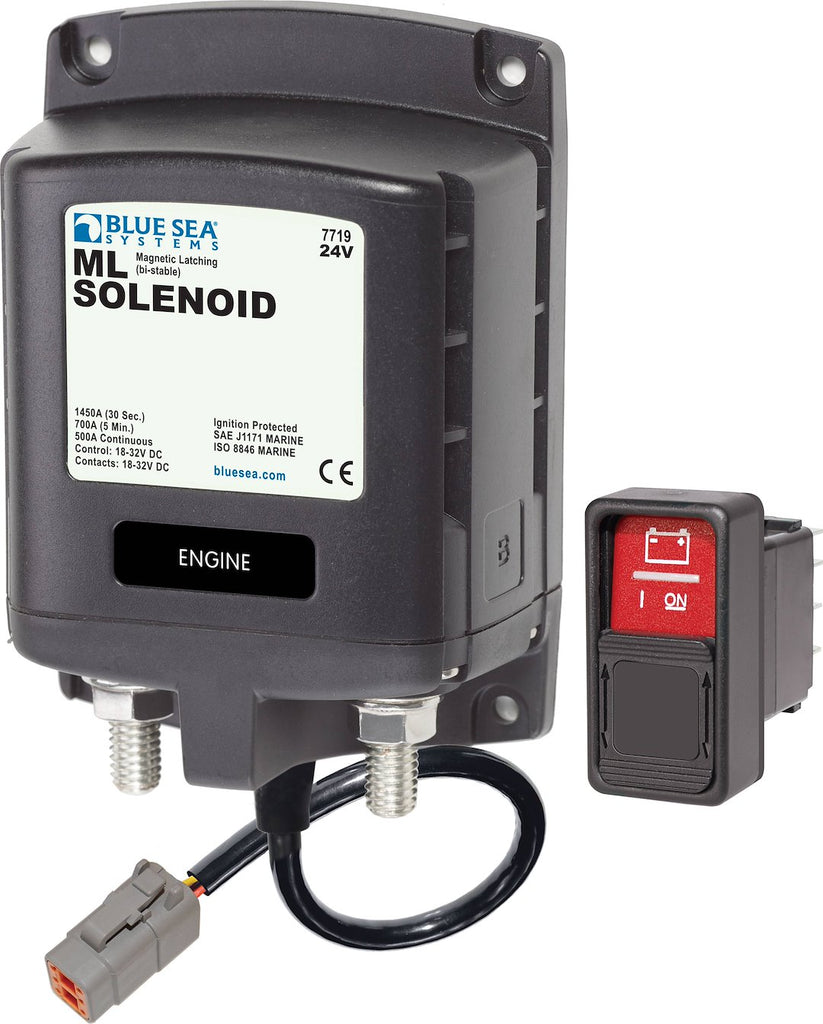

Blue Sea Battery Disconnect Switch (MPN: 7719100-BSS)

Reliable 24 Volt DC switch with remote control capabilities for efficient power management.

The Blue Sea Battery Disconnect Switch is designed for 24 Volt DC applications, providing a robust solution for managing electrical power. With a continuous ampere rating of 500 Amps, this switch is capable of handling significant loads while ensuring safety and reliability. The switch features 3/8 Inch to 16 tin-plated copper studs that enhance conductivity and resist corrosion, making it suitable for various environments.

This model includes a SPDT remote control Contura switch, allowing for easy operation from a distance. The LED output feature enables users to remotely monitor the switch state, requiring an optional LED or compatible remote control switch with integrated LED. Additionally, the switch is equipped with silver alloy contacts, ensuring high reliability when switching live loads.

Installation is straightforward with bolt-on mounting, and the one-piece stainless flange nuts provide secure connections. The design also incorporates label recesses for circuit identification, facilitating organized and efficient electrical management.

Features

• 3/8 Inch To 16 Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Stainless Flange Nuts For Safe And Secure Connections
• LED Output To Remotely Indicate Switch State - Requires Optional LED Or Remote Control Contura Switch With Integrated LED
• Silver Alloy Contacts Provide High Reliability For Switching Live Loads
• Label Recesses For Circuit Identification

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 7719100-BSS
• Type: Push Button Switch
• Activation Type: Manual
• Continuous Ampere Rating (A): 500 Amp
• Installation Type: Bolt-On

Technical Documents

• 980018140-003-7713-7717-7718-7719.pdf
