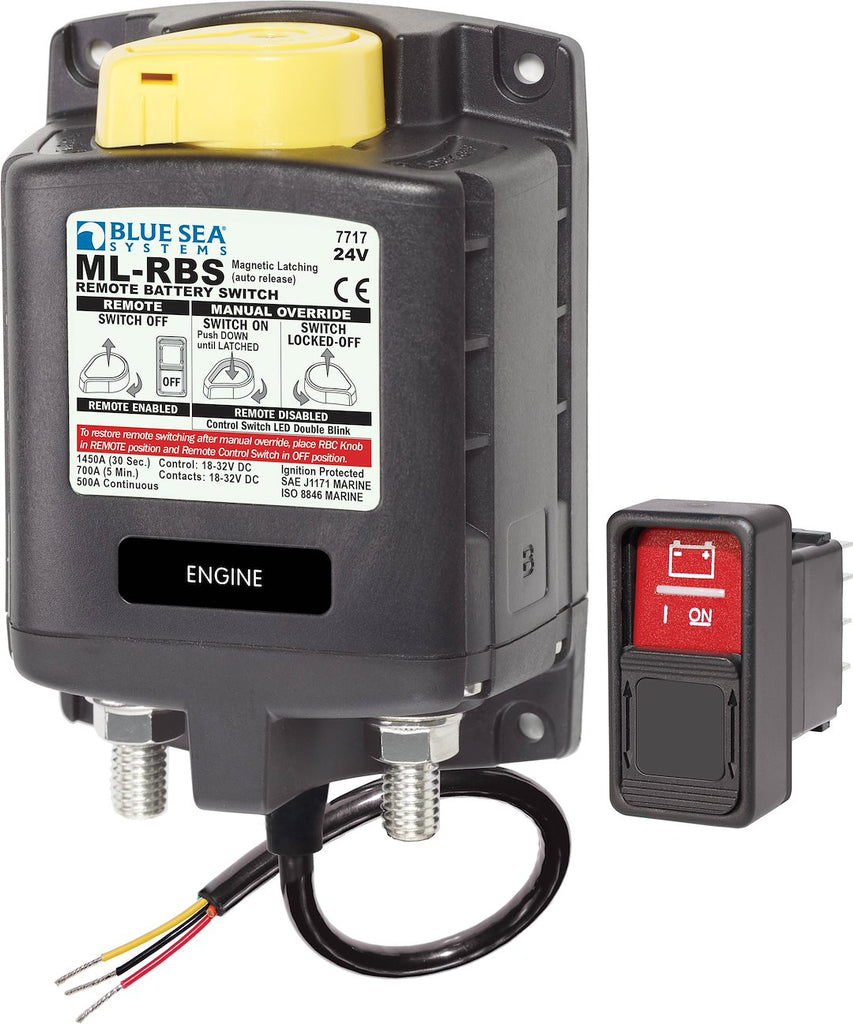

Blue Sea Battery Disconnect Switch (MPN: 7717-BSS)

Reliable 500 Amp Battery Control with Remote Activation Features

The Blue Sea Battery Disconnect Switch is designed for 24 volts DC systems, providing a robust solution for managing battery connections. With a continuous rating of 500 amps and a surge rating of 700 amps, this switch ensures reliable performance under demanding conditions. The switch features a manual override knob, allowing for safe operation even without power, and includes a LOCKED OFF capability for servicing purposes.

This model incorporates an LED output to indicate the switch state remotely, enhancing user awareness and control. The silver alloy contacts ensure high reliability when switching live loads, while the 3/8 inch -16 tin-plated copper studs maximize conductivity and resist corrosion. The 7/8 inch stud length accommodates multiple cable terminals, making installation straightforward and versatile.

Designed for bolt-on installation, the Blue Sea Battery Disconnect Switch is suitable for various applications requiring dependable battery management. Its rotary design with a fixed knob allows for easy operation, and the label recesses facilitate circuit identification, contributing to an organized and efficient setup.

Features

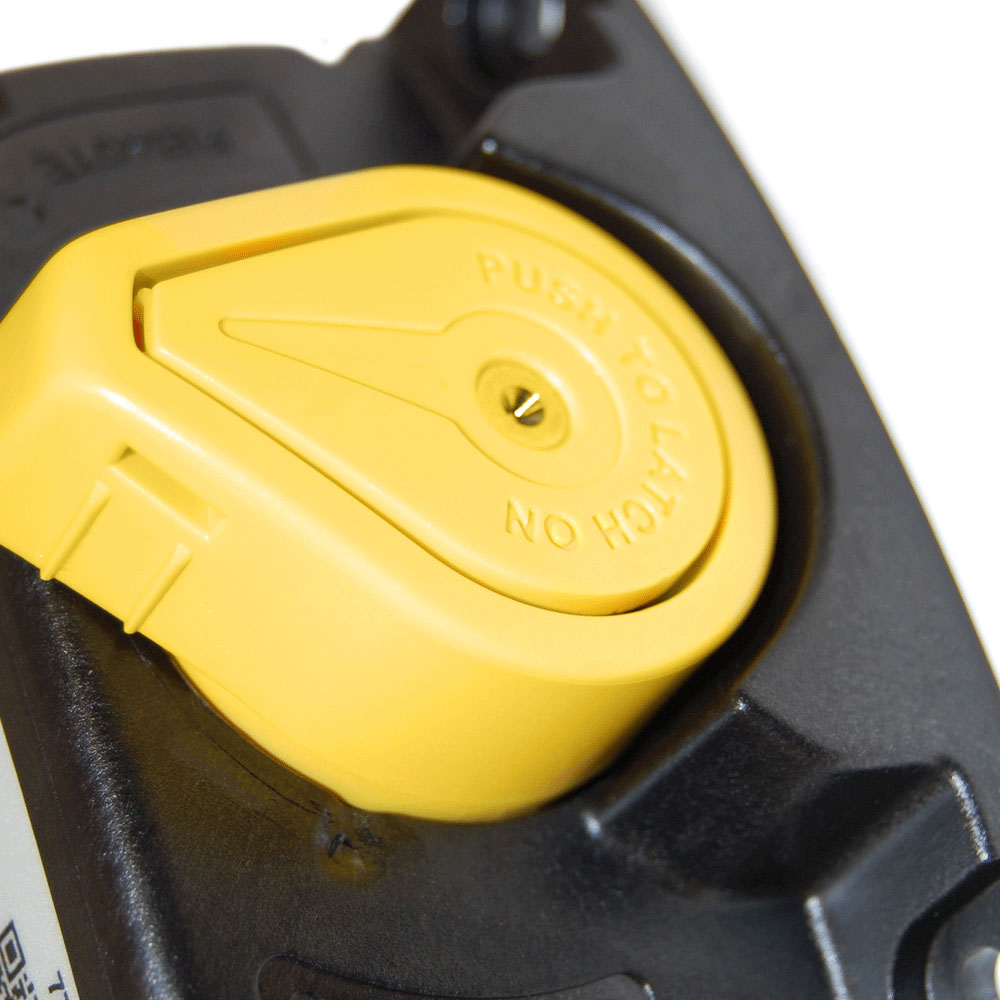

• Manual Override Knob Provides An Added Level Of Safety Allowing Control With Or Without Power And Offering LOCKED OFF Capability For Servicing
• LED Output To Remotely Indicate Switch State
• Silver Alloy Contacts Provides High Reliability For Switching Live Loads
• 3/8 Inch -16 Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• 7/8 Inch Stud Length Accepts Multiple Cable Terminals
• Label Recesses For Circuit Identification

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 7717-BSS
• Type: Rotary With Fixed Knob
• Activation Type: Manual
• Continuous Ampere Rating (A): 500 Amp
• Surge Ampere Rating (A): 700 Amp
• Installation Type: Bolt-On

Technical Documents

• 990180170-006.pdf
