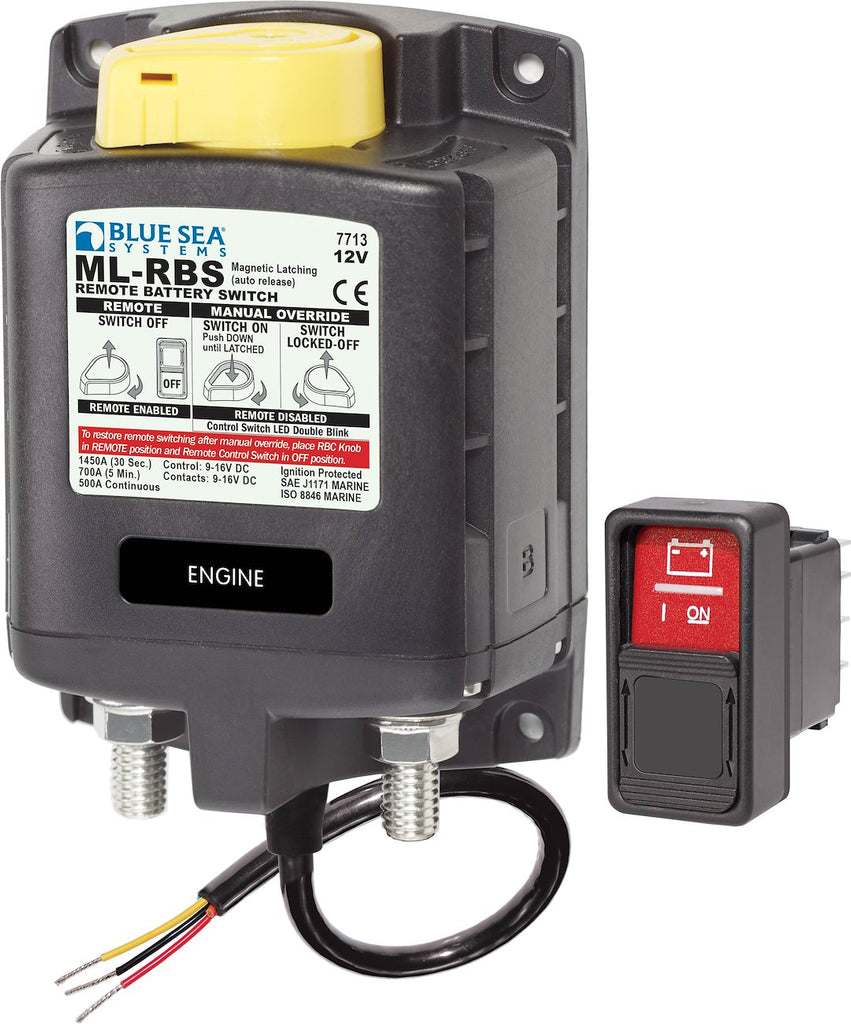

Blue Sea Battery Disconnect Switch (MPN: 7713-BSS)

Reliable battery management with remote control capabilities and safety features.

The Blue Sea Battery Disconnect Switch is designed for efficient battery management in 12 Volt DC systems, providing a robust 500 Amp continuous rating and a 700 Amp surge rating. This switch features a manual override knob that enhances safety by allowing control with or without power, ensuring a locked-off capability for servicing. The switch can be operated using either an SPST or SPDT remote control, making it versatile for various applications where a normally open relay is required.

Constructed with silver alloy contacts, this switch ensures high reliability for switching live loads, while the 3/8 inch - 16 tin-plated copper studs maximize conductivity and resist corrosion. The 7/8 inch stud length accommodates multiple cable terminals, facilitating easy installation. Additionally, the LED output provides a clear indication of the switch state, enhancing user awareness and operational safety. The design includes label recesses for circuit identification, making it a practical choice for both professional and DIY installations.

Features

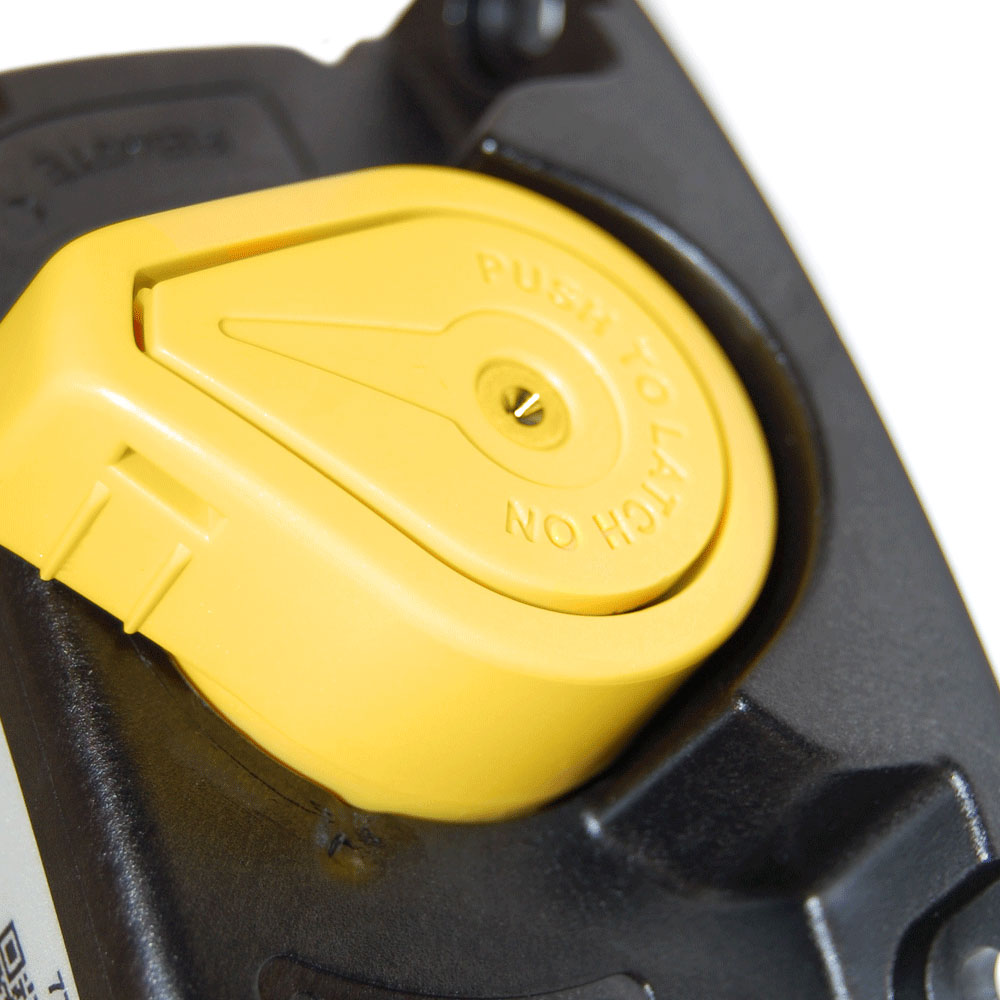

• Manual Override Knob Provides An Added Level Of Safety Allowing Control With Or Without Power And Offering LOCKED OFF Capability For Servicing
• LED Output To Remotely Indicate Switch State
• Silver Alloy Contacts Provides High Reliability For Switching Live Loads
• 3/8 Inch -16 Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• 7/8 Inch Stud Length Accepts Multiple Cable Terminals
• Label Recesses For Circuit Identification

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 7713-BSS
• Type: Rotary With Fixed Knob
• Activation Type: Manual
• Continuous Ampere Rating (A): 500 Amp
• Surge Ampere Rating (A): 700 Amp
• Installation Type: Bolt-On

Technical Documents

• 990180170-006.pdf
