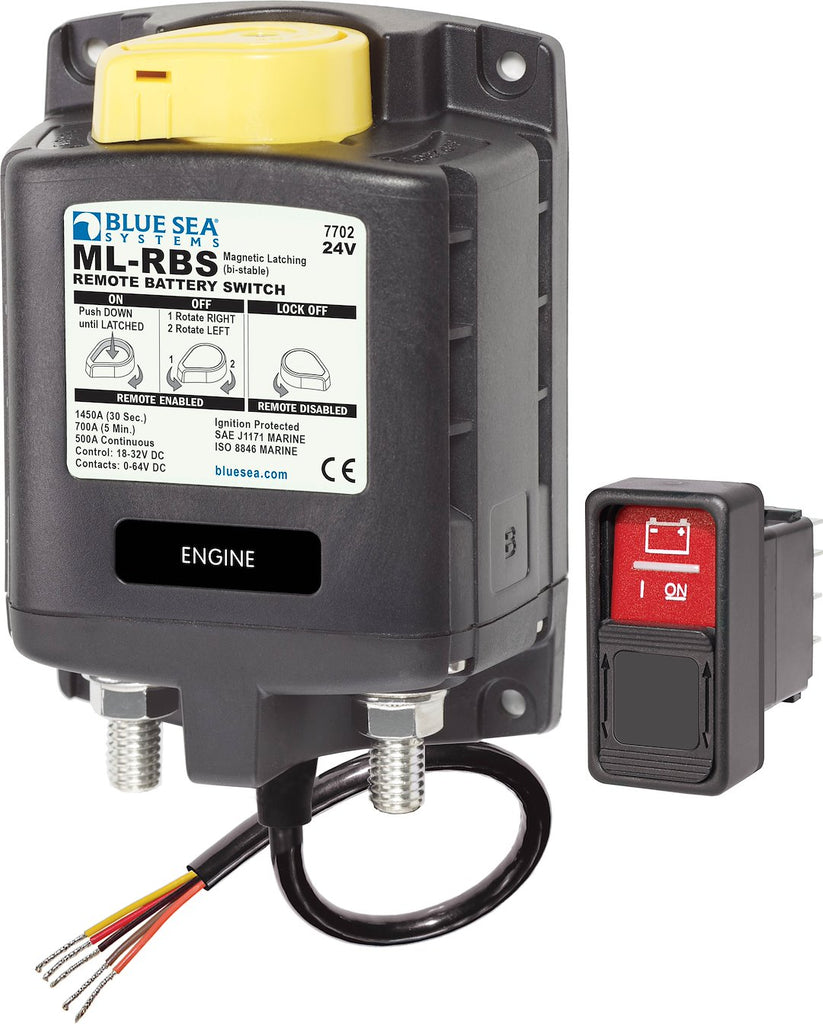

Blue Sea Battery Disconnect Switch (MPN: 7702-BSS)

Reliable manual control for high amperage applications with remote capabilities.

The Blue Sea Battery Disconnect Switch is designed for efficient management of high amperage electrical systems. With a continuous rating of 500 Amps and a surge rating of 700 Amps, this switch ensures reliable performance under load. It features a manual override knob that enhances safety by allowing control even when power is unavailable, and it includes a LOCKED OFF capability for servicing purposes.

This switch is equipped with a SPDT remote control Contura switch, providing flexibility in operation from remote locations. An LED output indicates the switch state, ensuring users are informed of the operational status. The switch is constructed with 3/8 inch -16 tin-plated copper studs, which maximize conductivity and resist corrosion, while the silver alloy contacts ensure high reliability for switching live loads.

Designed for bolt-on installation, the Blue Sea Battery Disconnect Switch is compatible with various cable terminals due to its 7/8 inch stud length. Additionally, label recesses are included for easy circuit identification, making it a practical choice for both professional and DIY applications.

Features

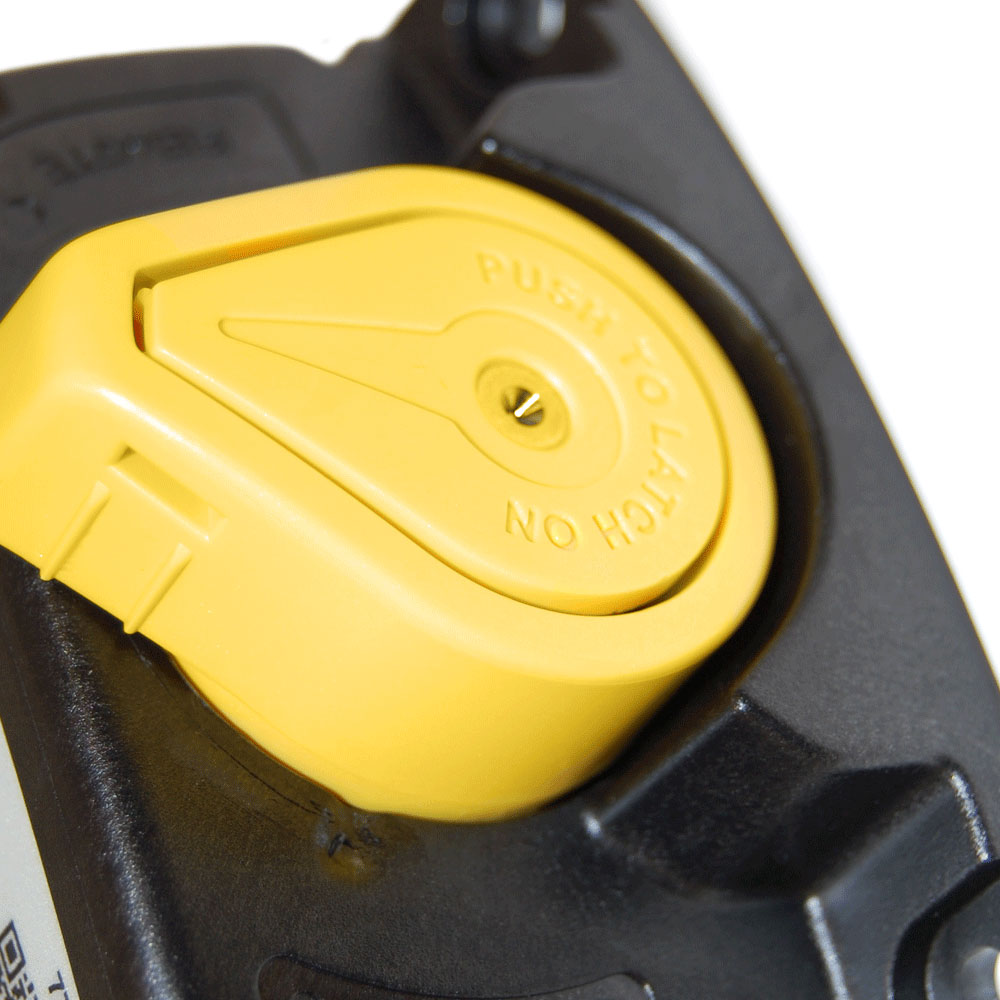

• Manual Override Knob Provides An Added Level Of Safety Allowing Control With Or Without Power And Offering LOCKED OFF Capability For Servicing
• LED Output To Remotely Indicate Switch State
• 3/8 Inch -16 Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• 7/8 Inch Stud Length Accepts Multiple Cable Terminals
• Label Recesses For Circuit Identification
• Silver Alloy Contacts Provides High Reliability For Switching Live Loads

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 7702-BSS
• Type: Rotary With Fixed Knob
• Activation Type: Manual
• Continuous Ampere Rating (A): 500 Amp
• Surge Ampere Rating (A): 700 Amp
• Installation Type: Bolt-On

Technical Documents

• 990180170-006.pdf
