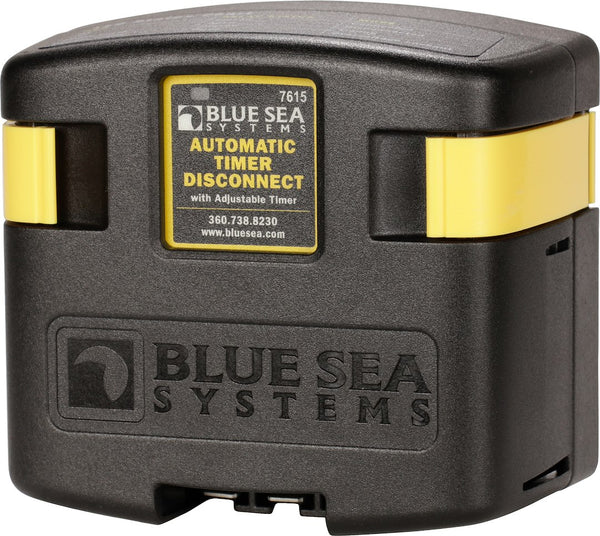

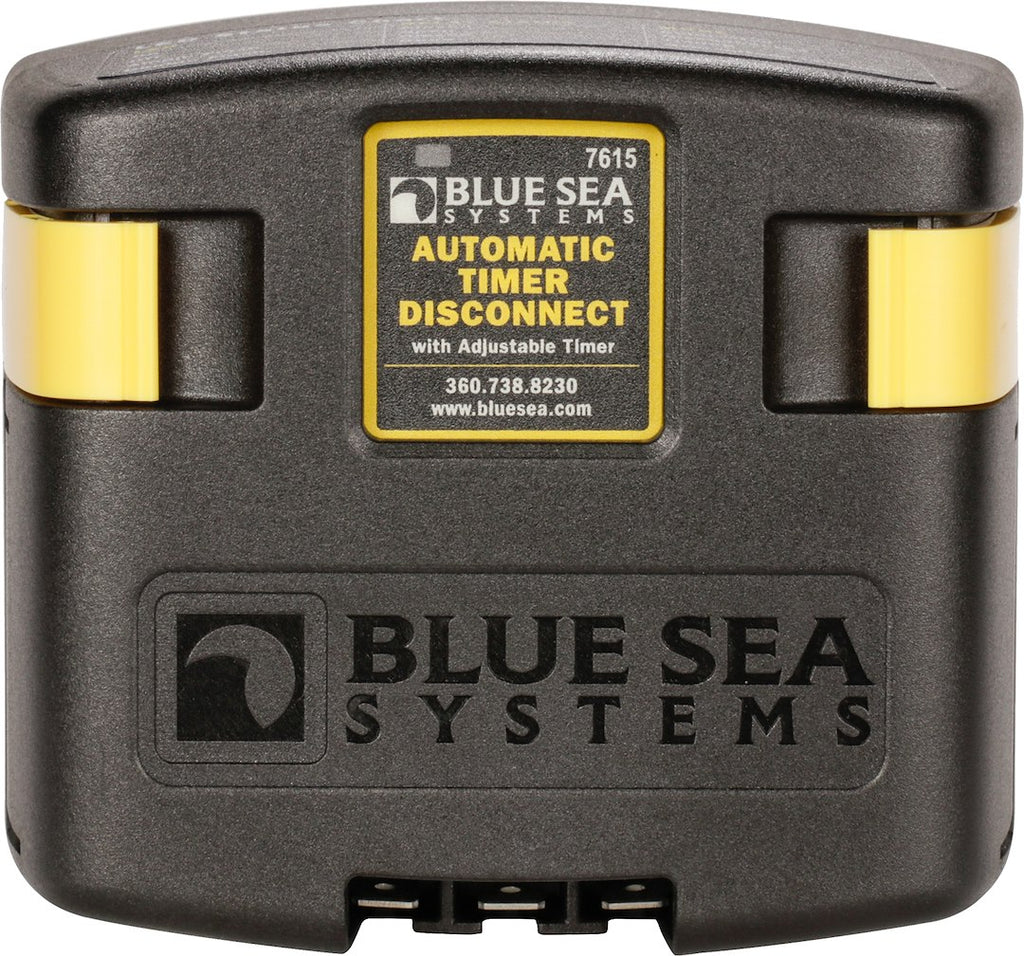

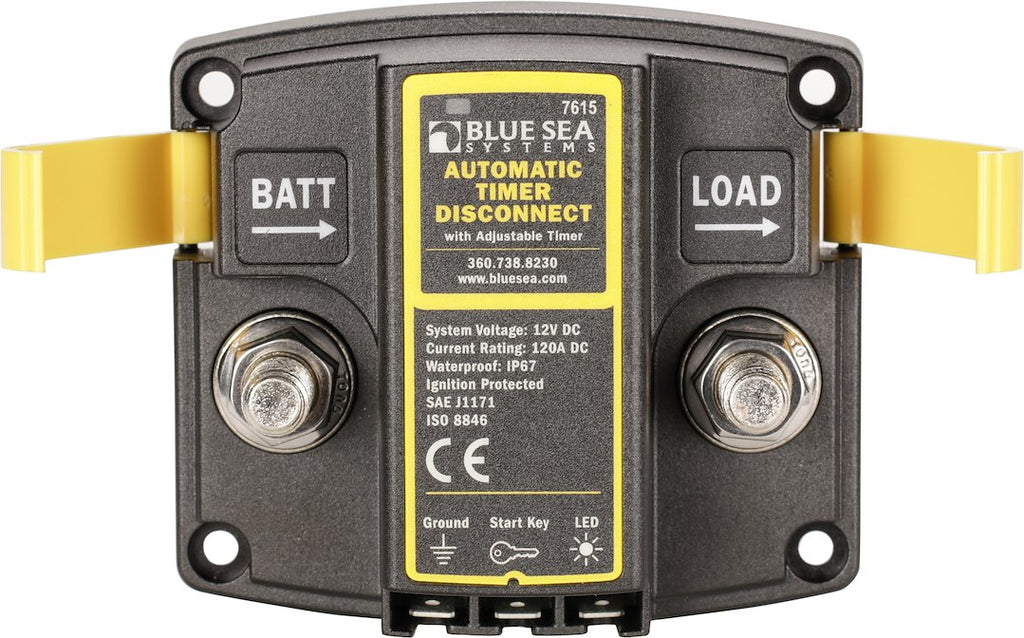

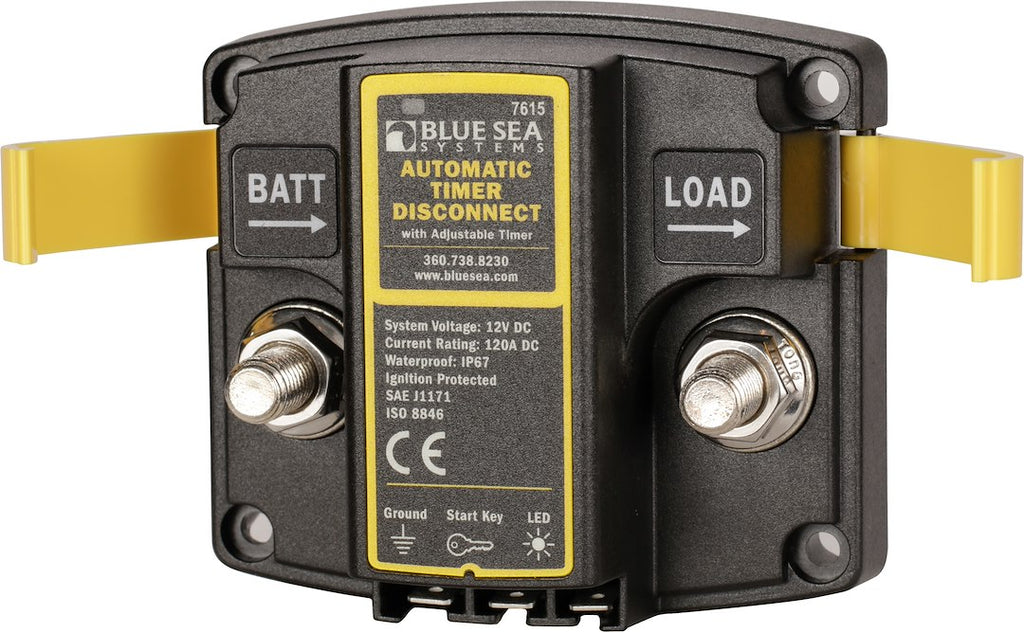

Blue Sea Battery Disconnect Switch (MPN: 7615-BSS)

Automatic timer and low voltage disconnect for efficient battery management.

The Blue Sea Battery Disconnect Switch is designed to enhance battery management by automatically disconnecting devices after a preset time when the signal is removed. This switch operates on a 12 Volt DC system and is capable of handling continuous currents of up to 120 Amps, making it suitable for various applications. The timer can be adjusted from 15 minutes to 4 hours, allowing for flexible control over power distribution.

When the 12 Volt signal is activated, the relay connects battery power to devices, ensuring reliable operation. Upon removal of the signal, the device monitors battery voltage and can disconnect devices to prevent low battery conditions. This feature is particularly beneficial for preserving battery life, especially in auxiliary batteries that are larger than the start battery.

Additionally, the Blue Sea switch automatically combines two batteries during charging and isolates them during discharging, optimizing battery performance. Its single side sensing design simplifies installation and monitoring, focusing on the start battery's voltage. This product is essential for users seeking efficient battery management solutions.

Features

• 12 Volt Signal Triggers Relay To Connect Battery Power To Devices
• Timer Ranges From 15 Minute To 4 Hour
• 12 Volt Signal Will Connect Or Disconnect Relay Without Any Time Delay
• Automatically Combines Two Batteries When Charging, And Isolates Them When Discharging

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 7615-BSS
• Type: Automatic Timer Disconnect/ Solenoid/ Low Voltage Disconnect
• Activation Type: Automatic
• Continuous Ampere Rating (A): 120 Amp
• Surge Ampere Rating (A): 210 Amp

Technical Documents

• 980025450.pdf
• 980026420_005-7615-web.pdf
• 7615.pdf
