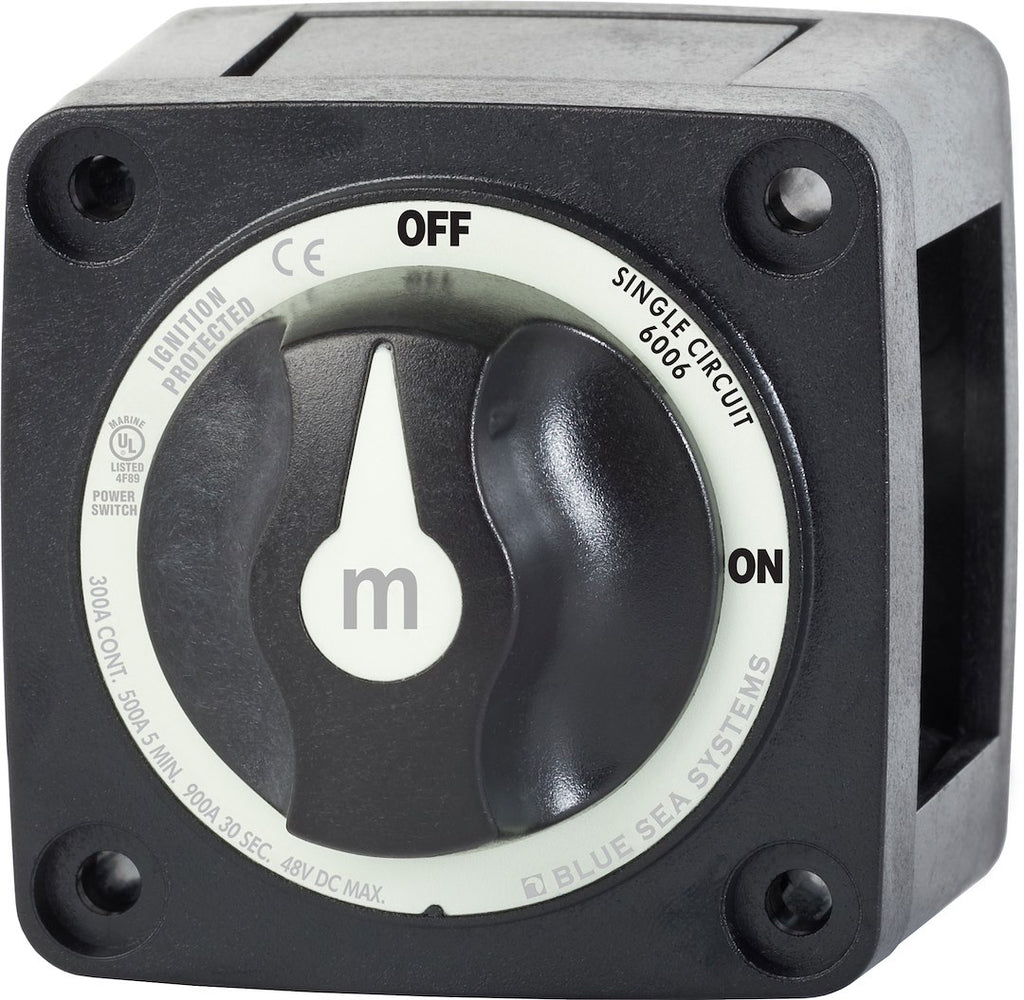

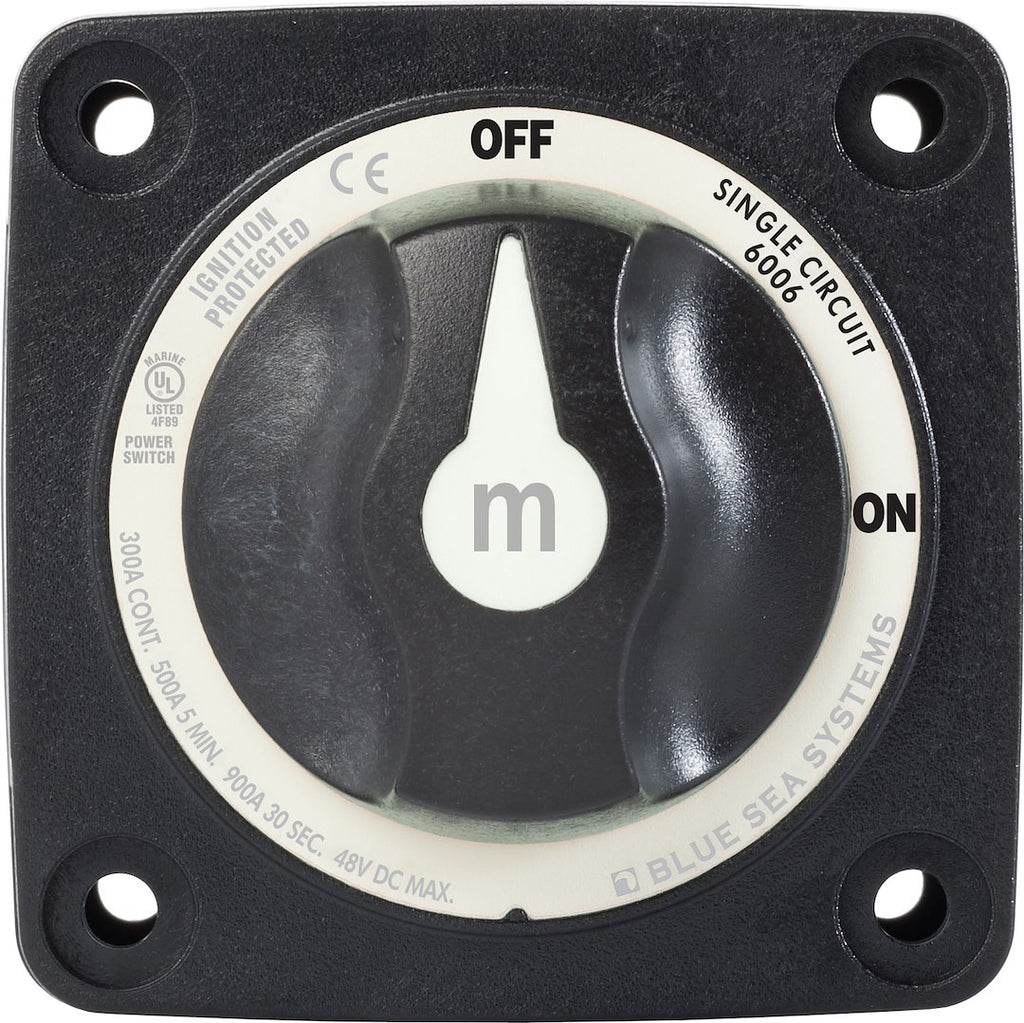

Blue Sea Battery Disconnect Switch (MPN: 6006200-BSS)

Enhance safety and reliability with this durable battery switch.

The Blue Sea Battery Disconnect Switch is designed for use in small boats and vehicles, providing a reliable solution for managing battery power. This switch operates at 48 volts DC and supports a continuous current rating of 300 amps, making it suitable for various applications. Its robust construction features tin-plated copper studs that ensure maximum conductivity and resistance to corrosion, enhancing the longevity of the product.

The switch includes a one-piece terminal stud design that prevents loosening over time, ensuring secure connections. Additionally, the stainless flange nut provides added safety and stability. The isolating cover protects the rear contacts, while breakout tabs allow for flexible wire access in any direction, simplifying installation and maintenance.

With a manual activation type and a rotary design with a removable knob, this switch offers straightforward operation. The compact base diameter of 2-5/8 inches allows for easy installation in tight spaces. Blue Sea's commitment to innovative and high-quality electrical products is evident in this battery disconnect switch, which enhances the safety and simplicity of boating.

Features

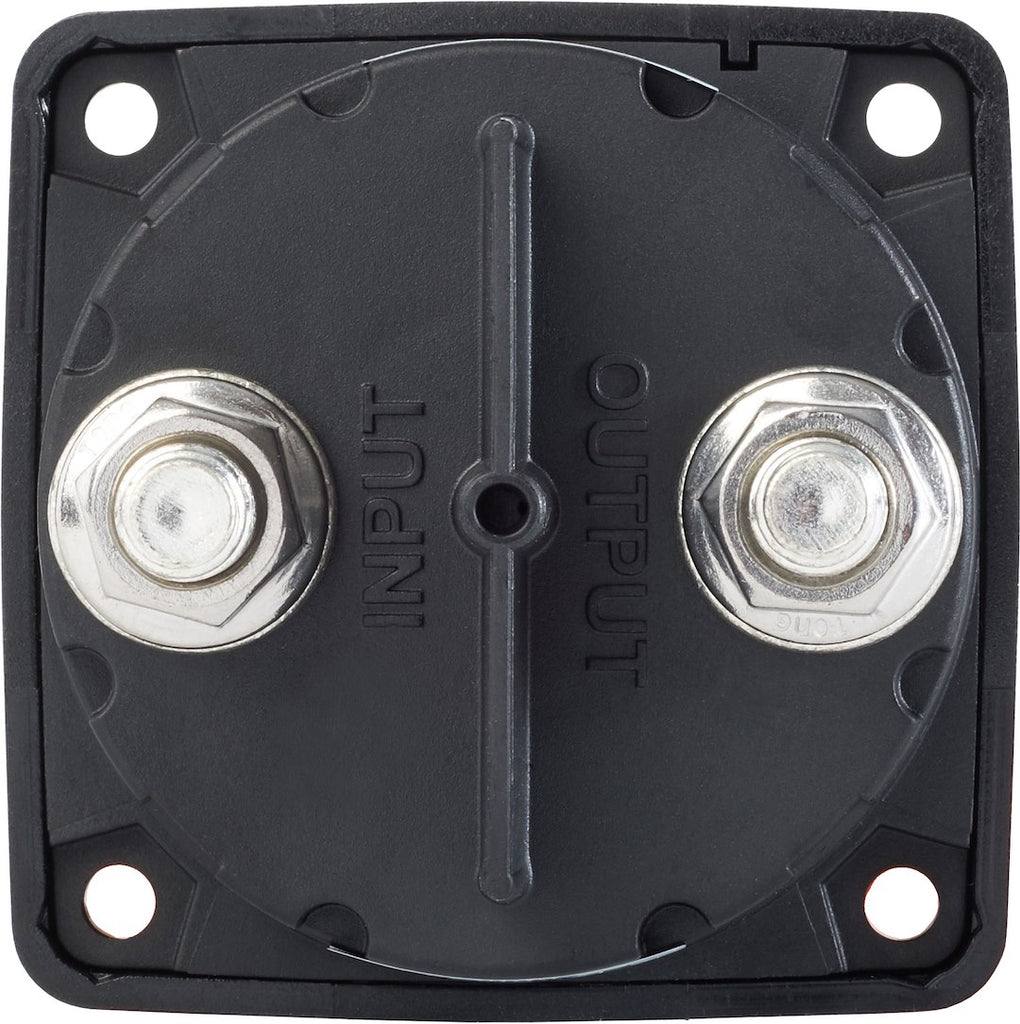

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Isolating Cover Protects Rear Contacts
• Breakout Tabs Allow Wire Access In Any Direction

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 6006200-BSS
• Type: Rotary With Removable Knob
• Activation Type: Manual
• Continuous Ampere Rating (A): 300 Amp
• Surge Ampere Rating (A): 500 Amp
• Base Diameter (IN): 2-5/8 Inch
• Installation Type: Bolt-On

Technical Documents

• 6006_web_version.pdf
• 6006_web_version.pdf
• M_Switch_Knob.pdf
• M_Switch_Knob.pdf
