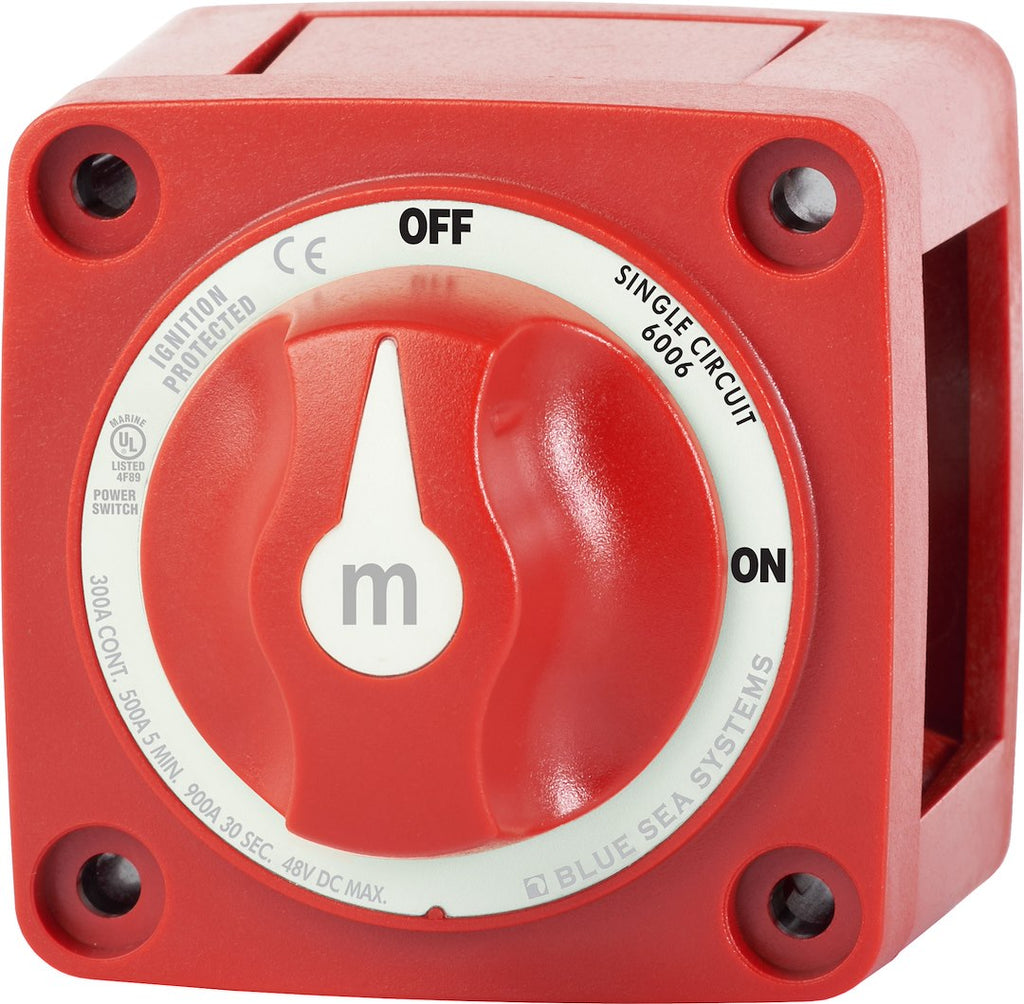

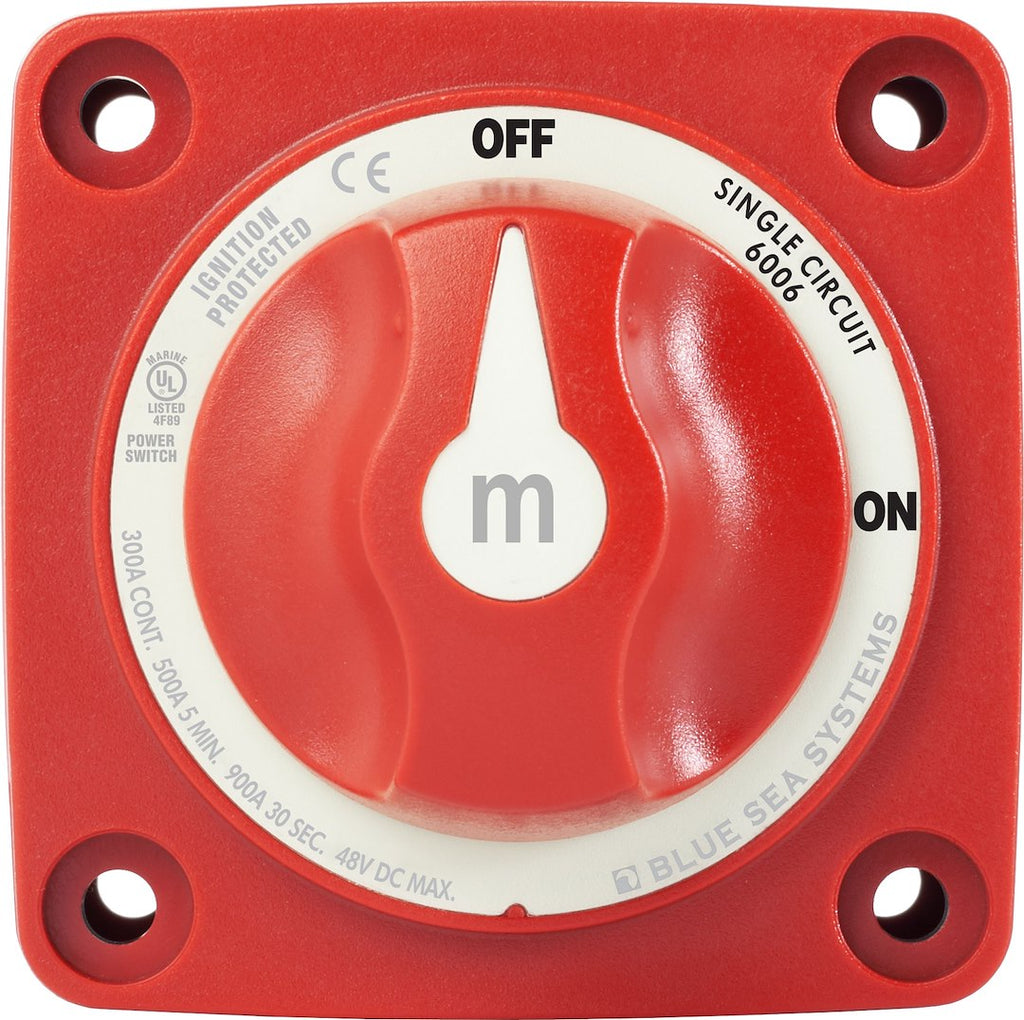

Blue Sea Battery Disconnect Switch (MPN: 6006-BSS)

Enhance safety and reliability with this 48V DC switch.

The Blue Sea Battery Disconnect Switch is designed for use in small boats and vehicles where battery access is essential. This switch operates at 48 volts DC and features a single circuit ON-OFF design, capable of handling continuous currents up to 300 amps and surge currents up to 900 amps. Its robust construction includes tin-plated copper studs that ensure maximum conductivity and resistance to corrosion, enhancing the longevity of the product.

The switch incorporates a one-piece terminal stud design that prevents loosening over time, ensuring a secure connection. Additionally, the stainless flange nut provides a reliable fastening mechanism, while the isolating cover protects the rear contacts from accidental short circuits. The breakout tabs allow for versatile wire access, accommodating various installation configurations.

With a base diameter of 2-5/16 inches, this screw-in installation type switch is straightforward to install and operate. The manual activation type allows for easy control of battery power, making it a practical choice for enhancing electrical safety in marine and automotive applications.

Features

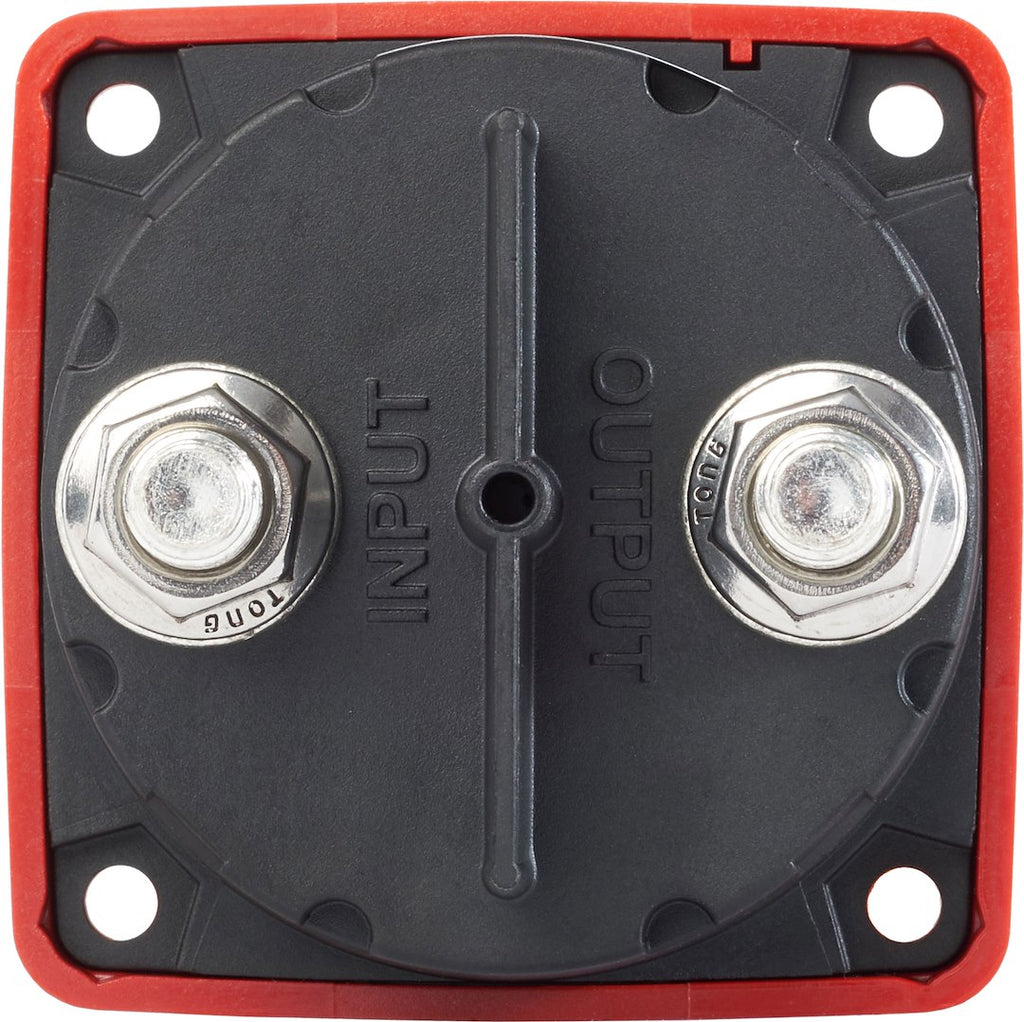

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Isolating Cover Protects Rear Contacts
• Breakout Tabs Allow Wire Access In Any Direction

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 6006-BSS
• Type: Rotary With Removable Knob
• Activation Type: Manual
• Continuous Ampere Rating (A): 300 Amp
• Surge Ampere Rating (A): 900 Amp
• Base Diameter (IN): 2-5/16 Inch
• Installation Type: Screw-In

Technical Documents

• 6006_web_version.pdf
• 6006_web_version.pdf
• M_Switch_Knob.pdf
• M_Switch_Knob.pdf
