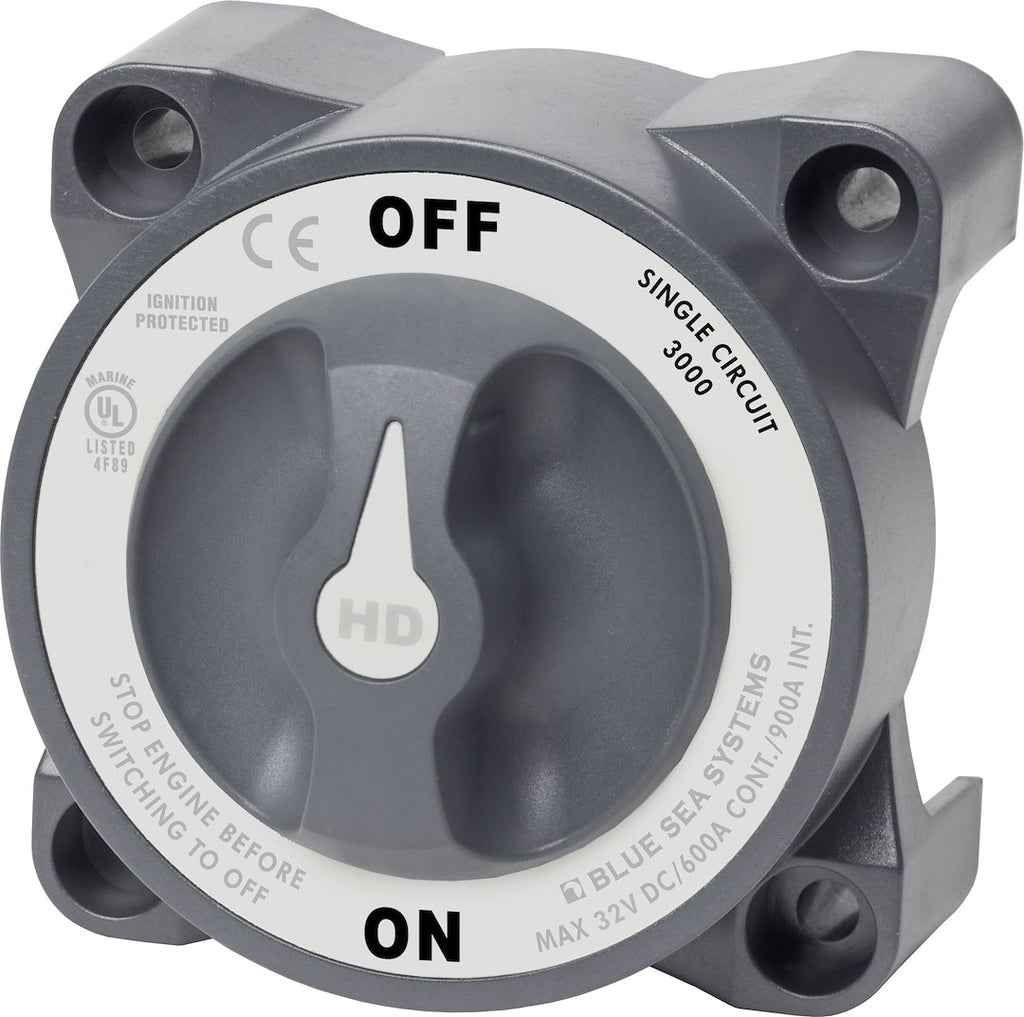

Blue Sea Battery Disconnect Switch (MPN: 3000-BSS)

Reliable battery isolation for safety and efficiency in marine applications.

The Blue Sea Battery Disconnect Switch is designed to effectively isolate battery banks, preventing unwanted energy discharge when not in use or during emergencies. This switch is capable of handling a continuous current of 325 amps and a surge of up to 900 amps, making it suitable for demanding marine environments. Its ignition-protected design ensures safe installation on gasoline-powered boats, enhancing safety during operation.

Constructed with tin-plated copper studs, this switch offers maximum conductivity and corrosion resistance, ensuring longevity and reliability. The tactile indicator allows users to easily determine the knob position by feel, facilitating quick operation. Additionally, the switch is waterproof with an IP66 rating, providing protection against powerful water jets, which is essential for marine applications.

The versatile case design allows for surface, rear, or front panel mounting options, accommodating various installation preferences. This switch is specifically engineered to connect a single battery to a single load group, making it an efficient choice for boat owners looking to manage their battery systems effectively.

Features

• Accepts Two 4/0 AWG Battery Cables
• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• Tactile Indicator Conveys Knob Position By Feel
• Waterproof – Rated IP66 From Water Projected In Powerful Jets

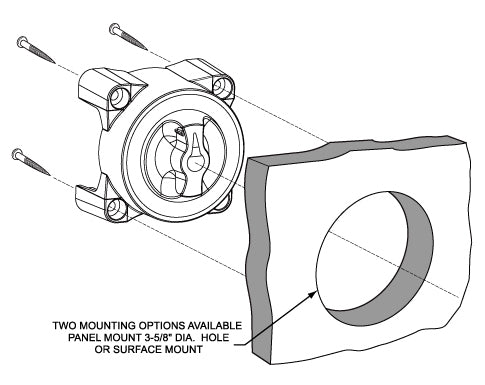

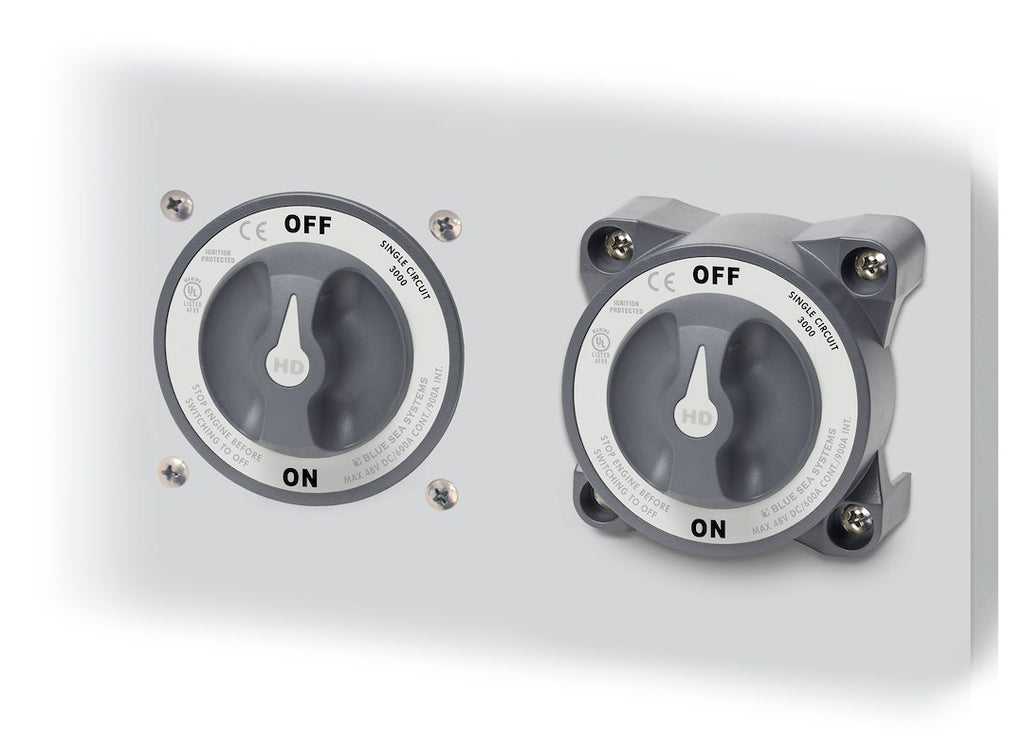

• Case Design Allows Surface, Rear, Or Front Panel Mounting Options
• Switches A Single Battery To A Single Load Group
• Ignition Protected—safe For Installation Aboard Gasoline Powered Boats

Specifications

• Manufacturer: Blue Sea
• Manufacturer Part Number: 3000-BSS
• Type: Rotary With Removable Knob
• Activation Type: Manual
• Continuous Ampere Rating (A): 325 Amp
• Surge Ampere Rating (A): 900 Amp
• Installation Type: Bolt-On

Technical Documents

• 3000_web_version.pdf
