High-performance modular shock absorber for custom tuning and assembly.

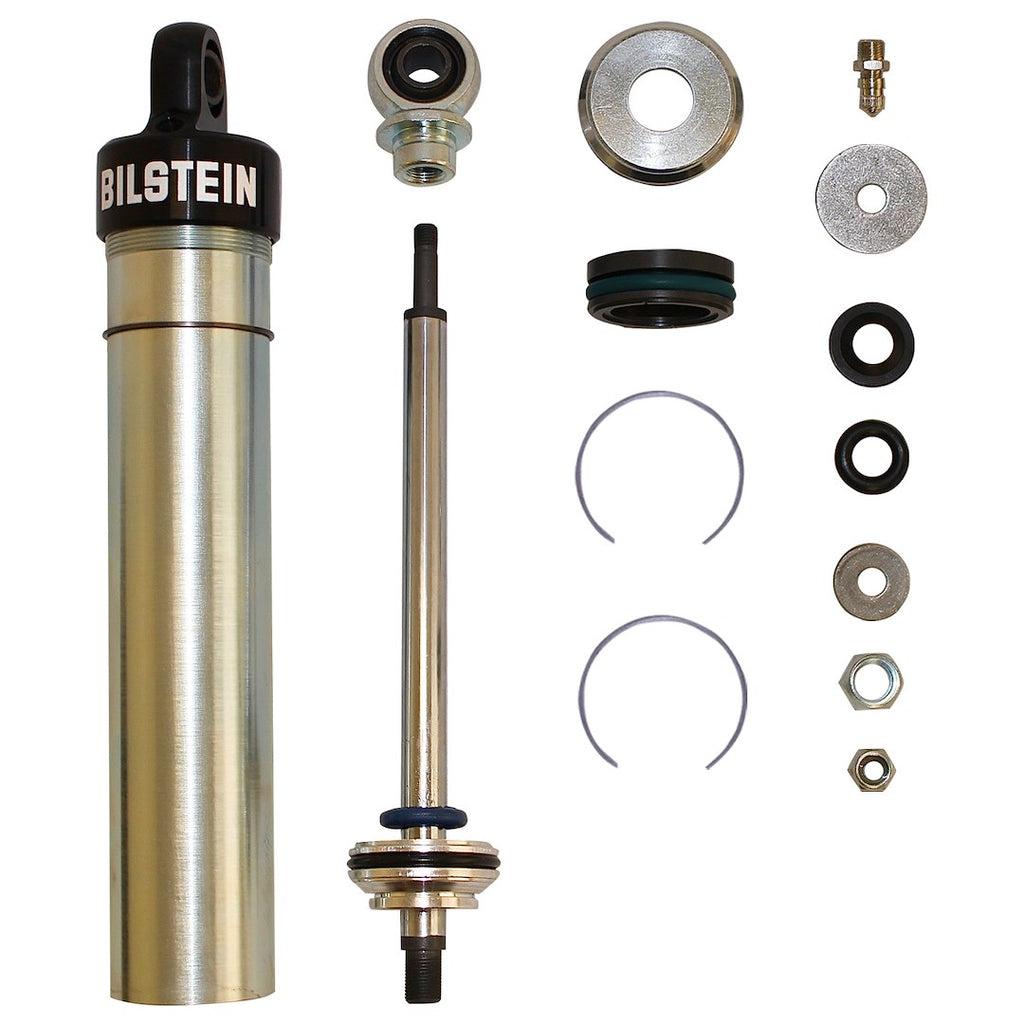

The Bilstein SN2 Series Shock Absorber is engineered for high-performance applications, featuring a robust 46 millimeter steel body that ensures durability and reliability. This shock absorber is designed as a dry kit, allowing for custom tuning and assembly to meet specific racing requirements. Its modular design enables easy conversion to coilover use, making it adaptable for various sanctioning body regulations.
The shock absorber incorporates a monotube design with a free-floating divider piston, which maximizes heat transfer and dissipation, effectively preventing fading and cavitation during intense use. The smooth zinc plated outer body design allows for both standard and coilover applications, enhancing versatility. Additionally, the 14 millimeter case hardened stainless steel chrome shaft minimizes seal drag and friction while providing resistance against stone chips and dings.
With features such as 1/2 inch graphite heims for superior rotation and minimal restriction, the Bilstein SN2 Series Shock Absorber is fully universal and compatible with most mounting requirements. This single shock absorber is a reliable choice for those seeking championship-worthy performance in their racing setups.
Features
- Smooth Zinc Plated OD Body Design Allows For Optional Standard And Coilover applications
- 14 Millimeter Case Hardened Stainless Steel Chrome Shaft That Provides Low Seal Drag/Friction And Resists Stone Chips And Dings
- Upgradeable To Single And Double Adjustable Shafts
- Monotube Design With Free Floating Divider Piston Maximizes Heat Transfer And Dissipation To Avoid Fading And Cavitation While Delivering Excellent Durab
- 1/2 Inch Graphite Heims Provides Superior Rotation With Minimal Restriction And Fits Mostmounting Requirements
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-316437
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 17.81 Inch
- Compressed Length (IN): 12 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Fully Universal
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 1/2 Inch
- Rod Material: Steel
- Body Material: Steel
- Estimated Install Time (Hours): 0.5
