Engineered for off-road racing with advanced materials and design.

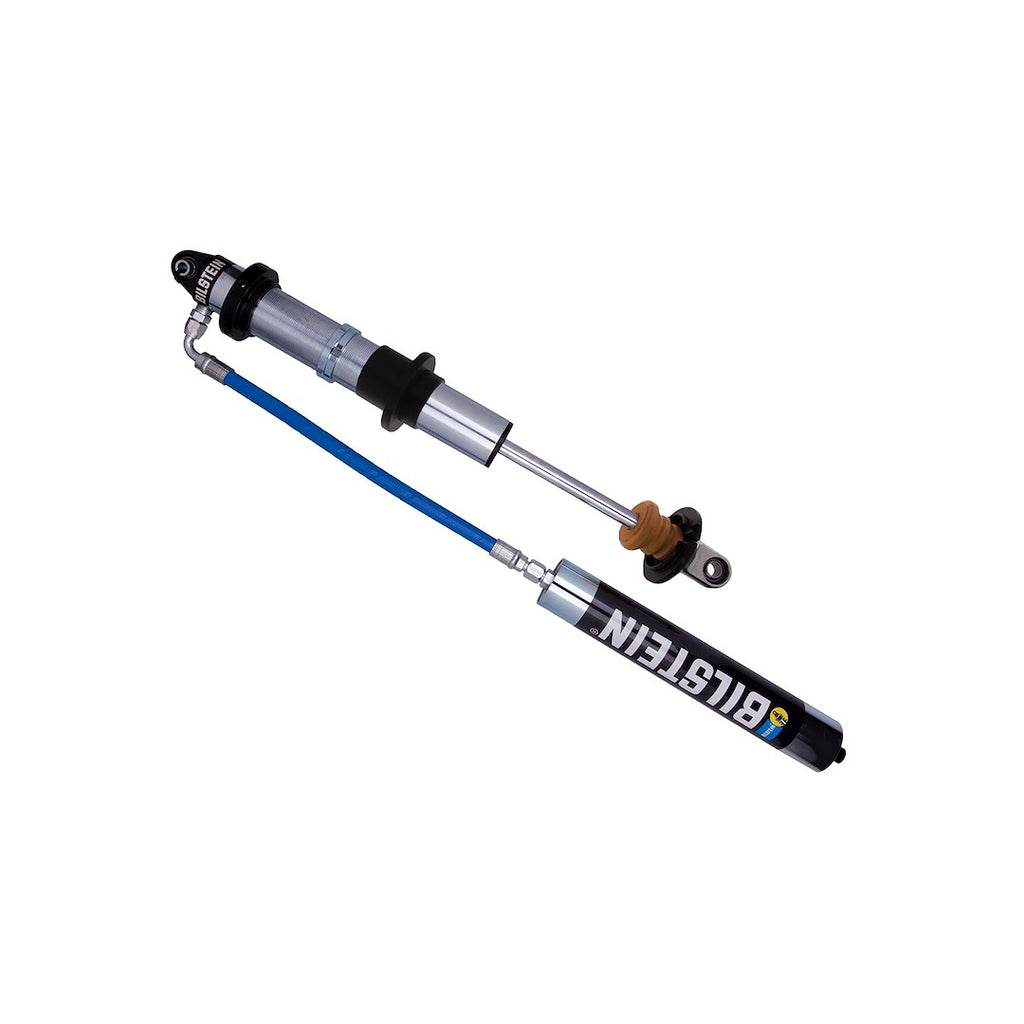

The Bilstein Shock Absorber M 9200 Coilover is designed specifically for professional off-road racing applications. This shock absorber features a nitrogen gas charge and is equipped with a remote reservoir, ensuring optimal performance under extreme conditions. Constructed from aerospace-class materials, it is built to withstand the rigors of racing while providing superior damping characteristics.
With an extended height of 29.5 inches and a collapsed height of 19.5 inches, the M 9200 is engineered for versatility in various racing setups. The threaded body allows for easy adjustment, and the dual rate coilover hardware enhances the shock's adaptability to different terrains. The case-hardened, centerless ground 22 millimeter piston rod and all machined billet aluminum components contribute to the shock's durability and reliability.
The shock absorber is designed with 5/8 inch uniball mounts and includes a 60 millimeter remote reservoir for improved oil capacity and cooling. A three-stage high-temperature seal and red synthetic high-temperature racing oil ensure consistent performance even in demanding environments. Additionally, the M 9200 is owner rebuildable, allowing for maintenance and longevity in high-performance applications.
Features
- Threaded Body With Dual Rate Coilover Hardware
- Case Hardened, Centerless Ground 22 Millimeter Piston Rod
- All Machined Billet Aluminum Components
- 5/8 Inch Uniball Mounts With 1/2 Inch Step Spacers
- 60 Millimeter Remote Reservoir
- 3 Stage High-Temperature Seal
- Red Synthetic High-Temperature Racing Oil
- Owner Rebuildabe
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-244471
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 29-1/2 Inch
- Compressed Length (IN): 19-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): OEM
- Valving Type: OEM
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
