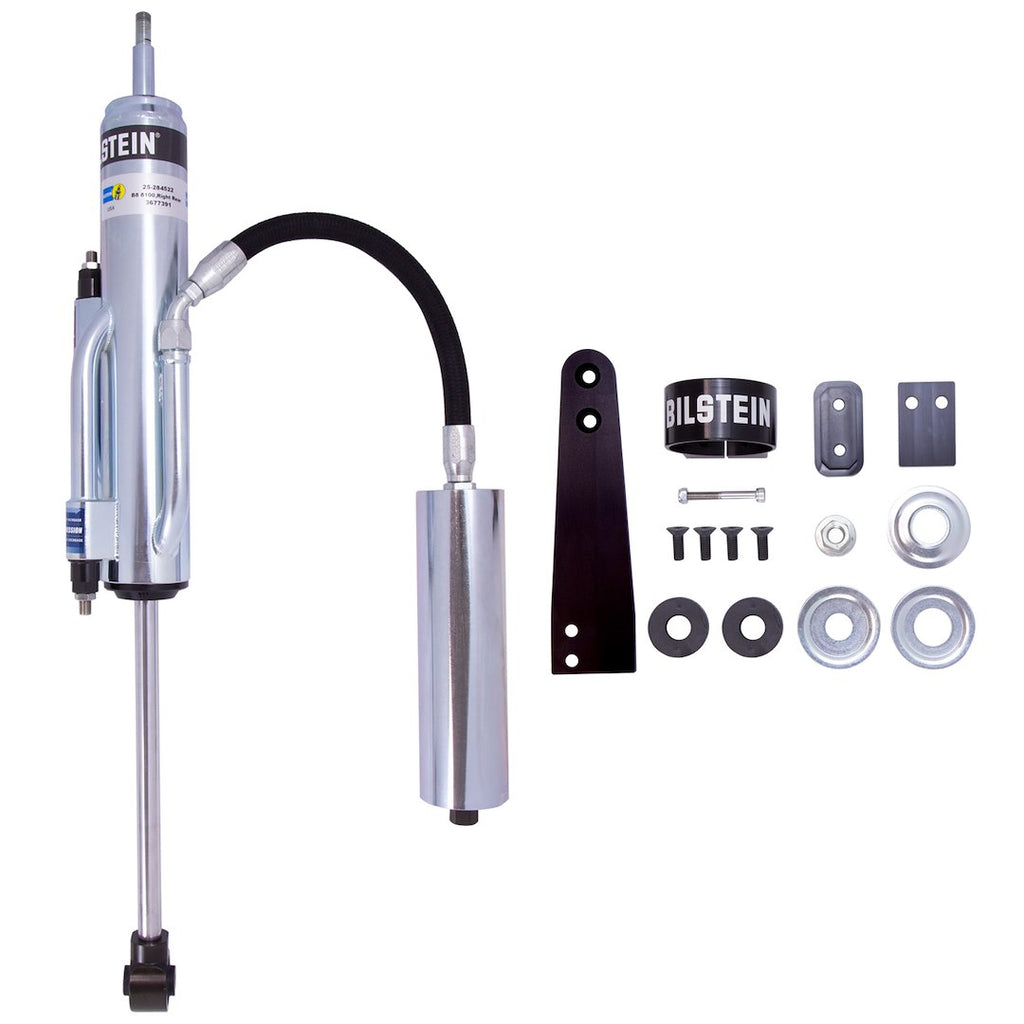

Bilstein Shock Absorber B8 8100 BP (MPN: 25-284522)

Experience enhanced ride quality with adjustable bypass technology.

The Bilstein Shock Absorber B8 8100 BP is engineered for superior performance and comfort in various driving conditions. This nitrogen gas charged shock absorber features an adjustable bypass design that allows for precise tuning of your suspension system, ensuring optimal handling and ride quality. With a compressed length of 15.75 inches and an extended length of 25.88 inches, it is designed for a direct fit, making installation straightforward and efficient.

The innovative dual tube external bypass system provides position sensitive damping, allowing independent adjustments for both rebound and compression. This feature enhances bottoming control and eliminates the need for hydraulic bump stops, resulting in a smoother ride over rough terrain. The shock absorber is equipped with a bottom port reservoir hose that further increases bottom out control during compression cycles, ensuring durability and performance longevity.

Constructed with a 60 millimeter large bore hard anodized aluminum piston and an 18 millimeter piston rod, the Bilstein B8 8100 BP delivers exceptional damping control and strength. The vehicle specific tuning allows for a wide range of adjustments, catering to individual driving preferences and conditions. This shock absorber is a reliable choice for those seeking to enhance their vehicle's suspension performance.

Features

• The Bump Zone, Located Above The Compression Bypass Tube, Increases Bottoming Control And Eliminates The Need For A Hydraulic Bump Stop
• Dual Tube External Bypass Offers Position Sensitive Damping With Independent Adjustment For Rebound And Compression
• Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments
• Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle
• Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability
• Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments
• 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability
• Direct Fit For Easy Installation
• 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 25-284522
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 25.88 Inch
• Compressed Length (IN): 15-3/4 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Twin Tube
• Body Color: Silver
• With Reservoir: Yes
• Includes Dust Shield: No

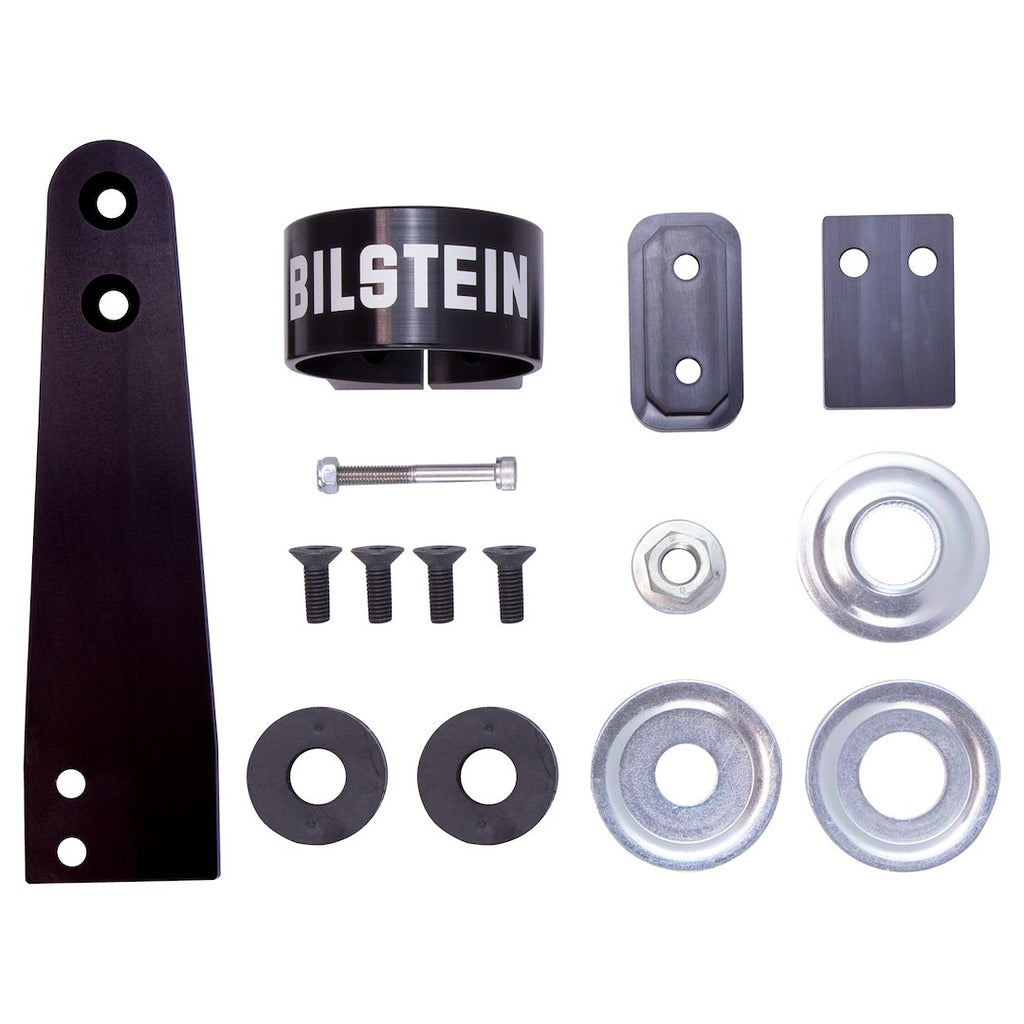

• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2007-2021 Toyota Tundra

Technical Documents

• E4-WM5-Y628A00.pdf
• warranty_all_v4.2.pdf
• B8_8100_Flyer.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
