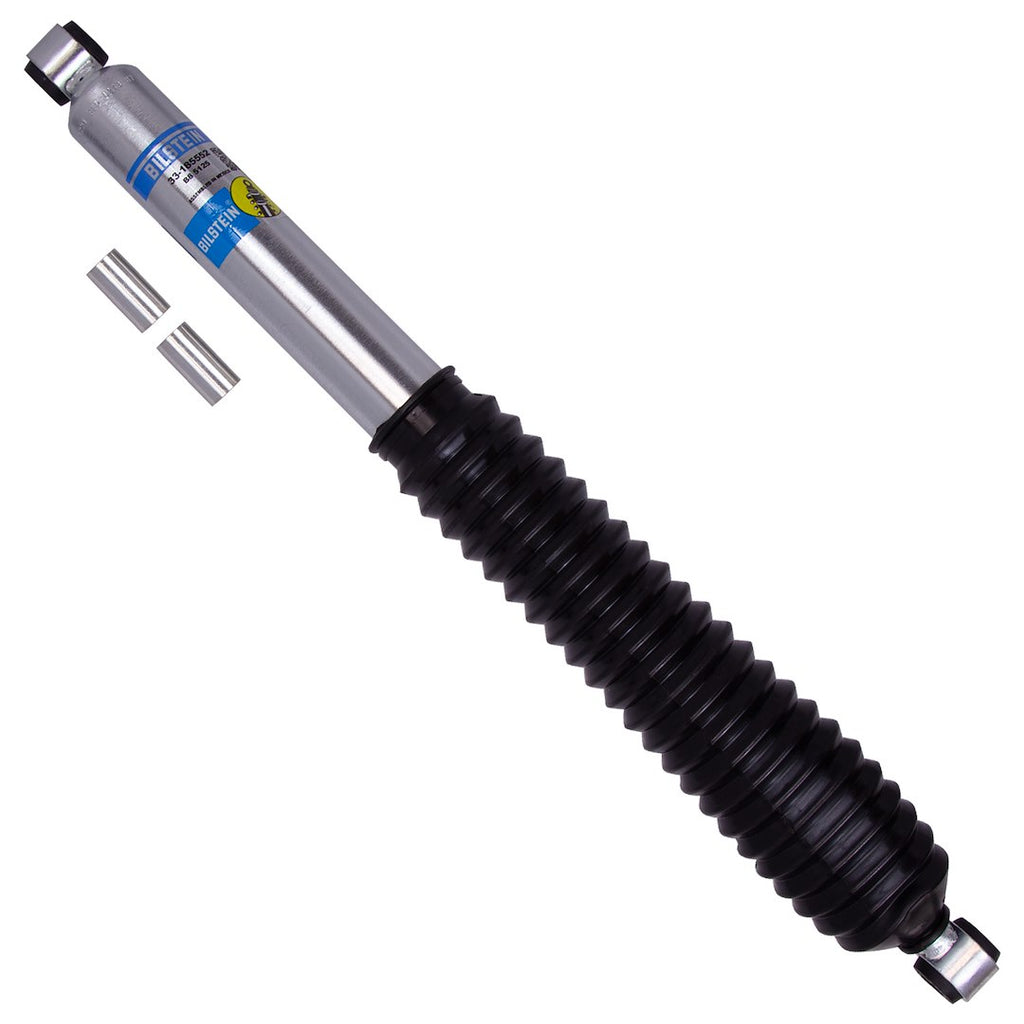

Bilstein Shock Absorber B8 5100 Series (MPN: 33-185552)

High-performance monotube shock absorber for stable ride quality.

The Bilstein B8 5100 Series shock absorber features a monotube design that provides consistent and fade-free performance across various driving conditions. This nitrogen gas charged shock is engineered to react instantly to changing road inputs, ensuring a stable and controlled ride whether on or off-road. With a collapsed length of 15.91 inches and an extended length of 25.93 inches, it is designed for easy installation with OEM certified mounting hardware.

Constructed with durable zinc plating, the B8 5100 is resistant to harsh environmental elements, enhancing its longevity and reliability. The patented digressive valving technology allows the shock to adapt to different surface conditions, providing optimal comfort and handling. Additionally, the shock is equipped with vulcanized neoprene rubber bushings that further improve performance and durability.

This shock absorber is a single unit with eyelet mounting styles on both the upper and lower ends, making it semi-universal for various applications. The robust steel construction and a rod diameter of 1.81 inches ensure strength and stability, making the Bilstein B8 5100 an essential component for enhancing vehicle performance.

Features

• Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
• Zinc Plated For Resistance Against Harsh Elements
• Patented Digressive Valving Instantly Reacts To Changing Surface Conditions
• Durable Vulcanized Neoprene Rubber Bushings
• OEM Certified Mounting Hardware Allows For Easy Installation

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 33-185552
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 25.93 Inch
• Compressed Length (IN): 15.91 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 1.81 Inch
• Valving Type: Self-Adjusting Deflective Disc Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: Yes
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1974-1974 Chevrolet K10 Pickup
• 1961-1983 Toyota Land Cruiser

Technical Documents

• E4-WM5-Y277A01.pdf
• warranty_all_v4.2.pdf
• BILSTEIN_Measure_a_Shock.pdf
• BILSTEIN_Measure_a_Shock.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
