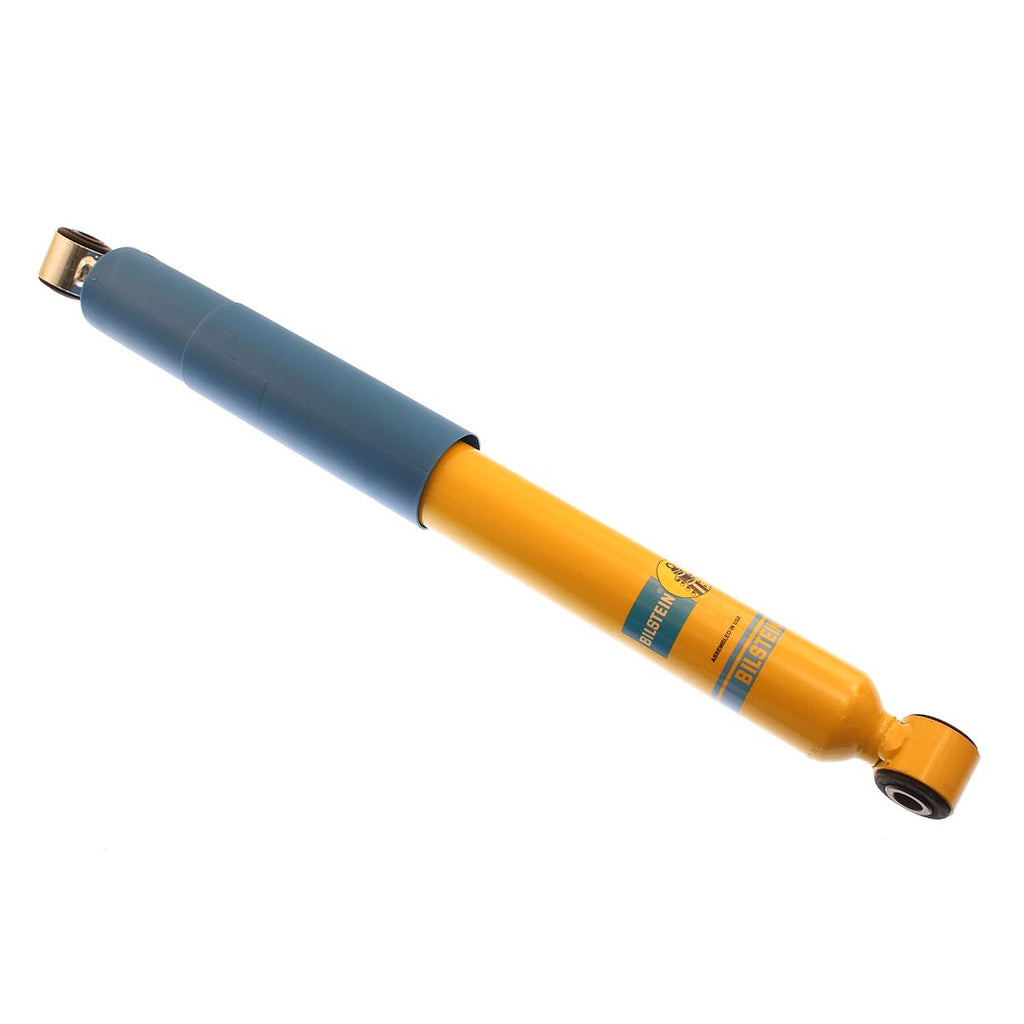

Bilstein Shock Absorber B6 Series (MPN: 24-015875)

Enhance your vehicle's ride performance and handling with Bilstein technology.

Bilstein 4600 Series Shock Absorbers are engineered to optimize ride performance and handling for Trucks, Vans, and SUVs. These nitrogen gas charged shocks provide superior control and stability, ensuring that cargo remains secure during transport. The patented design allows vehicles to navigate various road surfaces smoothly while maintaining command and comfort.

The Bilstein 4600 Series is designed to improve safety and performance without the need for additional spring modifications. With features such as Bilstein Gas Pressure Technology and Monotube construction, these shocks deliver increased power reserves and extended service life, even under heavy loads. Road and track testing by Bilstein ensures that these dampers are fine-tuned for optimal performance in both everyday and extreme driving conditions.

This single shock absorber is vehicle specific and features self-adjusting deflective disc valving for enhanced responsiveness. The robust steel construction and eyelet mounting style contribute to the durability and reliability of the product, making it a cost-effective solution for extending the life of your vehicle.

Features

• Increased Power Reserves And Service Life, Even When Pulling Transporters And Trailers Or During Frequent Journeys With Loads
• Optimum Addition And Enhanced Lane Change Stability In Both Day To Day And Extreme Solutions
• Marked Improvement In Safety And Performance Without Additional Spring Changes
• Bilstein Gas Pressure Technology
• Bilstein Monotube/Upside Down Technology
• Road And Track Tested By Bilstein For Fine Tuning

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 24-015875
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 22.66 Inch
• Compressed Length (IN): 14.29 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Yellow
• Rod Diameter (IN): 1/2 Inch
• Valving Type: Self-Adjusting Deflective Disc Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1975-1986 Chevrolet C20
• 1973-1974 Chevrolet C20 Pickup
• 1975-1986 Chevrolet C30
• 1975-1980 Chevrolet P10
• 1975-1989 Chevrolet P20
• 1993-1999 Chevrolet P30
• 1987-1988 Chevrolet R20
• 1989-1989 Chevrolet R2500
• 1987-1988 Chevrolet R30
• 1975-1978 GMC C25
• 1979-1986 GMC C2500
• 1975-1978 GMC C35
• 1973-1974 GMC C35/C3500 Pickup
• 1979-1986 GMC C3500
• 1975-1978 GMC P15
• 1973-1974 GMC P15/P1500 Van
• 1979-1980 GMC P1500
• 1975-1978 GMC P25
• 1973-1974 GMC P25/P2500 Van
• 1979-1989 GMC P2500
• 1975-1978 GMC P35
• 1973-1974 GMC P35/P3500 Van
• 1979-1999 GMC P3500
• 1987-1988 GMC R2500
• 1987-1988 GMC R3500
• 2000-2005 Workhorse P30
• 1999-2005 Workhorse P32

Technical Documents

• E4-WM5-Y217A00.pdf
• warranty_all_v4.2.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
