Advanced damping technology for motorsports applications with adjustable features.

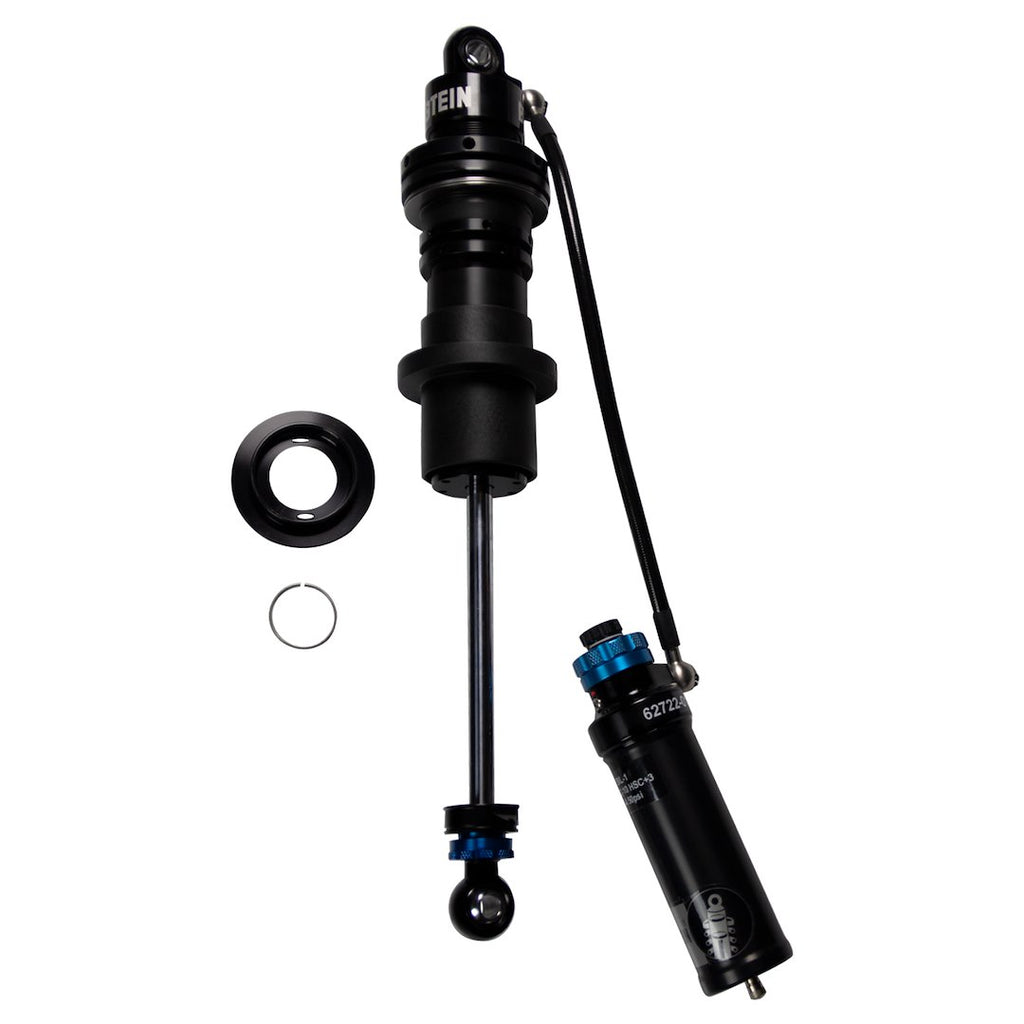

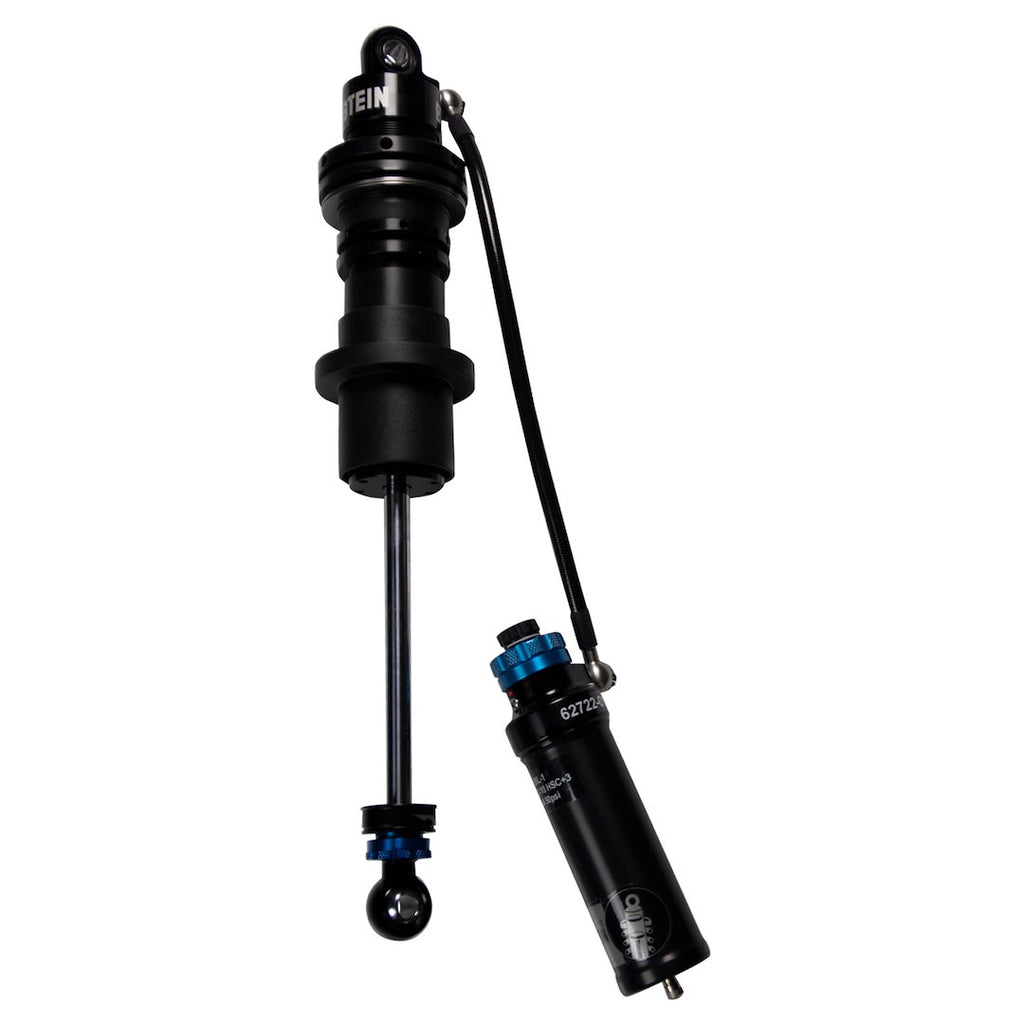

The Bilstein AS2-R Series shock absorbers are engineered for high-performance motorsports applications, offering a lightweight modular aluminum design that enhances durability and precision. With a clear anodized finish, these shock absorbers feature a 46 millimeter body diameter and a threaded body screw top for easy adjustments. The independent high and low compression adjusters allow for fine-tuning of the damping characteristics, ensuring optimal performance across various track conditions.
These dampers utilize Bilstein's advanced reservoir technology, which includes a tunable base valve assembly for maximum versatility. The high-speed control is achieved through a preloaded cage, while low-speed adjustments are facilitated by a needle and jet assembly, providing a comprehensive tuning experience. The modular configuration allows for straightforward rebuilding and repair, making maintenance efficient and effective.
Constructed from 6061 aluminum with a hard anodized body, the AS2-R Series ensures tight tolerances and long-lasting performance. The high-performance rod guide seal pack exceeds original equipment quality standards, reducing shaft friction and enhancing durability in harsh racing environments. The braided stainless steel Dash 5 hose improves oil flow and minimizes hysteresis, contributing to the overall efficiency of the shock absorber.
Features
- 6061 Aluminum Extruded, Hard Anodized Body And Reservoir Provides Durability And Maintains Tighter Tolerances
- Completely Independent High And Low Speed Adjustment
- High Speed Control Through Preloaded Cage For Consistent Adjustments And Better Range, And Low Speed Control Through Needle And Jet Assembly For Extra Fine Tunability
- 46 Millimeter Base Valve Provides Optimal Flow And Replenishment Balance While Allowing Lower Rod Forces To Be Used
- Components Are Billet Machined Anodized Aluminum For Precision Tolerance And Fit
- 3-Way Tuning: High/Low Compression On Reservoir And Rebound On Shaft
- Modular Configuration For Easy Rebuild And Repair
- High Performance Rod Guide Seal Pack That Exceeds OE Quality Durability Requirements, Provides Low Shaft Friction And Withstands Harsh Racing Environments
- Braided Stainless Steel Dash 5 Hose Delivers Better Oil Flow With Less Hysteresis. Banjo Fittings For Easier Mounting
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-323466
- With Coil Spring: No
- Extended Length (IN): 19.29 Inch
- Compressed Length (IN): 12.71 Inch
- Adjustable Valving: Yes
- Universality: Semi-Universal
- Body Color: Silver
- Valving Type: Firm Compression And Adjustable Rebound Valving
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
