High-performance shock absorber designed for off-road applications.

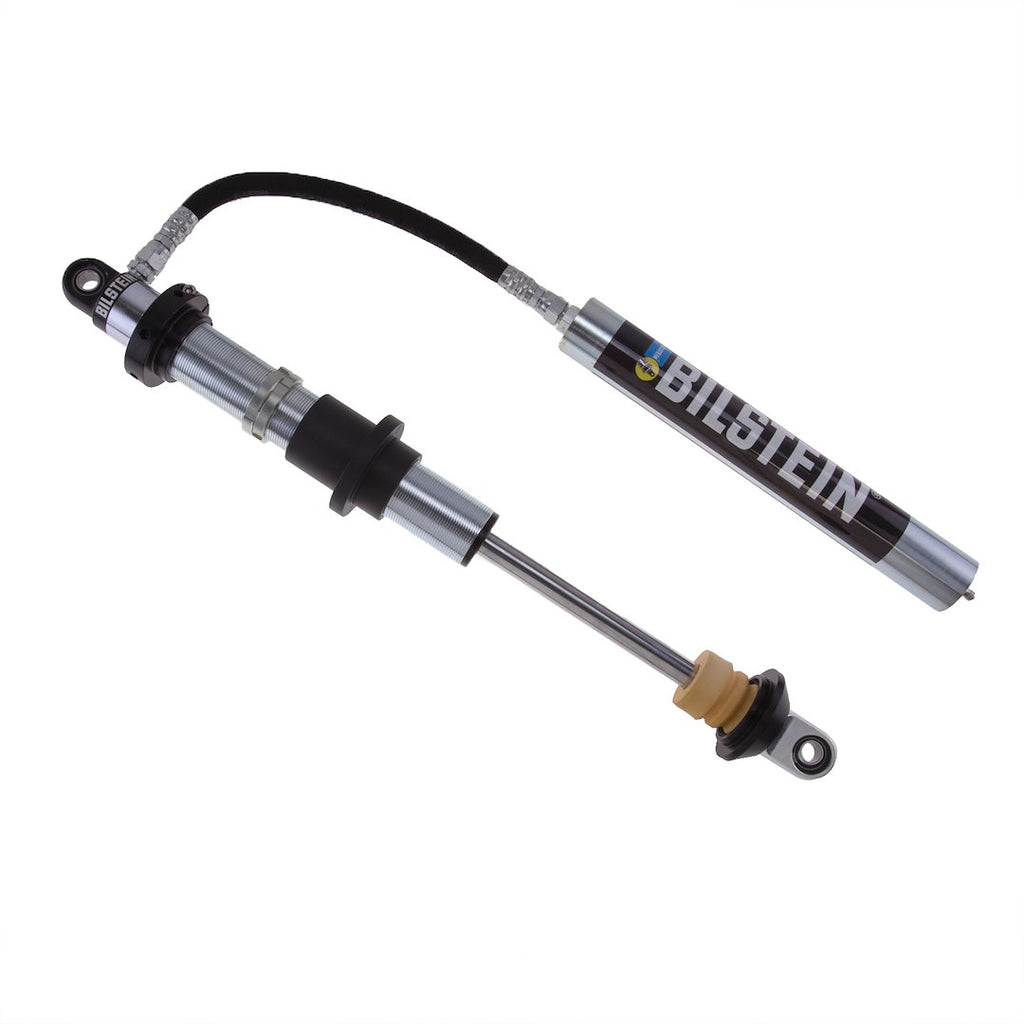

The Bilstein Shock Absorber 8125 Series is engineered for serious off-road enthusiasts seeking durability and performance. This shock absorber features a monotube design that ensures fade-free performance, making it suitable for a variety of rugged terrains. With a remote reservoir, it offers enhanced resistance to heat, which is critical during extended off-road use. The shock body is zinc plated to resist corrosion from off-road elements, ensuring longevity in harsh conditions.
Designed with a threaded body and dual rate coil over hardware, the 8125 Series allows for ride height adjustment, accommodating a wide range of custom applications. The high-temperature seal extends the life of the shock, while the 22 millimeter case hardened piston rod provides exceptional tensile strength, resisting damage from sand blasting and rock chipping. This shock absorber is owner rebuildable, making maintenance straightforward and cost-effective.
With an extended length of 27 inches and a compressed length of 17 inches, this shock absorber is compatible with a variety of vehicles. It features industry-standard 5/8 inch bearings and is designed to accept a 2-1/2 inch inside diameter coil spring, providing versatility for different setups. The Bilstein 8125 Series is a single unit, making it a practical choice for those looking to enhance their vehicle's suspension system.
Features
- Threaded Body With Dual Rate Coil Over Hardware
- Monotube Design For Fade-Free Performance
- Remote Reservoir For Greater Resistance To Heat
- High Temperature Seal Extends Life Of Shock
- 22 Millimeter Case Hardened Piston Rod Provides Brute Tensile Strength While Resisting Sand Blasting And Rock Chipping
- Zinc Plated For Resistance To Off-Road Elements
- Owner Rebuildable
- Industry Standard 5/8 Inch Bearing
- All Components Are Billet Machined
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-225524
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 27 Inch
- Compressed Length (IN): 17 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 0.86 Inch
- Valving Type: Non Adjustable Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
