High-performance shock absorber designed for off-road applications.

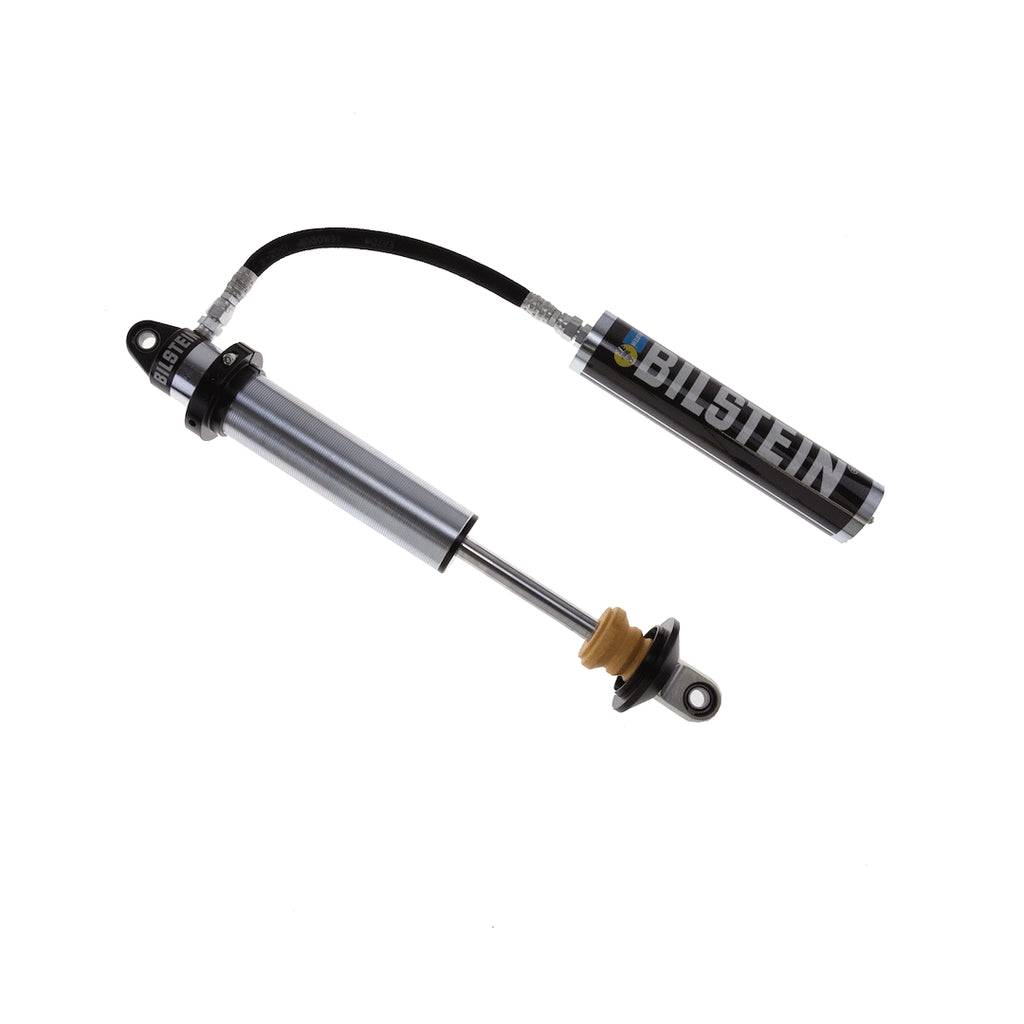

The Bilstein Shock Absorber 8125 Series is engineered for serious off-road enthusiasts seeking durability and performance. This shock absorber features a monotube design that ensures fade-free performance, making it suitable for challenging terrains. With a remote reservoir, it offers enhanced resistance to heat, which is crucial for maintaining optimal performance during extended use.
Constructed with high-quality machined components, the 8125 Series is built to withstand the rigors of off-road driving. The zinc-plated shock body provides resistance against harsh off-road elements, while the 22 millimeter case hardened piston rod delivers exceptional tensile strength, resisting sand blasting and rock chipping. The threaded body allows for dual rate coil over hardware, accommodating a variety of custom applications.
This shock absorber is designed to be owner rebuildable, ensuring longevity and continued performance. It features an industry-standard 5/8 inch bearing and is compatible with a 3 inch inside diameter coil spring, although it is sold without the coil spring. The Bilstein 8125 Series is a semi-universal fit, making it a versatile choice for various vehicles.
Features
- Threaded Body With Dual Rate Coil Over Hardware
- Monotube Design For Fade-Free Performance
- Remote Reservoir For Greater Resistance To Heat
- High Temperature Seal Extends Life Of Shock
- 22 Millimeter Case Hardened Piston Rod Provides Brute Tensile Strength While Resisting Sand Blasting And Rock Chipping
- Zinc Plated For Resistance To Off-Road Elements
- Owner Rebuildable
- Industry Standard 5/8 Inch Bearing
- All Components Are Billet Machined
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-225494
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 24 Inch
- Compressed Length (IN): 16 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 0.86 Inch
- Valving Type: Non Adjustable Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
