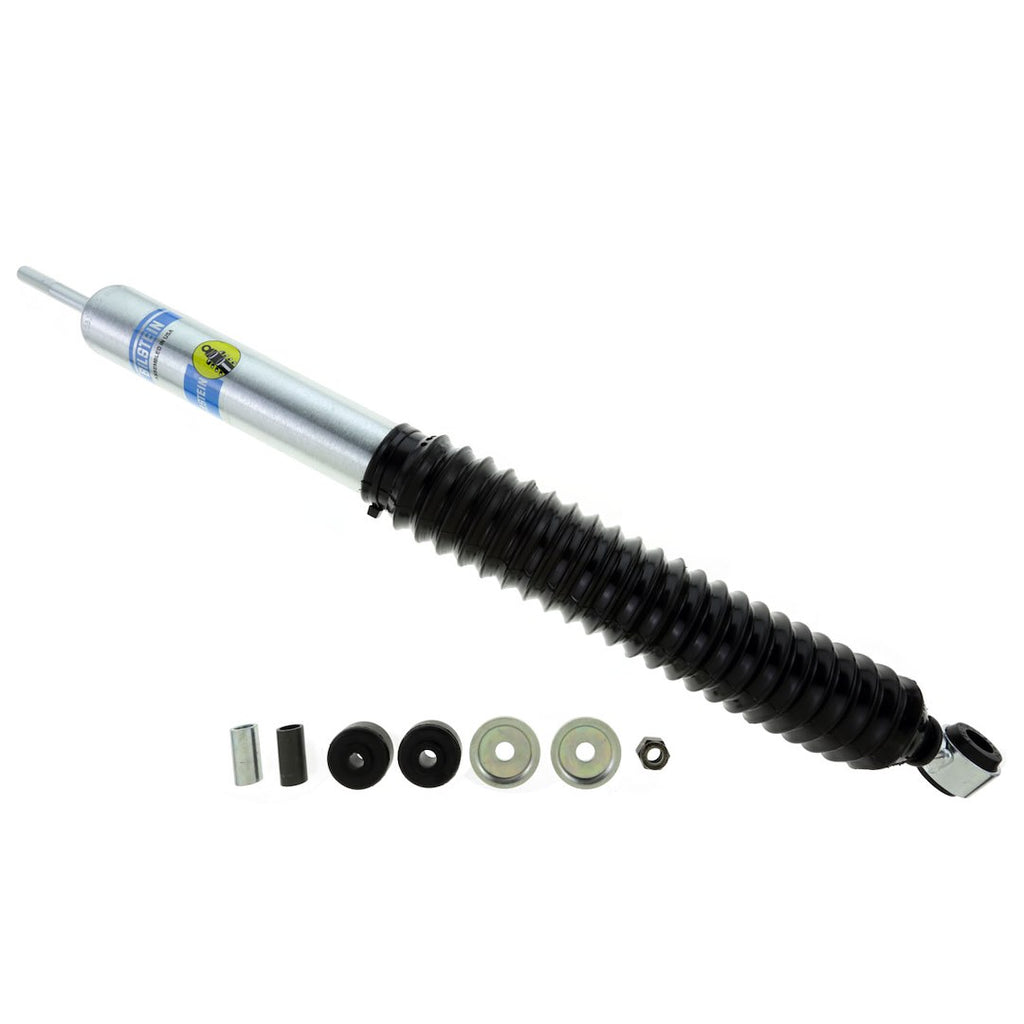

Bilstein Shock Absorber 5125 Series (MPN: 33-230337)

Advanced nitrogen gas charged shock for lifted applications with superior performance.

The Bilstein Shock Absorber 5125 Series is engineered for custom lifted applications, providing enhanced performance and durability. This shock absorber features a nitrogen gas charged monotube design that ensures consistent fade-free performance, making it suitable for various driving conditions. With independent rebound and compression tuning, it allows for precise adjustments to meet specific handling requirements.

The 5125 Series incorporates self-adjusting deflective disc valving and a high-flow piston, which work together to reduce harshness and improve ride quality. Its larger working piston area contributes to exact damping, ensuring superior control, especially when paired with large diameter tires. The shock absorber is constructed from high-quality steel, featuring a silver body and black boots for added protection and longevity.

With an extended height of 24.38 inches and a compressed height of 15.01 inches, this shock absorber is designed for optimal fitment in lifted vehicles. It includes a stem upper mount and a 5/8 inch eye lower mount, making installation straightforward. The Bilstein 5125 Series is a single unit that comes with necessary hardware and a dust boot, ensuring a complete solution for enhancing vehicle suspension.

Features

• Monotube Gas Pressure Construction
• Self-Adjusting Deflecting Disc Valving
• High-Flow Piston Reduces Harshness
• Independent Rebound And Compression Tuning
• Larger Working Piston Area For Exact Damping
• Superior Control For Large Diameter Tires

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 33-230337
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 24.38 Inch
• Compressed Length (IN): 15.01 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 1/2 Inch
• Valving Type: Self-Adjusting Deflective Disc Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: Yes
• Includes Dust Shield: No

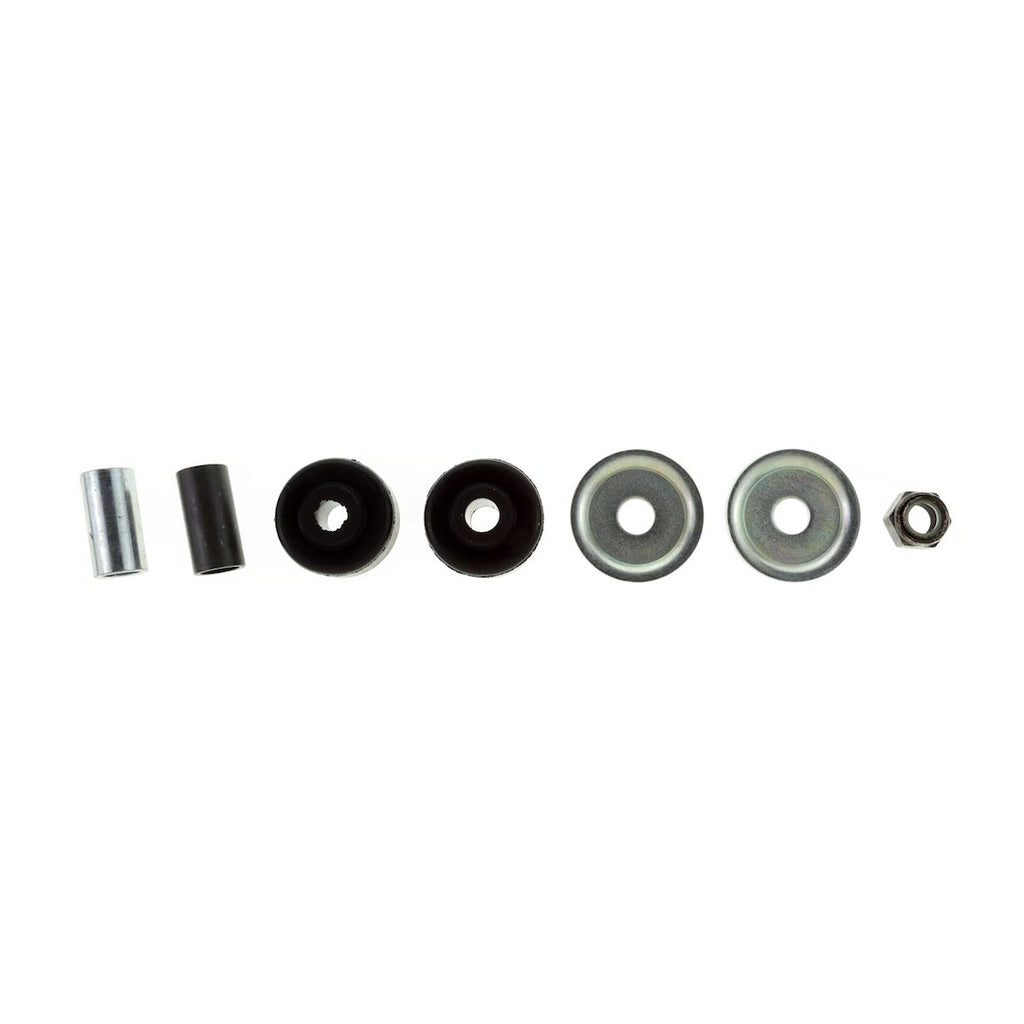

• Includes Hardware: Yes
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5
