Bilstein Shock Absorber 5100 Series (MPN: 24-225793)

Adjustable ride height for enhanced vehicle performance and stability.

The Bilstein 5100 Series Ride Height Adjustable Shock Absorber is engineered for front coilover style pickup and SUV suspensions. This shock absorber features a nitrogen gas charged monotube design that provides superior performance and durability. With multiple snap ring grooves, the spring seat can be positioned at various heights, allowing for ride height adjustments between 0 to 2.5 inches based on the specific application.

Constructed with a zinc finish and a unique multi-layer Bilstein coating, this shock absorber offers extreme protection against corrosion and wear. The self-adjusting deflective disc valving allows for independent tuning of rebound and compression, ensuring optimal handling and comfort. Designed to utilize the vehicle's stock front coil springs, it serves as a practical alternative to coil spring spacers while maintaining the integrity of the suspension system.

This single shock absorber is vehicle specific and features a silver painted body made from durable steel. With an extended length of 19.2 inches and a compressed length of 13.35 inches, it is designed for easy installation and includes necessary hardware. The Bilstein 5100 Series is a reliable choice for those seeking to enhance their vehicle's performance and stability.

Features

• An Extremely Affordable And Practical Alternative To Coil Spring Spacers, With The Benefit Of Bilstein's Superior Monotube Design
• Utilizes The Vehicle's Stock Front Coil Springs
• Zinc Finish With Multi-Layer Unique Bilstein Coating For Extreme Protection
• Self-Adjusting Deflective Disc Valving With Independent Rebound And Compression Tuning

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 24-225793
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 19.2 Inch
• Compressed Length (IN): 13.35 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Clip
• Adjustable Valving: Yes
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 1.81 Inch
• Valving Type: Self-Adjusting Deflective Disc Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No

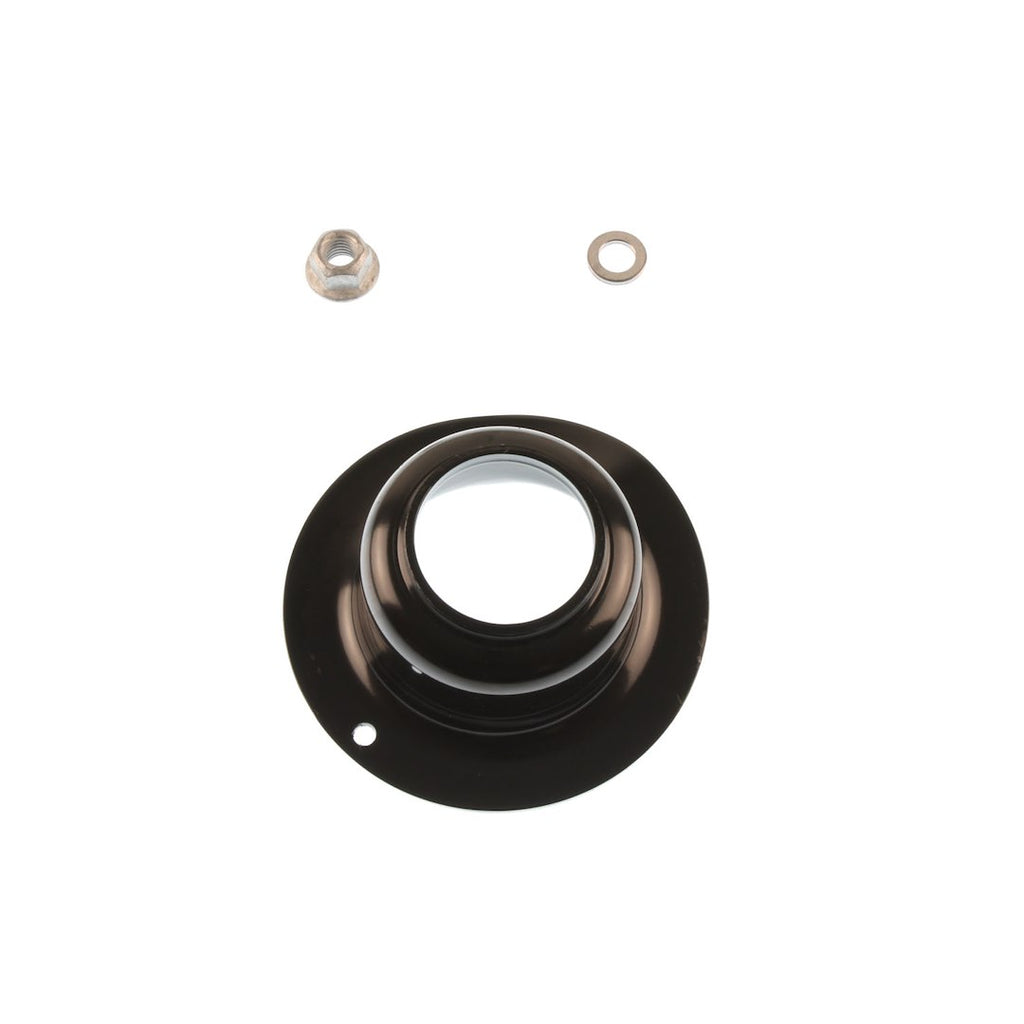

• Includes Hardware: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2005-2010 Jeep Grand Cherokee

Technical Documents

• E4-WM5-Y427A00.pdf
• warranty_all_v4.2.pdf
• B8_5100_RHA_Flyer.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• B8_5100_RHA_Flyer.pdf
• B8_5100_RHA_Flyer.pdf

Product Videos
