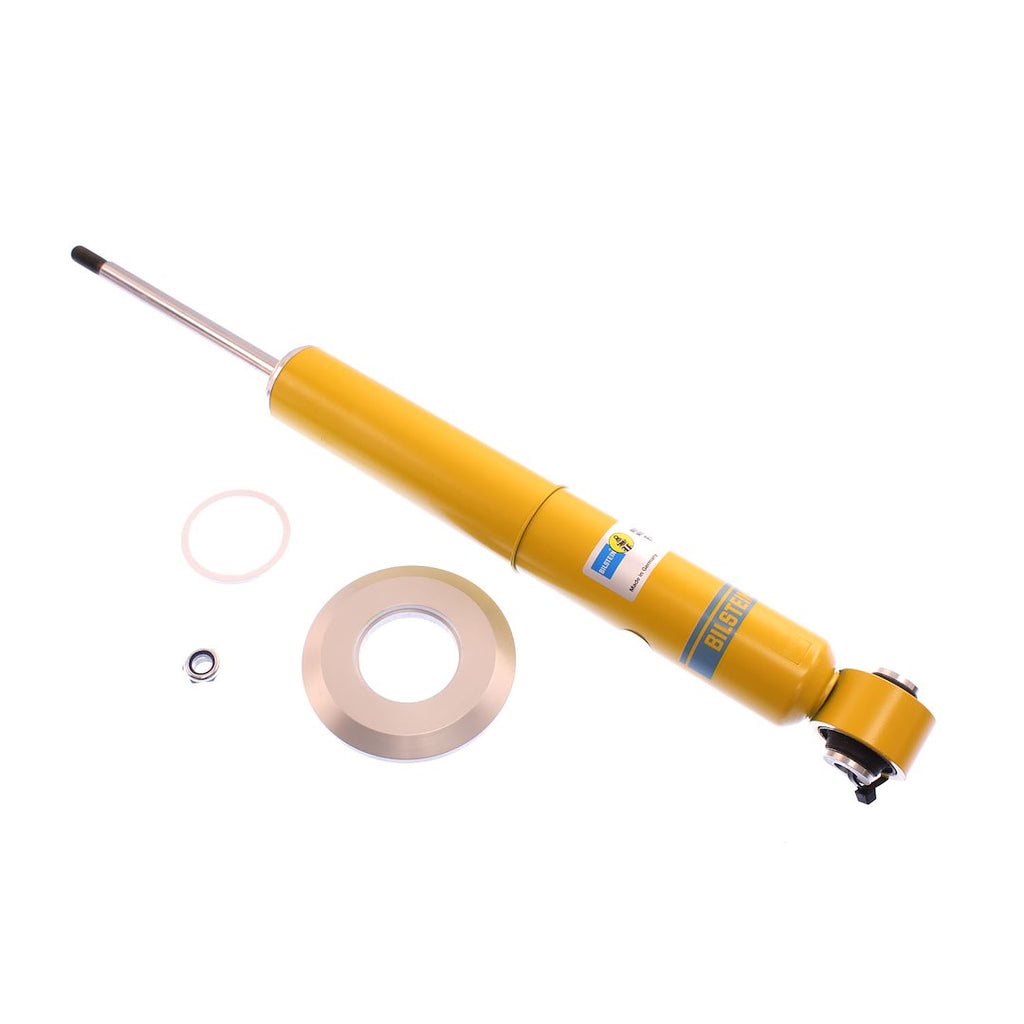

Bilstein Shock Absorber 4600 Sport (MPN: 24-110600)

Enhance performance and stability for lowered trucks and SUVs.

The Bilstein 4600 Series Sport Shock Absorbers are engineered for lowered trucks and SUVs that utilize shorter static length springs. These nitrogen gas charged dampers provide superior control and handling, ensuring optimal performance on various road surfaces. Designed with Bilstein's advanced monotube technology, the 4600 Series Sport dampers deliver enhanced stability and safety without the need for additional spring modifications.

With a focus on durability, these shock absorbers are built to withstand the demands of frequent towing and heavy loads, offering increased power reserves and a longer service life. The self-adjusting deflective disc valving system ensures that the dampers respond effectively to changing road conditions, providing a smooth and controlled ride.

Bilstein's rigorous road and track testing guarantees that the 4600 Series Sport dampers are fine-tuned for performance, making them a cost-effective solution for those looking to improve their vehicle's handling characteristics. The semi-universal design and straightforward installation process further enhance their appeal for performance-minded drivers.

Features

• Increased Power Reserves And Service Life, Even When Pulling Transporters And Trailers Or During Frequent Journeys With Loads
• Optimum Addition And Enhanced Lane Change Stability In Both Day To Day And Extreme Solutions
• Marked Improvement In Safety And Performance Without Additional Spring Changes
• Bilstein Gas Pressure Technology
• Bilstein Monotube/Upside Down Technology
• Road And Track Tested By Bilstein For Fine Tuning

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 24-110600
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 20.59 Inch
• Compressed Length (IN): 14.37 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Yellow
• Rod Diameter (IN): 1/2 Inch
• Valving Type: Self-Adjusting Deflective Disc Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2003-2006 Porsche Cayenne
• 2008-2010 Porsche Cayenne
• 2004-2010 Volkswagen Touareg
