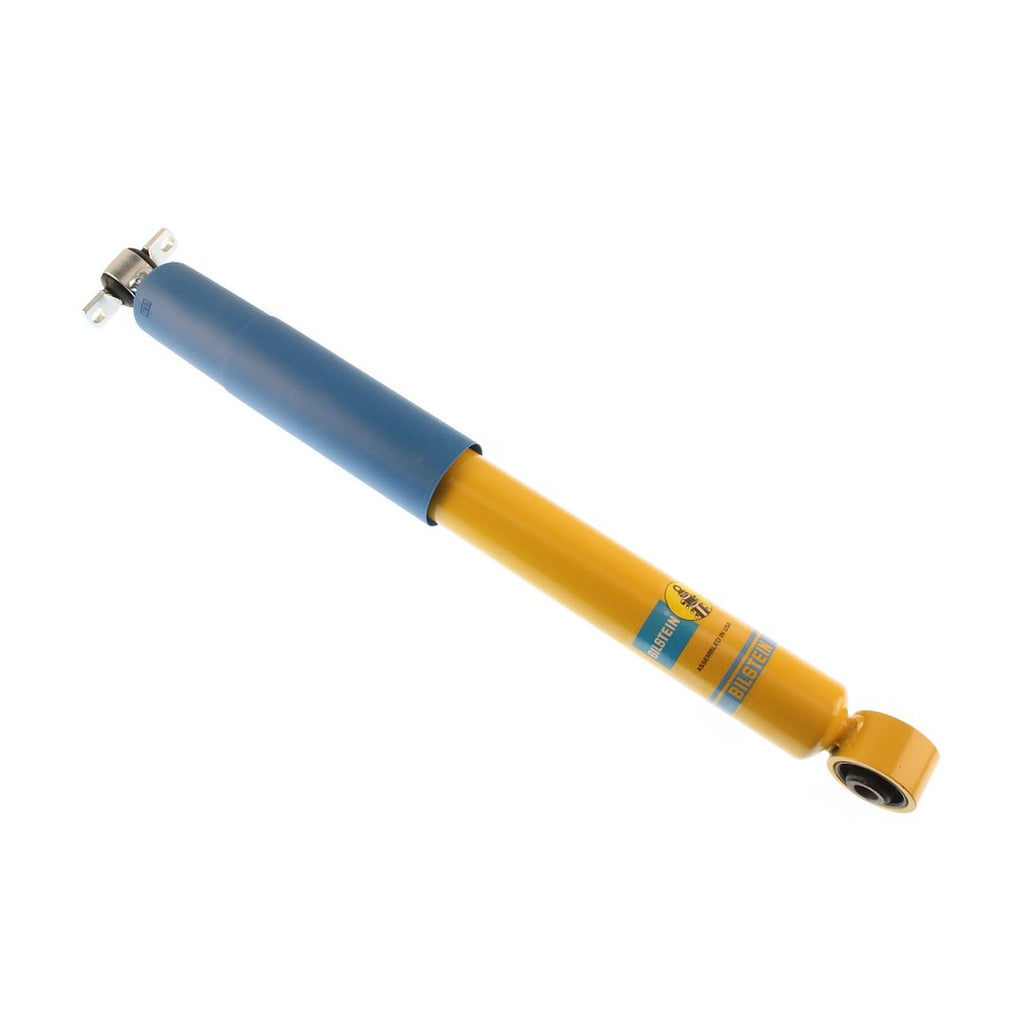

Bilstein Shock Absorber 4600 Series (MPN: 24-221948)

Enhance ride performance and handling for trucks, vans, and SUVs.

Bilstein 4600 Series Shock Absorbers are engineered to optimize ride performance and handling for trucks, vans, and SUVs. These nitrogen gas charged shocks provide superior control and stability, ensuring that cargo remains secure during transport. The patented design allows vehicles to navigate various road surfaces smoothly while maintaining driver command. With a focus on safety and performance, the 4600 Series offers a marked improvement over conventional shock absorbers without the need for additional spring modifications.

The Bilstein 4600 Series features advanced gas pressure technology and monotube construction, which contribute to increased power reserves and extended service life, even under heavy loads. This shock absorber is designed for vehicle-specific applications, ensuring a precise fit and optimal performance. Road and track testing by Bilstein guarantees that these shocks are fine-tuned for reliability and effectiveness, making them a cost-effective solution for enhancing vehicle dynamics.

Features

• Increased Power Reserves And Service Life, Even When Pulling Transporters And Trailers Or During Frequent Journeys With Loads
• Optimum Addition And Enhanced Lane Change Stability In Both Day To Day And Extreme Solutions
• Marked Improvement In Safety And Performance Without Additional Spring Changes
• Bilstein Gas Pressure Technology
• Bilstein Monotube/Upside Down Technology
• Road And Track Tested By Bilstein For Fine Tuning

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 24-221948
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 23.23 Inch
• Compressed Length (IN): 14.8 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Yellow
• Rod Diameter (IN): 7/16 Inch
• Valving Type: Self-Adjusting Deflective Disc Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1996-2026 Chevrolet Express 2500
• 1996-2026 Chevrolet Express 3500
• 2009-2020 Chevrolet Express 4500
• 2022-2025 Chevrolet Express 4500
• 1996-2026 GMC Savana 2500
• 1996-2026 GMC Savana 3500
• 2009-2016 GMC Savana 4500
• 2022-2025 GMC Savana 4500

Technical Documents

• Generic_instructions_02.pdf
• warranty_all_v4.2.pdf
• Generic_instructions_02.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
