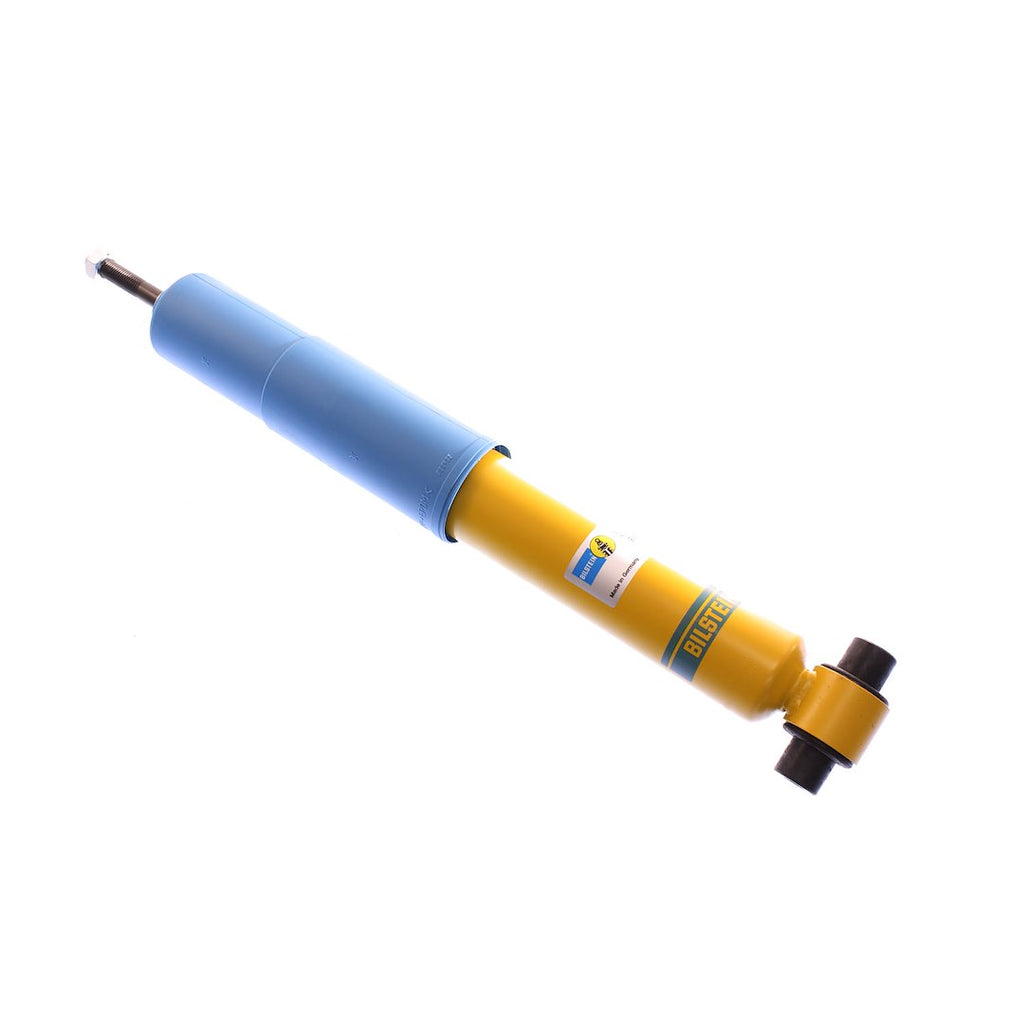

Bilstein Shock Absorber 4600 Series (MPN: 24-147002)

Enhance ride performance and handling for trucks, vans, and SUVs.

Bilstein 4600 Series Shock Absorbers are engineered to optimize ride performance and handling for trucks, vans, and SUVs. These nitrogen gas charged shocks provide superior control and stability, ensuring that cargo remains secure during transport. The patented design allows vehicles to navigate various road surfaces smoothly while maintaining command and comfort.

The 4600 Series shocks are designed to improve safety and performance without requiring additional spring changes. They feature Bilstein's gas pressure technology and monotube design, which contribute to increased power reserves and extended service life, even under heavy loads. Road and track testing by Bilstein ensures that these dampers are fine-tuned for optimal performance in both everyday and extreme driving conditions.

With a focus on durability and reliability, the Bilstein 4600 Series is a cost-effective solution for enhancing vehicle performance. The shocks are vehicle specific and come with a self-adjusting deflective disc valving system, making them suitable for a wide range of applications. This product is a straightforward upgrade that can significantly enhance the driving experience.

Features

• Increased Power Reserves And Service Life, Even When Pulling Transporters And Trailers Or During Frequent Journeys With Loads
• Optimum Addition And Enhanced Lane Change Stability In Both Day To Day And Extreme Solutions
• Marked Improvement In Safety And Performance Without Additional Spring Changes
• Bilstein Gas Pressure Technology
• Bilstein Monotube/Upside Down Technology
• Road And Track Tested By Bilstein For Fine Tuning

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 24-147002
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 16.89 Inch
• Compressed Length (IN): 11.22 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Yellow
• Rod Diameter (IN): 1/2 Inch
• Valving Type: Self-Adjusting Deflective Disc Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2003-2014 Volvo XC90

Technical Documents

• E4-WM5-Y217A00.pdf
• warranty_all_v4.2.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf

Product Videos
