Adjustable damping control for enhanced off-road performance.

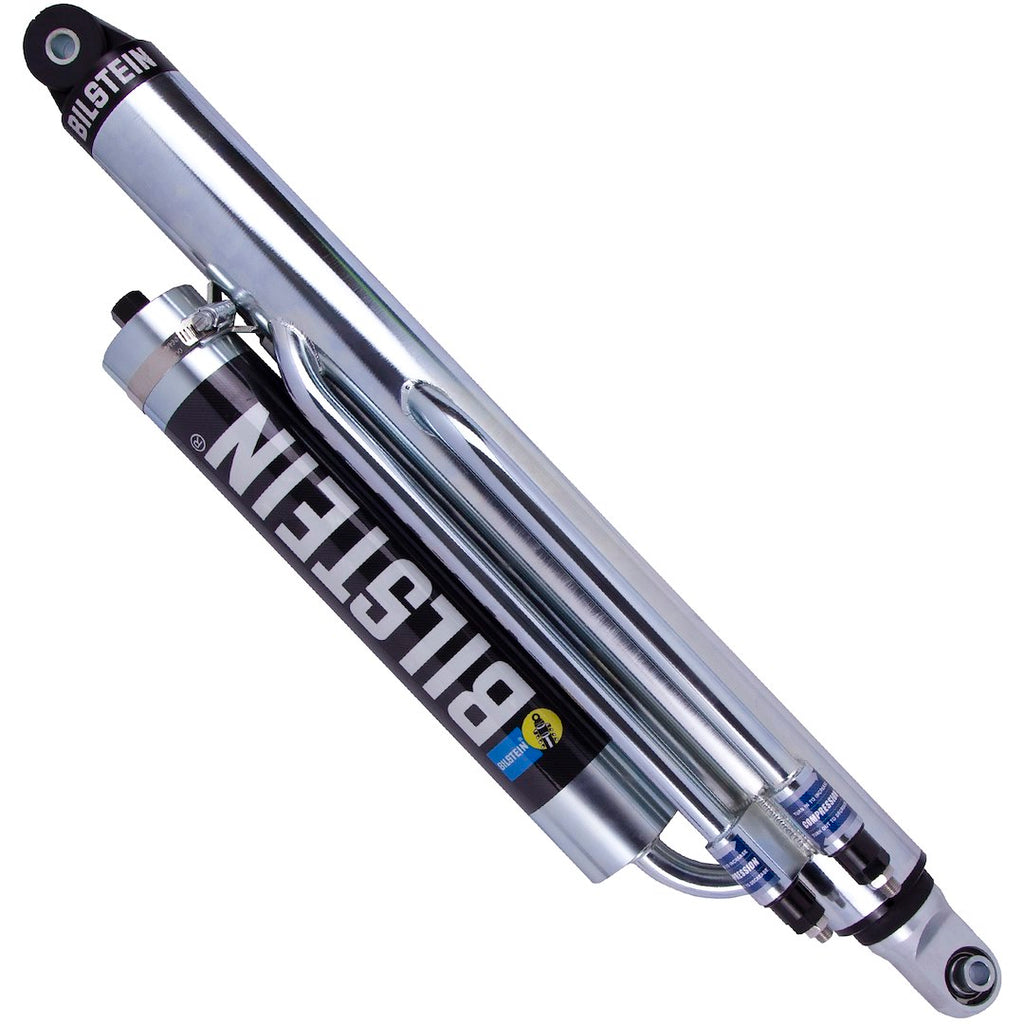

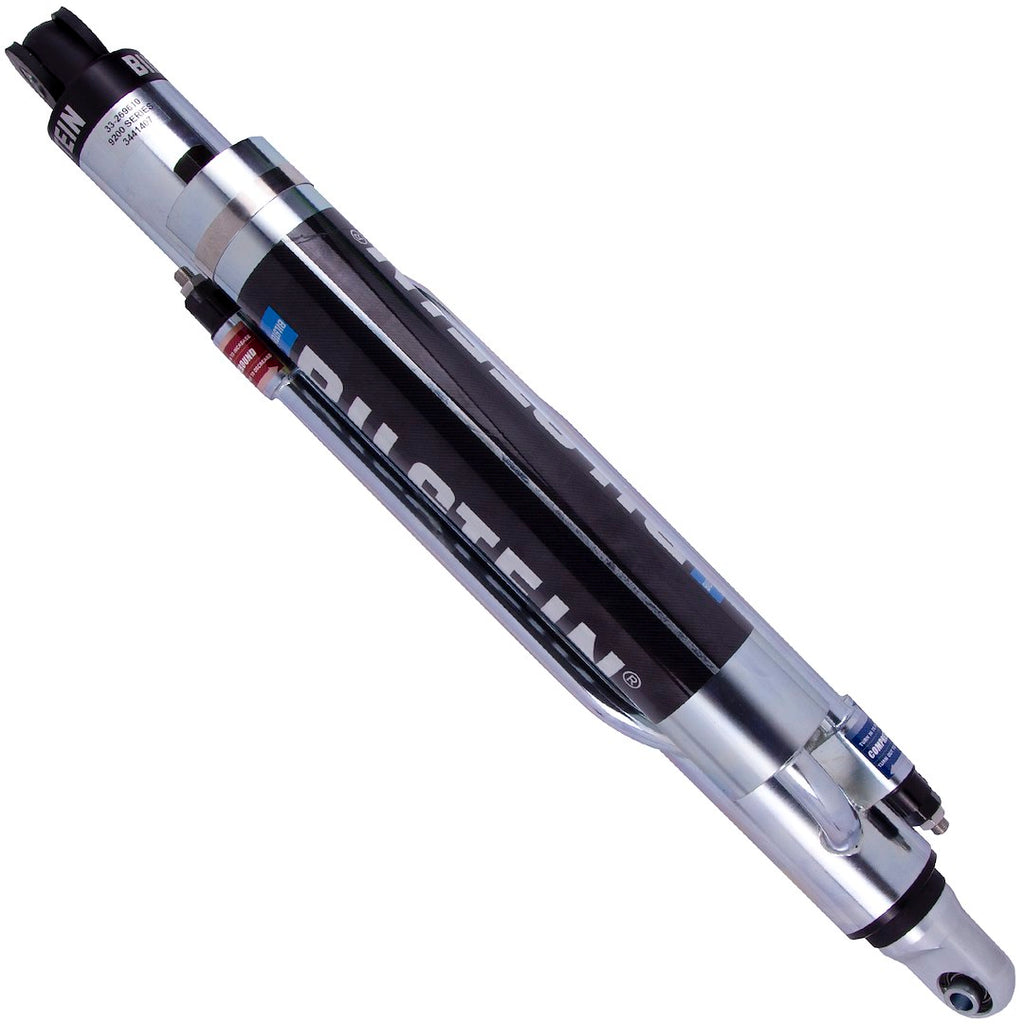

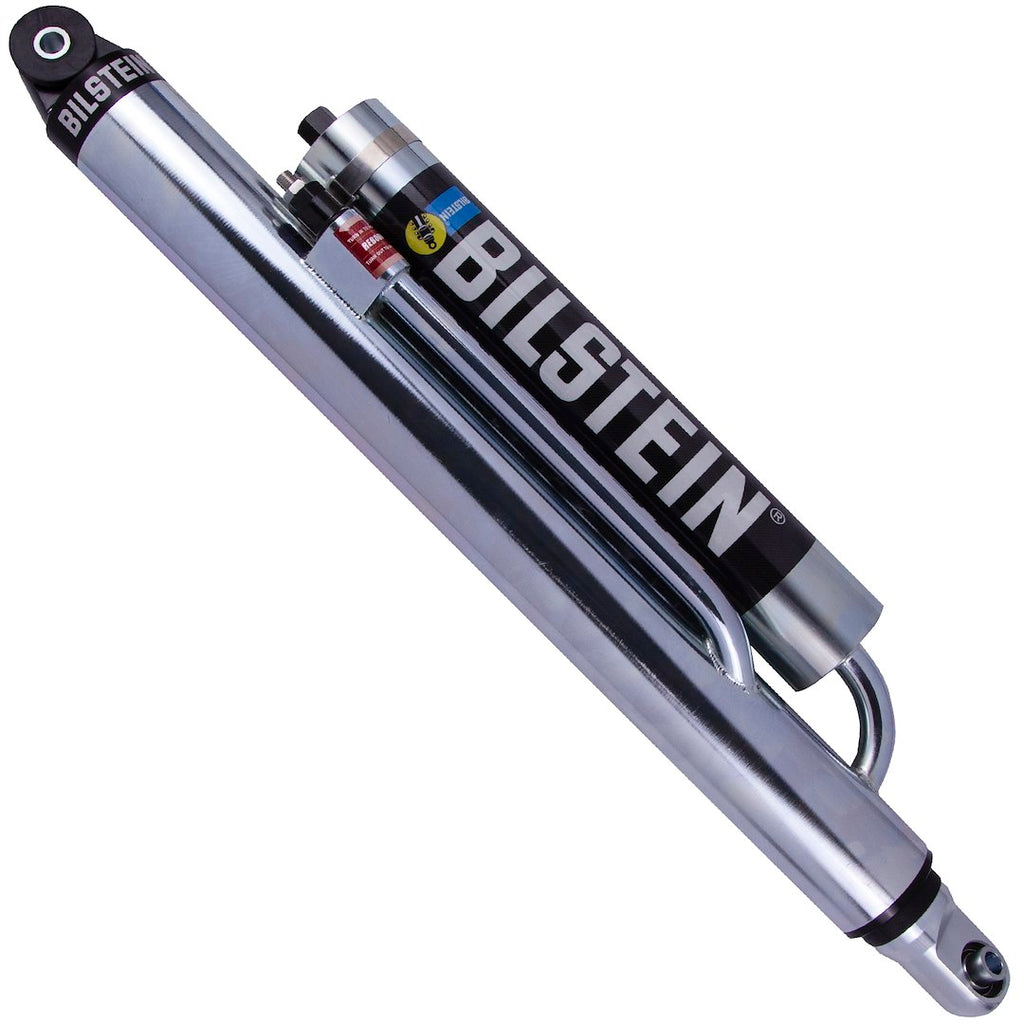

The Bilstein M 9200 Bypass shock absorber is engineered for off-road enthusiasts seeking precision in suspension tuning. This nitrogen gas charged shock features a 70 millimeter monotube design that allows for position sensitive damping, providing adjustable rebound and compression across multiple zones. The shock absorber is constructed with high-quality machined billet aluminum components and is designed to withstand high temperatures, thanks to its three-stage seal and red synthetic racing oil.
With an extended height of 42.5 inches and a collapsed height of 26.5 inches, the M 9200 is designed for right-side applications and is suitable for semi-universal fitment. The shock absorber is owner rebuildable, ensuring longevity and performance maintenance. Its eyelet mounting style at both the upper and lower ends facilitates easy installation, making it a practical choice for those looking to enhance their vehicle's off-road capabilities.
Features
- 70 Millimeter Monotube Design
- 4 Tube And 3 Tube, Position Sensitive With Adjustable Rebound And Compression
- 1-1/8 Inch Case Hardened, Centerless Ground Piston Rod
- All Machined Billet Aluminum Components
- 3 Stage High-Temperature Seal
- Red Synthetic High-Temperature Racing Oil
- Owner Rebuildabe
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-269610
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 42-1/2 Inch
- Compressed Length (IN): 26-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): OEM
- Valving Type: OEM
- With Reservoir: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
