Adjustable damping control for enhanced off-road performance.

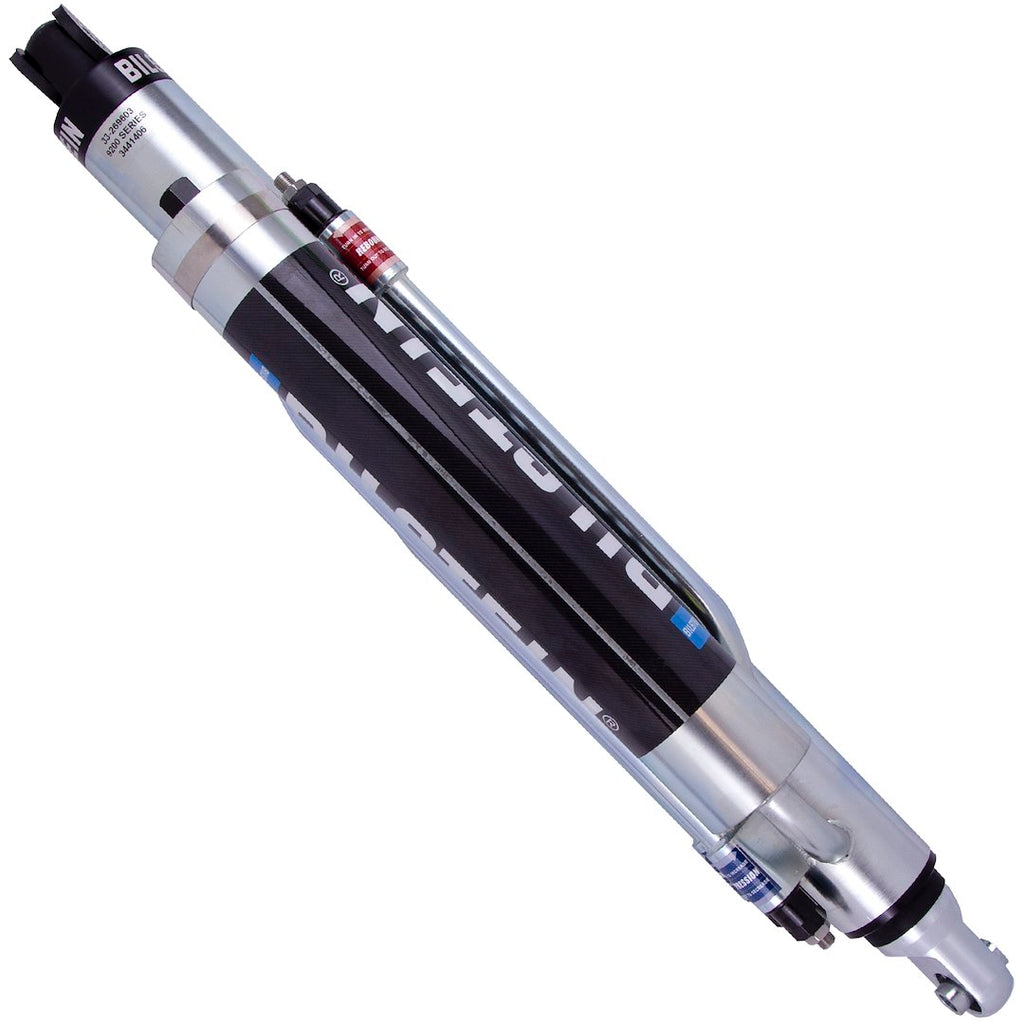

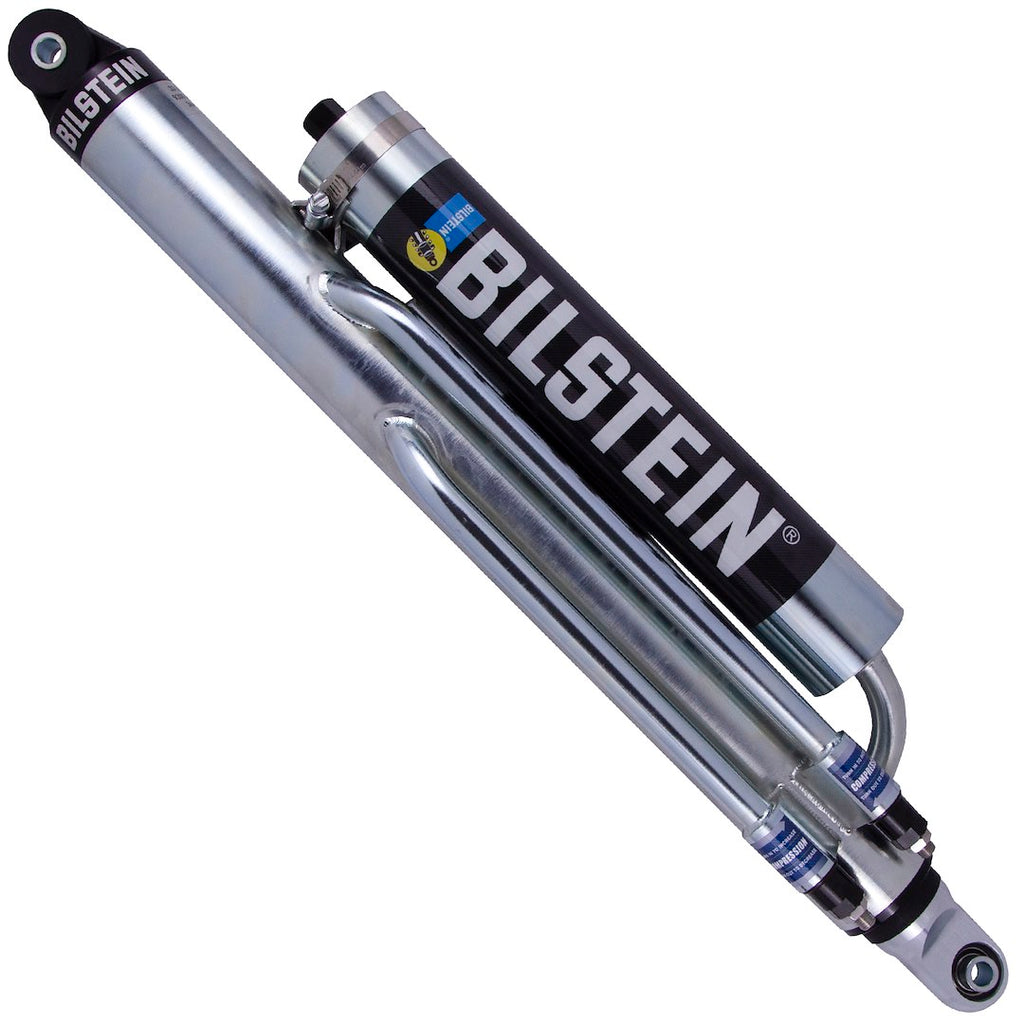

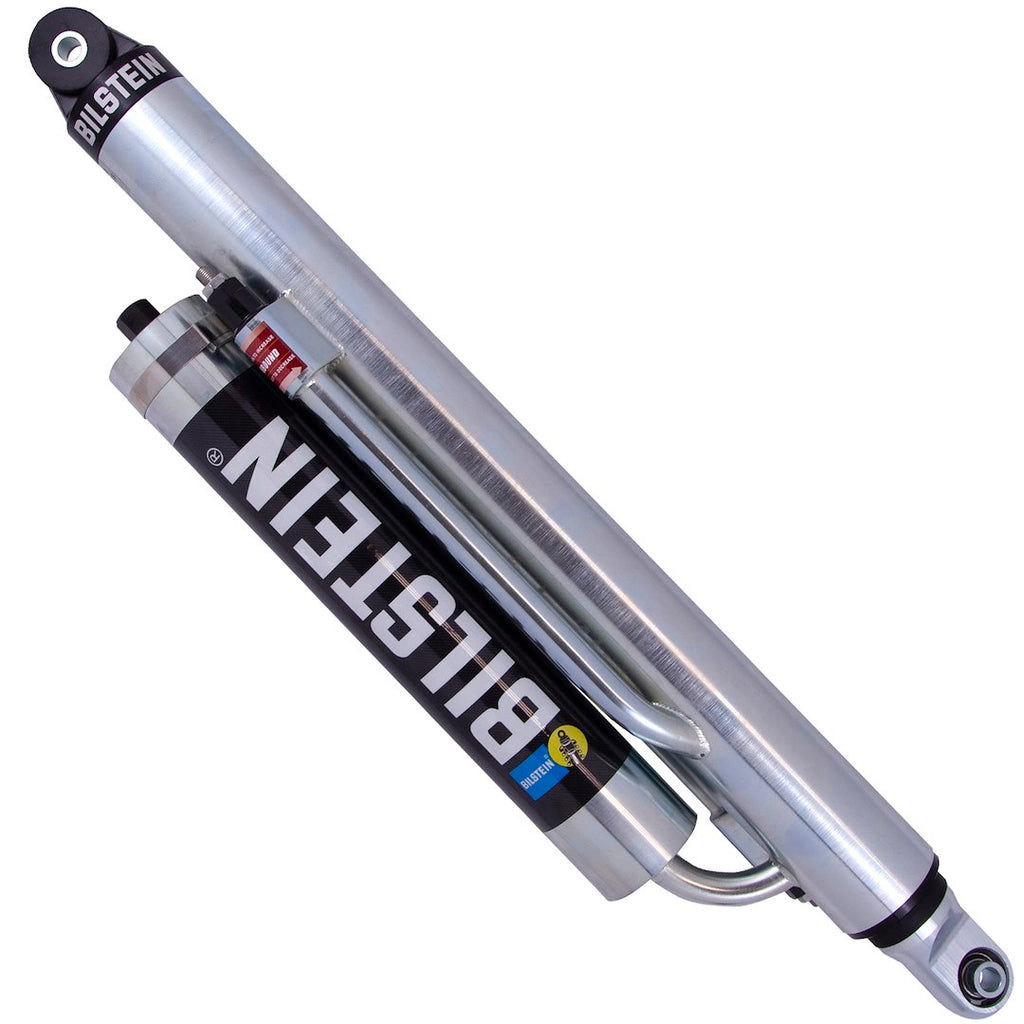

The Bilstein M 9200 Bypass shock absorber is engineered for off-road enthusiasts seeking precision in suspension tuning. This nitrogen gas charged shock features a 70 millimeter monotube design that provides superior damping performance through its position sensitive technology. With adjustable rebound and compression settings, users can fine-tune their suspension to meet specific driving conditions and preferences.
Constructed with all machined billet aluminum components, the M 9200 ensures durability and reliability in demanding environments. The shock absorber is equipped with a 3 stage high-temperature seal and utilizes red synthetic high-temperature racing oil, making it suitable for extreme conditions. Its owner rebuildable design allows for maintenance and longevity, ensuring that the shock absorber can be serviced as needed.
With an extended height of 42.5 inches and a collapsed height of 26.5 inches, this shock absorber is designed for a semi-universal fit, making it compatible with a variety of vehicles. The eyelet mounting style at both the upper and lower ends facilitates straightforward installation. The Bilstein M 9200 Bypass shock absorber is a reliable choice for those looking to enhance their vehicle's off-road capabilities.
Features
- 70 Millimeter Monotube Design
- 4 Tube And 3 Tube, Position Sensitive With Adjustable Rebound And Compression
- 1-1/8 Inch Case Hardened, Centerless Ground Piston Rod
- All Machined Billet Aluminum Components
- 3 Stage High-Temperature Seal
- Red Synthetic High-Temperature Racing Oil
- Owner Rebuildabe
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-269603
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 42-1/2 Inch
- Compressed Length (IN): 26-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): OEM
- Valving Type: OEM
- With Reservoir: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
