Adjustable damping control for optimized off-road suspension performance.

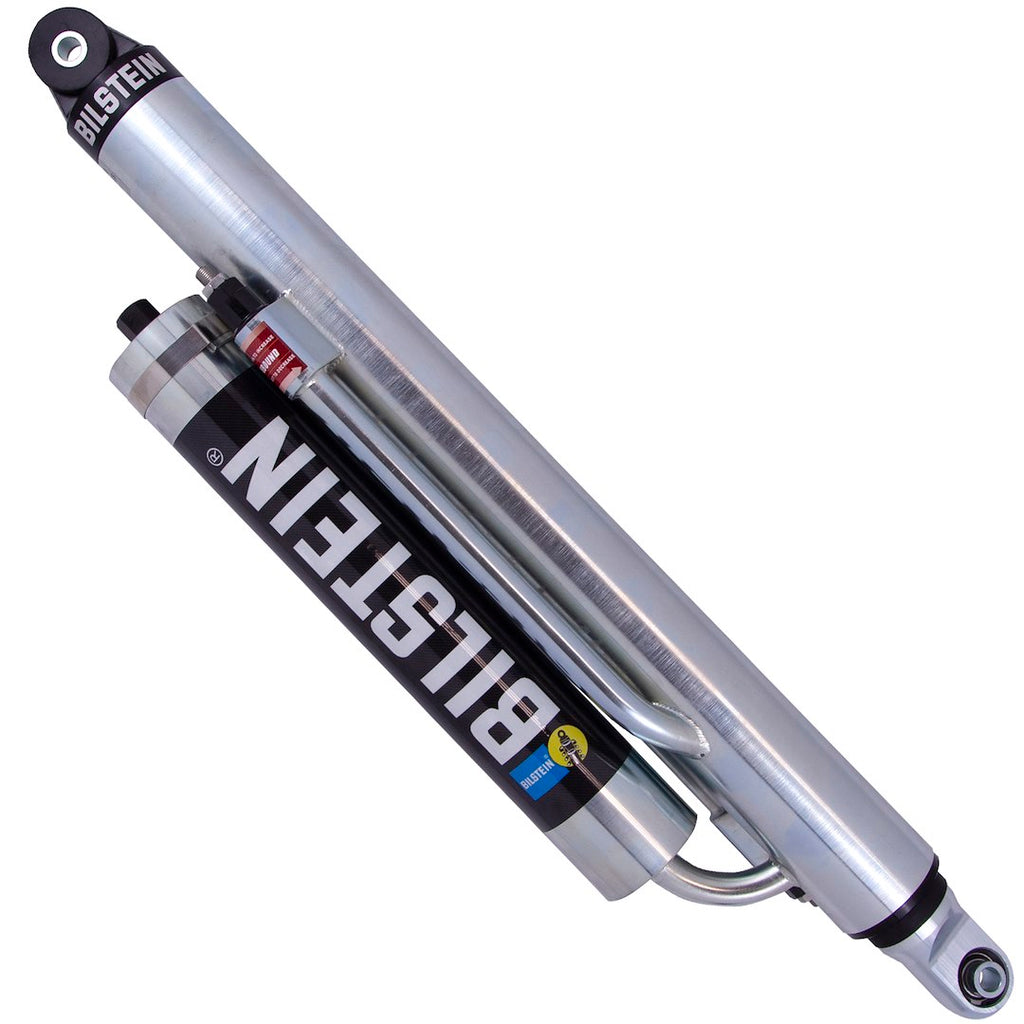

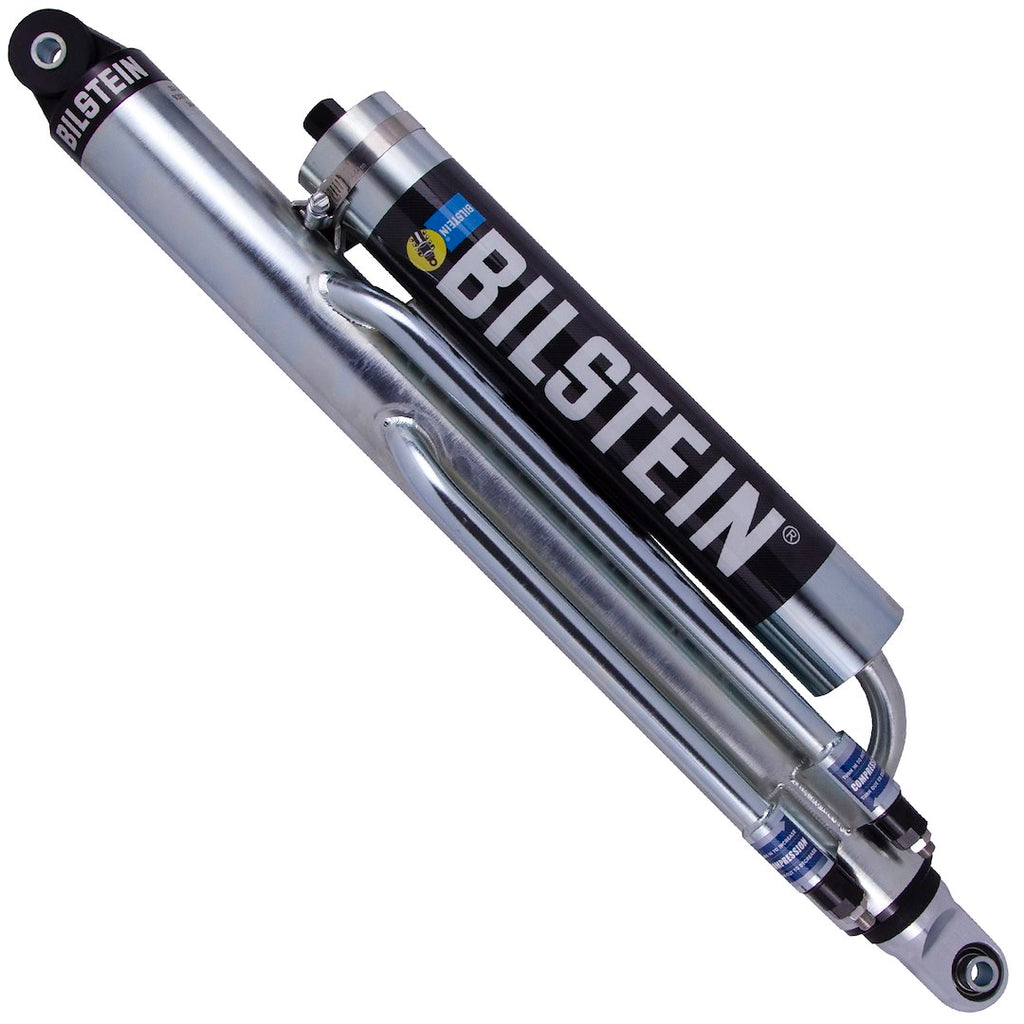

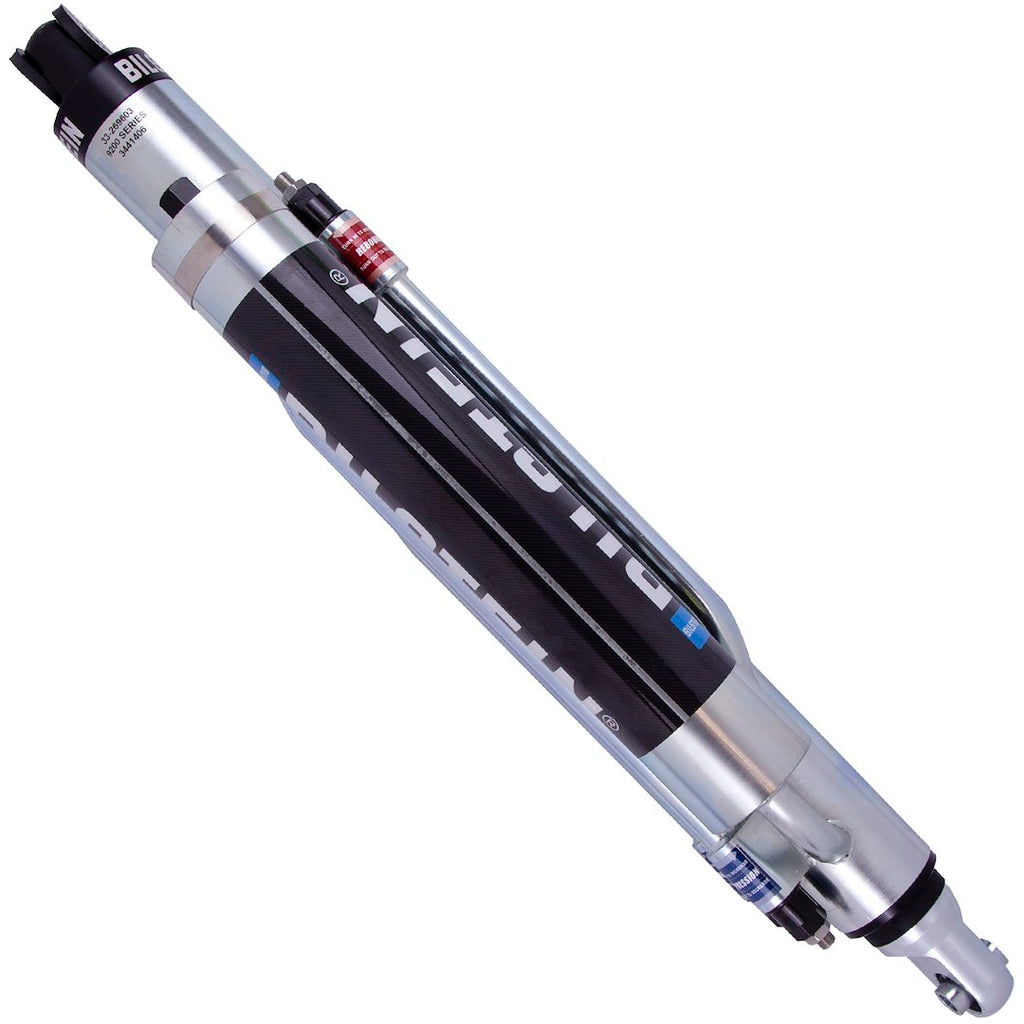

The Bilstein M 9200 Bypass shock absorber is engineered for enhanced off-road performance with its position-sensitive and adjustable damping capabilities. This shock absorber features a 70 millimeter monotube design that allows for effective tuning of your suspension system. The adjustable rebound and compression settings provide versatility for various driving conditions, ensuring optimal handling and comfort.
Constructed with all machined billet aluminum components, the M 9200 is built for durability and reliability. It utilizes a 1-1/8 inch case hardened, centerless ground piston rod, which contributes to its robust performance. The shock is filled with red synthetic high-temperature racing oil and features a three-stage high-temperature seal, making it suitable for demanding environments.
With an extended height of 38.5 inches and a collapsed height of 24.5 inches, this shock absorber is designed for semi-universal applications. It comes with a reservoir for improved performance and is owner rebuildable, allowing for maintenance and longevity. The Bilstein M 9200 Bypass shock absorber is a reliable choice for those looking to enhance their vehicle's suspension system.
Features
- 70 Millimeter Monotube Design
- 4 Tube And 3 Tube, Position Sensitive With Adjustable Rebound And Compression
- 1-1/8 Inch Case Hardened, Centerless Ground Piston Rod
- All Machined Billet Aluminum Components
- 3 Stage High-Temperature Seal
- Red Synthetic High-Temperature Racing Oil
- Owner Rebuildabe
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-269580
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 38-1/2 Inch
- Compressed Length (IN): 24-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): OEM
- Valving Type: OEM
- With Reservoir: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Technical Documents
