Adjustable damping control for enhanced off-road performance.

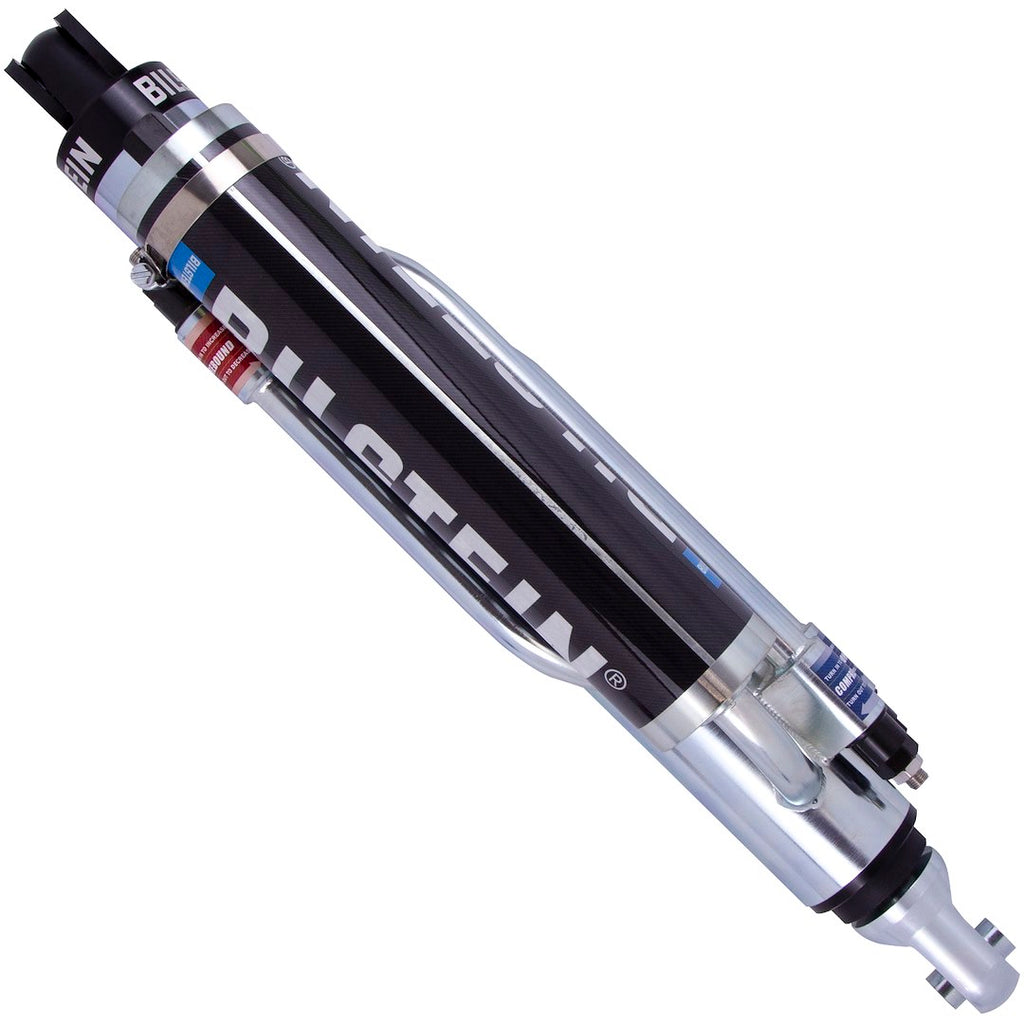

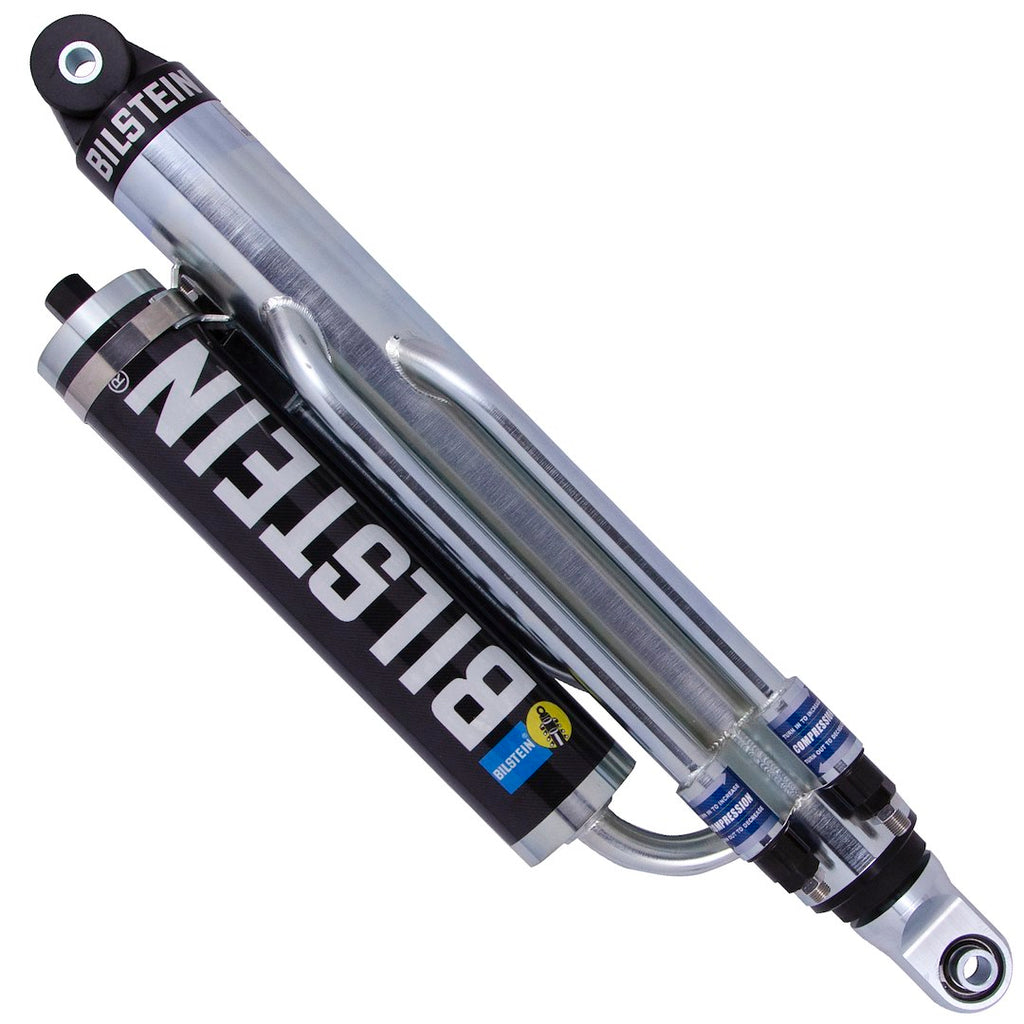

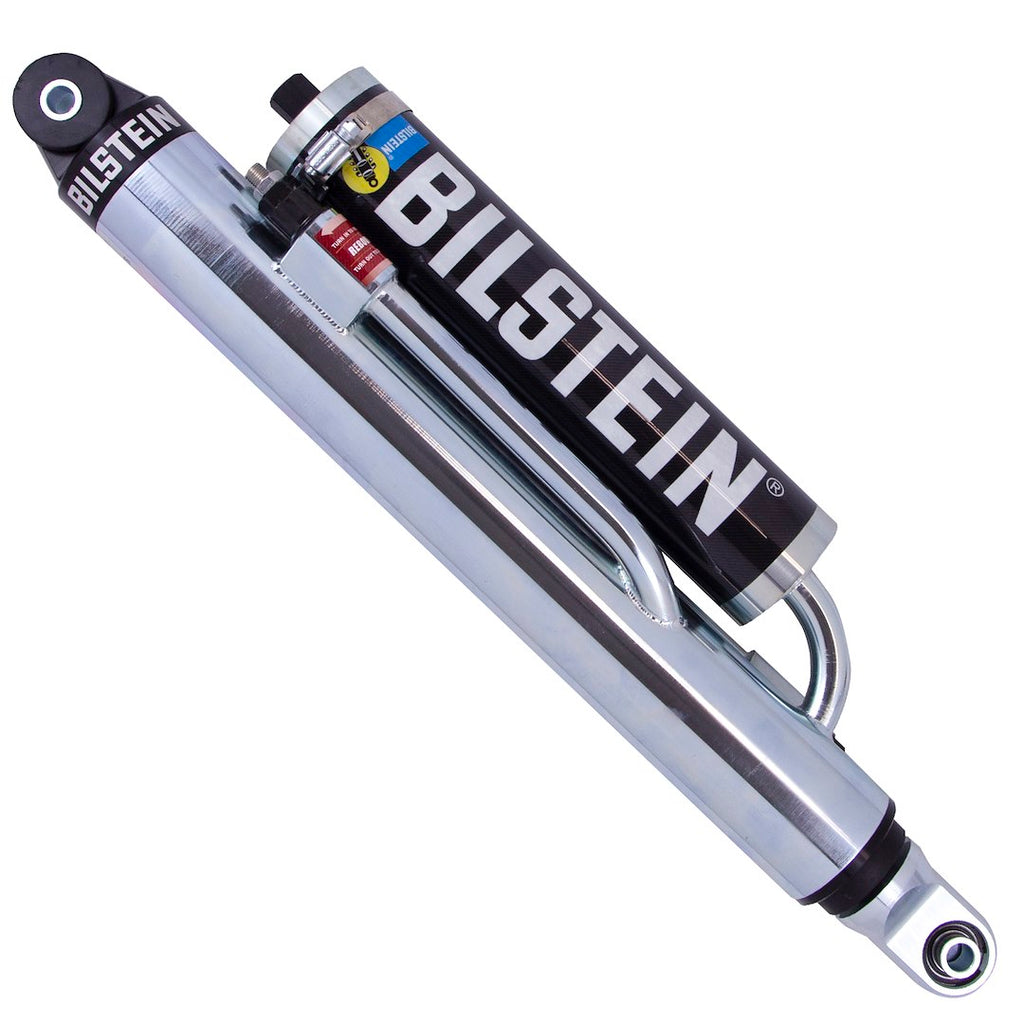

The Bilstein M 9200 Bypass shock absorber is engineered for off-road enthusiasts seeking precision in suspension tuning. This nitrogen gas charged shock features a 70 millimeter monotube design that allows for position sensitive damping, providing adjustable rebound and compression across multiple zones. The shock absorber is constructed with high-quality machined billet aluminum components and is designed to withstand high temperatures, ensuring durability and reliability in demanding conditions.
With an extended height of 33.5 inches and a collapsed height of 21.5 inches, the M 9200 is suitable for various applications, offering a semi-universal fit. The shock is equipped with a 1-1/8 inch case hardened, centerless ground piston rod, which contributes to its robust performance. Additionally, the three-stage high-temperature seal and red synthetic racing oil enhance the shock's efficiency and longevity.
This shock absorber is owner rebuildable, allowing for maintenance and extended use. The absence of shock boots and the zinc plated finish further emphasize its rugged design, making it a reliable choice for those looking to optimize their off-road suspension system.
Features
- 70 Millimeter Monotube Design
- 4 Tube And 3 Tube, Position Sensitive With Adjustable Rebound And Compression
- 1-1/8 Inch Case Hardened, Centerless Ground Piston Rod
- All Machined Billet Aluminum Components
- 3 Stage High-Temperature Seal
- Red Synthetic High-Temperature Racing Oil
- Owner Rebuildabe
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-269573
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 33-1/2 Inch
- Compressed Length (IN): 21-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): OEM
- Valving Type: OEM
- With Reservoir: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
