Advanced damping control for enhanced off-road performance and tuning.

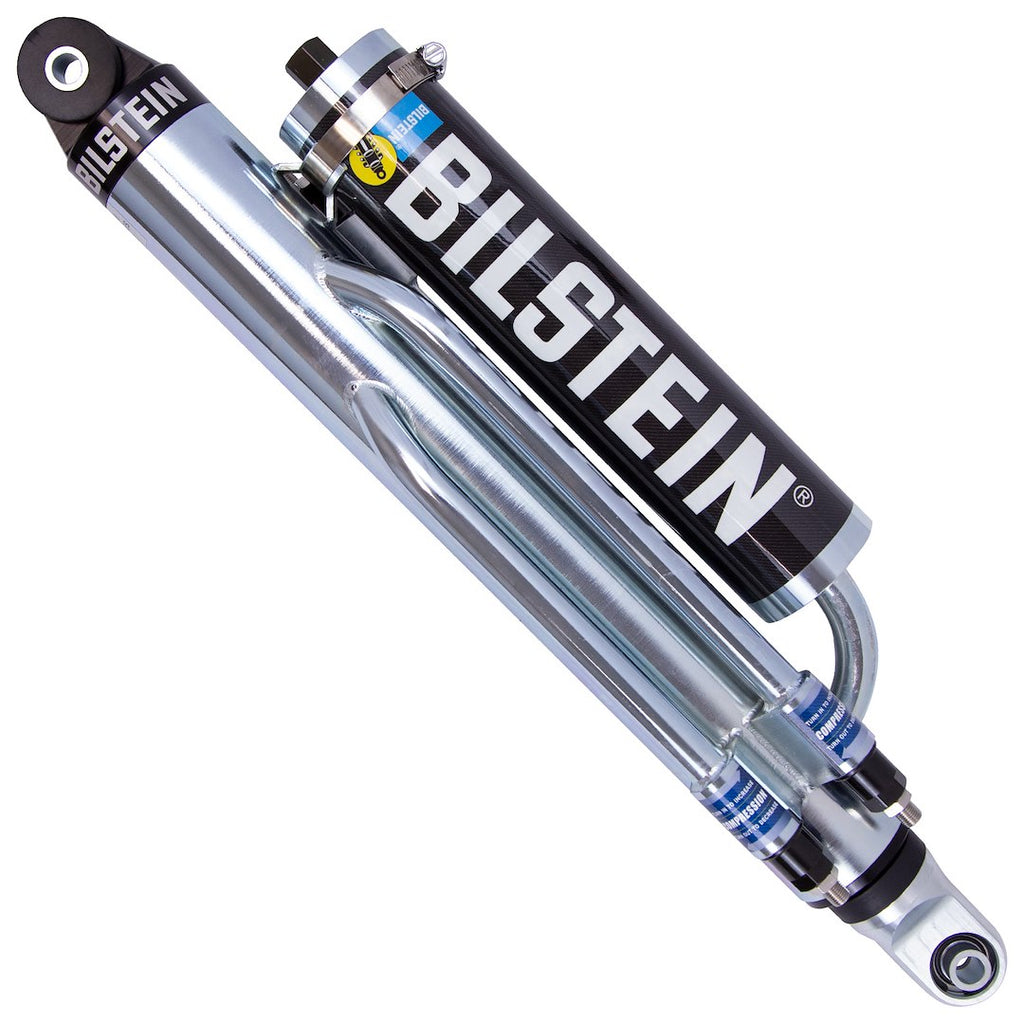

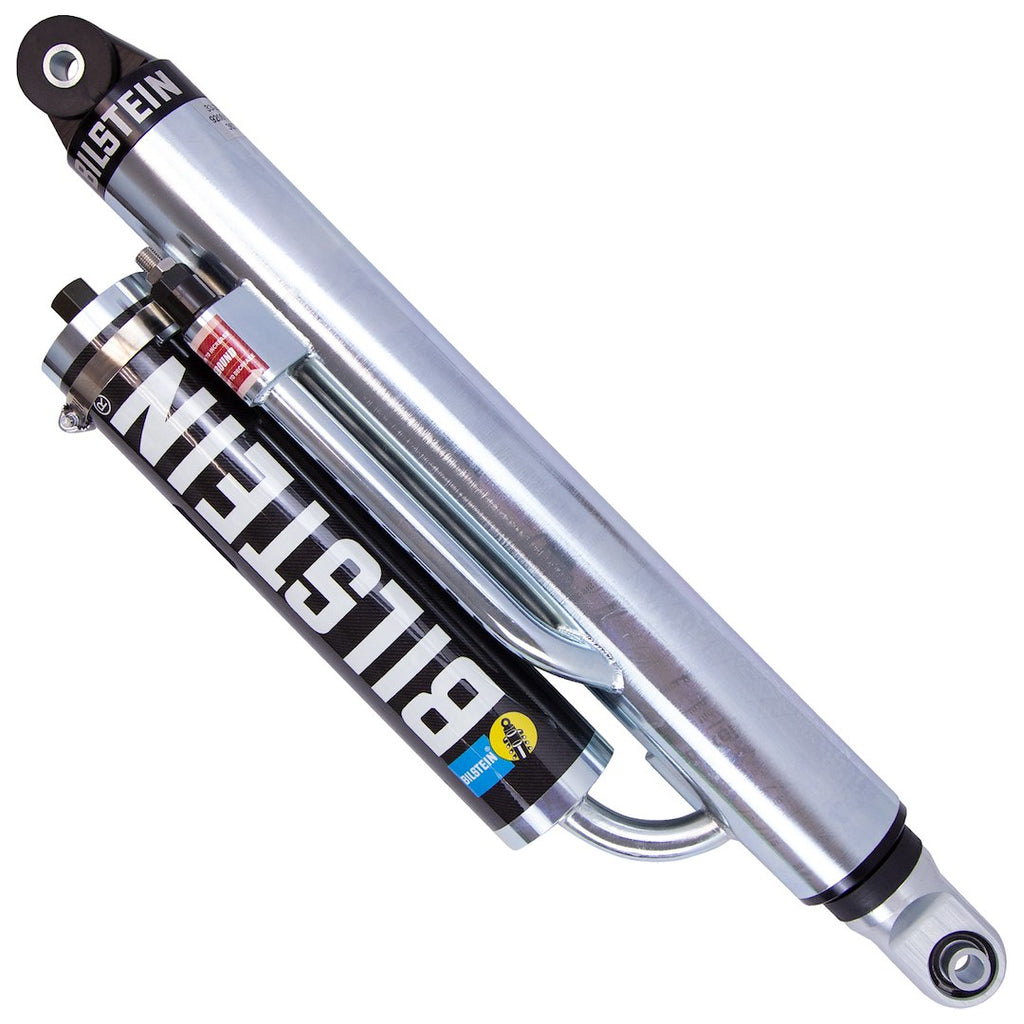

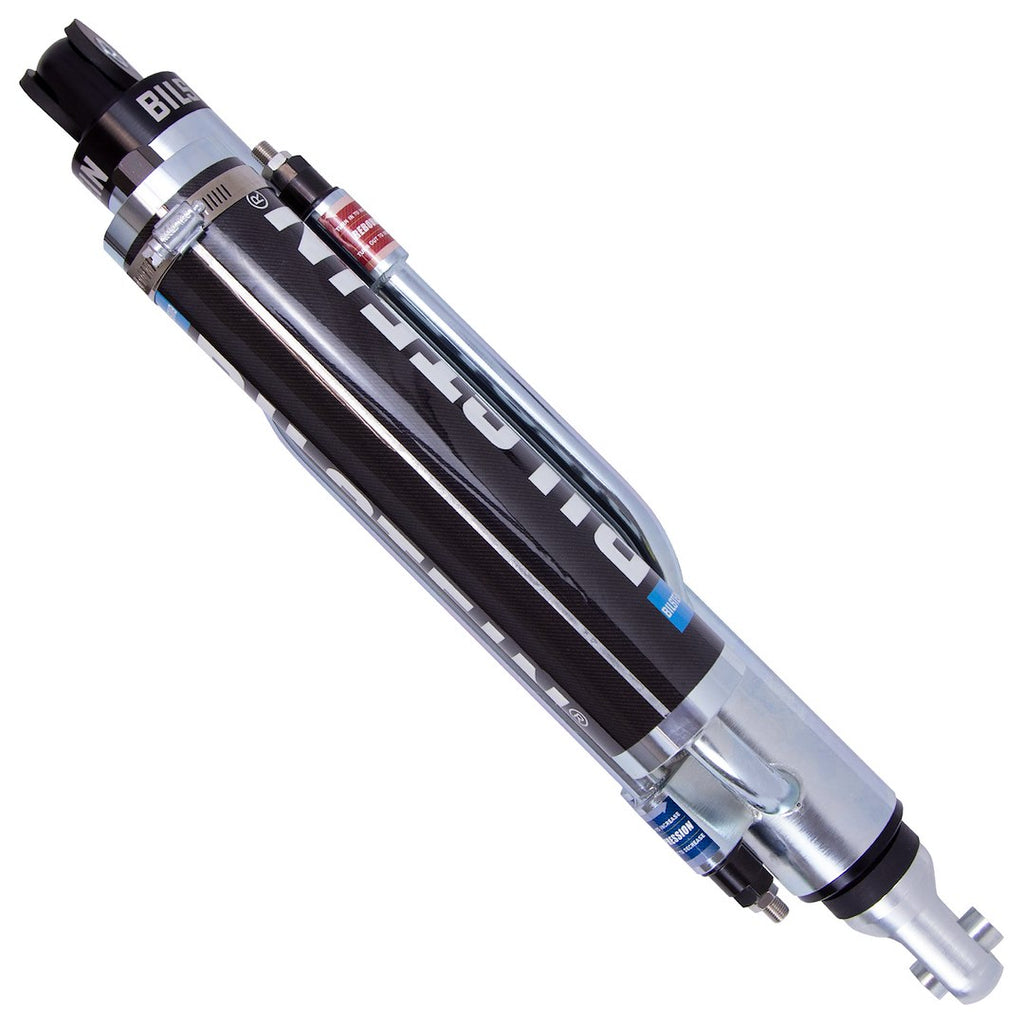

The Bilstein M 9200 Bypass shock absorber is engineered for off-road enthusiasts seeking precision in suspension tuning. This nitrogen gas charged shock features a 70 millimeter monotube design that provides superior heat dissipation and consistent performance under extreme conditions. With its adjustable rebound and compression settings, users can fine-tune the damping characteristics to match their specific driving style and terrain requirements.
Constructed with all machined billet aluminum components, the M 9200 ensures durability and reliability. The shock absorber is equipped with a 1-1/8 inch case hardened, centerless ground piston rod, which enhances its strength and longevity. Additionally, the three-stage high-temperature seal and red synthetic high-temperature racing oil contribute to its performance, making it suitable for rigorous off-road applications.
This model features a semi-universal fit with an extended height of 33.5 inches and a collapsed height of 21.5 inches, allowing for versatile installation options. The shock absorber is designed to be owner rebuildable, providing an economical solution for maintenance and longevity. The absence of shock boots and included hardware allows for a straightforward installation process, making it a practical choice for serious off-road vehicles.
Features
- 70 Millimeter Monotube Design
- 4 Tube And 3 Tube, Position Sensitive With Adjustable Rebound And Compression
- 1-1/8 Inch Case Hardened, Centerless Ground Piston Rod
- All Machined Billet Aluminum Components
- 3 Stage High-Temperature Seal
- Red Synthetic High-Temperature Racing Oil
- Owner Rebuildabe
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-269566
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 33-1/2 Inch
- Compressed Length (IN): 21-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Rod Diameter (IN): OEM
- Valving Type: OEM
- With Reservoir: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
