Adjustable damping control for enhanced off-road performance.

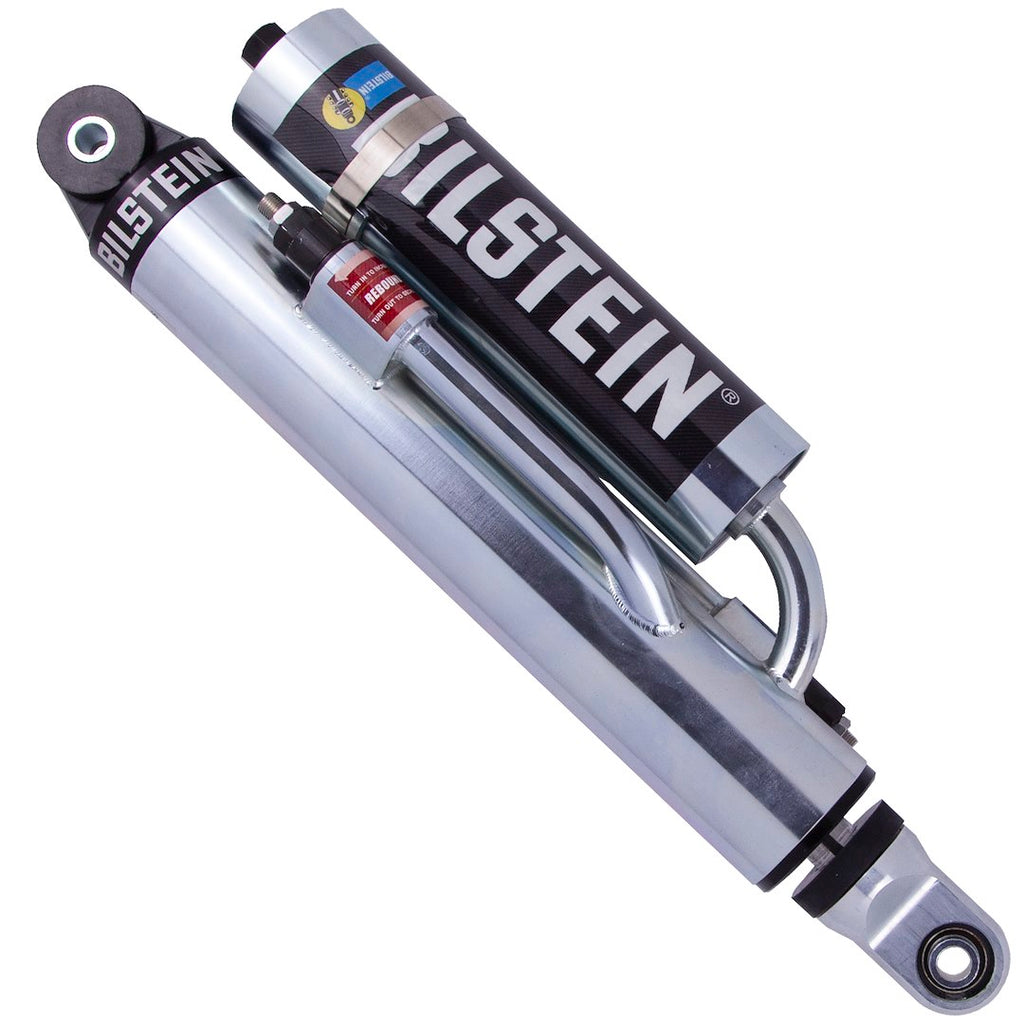

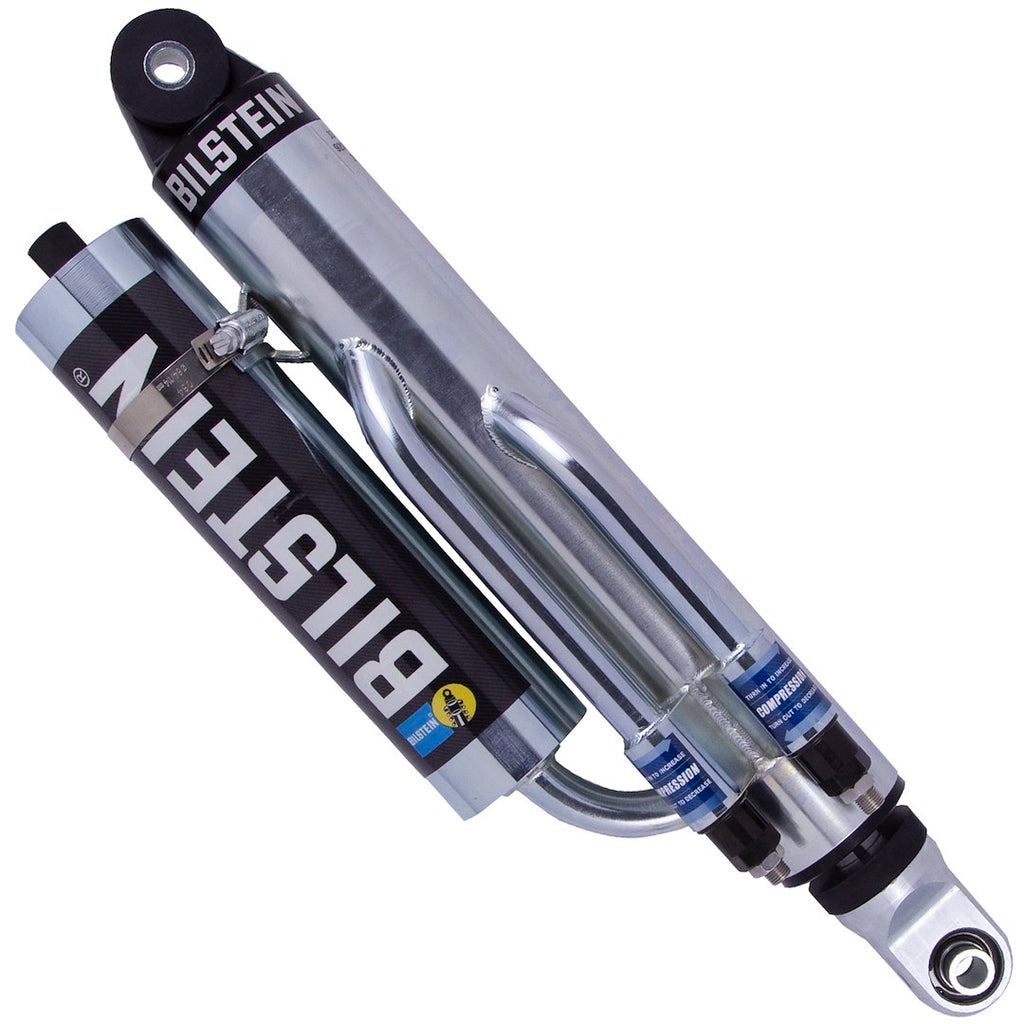

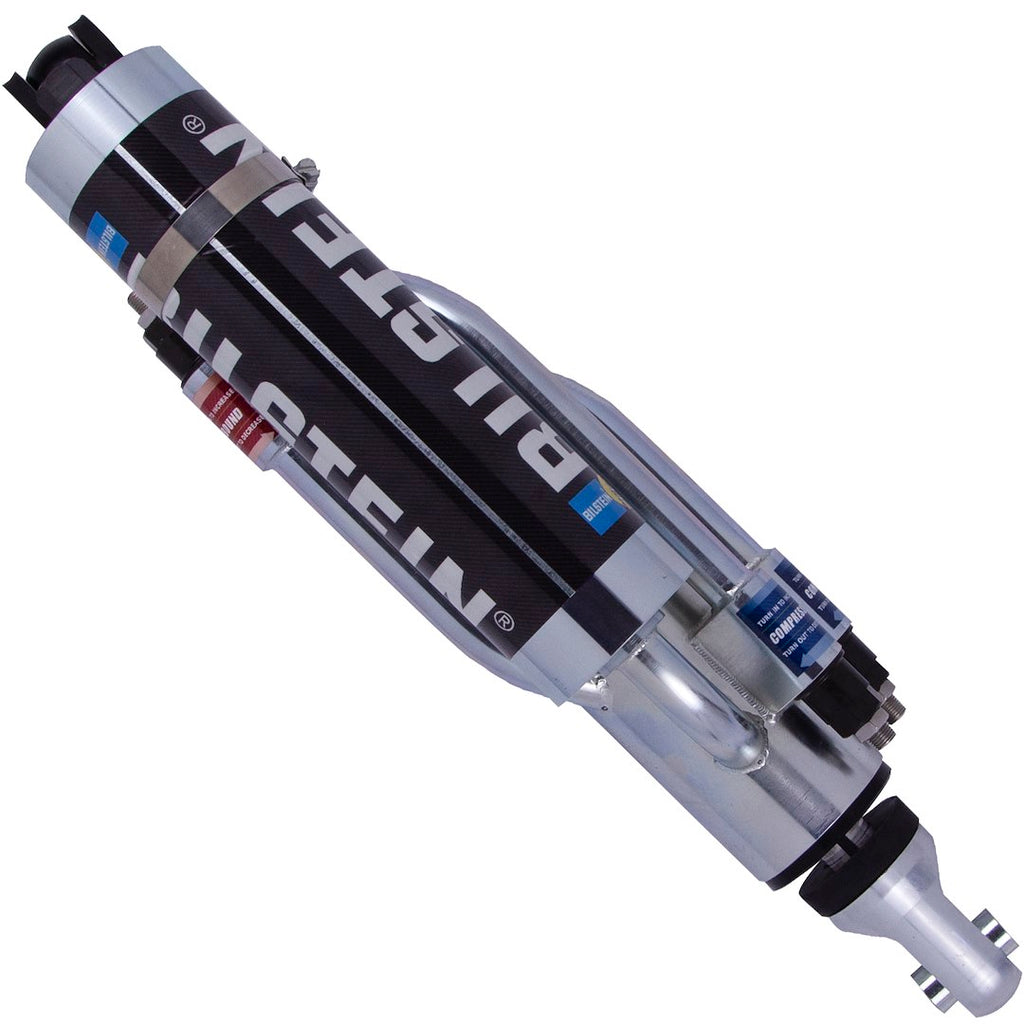

The Bilstein M 9200 Bypass shock absorber is engineered for off-road applications, providing position-sensitive damping that can be adjusted to suit various driving conditions. This shock absorber features a 70 millimeter monotube design, which enhances performance and durability. With its adjustable rebound and compression settings, users can fine-tune their suspension for optimal handling and comfort.
Constructed with high-quality materials, the M 9200 includes all machined billet aluminum components and a robust 1-1/8 inch case hardened piston rod. The shock is filled with red synthetic high-temperature racing oil, ensuring consistent performance even under extreme conditions. Additionally, the three-stage high-temperature seal contributes to the longevity and reliability of the product.
This shock absorber is designed for easy maintenance, as it is owner rebuildable, allowing for extended use and serviceability. With an extended height of 29.5 inches and a collapsed height of 19.5 inches, it is suitable for a variety of applications, making it a versatile choice for off-road enthusiasts.
Features
- 70 Millimeter Monotube Design
- 4 Tube And 3 Tube, Position Sensitive With Adjustable Rebound And Compression
- 1-1/8 Inch Case Hardened, Centerless Ground Piston Rod
- All Machined Billet Aluminum Components
- 3 Stage High-Temperature Seal
- Red Synthetic High-Temperature Racing Oil
- Owner Rebuildabe
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-269559
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 29-1/2 Inch
- Compressed Length (IN): 19-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): OEM
- Valving Type: OEM
- With Reservoir: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
