Adjustable damping control for enhanced off-road performance.

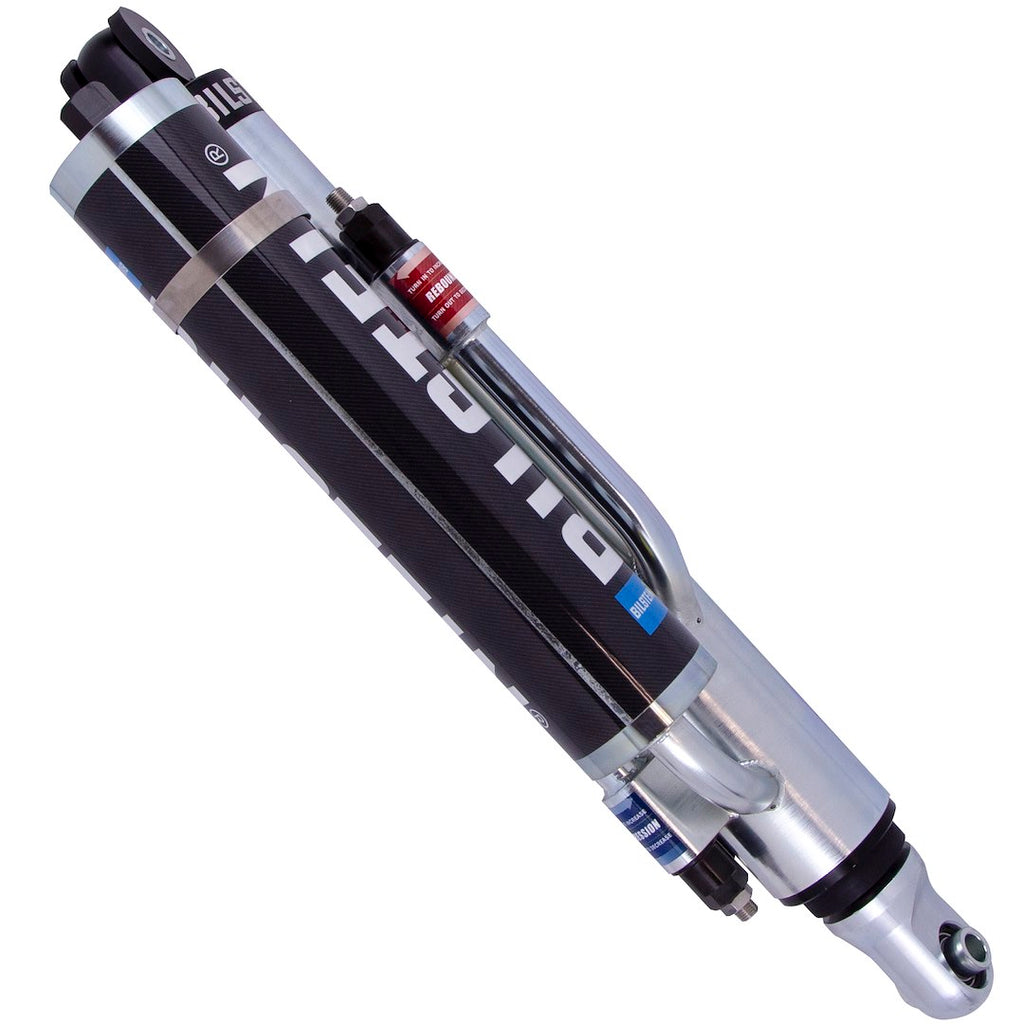

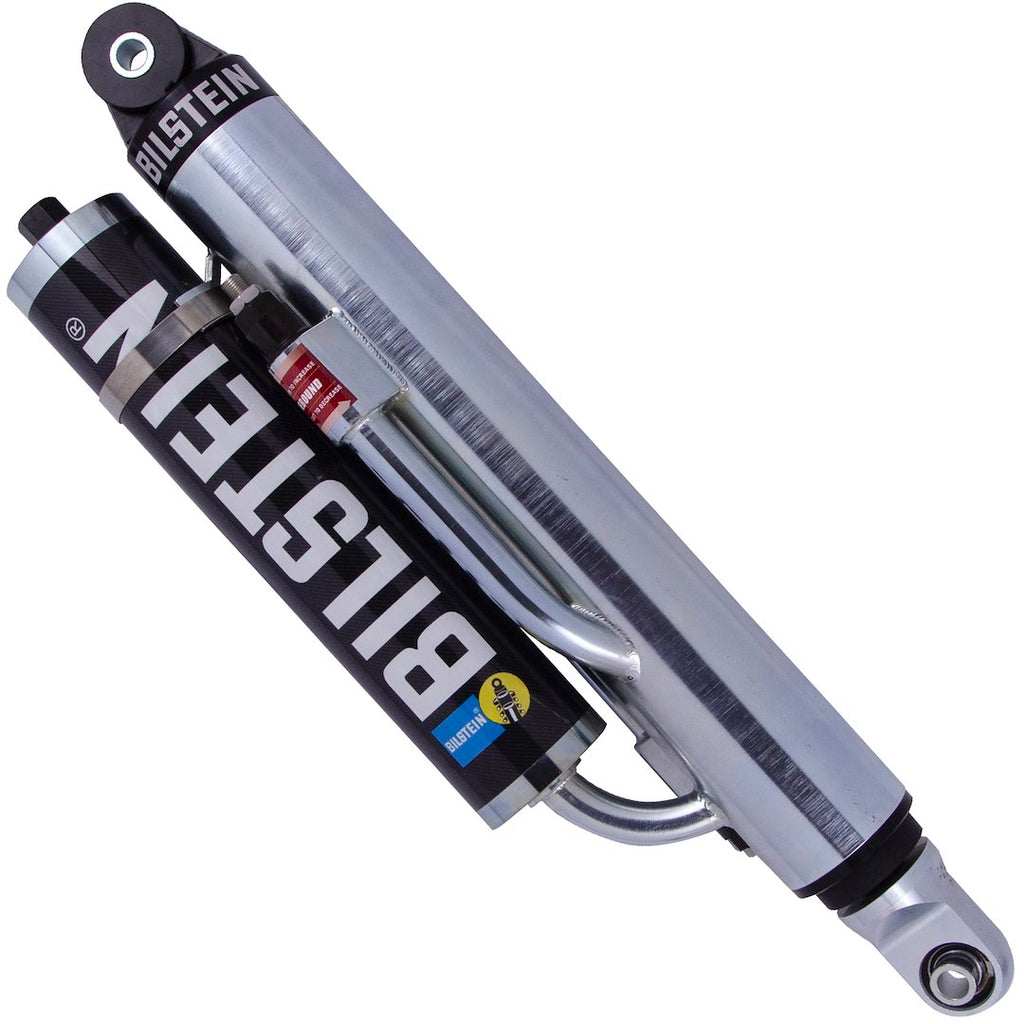

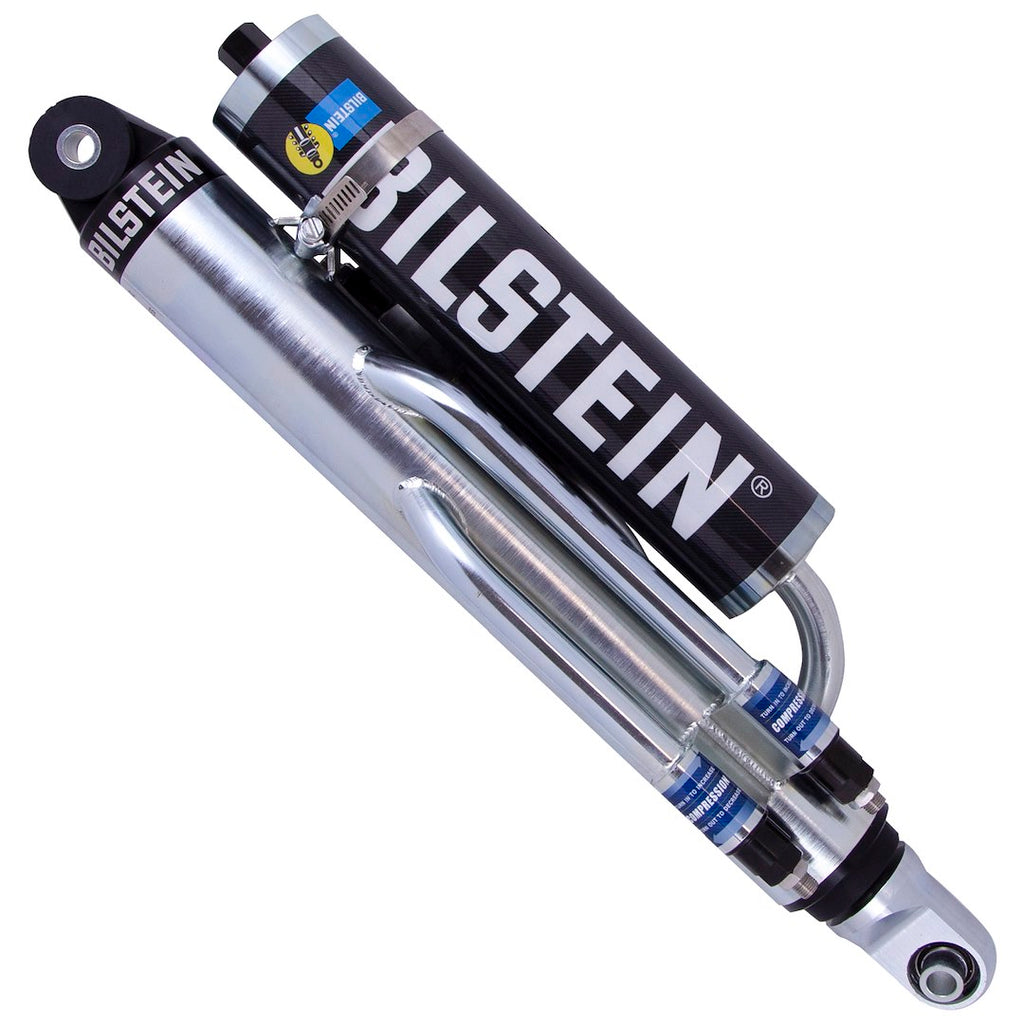

The Bilstein M 9200 Bypass shock absorber is engineered for off-road enthusiasts seeking precision in suspension tuning. This nitrogen gas charged shock features a 70 millimeter monotube design that provides superior damping performance through its position sensitive technology. With adjustable rebound and compression settings, users can fine-tune their suspension to meet specific driving conditions and preferences.
Constructed with high-quality materials, the M 9200 includes all machined billet aluminum components and a robust 1-1/8 inch case hardened piston rod. The shock is filled with red synthetic high-temperature racing oil, ensuring optimal performance even under extreme conditions. Additionally, the three-stage high-temperature seal enhances durability and reliability, making it suitable for rigorous off-road applications.
The shock absorber measures 29.5 inches in extended height and 19.5 inches when collapsed, featuring eyelet mounting styles for both upper and lower attachments. Designed to be owner rebuildable, this single shock unit is a semi-universal fit, providing versatility for various vehicle applications. The absence of shock boots and included hardware allows for straightforward installation and maintenance.
Features
- 70 Millimeter Monotube Design
- 4 Tube And 3 Tube, Position Sensitive With Adjustable Rebound And Compression
- 1-1/8 Inch Case Hardened, Centerless Ground Piston Rod
- All Machined Billet Aluminum Components
- 3 Stage High-Temperature Seal
- Red Synthetic High-Temperature Racing Oil
- Owner Rebuildabe
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-269542
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 29-1/2 Inch
- Compressed Length (IN): 19-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): OEM
- Valving Type: OEM
- With Reservoir: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
