Adjustable damping control for enhanced off-road performance.

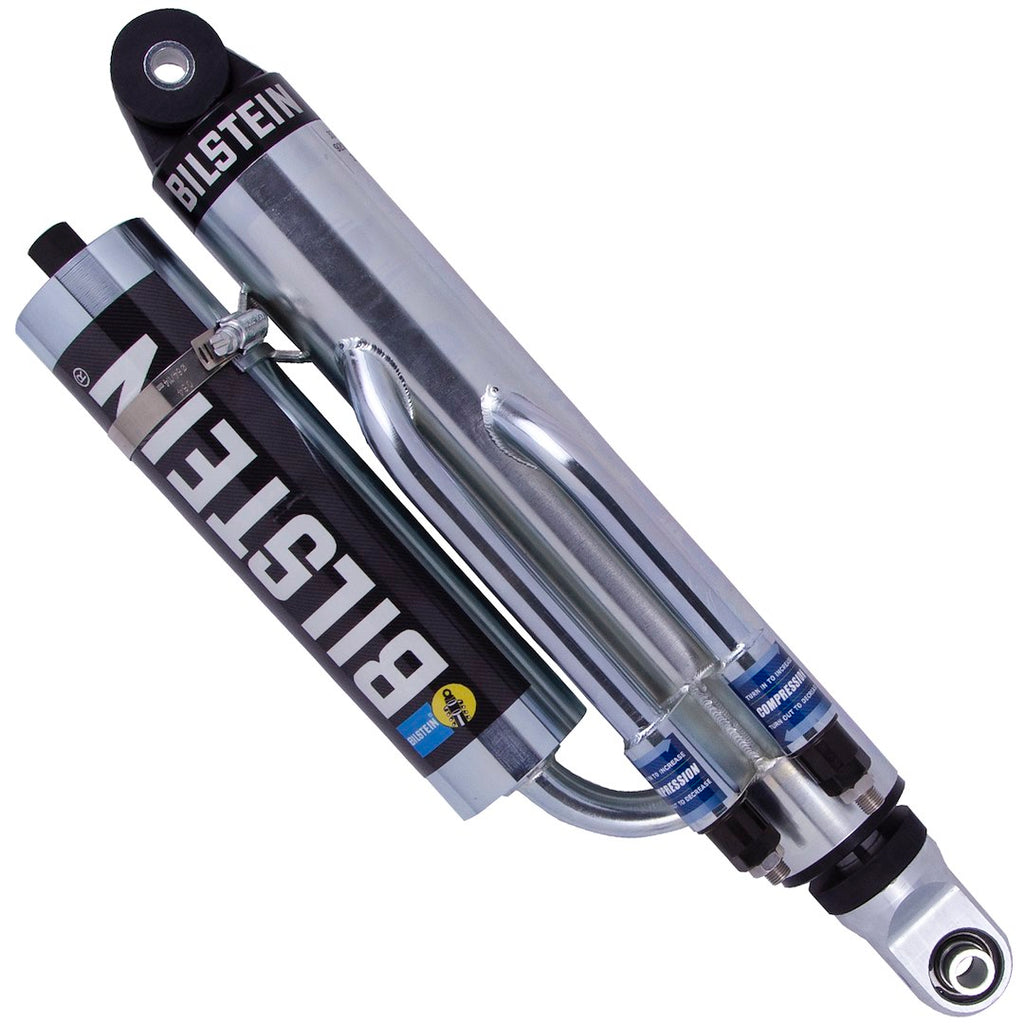

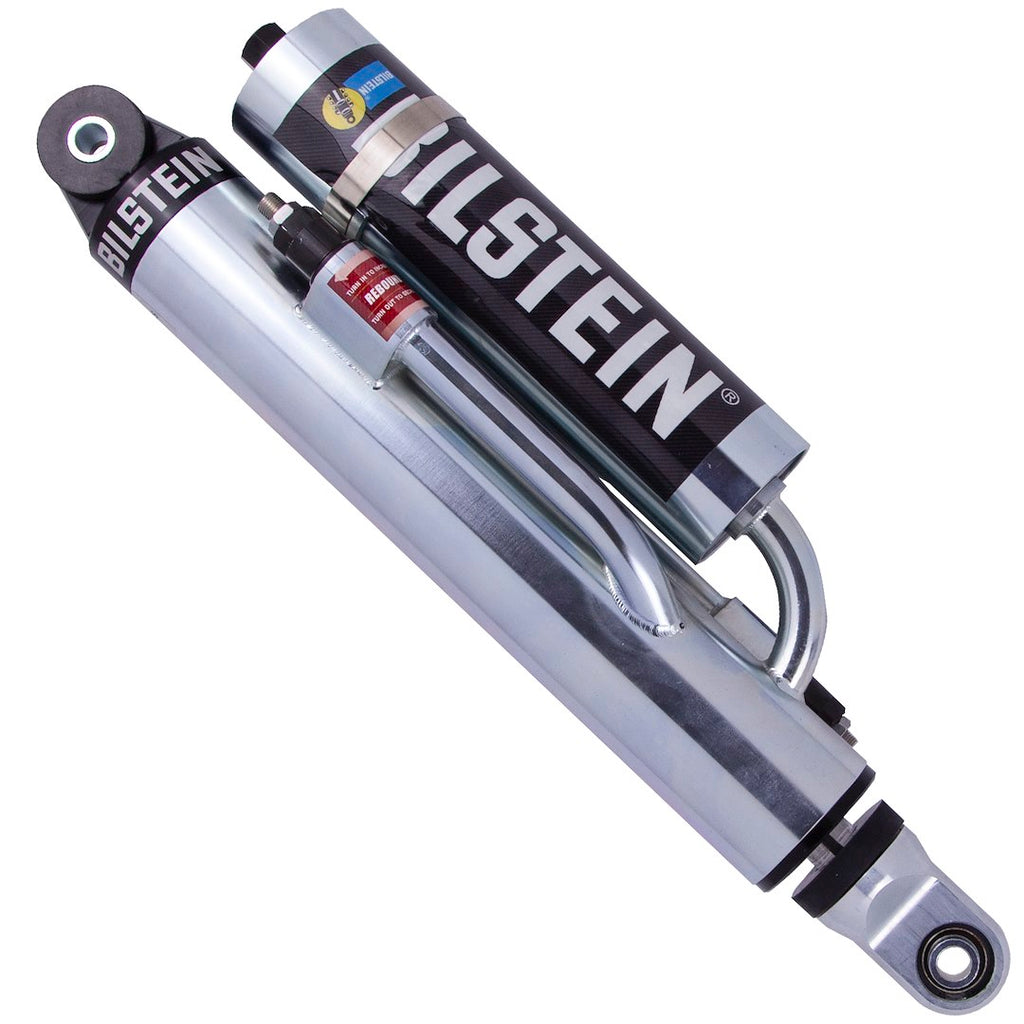

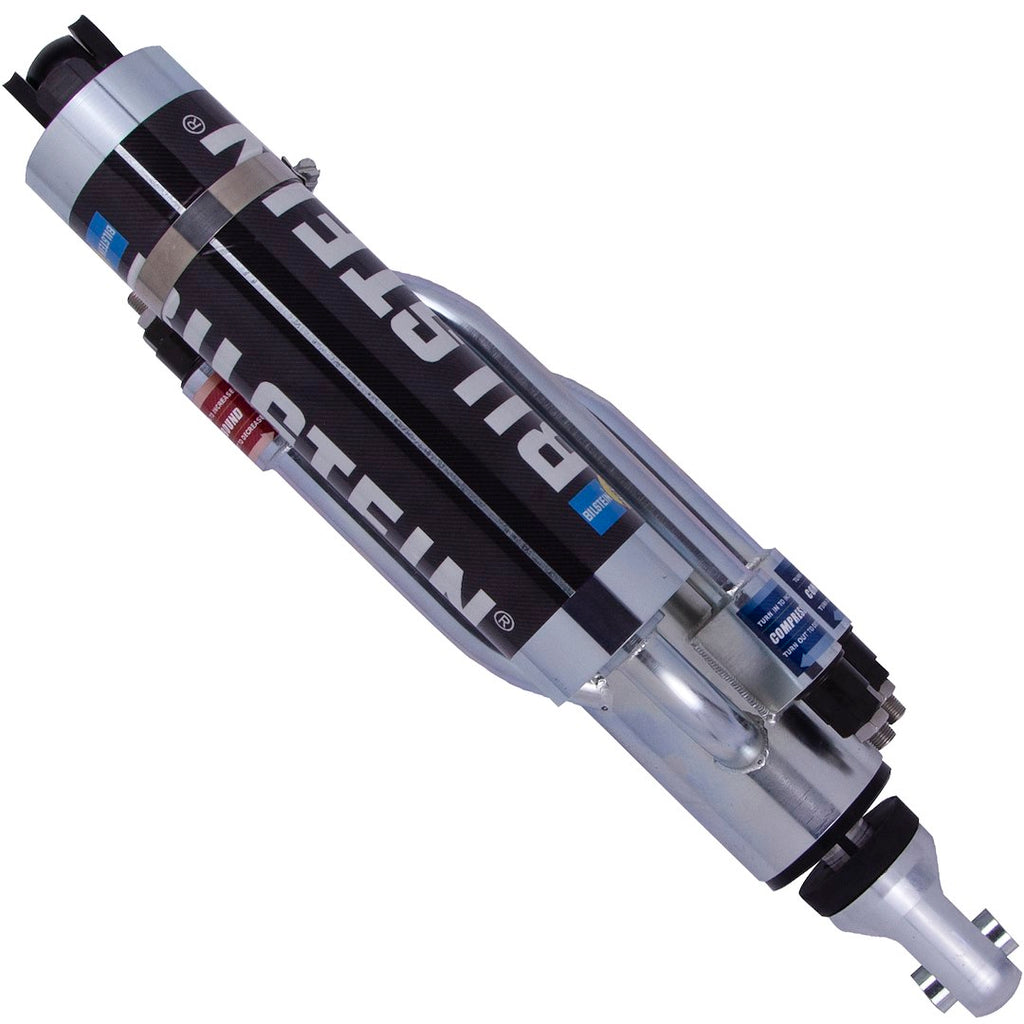

The Bilstein M 9200 Bypass shock absorber is engineered for off-road enthusiasts seeking precision in suspension tuning. This nitrogen gas charged unit features a 70 millimeter monotube design that provides superior heat dissipation and consistent performance under extreme conditions. With its position sensitive technology, the M 9200 allows for adjustable rebound and compression, enabling users to fine-tune their vehicle's handling characteristics to match specific driving conditions.
Constructed with all machined billet aluminum components, this shock absorber is built for durability and reliability. The 1-1/8 inch case hardened, centerless ground piston rod ensures a robust performance, while the three-stage high-temperature seal and red synthetic high-temperature racing oil enhance its longevity. The M 9200 is also owner rebuildable, allowing for maintenance and extended use.
With an extended height of 25.5 inches and a collapsed height of 17.5 inches, this shock absorber is designed for right-side installation and is compatible with various off-road applications. The zinc plated finish adds an extra layer of protection against corrosion, making it suitable for rugged environments. The Bilstein M 9200 Bypass shock absorber is a reliable choice for those looking to optimize their vehicle's suspension system.
Features
- 70 Millimeter Monotube Design
- 4 Tube And 3 Tube, Position Sensitive With Adjustable Rebound And Compression
- 1-1/8 Inch Case Hardened, Centerless Ground Piston Rod
- All Machined Billet Aluminum Components
- 3 Stage High-Temperature Seal
- Red Synthetic High-Temperature Racing Oil
- Owner Rebuildabe
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-269535
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 25-1/2 Inch
- Compressed Length (IN): 17-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): OEM
- Valving Type: OEM
- With Reservoir: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
