Adjustable damping control for enhanced off-road performance.

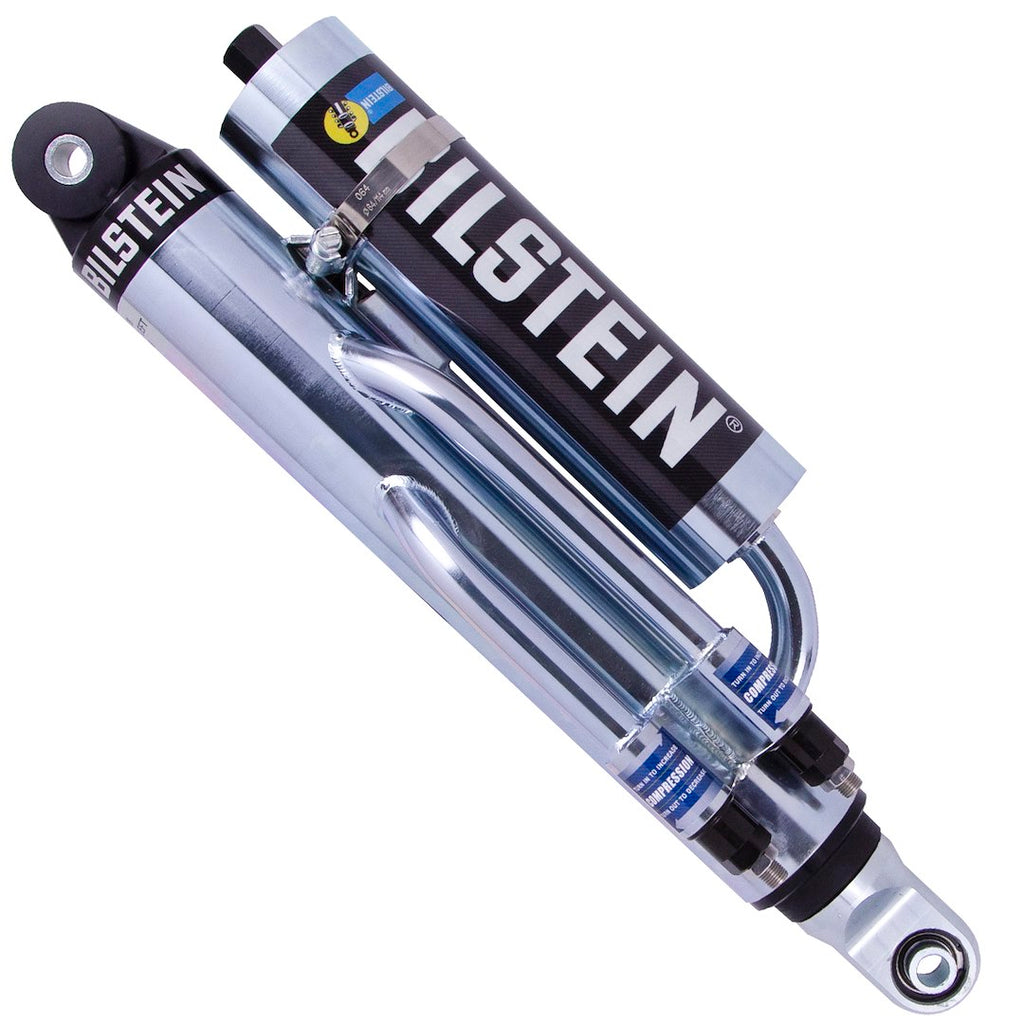

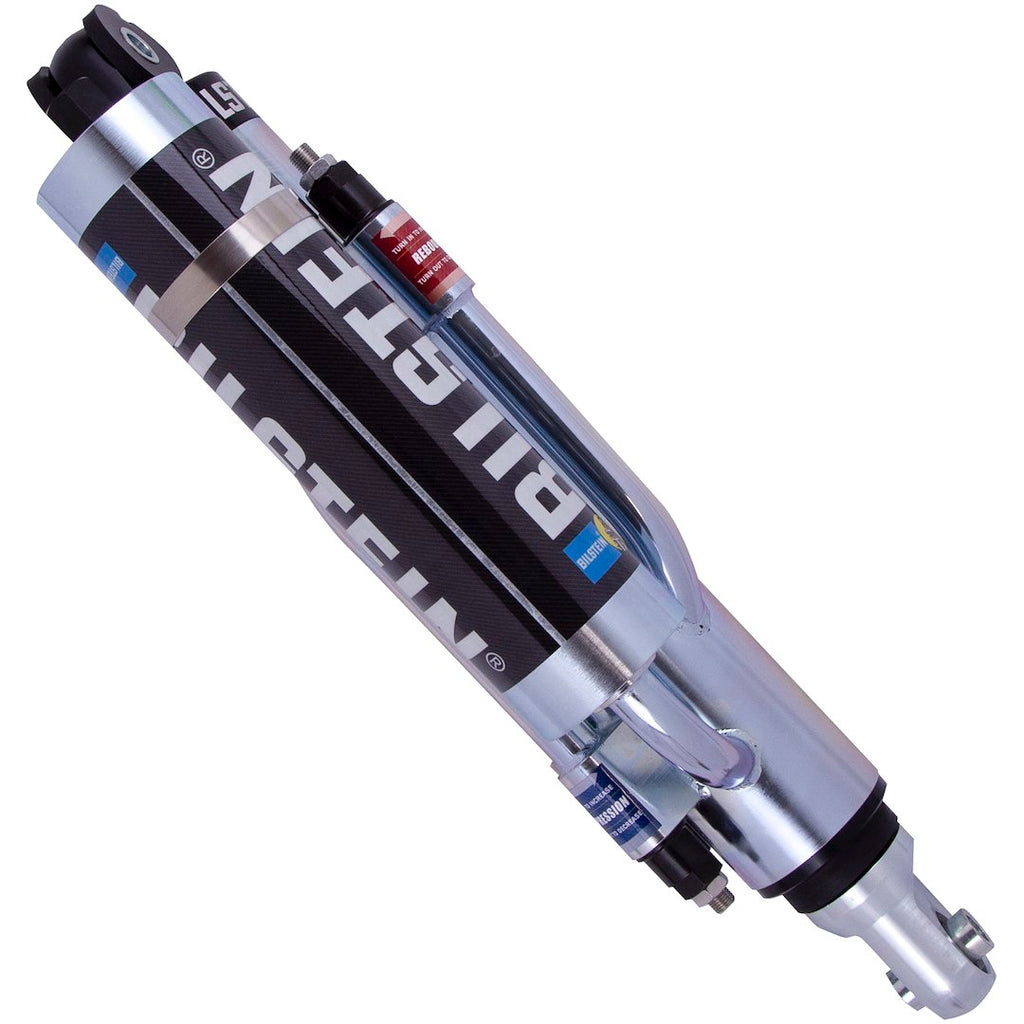

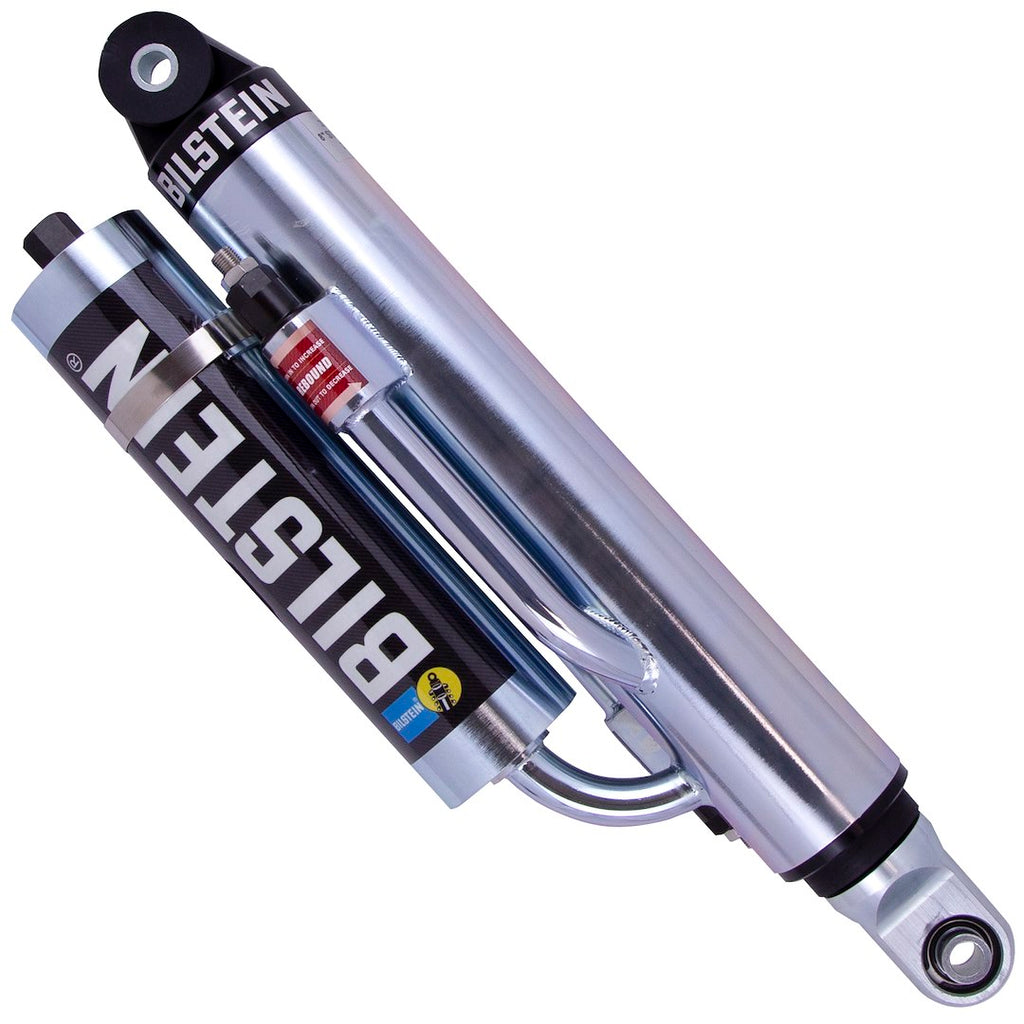

The Bilstein M 9200 Bypass shock absorber is engineered for off-road applications, providing position-sensitive and adjustable damping control. This shock absorber features a 70 millimeter monotube design that enhances performance and durability. With its adjustable rebound and compression settings, users can fine-tune their suspension to meet specific driving conditions and preferences.
Constructed with all machined billet aluminum components, the M 9200 ensures longevity and reliability under extreme conditions. The shock is filled with red synthetic high-temperature racing oil, which maintains performance even in high-stress environments. Additionally, the three-stage high-temperature seal contributes to the shock's resilience and effectiveness.
The M 9200 is designed for easy owner rebuildability, allowing for maintenance and adjustments over time. With an extended height of 25.5 inches and a collapsed height of 17.5 inches, this shock absorber is suitable for various applications, making it a versatile choice for off-road enthusiasts.
Features
- 70 Millimeter Monotube Design
- 4 Tube And 3 Tube, Position Sensitive With Adjustable Rebound And Compression
- 1-1/8 Inch Case Hardened, Centerless Ground Piston Rod
- All Machined Billet Aluminum Components
- 3 Stage High-Temperature Seal
- Red Synthetic High-Temperature Racing Oil
- Owner Rebuildabe
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-269528
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 25-1/2 Inch
- Compressed Length (IN): 17-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): OEM
- Valving Type: OEM
- With Reservoir: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
