Bilstein Coil Over Shock Absorber (MPN: 41-319581)

Advanced suspension technology for enhanced driving performance and comfort.

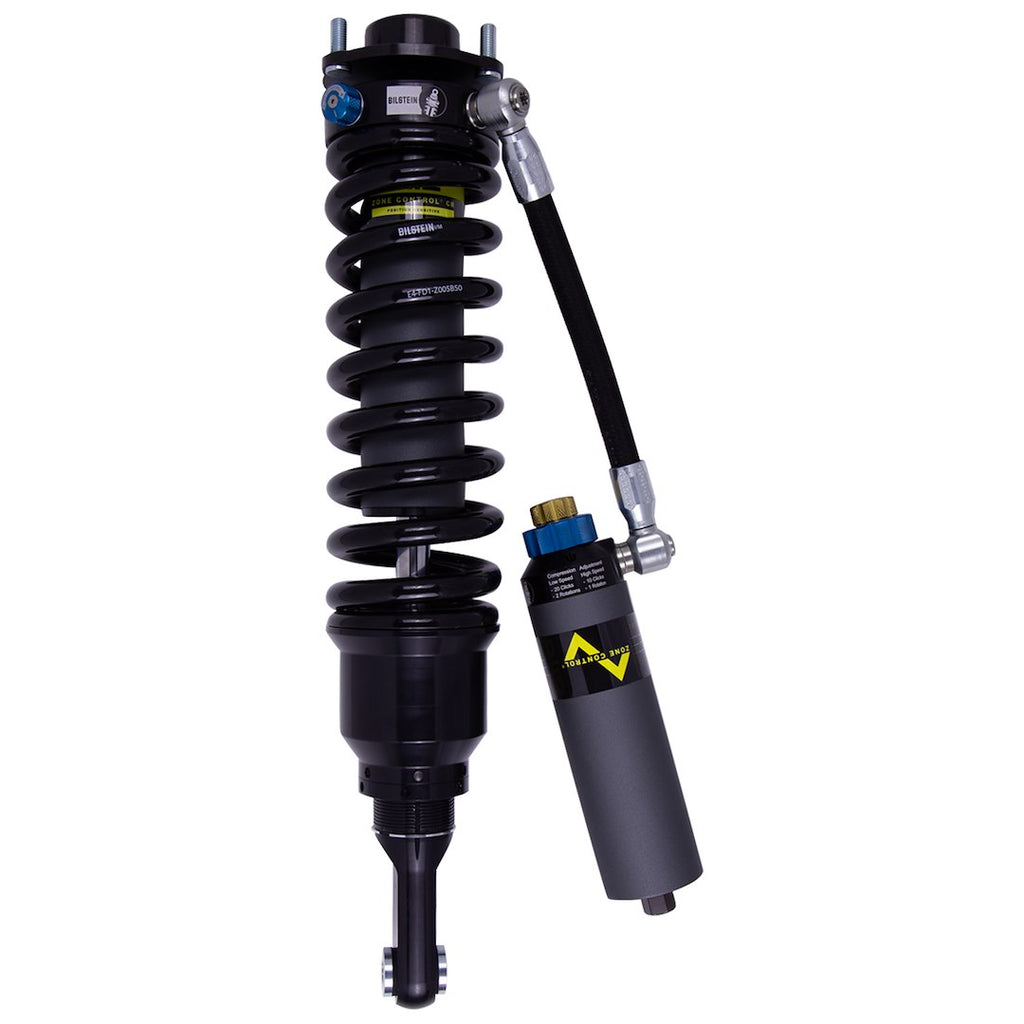

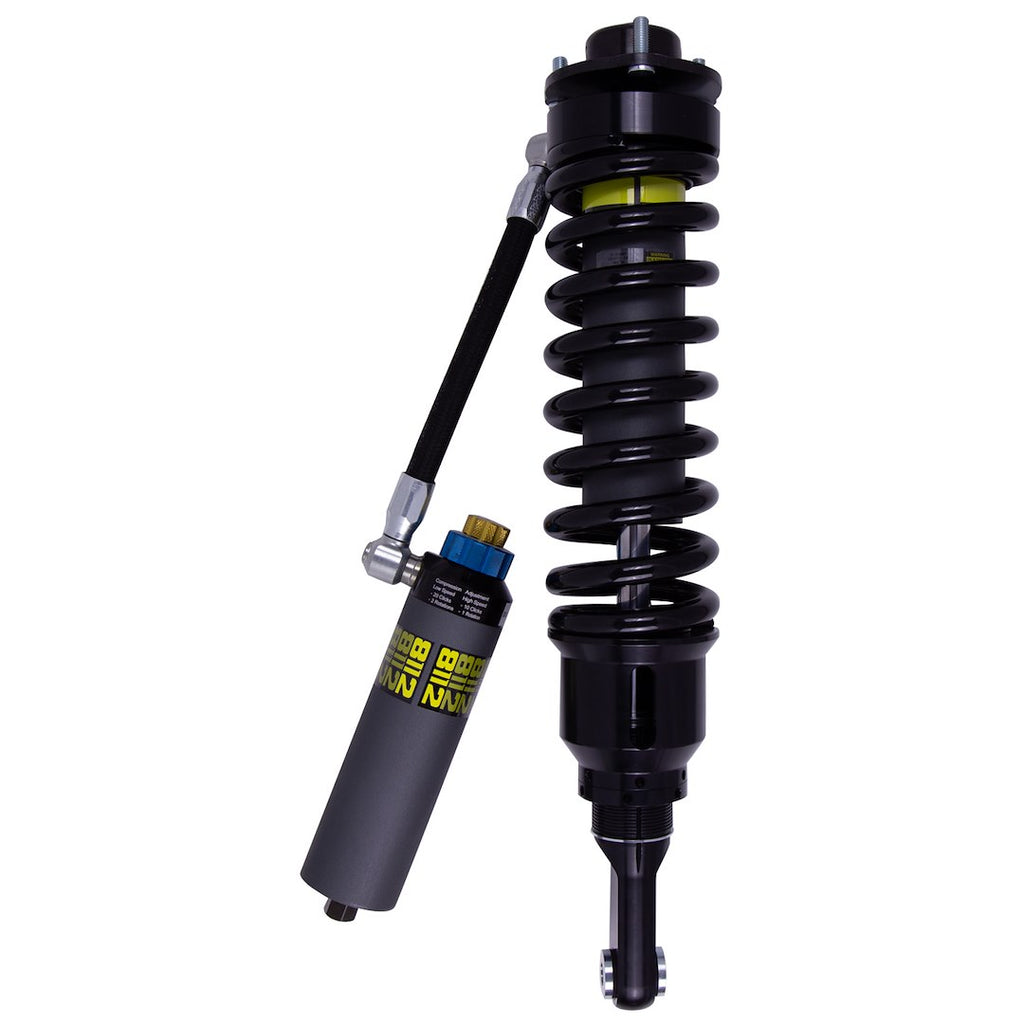

The Bilstein B8 8112 ZoneControl CR suspension kit integrates cutting-edge technology to provide position sensitive damping for both compression and rebound. This system features three compression zones and two rebound zones, managed by three independent pistons, ensuring optimal performance in various driving conditions. The 60 millimeter remote reservoir enhances oil capacity and cooling, contributing to improved shock performance during demanding situations.

Constructed with aerospace quality components, this coilover is designed specifically for each vehicle to maximize wheel travel and clearance. The aluminum components and zinc plated shock bodies are engineered to withstand harsh off-road environments, ensuring durability and longevity. Additionally, the adjustable threaded spring seat allows for precise ride height tuning, accommodating a range from 6 to 2.5 inches.

The Bilstein B8 8112 is factory rebuildable, providing a sustainable option for maintaining performance over time. This complete module is designed for easy installation, making it a practical choice for those looking to enhance their vehicle's suspension system. Made in the USA, this shock absorber exemplifies quality and performance in automotive suspension technology.

Features

• Triple Piston Design Delivers Comfort During Every Day Driving Conditions And Maximum Control Under Large Suspension Inputs

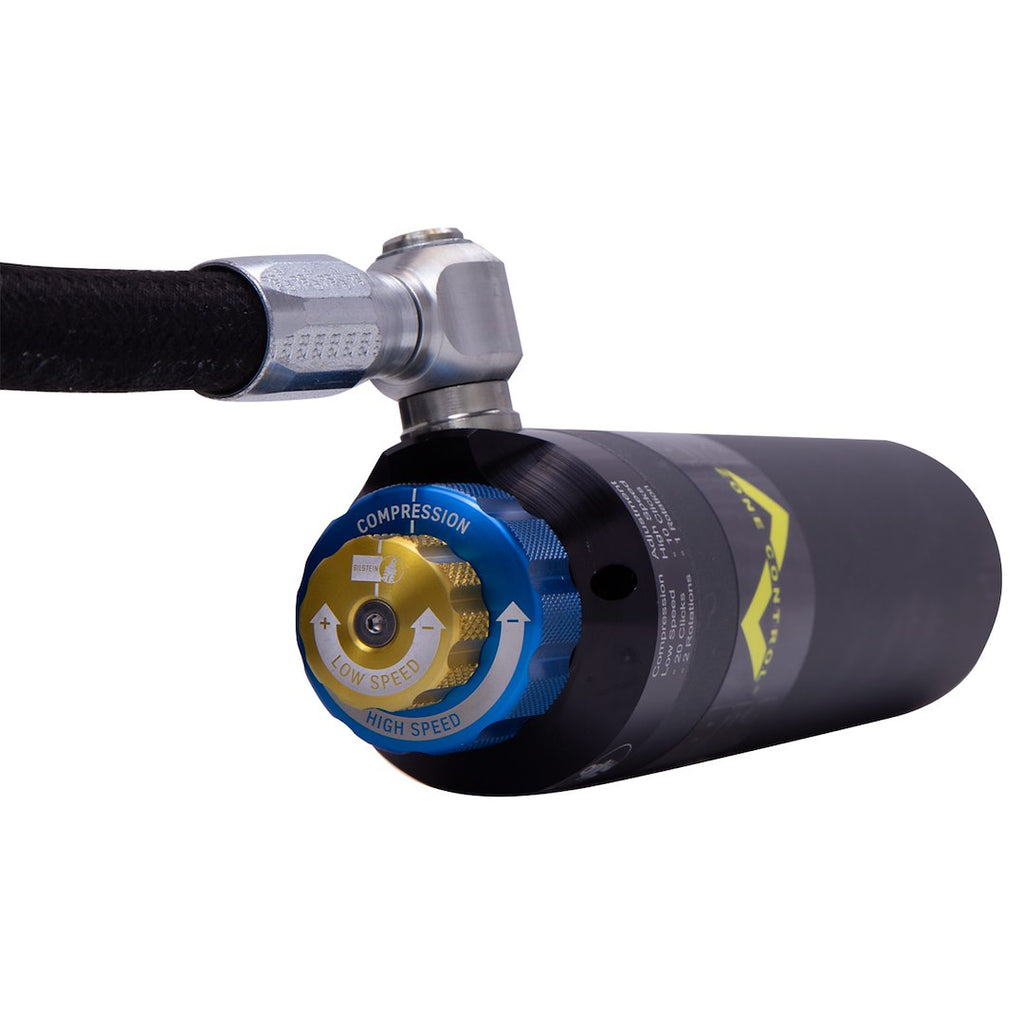

• 60 Millimeter Remote Reservoir For Increased Oil Capacity And Cooling
• Aerospace Quality Components Are Vehicle Specific To Optimize Wheel Travel And Clearance
• Aluminum Components With Zinc Plated Shock Bodies Will Resist Harsh Off-Road Elements
• Factory Rebuildable

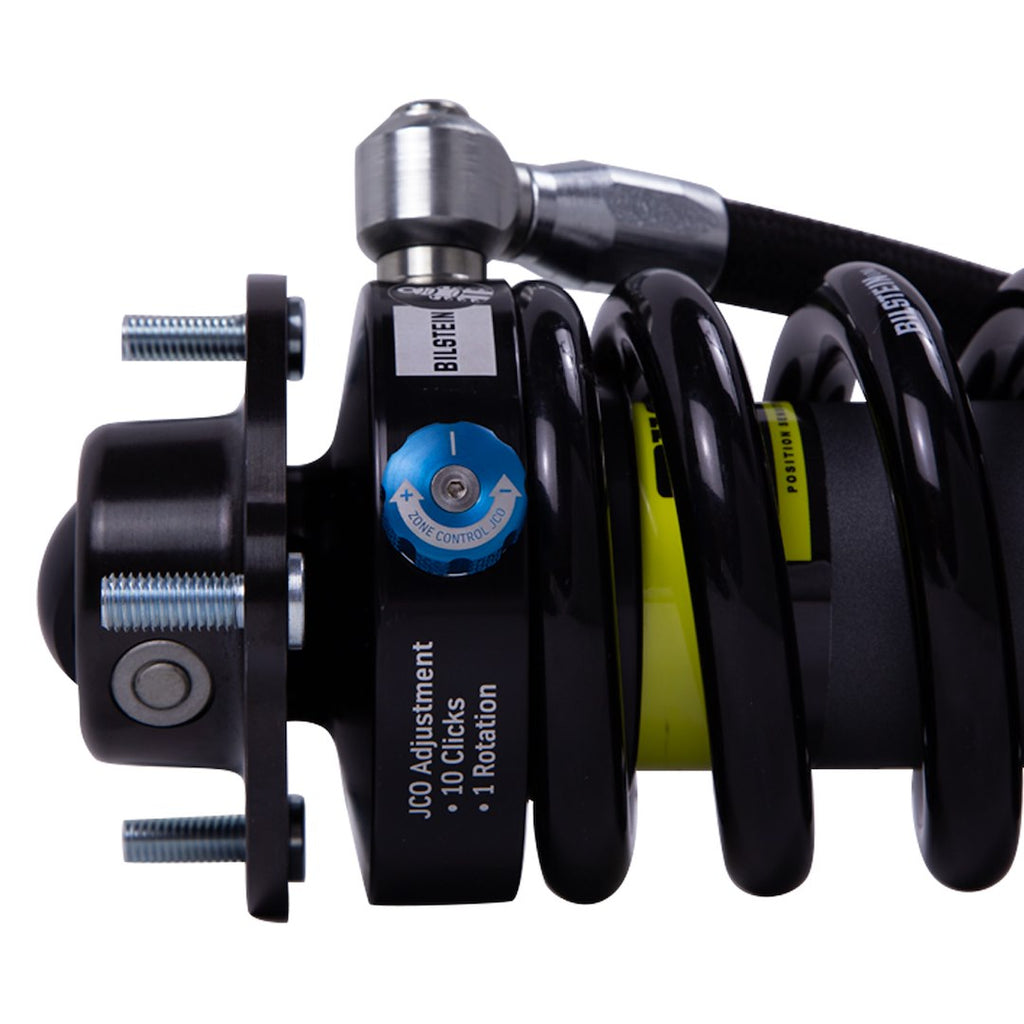

• Adjustable Threaded Spring Seat Allows For Fine-Tuned Ride Height: Adjustable Range 6 To 2-1/2 Inch
• Vehicle Specific Design And Tuning Provides The Ultimate Driving Experience

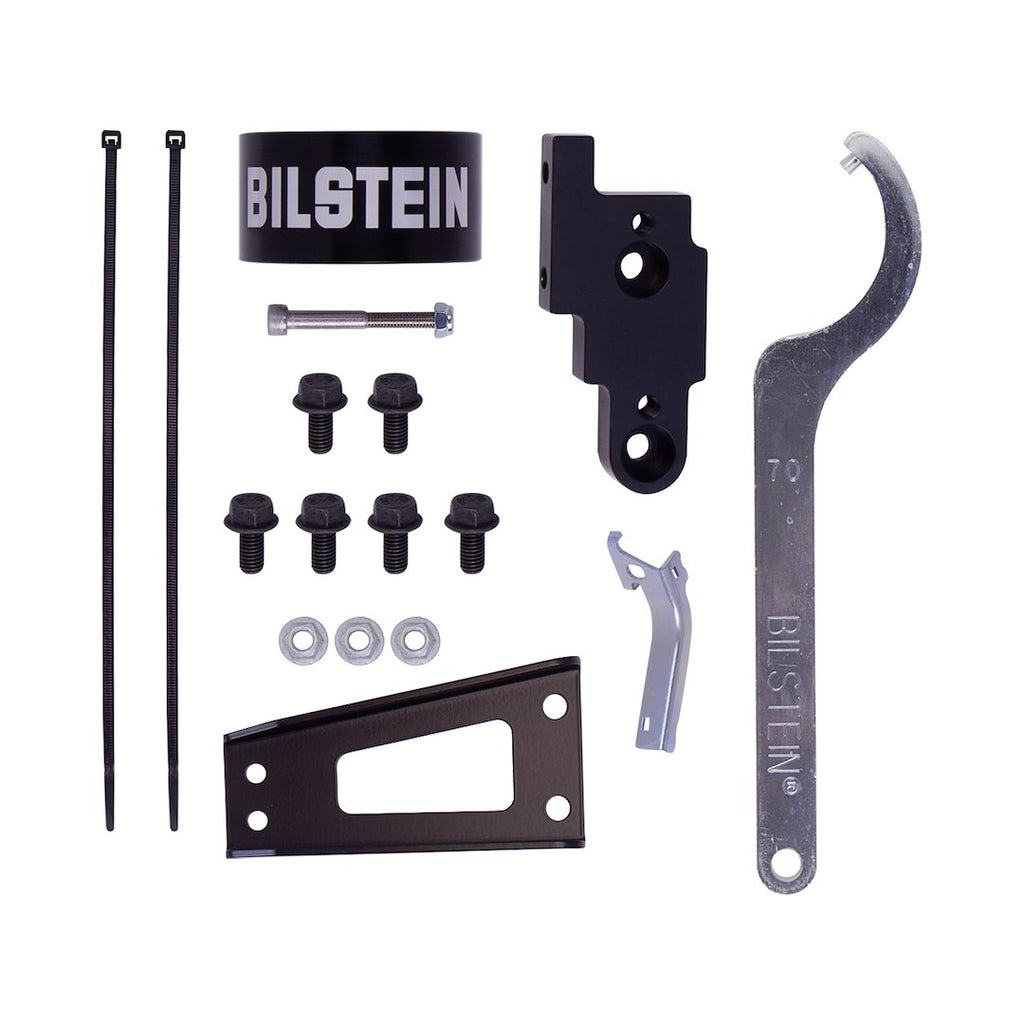

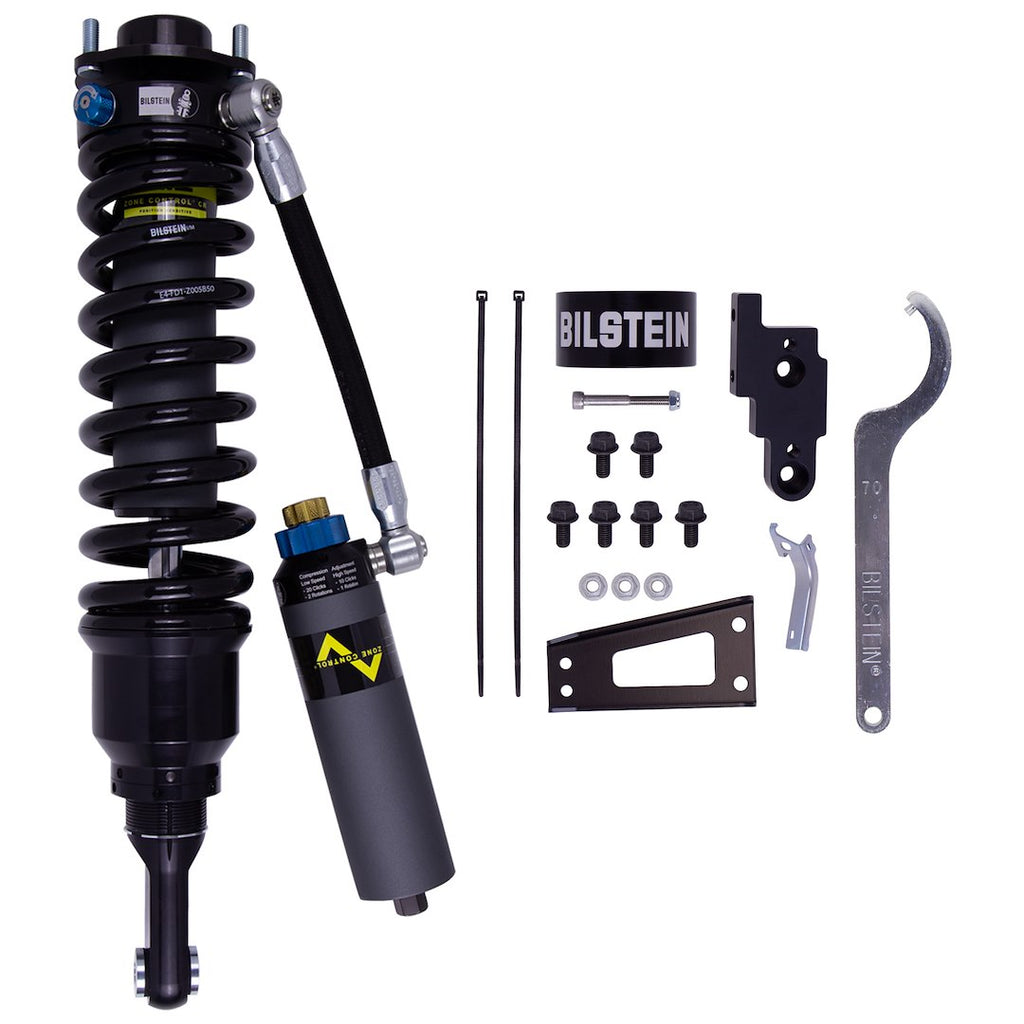

• Coilover Supplied As A Complete Module For Easy Installation
• Made In USA

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 41-319581
• Adjustable: Yes
• Upper Mounting Type: Strut
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 0 To 2.6 Inch
• Extended Height (IN): 22.39 Inch
• Compressed Height (IN): 17.42 Inch
• Quantity: Single
• Valving Type: 3 Stages Of Compression And 2 Stages Of Rebound Valving
• Shock Type: Gas Charged
• Shock Body Color: Black
• Shock Body Material: Steel
• Spring Finish: Painted
• Spring Color: Black
• Includes Mounting Hardware: No

Compatibility / Fit

• 2005-2023 Toyota Tacoma

Technical Documents

• E-WM05-0000016_3.pdf
• warranty_all_v4.2.pdf
• B8_8112_Flyer.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
