Advanced suspension technology for enhanced driving performance and comfort.

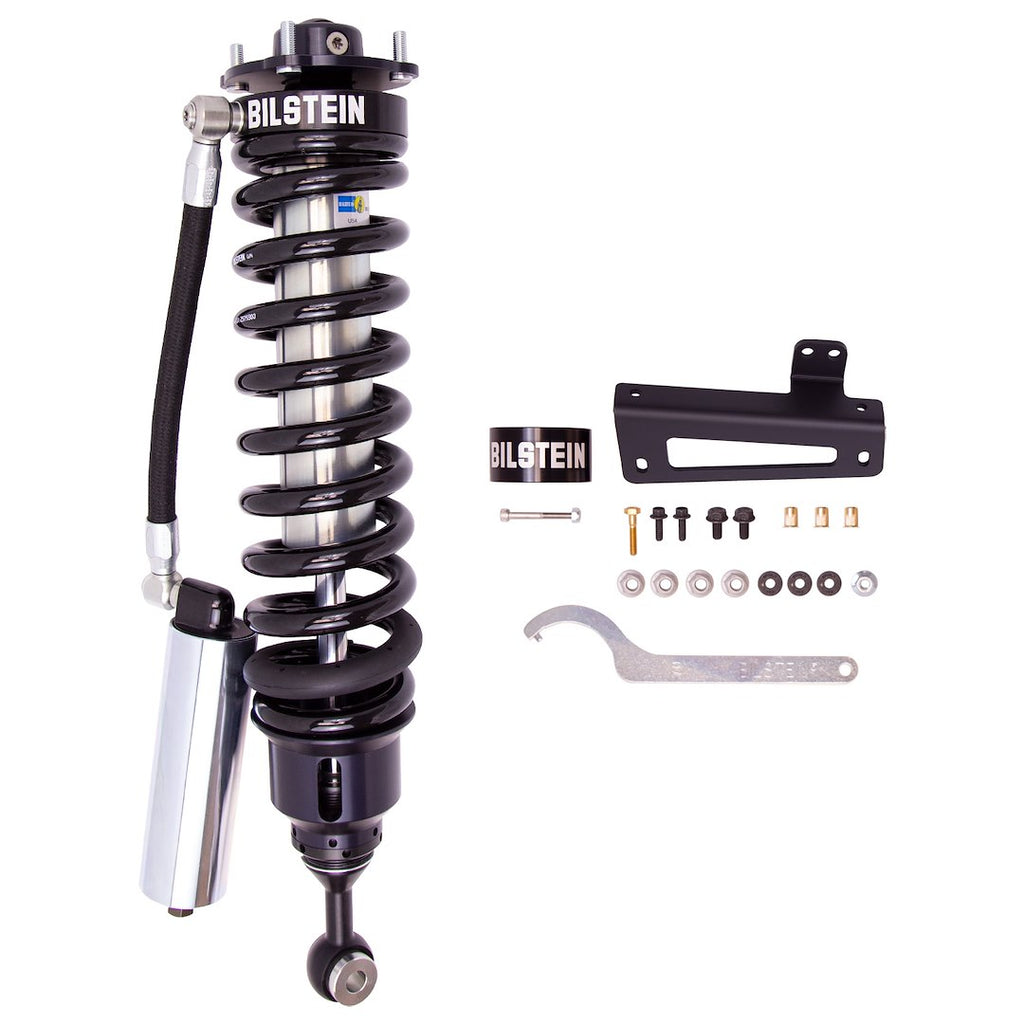

The Bilstein B8 8112 (ZoneControl CR) coil over shock absorber is engineered to provide superior suspension performance through innovative technology. This suspension kit features position sensitive damping with three compression zones and two rebound zones, allowing for optimal control during both everyday driving and extreme conditions. The triple piston design ensures comfort while maintaining maximum control under significant suspension inputs, making it a versatile choice for various driving scenarios.
With an adjustable threaded spring seat, users can fine-tune the ride height from 0 to 3.8 inches, accommodating different vehicle setups and preferences. The 60 millimeter remote reservoir increases oil capacity and cooling efficiency, contributing to the shock's overall performance. Constructed with high-quality materials, including zinc plated shock bodies and durable aluminum components, this shock absorber is designed to withstand harsh off-road environments while providing reliable performance.
The Bilstein B8 8112 is a complete module that simplifies installation, as it comes pre-loaded to the factory recommended ride height. Its vehicle-specific design and tuning optimize wheel travel and clearance, ensuring an enhanced driving experience tailored to the specific needs of your vehicle. This shock absorber is a single unit, making it a practical choice for those looking to upgrade their suspension system.
Features
- ZoneControl CR: Position Sensitive Damping With 3 Compression Zones And 2 Rebound Zones, Controlled By 3 Independent Pistons
- Compression : Provides Superior Bottom Out Control Through A 2-Stage, Telescoping Internal Compression Stop. This Feature Eliminates The Need For An External Hydraulic Bump Stop
- Secondary Rebound Stop Dissipate Spring Energy And Stabilize The Suspension Directly Following A Large Compression Event. Internal Rebound Stop Eliminate Harsh Top-Out Events
- Triple Piston Design Delivers Comfort During Every Day Driving Conditions And Maximum Control Under Large Suspension Inputs
- Adjustable Threaded Spring Seat Allows For Fine-Tuned Ride Height
- 60 Millimeter Remote Reservoir For Increased Oil Capacity And Cooling, Coilover Supplied As A Complete Module For Easy Installation. Spring Is Pre-Loaded To The Factory Recommended Ride Height
- Vehicle Specific Design And Tuning Provides The Ultimate Driving Experience. Aerospace Quality Components Are Vehicle Specific To Optimize Wheel Travel And Clearance
- High Quality Chrome 5/8 Inch Heim Joint Mounting With Rubber Sealed Misalignment Spacers Offer The Most Durable, Load Bearing Mount Solution
- Aluminum Components With Zinc Plated Shock Bodies Will Resist Harsh Off-Road Elements
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 41-284551
- Adjustable: Yes
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 2-1/4 To 3-1/4 Inch
- Extended Height (IN): 25.79 Inch
- Compressed Height (IN): 19.43 Inch
- Quantity: Single
- Valving Type: 3 Stage Compression Valving
- Shock Type: Gas Charged
- Shock Body Color: Silver
- Shock Body Material: Steel
- Spring Color: Black
- Includes Mounting Hardware: No
Compatibility / Fit
- 2007-2021 Toyota Tundra
Technical Documents
- E4-WM5-Y627A00_1.pdf
- warranty_all_v4.2.pdf
- B8_8112_Flyer.pdf
- USA_SDS_Shock_Air_Spring_V2_EN.pdf
- USA_SDS_Shock_Air_Spring_V2_EN.pdf
