Bilstein B8 8112 ZoneControl CR Shock Absorber (MPN: 41-324158)

Advanced suspension technology for enhanced comfort and control.

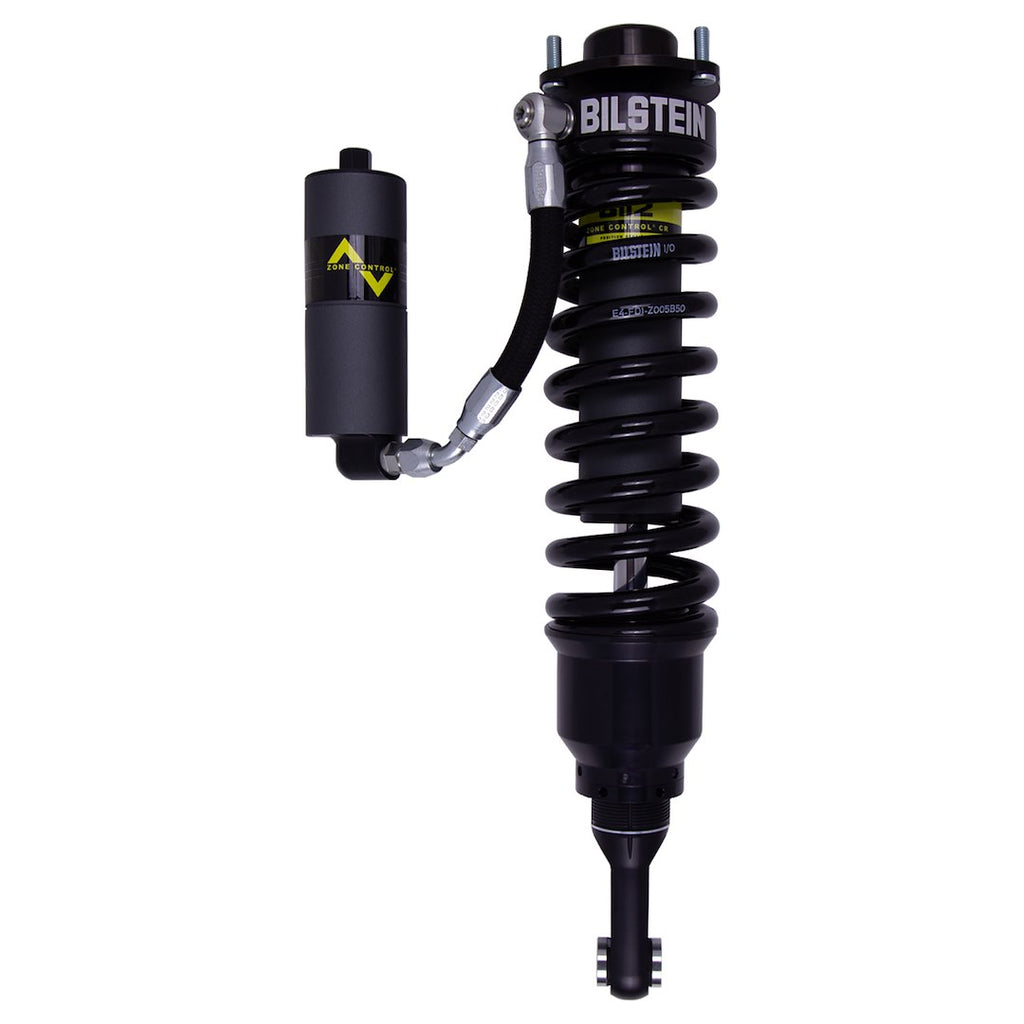

The Bilstein B8 8112 ZoneControl CR Shock Absorber is engineered to provide exceptional performance in both everyday driving and off-road conditions. This suspension kit features a revolutionary triple piston design that incorporates position sensitive damping, allowing for superior comfort during regular use while maintaining maximum control during significant suspension inputs. The innovative Jounce Cut Off system enhances bottom out control, eliminating the need for external hydraulic bump stops and ensuring a smooth ride over rough terrain.

With a 60 millimeter remote reservoir, the B8 8112 offers increased oil capacity and cooling efficiency, making it suitable for demanding driving conditions. The shock body is constructed from zinc plated steel, providing durability against harsh off-road elements, while the aluminum components are vehicle specific to optimize wheel travel and clearance. The adjustable threaded spring seat allows for fine-tuning of ride height, accommodating a range from 6 to 2.5 inches.

This shock absorber is designed for easy installation as a complete module, with the spring pre-loaded to the factory recommended ride height. The high-quality chrome 5/8 inch heim joint mounting with rubber sealed misalignment spacers ensures a robust and load-bearing mount solution. The Bilstein B8 8112 is factory rebuildable, making it a long-lasting investment for enhancing vehicle performance.

Features

• Triple Piston Design Delivers Comfort During Every Day Driving Conditions And Maximum Control Under Large Suspension Inputs
• 60 Millimeter Remote Reservoir For Increased Oil Capacity And Cooling
• Aerospace Quality Components Are Vehicle Specific To Optimize Wheel Travel And Clearance
• Aluminum Components With Zinc Plated Shock Bodies Will Resist Harsh Off-Road Elements
• Factory Rebuildable
• Adjustable Threaded Spring Seat Allows For Fine-Tuned Ride Height: Adjustable Range 6 To 2-1/2 Inch
• Vehicle Specific Design And Tuning Provides The Ultimate Driving Experience
• High Quality Chrome 5/8 Inch Heim Joint Mounting With Rubber Sealed Misalignment Spacers Offer The Most Durable, Load Bearing Mount Solution

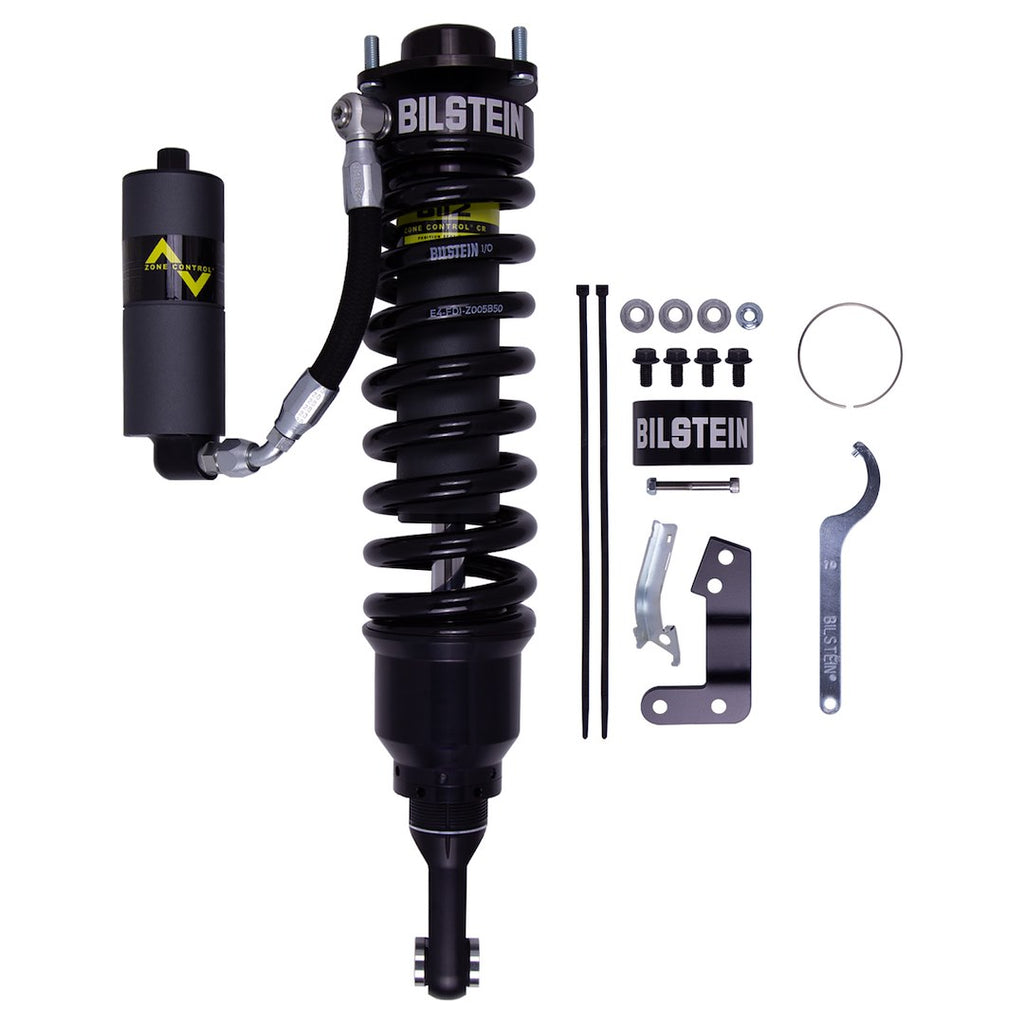

• Coilover Supplied As A Complete Module For Easy Installation: Spring Is Pre-Loaded To The Factory Recommended Ride Height

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 41-324158
• Adjustable: No
• Upper Mounting Type: Stud
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 0 To 3.8 Inch
• Extended Height (IN): 22.8 Inch
• Compressed Height (IN): 17.99 Inch
• Quantity: Single
• Valving Type: 3 Stage Compression Valving/ 2 Stages Rebound Valving
• Shock Type: Monotube
• Shock Body Color: Black
• Shock Body Material: Zinc Plated Steel
• Spring Color: Black

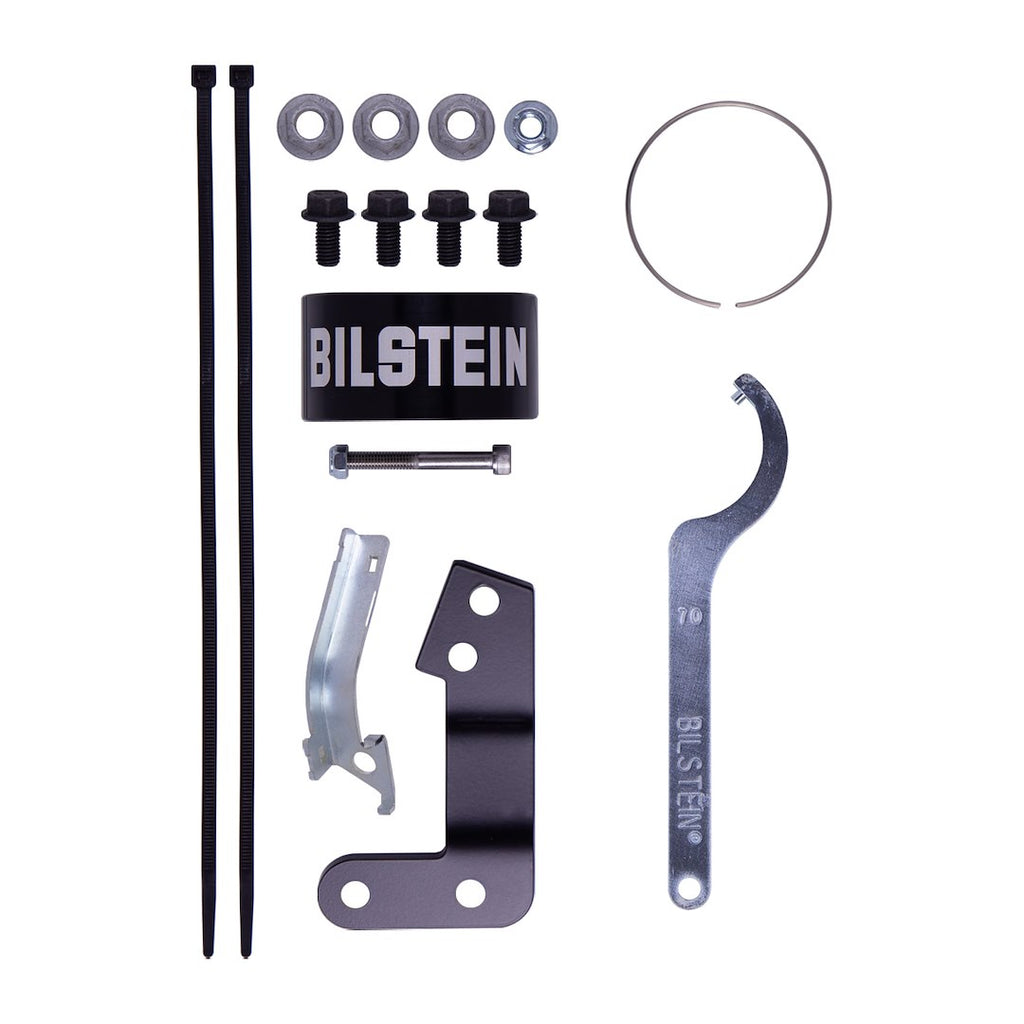

• Includes Mounting Hardware: Yes

Compatibility / Fit

• 2010-2023 Lexus GX460
• 2010-2024 Toyota 4Runner

Technical Documents

• E-WM05-0000053.pdf
• warranty_all_v4.2.pdf
• B8_8112_Flyer.pdf
• USA_SDS_Shock_Air_Spring_V2_EN.pdf
