Advanced coil over technology for enhanced ride comfort and control.

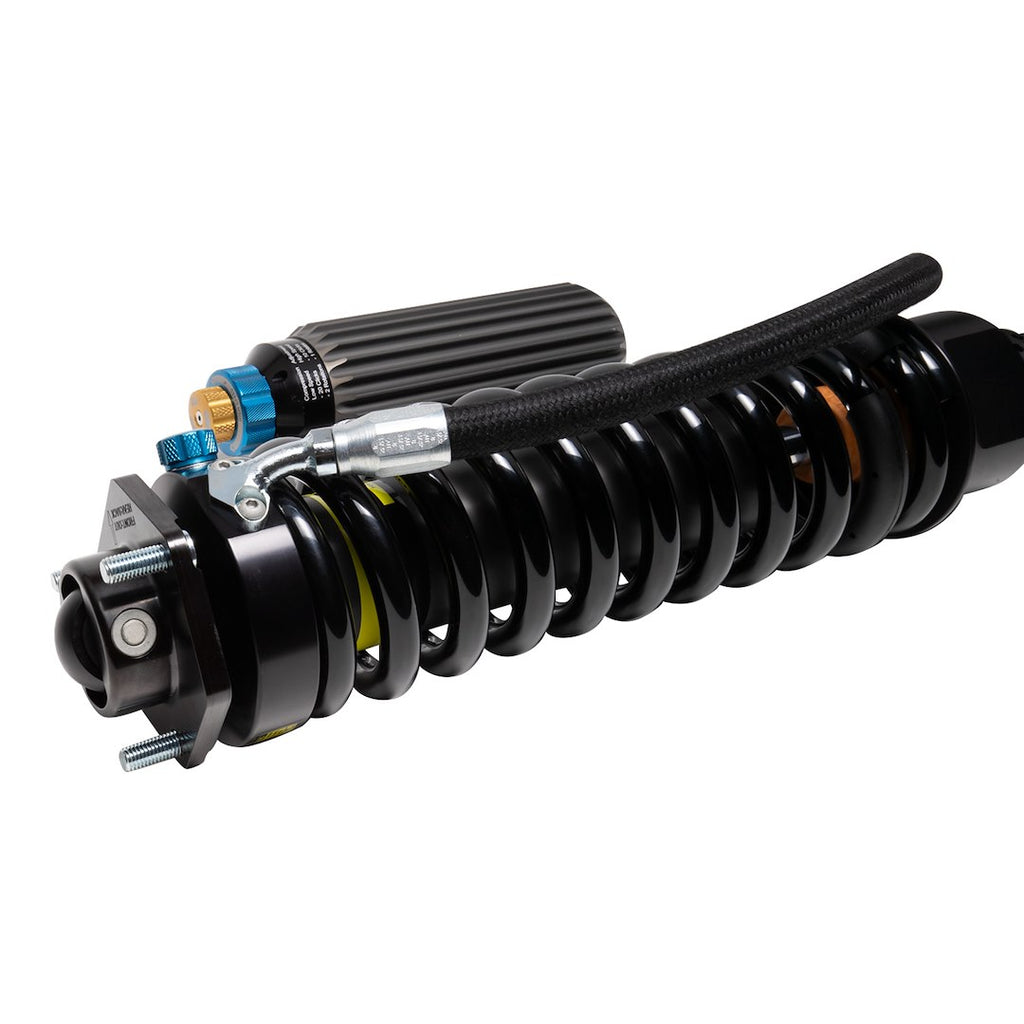

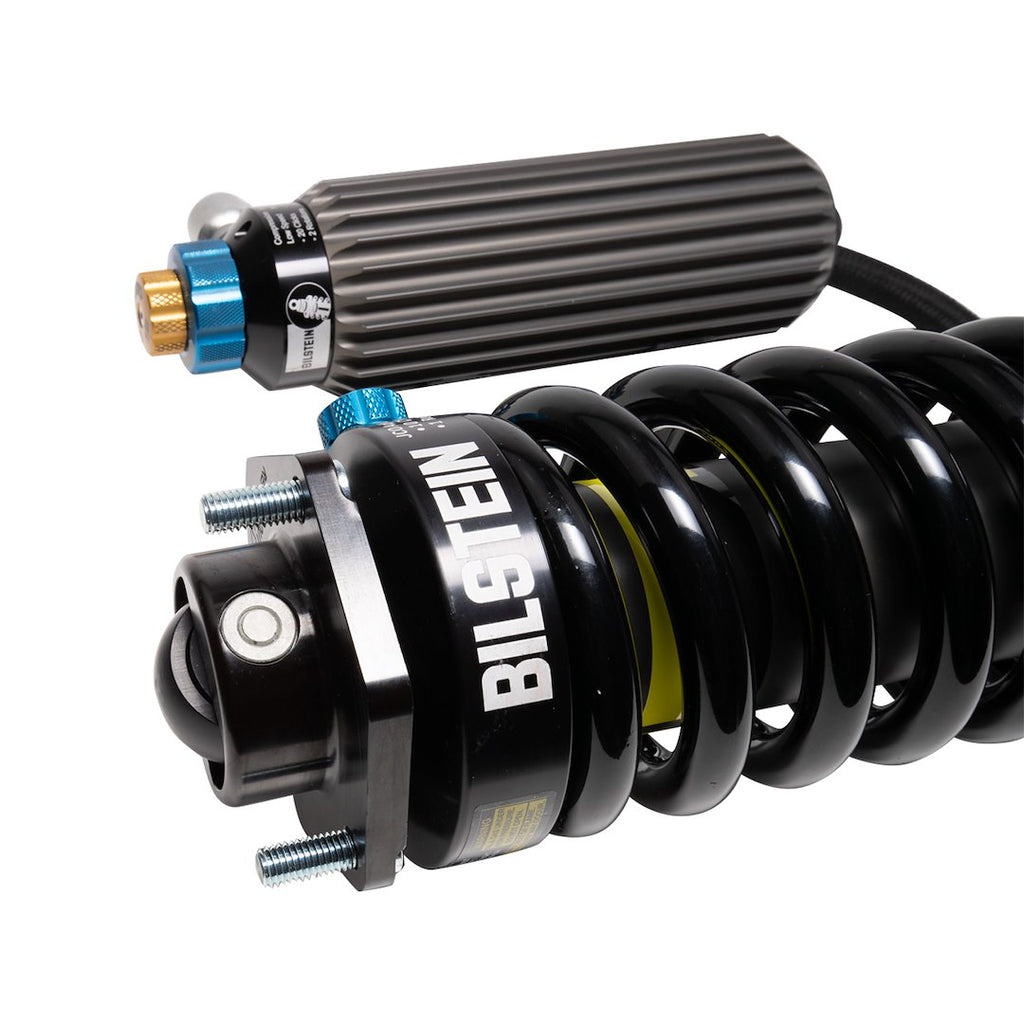

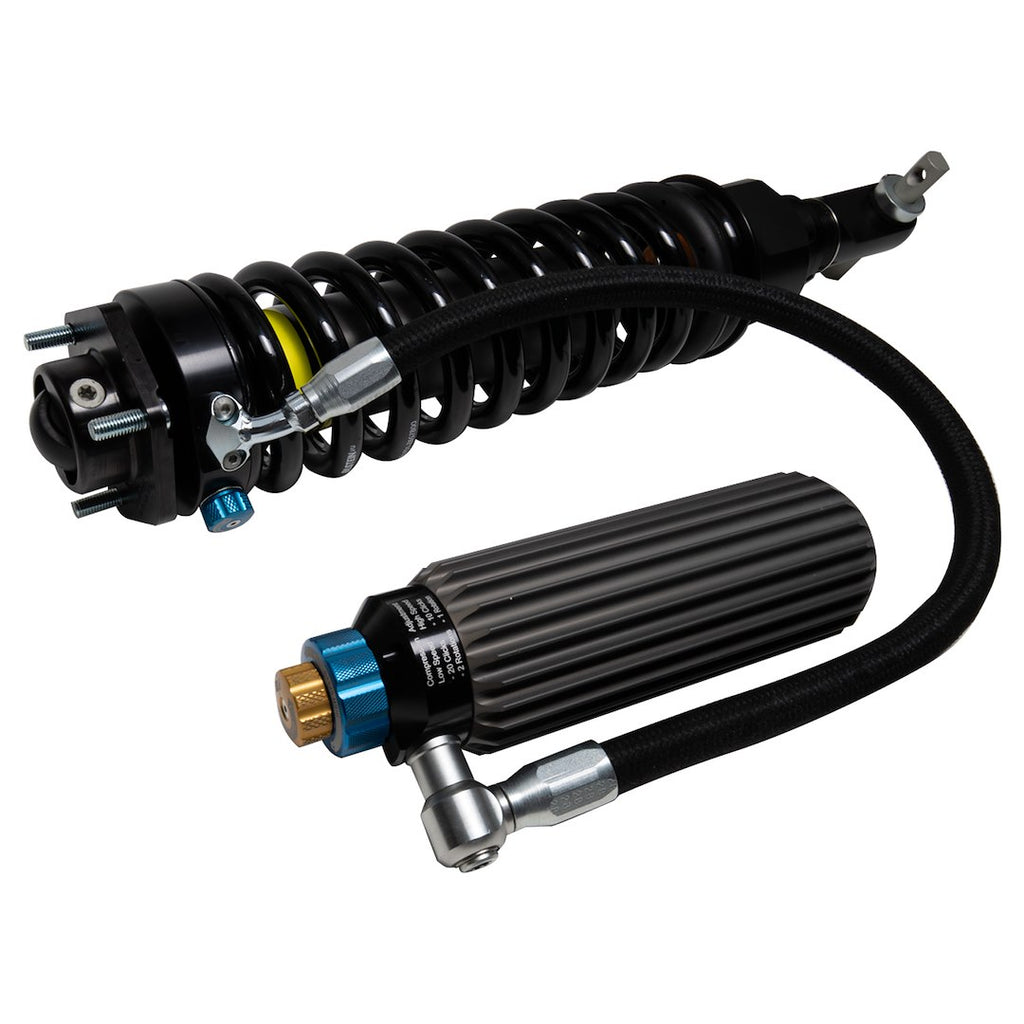

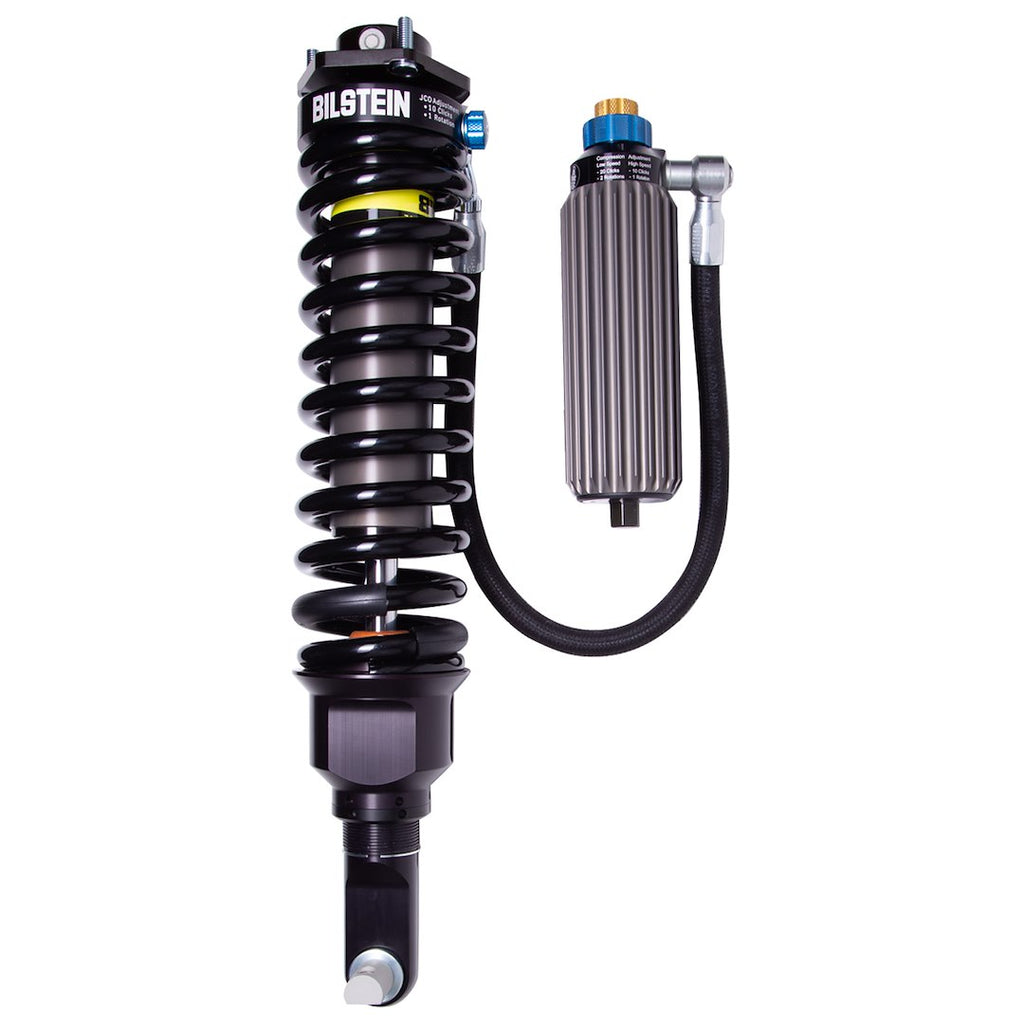

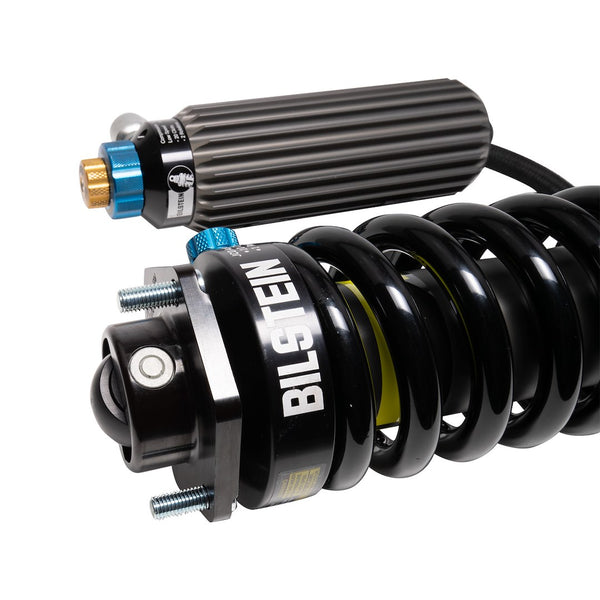

The Bilstein B8 8112 ZoneControl CR DSA+ is a high-performance coil over shock absorber designed specifically for light trucks and SUVs. This shock features a 60 millimeter remote reservoir that increases oil capacity and cooling efficiency, ensuring optimal performance under various driving conditions. The innovative triple piston design provides three stages of compression valving and two stages of rebound valving, allowing for precise adjustments to suit different terrains and driving styles.

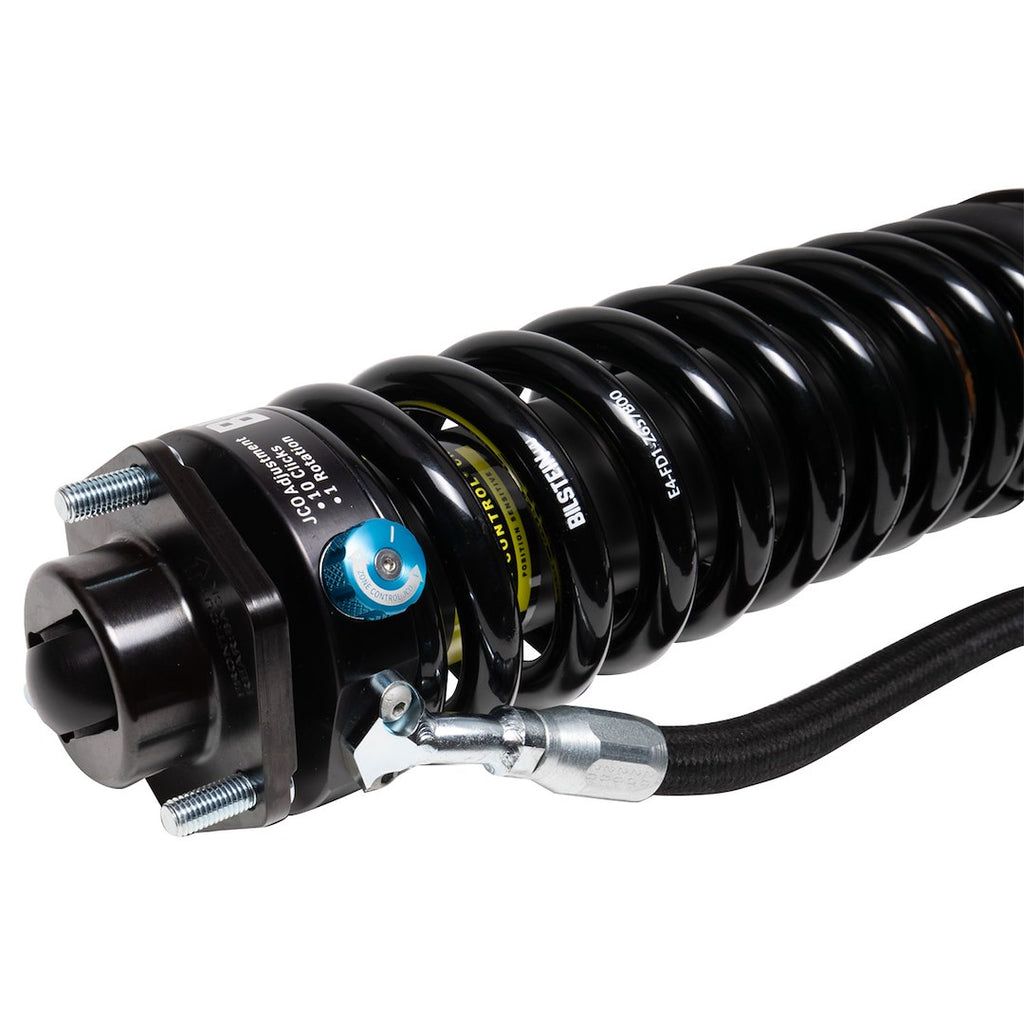

With its user-friendly click adjuster knobs, the B8 8112 allows for easy dual speed adjustment of both low and high-speed compression. This feature, combined with an adjustable internal hydraulic bump stop, enhances the overall driving experience by delivering comfort during everyday driving while maintaining maximum control during more demanding situations. The coil over module is designed for ride height adjustability, offering a range of 0 to 3 inches depending on the application.
Constructed from aerospace quality components, the Bilstein B8 8112 is vehicle-specific to optimize wheel travel and clearance. The complete module is supplied pre-loaded to the factory recommended ride height, facilitating straightforward installation. Additionally, the shock is factory rebuildable, ensuring longevity and sustained performance over time.
Features
- Triple Piston Design Delivers Comfort During Every Day Driving Conditions And Maximum Control Under Large Suspension Inputs

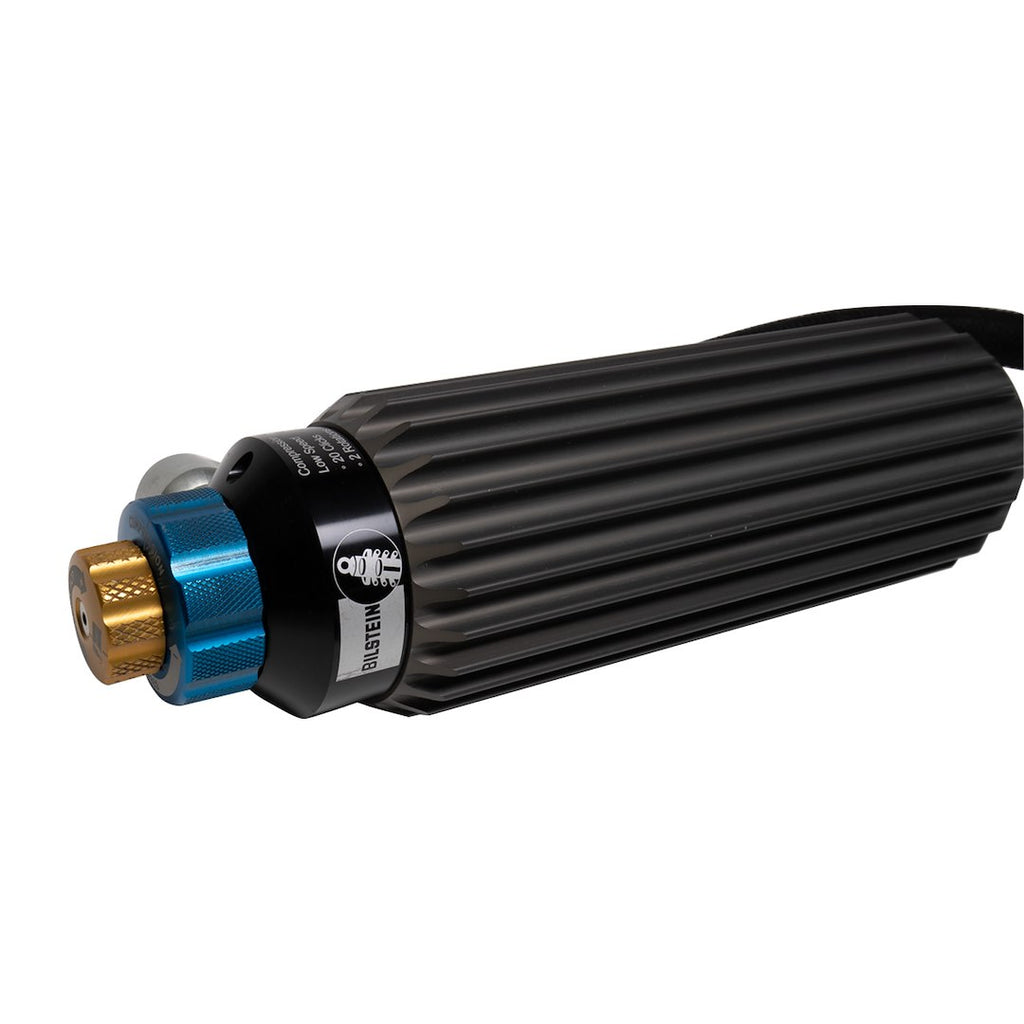

- 60 Millimeter Remote Reservoir For Increased Oil Capacity And Cooling
- Aerospace Quality Components Are Vehicle Specific To Optimize Wheel Travel And Clearance
- Factory Rebuildable
- Vehicle Specific Design And Tuning Provides The Ultimate Driving Experience

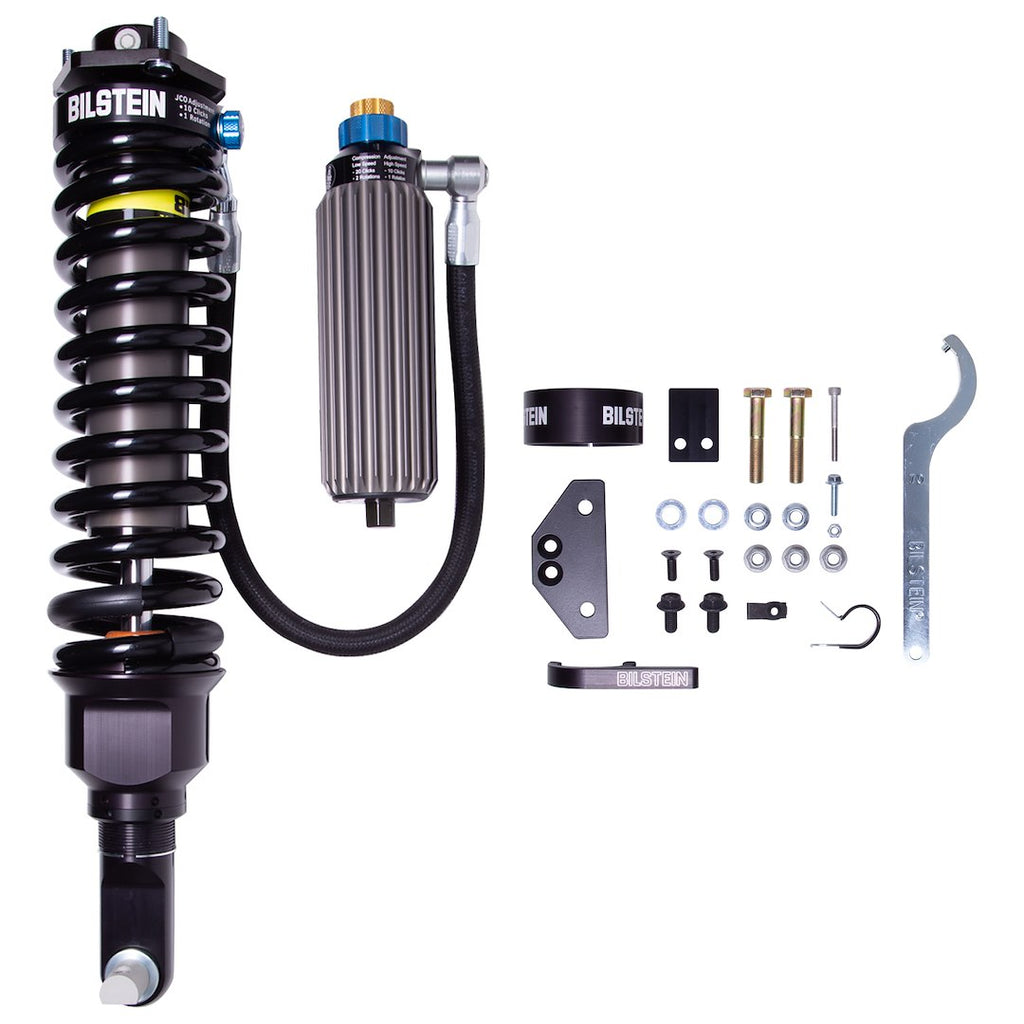

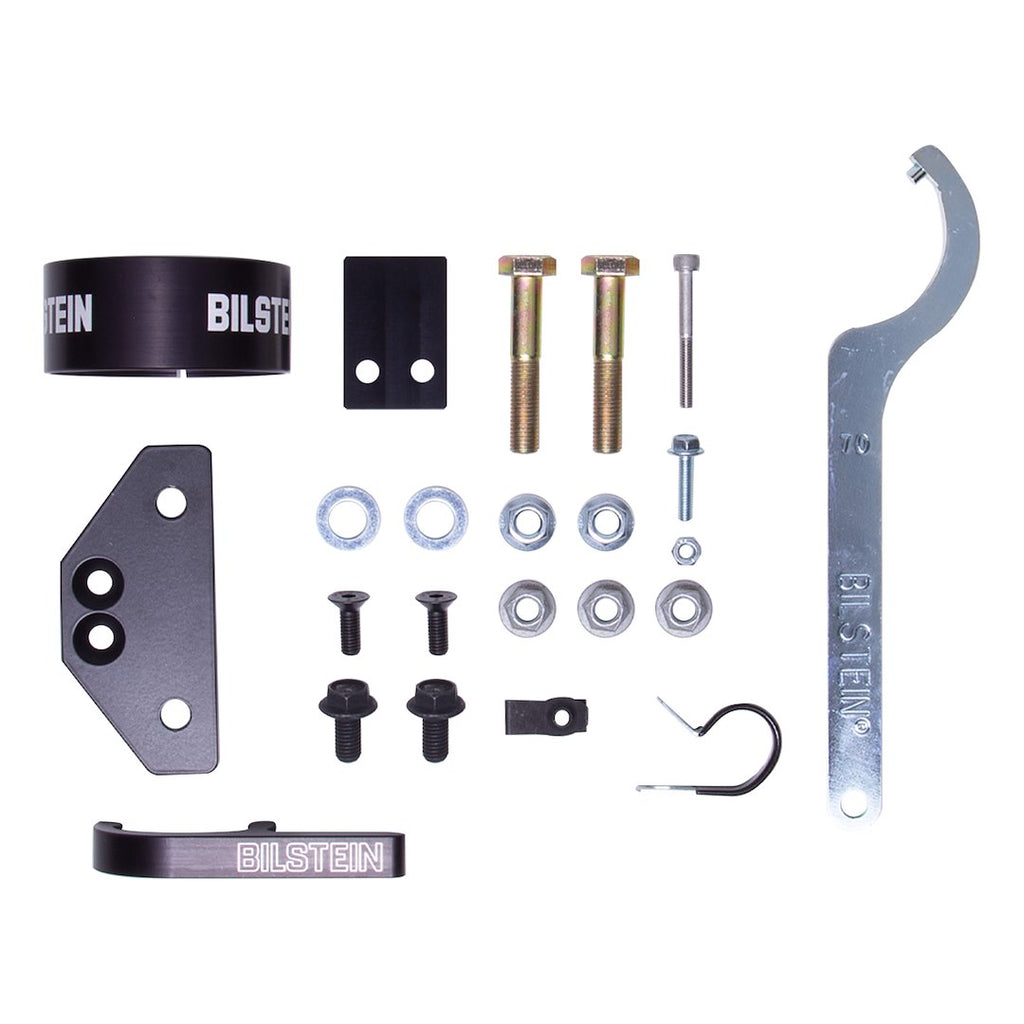

- Coilover Supplied As A Complete Module For Easy Installation: Spring Is Pre-Loaded To The Factory Recommended Ride Height
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 41-314227
- Adjustable: Yes
- Upper Mounting Type: Special
- Lower Mounting type: Crossbar
- Front/Rear Drop (IN): 0 To 3 Inch
- Extended Height (IN): 23.4 Inch
- Compressed Height (IN): 17.59 Inch
- Quantity: Single
- Valving Type: 3 Stages Of Compression And 2 Stages Of Rebound Valving
- Shock Type: Monotube
- Shock Body Color: Gray
- Shock Body Material: Aluminum
- Spring Color: Black
Compatibility / Fit
- 2021-2026 Ford Bronco
Technical Documents
- E-WM05-0000013_1.pdf
- warranty_all_v4.2.pdf
- B8_8112_Flyer.pdf
- USA_SDS_Shock_Air_Spring_V2_EN.pdf
- USA_SDS_Shock_Air_Spring_V2_EN.pdf
