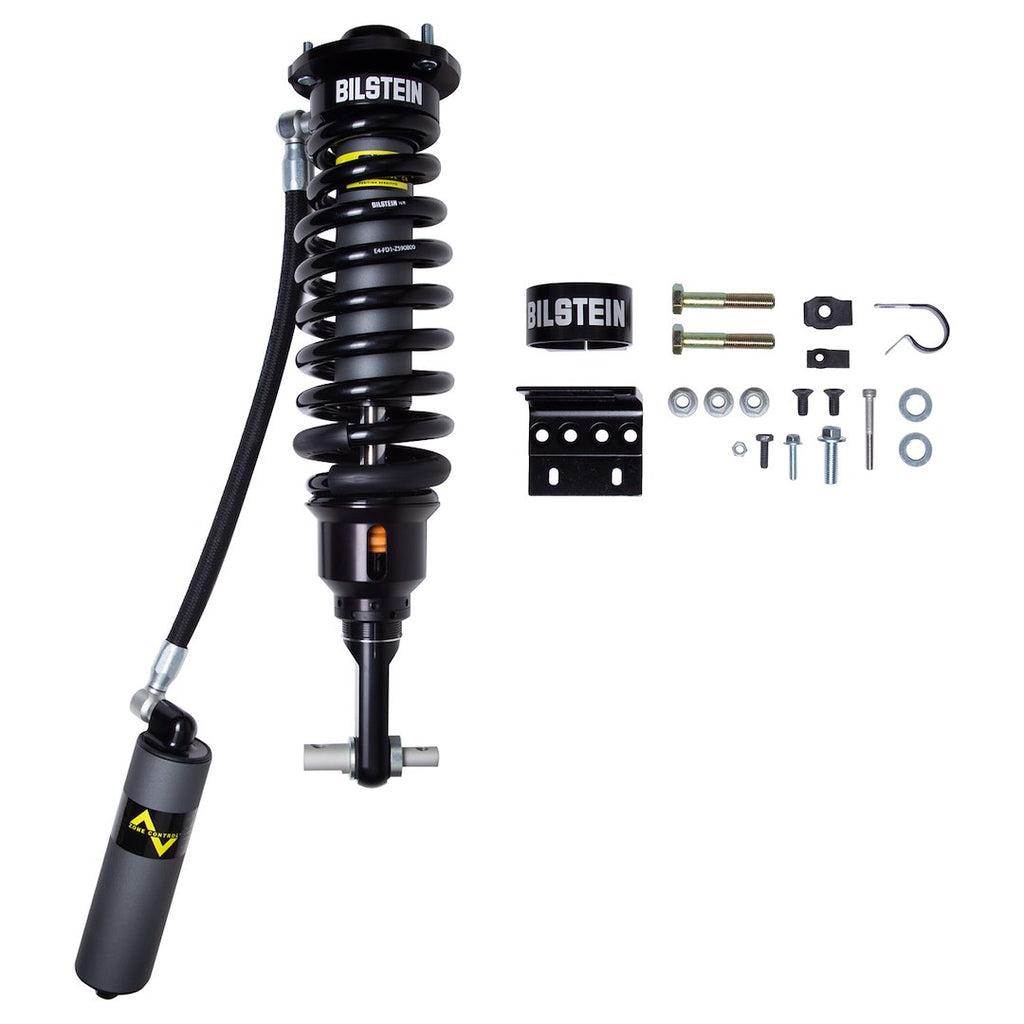

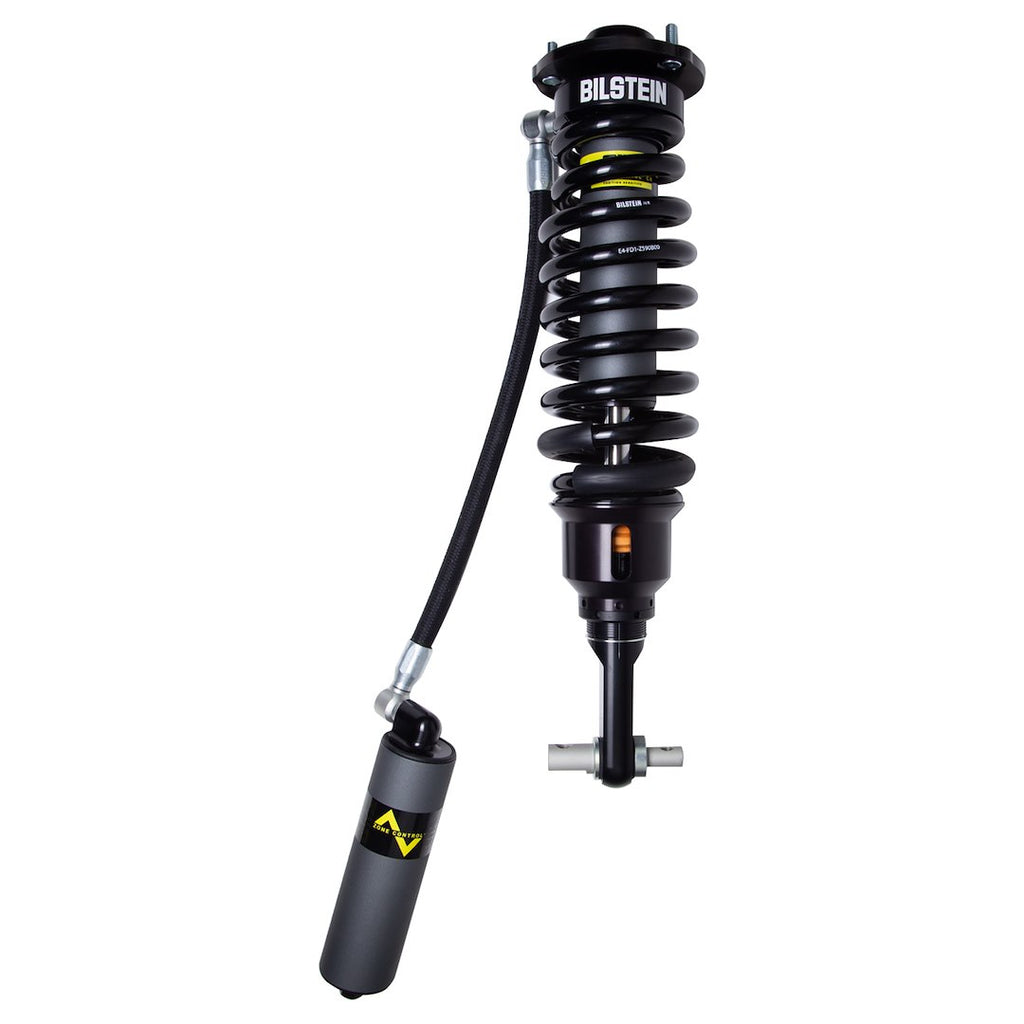

Bilstein B8 8112 ZoneControl CR Coilover (MPN: 41-326701)

Advanced suspension technology for enhanced ride comfort and control.

The Bilstein B8 8112 ZoneControl CR coilover shock absorber is engineered for light trucks and SUVs, providing a direct fit with advanced suspension capabilities. This system features a triple piston design that incorporates 3 stages of compression valving and 2 stages of rebound valving, ensuring optimal performance across various driving conditions. The adjustable ride height allows for customization ranging from 0 to 3.8 inches, accommodating different vehicle setups and preferences.

Equipped with a 60 millimeter remote reservoir, the B8 8112 enhances oil capacity and cooling efficiency, which contributes to improved damping performance. The coilover is constructed from aerospace quality components, specifically designed to optimize wheel travel and clearance for each vehicle application. This ensures a factory rebuildable unit that maintains its performance over time.

The complete coilover module is supplied with a pre-loaded spring set to the factory recommended ride height, facilitating straightforward installation. With its unique design and tuning, the Bilstein B8 8112 ZoneControl CR coilover provides an exceptional driving experience, balancing comfort and control for everyday driving and demanding conditions.

Features

• Triple Piston Design Delivers Comfort During Every Day Driving Conditions And Maximum Control Under Large Suspension Inputs

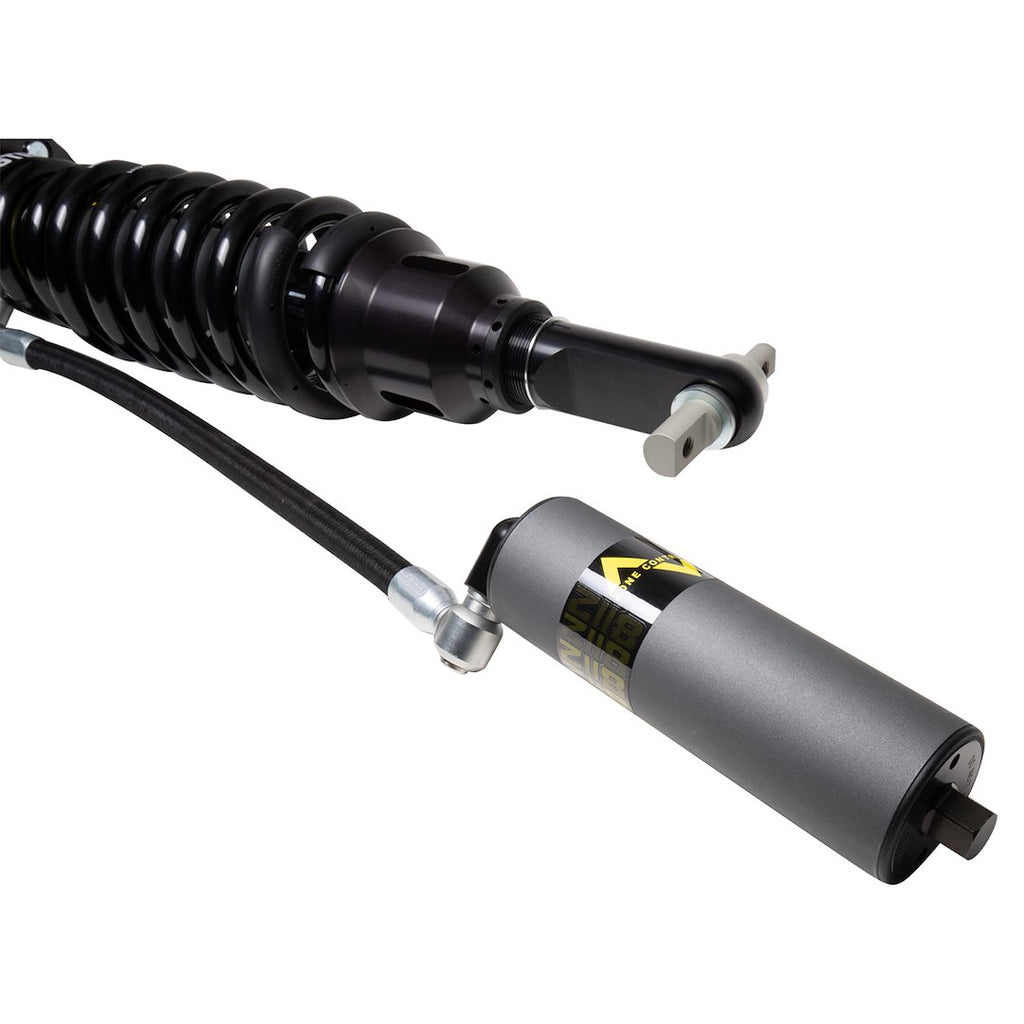

• 60 Millimeter Remote Reservoir For Increased Oil Capacity And Cooling
• Aerospace Quality Components Are Vehicle Specific To Optimize Wheel Travel And Clearance
• Factory Rebuildable
• Vehicle Specific Design And Tuning Provides The Ultimate Driving Experience
• Coilover Supplied As A Complete Module For Easy Installation: Spring Is Pre-Loaded To The Factory Recommended Ride Height

Specifications

• Manufacturer: Bilstein
• Manufacturer Part Number: 41-326701
• Adjustable: Yes
• Upper Mounting Type: Special
• Lower Mounting type: Crossbar
• Front/Rear Drop (IN): 0 To 3.8 Inch
• Extended Height (IN): 23.22 Inch
• Compressed Height (IN): 18.45 Inch
• Quantity: Single
• Valving Type: 3 Stages Of Compression And 2 Stages Of Rebound Valving
• Shock Type: Monotube
• Shock Body Color: Black
• Shock Body Material: Steel

Compatibility / Fit

• 2015-2026 Ford F-150
